HiVisionTech HF-406 Install & User's Manual

Hd-cctv dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

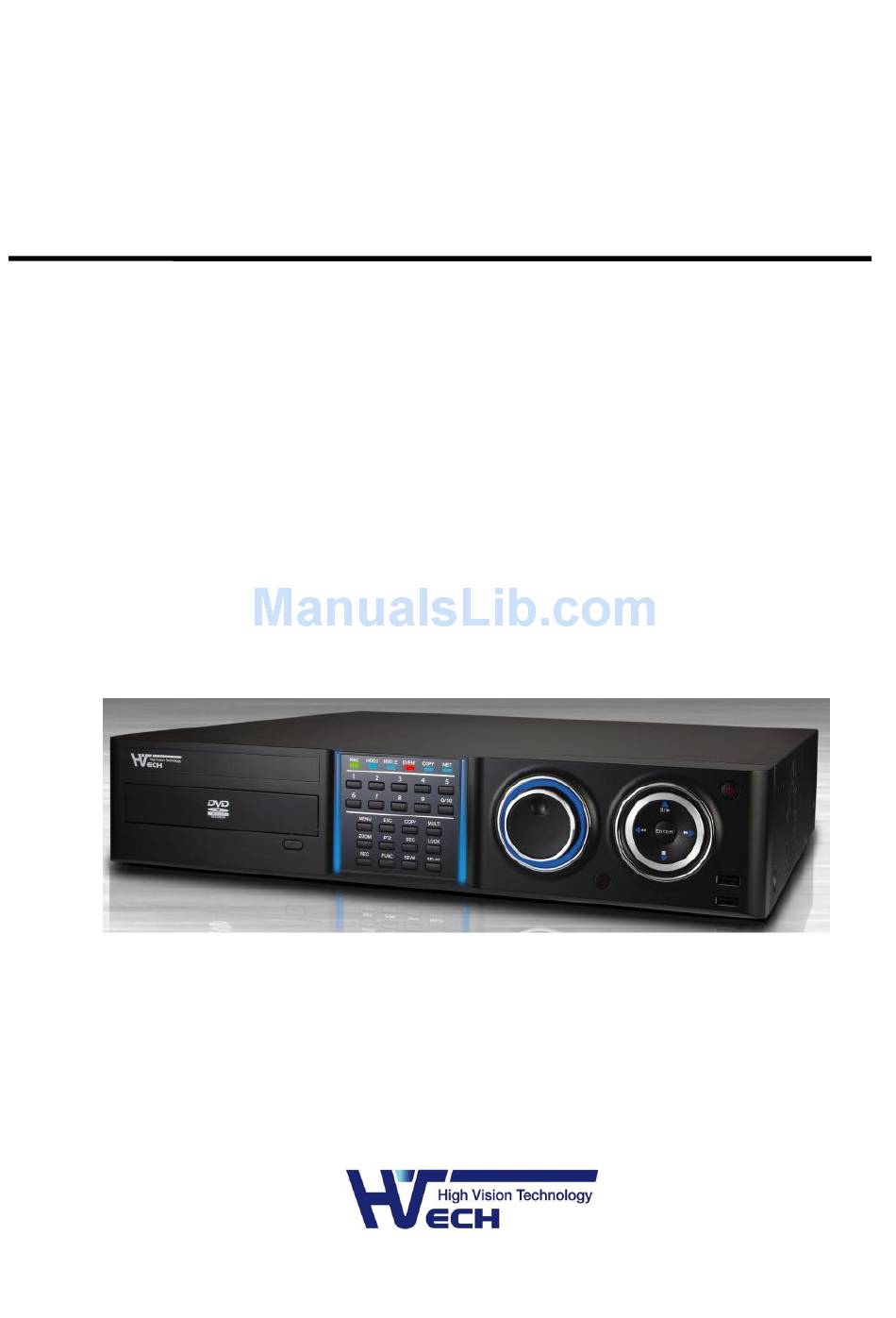

HD-CCTV DVR
Full HD Digital Video Recoder
(Model : HF-406, HF-812, HF-1612 )
Install & User Guide (EN Rev.1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF-406 and is the answer not in the manual?

Questions and answers

Summary of Contents for HiVisionTech HF-406

  • Page 1 HD-CCTV DVR Full HD Digital Video Recoder (Model : HF-406, HF-812, HF-1612 ) Install & User Guide (EN Rev.1.0)
  • Page 2 HD-SDI DVR HF-406 / 812 / 1612 HD-CCTV DVR Install & User Guide HD-CCTV DVR Manual. Thank you for purchasing a High Vision Tech Digital Video Recorder. Before installation or operation please become familiar with the user manual and other referenced manuals mentioned in the booklet.

  • Page 3: Introduction

    HD-SDI DVR HF-406 / 812 / 1612 1. Introduction 1.1 Warning Warning √ Please do not bend or press power cord by force which could lead to fire. √ Be careful not to pull. √ Do not pull power cord by force or with wet hands to avoid fire or electric shock.

  • Page 4: Table Of Contents

    HD-SDI DVR HF-406 / 812 / 1612 INDEX 1. Introduction ......................................2 1.1 Warning ......................................2 1.2 KEY FEATURES ....................................5 1.3 Accessories ..................................... 8 1.4 Description & Function ................................9 1.5 Remote Controller..................................10 2. Installation......................................12 2.1 Before Installation ..................................12 2.2 RACK installation ..................................12...
  • Page 5 HD-SDI DVR HF-406 / 812 / 1612 7.3 Device Set up ....................................57 7.4 Event Set up ....................................61 7.5 Recording Set up ..................................68 8. Web Viewer ......................................71 8.1 System requirement .................................71 8.2 Installation ....................................71 8.3 Login ........................................72 8.4 Video Recording & Save ...............................75 8.5 Using PTZ ......................................75...

  • Page 6: Key Features

    HD-SDI DVR HF-406 / 812 / 1612 1.2 KEY FEATURES FULL HD image supports The product supports live monitoring and playback for HD-SDI high quality video of 1080p (1920x1080) / 720p SD : D1 (1280x720) resolution. Max 240 frames per second can...

  • Page 7: Monitoring Screen

    HD-SDI DVR HF-406 / 812 / 1612 HD-SDI transmission The product can transfer HD (High-Definition) signal image using HD-SDI technology via coax cable. Please be noted that this product doesn’t accept SD signal. The supportable resolution is as below. √ Transmission method : SMPTE 292M(HD-SDI) √...
  • Page 8 HD-SDI DVR HF-406 / 812 / 1612 Save and Backup Internal HDD is supplied and image can be copied to DVD-R, CD-R, USB memory at user’s choice. √ Various backup device supports : DVD-R, USB memory √ HDD external unit (Expended external storage device) : Storage capacity extended via e-SATA HDD...

  • Page 9: Accessories

    HD-SDI DVR HF-406 / 812 / 1612 1.3 Accessories Check if below items are included. Remote Controller Mouse Battery Rack Bracket & Screw Screw for HDD installation AC code SW & Manual CD Quick Guide User’s Manual...

  • Page 10: Description & Function

    HD-SDI DVR HF-406 / 812 / 1612 1.4 Description & Function 1) Front Category Function DVD-Multi for backup Back up use for recorded data by DVD/CD media Jog / shuttle Playback direction change and speed control. Channel button Select channel by touch during live and playback .

  • Page 11: Remote Controller

    HD-SDI DVR HF-406 / 812 / 1612 In/Out port name Function Power connector Socket for AC100V~AC240V power cord.. Sensor IN Input for external sensor. Relay Relay Connection terminal. COM2,3 RS-485 device connection RS-485 termination Set RS-485 termination Ground Ground between DVR & external device.
  • Page 12 HD-SDI DVR HF-406 / 812 / 1612 RELAY ON BACKUP Alarm ON manually No use LOCK Lock monitor screen Select Remote ID COPY RELAY OFF Save record data into USB or CD/DVD Alarm OFF manually SEARCH Auto screen switch Display search menu...

  • Page 13: Installation

    HD-SDI DVR HF-406 / 812 / 1612 2. Installation 2.1 Before Installation DVR is high quality security device having large capacity of HDD and important circuits. So any high temperature occurred internally could make DVR work abnormally so please read through below installation advice before installation.

  • Page 14: Hdd Installation

    HD-SDI DVR HF-406 / 812 / 1612 2.4 HDD installation Loosen a bracket screw from DVR. Push HDD bracket to the marked direction to separate it from fixed position. Lift HDD bracket out of bottom of DVR. Insert HDD into bracket and engage 4 screws to hold HDD.

  • Page 15: Add Hdd

    HD-SDI DVR HF-406 / 812 / 1612 Install HDD bracket with HDD into DVR then hold it with screw to fix it to the bottom part of DVR. <Note> Socket arrangement of SATA cable in main b’d is as follows.

  • Page 16: Connecting Other Devices

    HD-SDI DVR HF-406 / 812 / 1612 3. Connecting other devices 3.1 Basic connections 1) Connecting monitor Check resolution of monitor before connection. √ HDMI port : 1920 x 1080p ( HDMI v1.2 Standard ) √ VGA port : 1920 x 1080p CVT-RB ( VESA Standard ) <Note>...
  • Page 17 HD-SDI DVR HF-406 / 812 / 1612 3) Recommended cable <Note> √ Transmission distance will be various based on reduction rate of 750MHz (Reduction rate of dB/100m < 25dB is recommended). √ Foamed or high-foamed trishield cable is recommended. √ Please refer to KSC-3617, (5C-FBT), RG-6/U for recommended cable.

  • Page 18: Connecting External Device

    HD-SDI DVR HF-406 / 812 / 1612 3.2 Connecting external device 1) Connecting USB Device USB port can be used for copy of recorded data and for mouse. USB Device spec will not be over following specification. USB Spec. Ver2.0...

  • Page 19: Connecting And Configuring Dio Ports

    HD-SDI DVR HF-406 / 812 / 1612 2) Set ID setup Use Rotary Switch to setup ID. Different ID is required when over 2ea Network Storage are connected. √ Used driver to setup ID value. √ 100x is for ID value for unit 100, 10x for ID value for unit 10, 1x for ID value for unit1.
  • Page 20 HD-SDI DVR HF-406 / 812 / 1612 2) Inserting & removing wire To insert & remove wire in Terminal Block, use a screw driver in the diagram like below. 3) Connecting sensor - Spec In order to run sensor input DVR normally, the following conditions are required.
  • Page 21 HD-SDI DVR HF-406 / 812 / 1612 - Connecting relay Connect R1 ~ R4 with referring to the following images, it shows to connect a warning light. Please refer the “Wire Handling” 5) Connecting COM1 serial port with external devices - Text input device connection (ATM / POS / Access Control) Using COM1/RS232, TEXT DATA can be recorded with synchronizing POS/ATM.
  • Page 22 HD-SDI DVR HF-406 / 812 / 1612 - Connecting Serial Port for Transparent device This is function to support direct connection between serial port of PC and COM port of DVR and this is for development of Application throughout SDK.
  • Page 23 HD-SDI DVR HF-406 / 812 / 1612 - Configuration using 2 serial ports In case user use 2 serial ports, user can control PTZ(DOME) using Keyboard by connecting PTZ(DOME) and Keyboard device to COM2 and COM3. The below diagram represents configuration of multi DVRs with PTZ(DOME). To control PTZ(DOME) using keyboard, please select DVR ID then select camera for control.
  • Page 24 HD-SDI DVR HF-406 / 812 / 1612 - Configuration using 1 serial port In case user use 1 serial port, user can connect either of PTZ(DOME) or Keyboard to one of COM2 or COM3 so user can select PTZ(DOME) throughout keyboard. And user can select controllable connection device based on COM port setup of DVR.

  • Page 25: Usage

    HD-SDI DVR HF-406 / 812 / 1612 4. Usage 4.1 Menu structure Press [MENU] key in front panel or press [Main Menu] button to get into setup menu. MAIN MENU SUB MENU SETTING 1) Main menu: The selected tab is shown in bright color and the related sub-menu will be shown left- below the tab.

  • Page 26: Basic Setting

    HD-SDI DVR HF-406 / 812 / 1612 looking for and press [Enter] or click the mouse. If need to delete a word press [], spacing words press [] button. To exit from dialogue box, press [Enter] or click [Enter] button 4.2 Basic Setting...
  • Page 27 HD-SDI DVR HF-406 / 812 / 1612 option and additionally the user can configure the daylight saving option manually for the counties that were not applied, and in this case, you can use “Custom” option to set. The second is for selecting a month, week, and day to define the start and end times of DST.
  • Page 28 HD-SDI DVR HF-406 / 812 / 1612 3) Record Setting MENU  RECORD  RECORD - Continuous Recording : Continuous or Event recording starts automatically once DVR boots based on Program setting value. - Manual Recording : Manual record can be configured in “Program”...

  • Page 29: Use Of Input/Output Devices

    HD-SDI DVR HF-406 / 812 / 1612 4) Program Recording MENU  RECORD  PROGRAM Please setup resolution, frame rate or picture quality of each individual camera per channel in “Program menu” of record setup. (Please refer to “record menu” for further explanation) <Reference>...
  • Page 30 HD-SDI DVR HF-406 / 812 / 1612 [AVI Copy] [Select channel to copy] 2) Sensor Setting MENU  EVENT  SENSOR - All Sensor : It is used when setting for all sensors and set “Off”, or Normal Open (N.O.) / Normal Close (N.C.) type.
  • Page 31 HD-SDI DVR HF-406 / 812 / 1612 4) Serial Setting MENU  DEVICE  SERIAL From serial setting, you can set protocol, port, baud rate, parity bit, stop bit and data bit. After completed serial setting, select desired channel from camera menu, and setting up PTZ Home, PTZ Idle Time, PTZ Port, and PTZ address.,...

  • Page 32: Hdd Use

    HD-SDI DVR HF-406 / 812 / 1612 Configure relevant text information. <Reference> Since external device cannot be recognized, before installing referred back to Vendor. 4.4 HDD Use ※ Please, ask to distributor or manufacturer for available HDD list. 1) HDD Registration & Format MENU ...

  • Page 33: Remote Monitoring & Control

    HD-SDI DVR HF-406 / 812 / 1612 <Note> HDD Re-using (Add Used) You can use HDD that has been used before from DVR, in this case you do not need to do format and delete the data. How to use it? Please install previous HDD in the DVR, and go to “Disk Manager” menu and select the HDD that you wish to re-use which is you just installed HDD, and press “Enter”...
  • Page 34 HD-SDI DVR HF-406 / 812 / 1612 - PPPoE Change type for Network menu into xDSL then go to xDSL menu. Change Port in Ethernet (User needs to remember Port). Enter ID and Password assigned from PPPoE registration in xDSL menu.

  • Page 35: Menu Usage

    HD-SDI DVR HF-406 / 812 / 1612 5. Menu Usage 5.1 Menu Structure The menu structure will be shown like below image, and each menu setting method is described in explanation of set items. 1) Function Menu To run Function menu, please, click the right button of mouse in live monitoring or playback status or push “Func”...

  • Page 36: Monitoring

    HD-SDI DVR HF-406 / 812 / 1612 5.2 Monitoring 1) Login Screen DVR will turn on automatically once user connects power to DVR. All LEDs are turn on and off in order when DVR boots up. The basic screen will be black with login window pops up.
  • Page 37 HD-SDI DVR HF-406 / 812 / 1612 4) Auto Switch Mode (Sequence) Auto switch screen mode is a feature in which the selected channel or multi screen division switches in order. According to configured time interval. Max. The 16 channels or multi screen division can be configured and the time interval will be 1~60 seconds.
  • Page 38 HD-SDI DVR HF-406 / 812 / 1612 7) Pause Live Screen Live screen can pause like Playback. Press ll(PAUSE) to pause live screen and press ll(PAUSE) to return live screen. 8) PTZ Control Connect PTZ controller to DVR and set relevant protocol from “Serial”...

  • Page 39: Search & Playback

    HD-SDI DVR HF-406 / 812 / 1612 6. Search & Playback 6.1 Playback 1) Playback with Basic Screen Press [PLAY] button in monitoring mode or mouse click play button in Function menu to playback If [PLAY] button is pressed, the last playback will run at 1x speed.

  • Page 40: Search Mode

    HD-SDI DVR HF-406 / 812 / 1612 6.2 Search Mode This menu is to playback specific time data from the time frame and searching log at Playback mode. Press Search button on the front panel or click in Function menu. There are Time, Calendar, Event, Thumbnail mode.

  • Page 41: Copy

    HD-SDI DVR HF-406 / 812 / 1612 3) Event Search Users can search by all channels, some channels, all events, motion detection, and sensor in certain range. Search result will be displayed on additional event window. Select search list to start playback.
  • Page 42 HD-SDI DVR HF-406 / 812 / 1612 1) DVD Users can make a copy in to DVD. The Data and Mini Player, can play back the data is copy on the DVD media after selecting channel/time and starting back up. It is required to insert media before starting back up since DVR distinguishes type of DVD media just about to start back up.

  • Page 43: Configuration

    HD-SDI DVR HF-406 / 812 / 1612 7. Configuration 7.1 System Set up Time, disk, and authorization can be configured. 1) Date/Time MENU  SYSTEM  DATE/TIME Time set should be configured prior to the recording. Time configuration is very important to protect the recording data.
  • Page 44 HD-SDI DVR HF-406 / 812 / 1612 2) NTP Set up MENU  SYSTEM  DATE/TIME  NTP NTP (Network Time Protocol) synchronizes the time of all connected device. To set DVR time to standard time open server which offers standard time on the network and client which is connected to open server to receive time and synchronize it with standard time.
  • Page 45 HD-SDI DVR HF-406 / 812 / 1612 3) Disk MENU  SYSTEM  DISK It explains how to add or remove or format internal or external HDD. - Over Write (Auto Deletion) If there is no space in HDD, old data will be deleted automatically.
  • Page 46 HD-SDI DVR HF-406 / 812 / 1612 4) Disk Manager MENU  SYSTEM  DISK  DISK MANAGER This is menu for the management of internal or external HDD. Manage status, bad block, size, Yes or No etc. Name Description Type Display location or type of disk.
  • Page 47 HD-SDI DVR HF-406 / 812 / 1612 5) Disk Status MENU  SYSTEM  DISK  DISK STATUS Temperature and status of HDD installed in system will be shown. Name Description Temp (C) Represents Celsius temperature for HDD Temp (F) Represents Fahrenheit temperature for HDD S.M.A.R.T...
  • Page 48 HD-SDI DVR HF-406 / 812 / 1612 ① HDDs will be set like the above. ② Recording data of HDD-3 is mirroring with HDD-1 and recording data of HDD-4 is mirroring to HDD-2 ③ If there are 4 ea of HDDs are mounted on DVR and starts recording, HDD-4 will start recording.
  • Page 49 HD-SDI DVR HF-406 / 812 / 1612 <Note> 1. For Mirroring function, HDDs capacity and model for Recording and Mirroring should be same. If not, it won’t work. But, in case that HDD capacity is same but just different model, sometimes, it cannot work properly.
  • Page 50 HD-SDI DVR HF-406 / 812 / 1612 - Mirroring HDD Replacement MENU  SYSTEM  DISK  DISK REPLACE If Mirroring HDD free space becomes 0%, on DVR console screen, alarm pop-up message will be shown for Mirroring HDD replacement. This time, user can check Mirroring HDD free space in Disk Replace menu and user can replace it if user wants to continue mirroring using new HDD after taking off old mirroring HDD.
  • Page 51 HD-SDI DVR HF-406 / 812 / 1612 7) User Setup MENU  SYSTEM  USER SETUP The user and administrator can use all functions. The maximum number of users is 10 people. Each user can use the functions permitted. - Current User Displays current user loged in - ID &...
  • Page 52 HD-SDI DVR HF-406 / 812 / 1612 - Auto Log out System supports Auto logout if log-in user is no further action during the certain time. It can be configure 1min to 60 min and admin and user can control it.
  • Page 53 HD-SDI DVR HF-406 / 812 / 1612 - System Log Please, use up and down button of the front panel for scrolling and left and right button for page shift. - Factory Reset Change all configuration value by factory default.

  • Page 54: Network

    HD-SDI DVR HF-406 / 812 / 1612 7.2 Network MENU  NETWORK  NETWORK This is menu for configuring network - Type Configure type of Network (Ethernet/xDSL). If connected to cable modem or Lan directly to DVR, configure by “Ethernet”.
  • Page 55 HD-SDI DVR HF-406 / 812 / 1612 ③ Configure DVR port of DVR(A) and DVR(B) as 81 and 82 individually. ④ Configure UPnP function of Internet Sharing Device as “ON” ⑤ Configure UPnP Port Forwarding function of DVR as “ON”.
  • Page 56 HD-SDI DVR HF-406 / 812 / 1612 3) WRS MENU  NETWORK  WRS If DVR is connected to Cable modem or xDSL modem, IP address is changed at every connection to ISP. In this case, changed IP address cannot be known. If DVR using static IP register into WRS server, frequently changed IP address can be known easily when it connects to DVR.
  • Page 57 HD-SDI DVR HF-406 / 812 / 1612 - To set Radius, Status, IP Address, Port should be set. - Set ‘Enable’ the status to use Radius and enter ‘Radius Server IP’ to IP Address. - Standard port to use is 1812 and specific port number which is from Server is also useable.

  • Page 58: Device Set Up

    HD-SDI DVR HF-406 / 812 / 1612 7.3 Device Set up In Device setup, user can configure camera, monitor, audio, text, serial which are connected to DVR 1) Camera Set up MENU  DEVICE  CAMERA This menu is to configure option for each camera. User can configure setting of each camera like [Title], [Status], [PTZ], etc.
  • Page 59 HD-SDI DVR HF-406 / 812 / 1612 2) Monitor Set up MENU  DEVICE  MONITOR This menu is to configure option for Monitor - Event Pop up If specific channel uses MD, Sensor Input, it makes the relevant channel popup as single or multi screen.
  • Page 60 HD-SDI DVR HF-406 / 812 / 1612 - User sequence Configuration This menu is to edit function of user sequence configuration. User can configure 16 sequence modes and it is available to set from 1 to 60 seconds. In Sequence mode, users can configure channel or division mode and sequence time from 5 to 60 seconds.
  • Page 61 HD-SDI DVR HF-406 / 812 / 1612 - Audio Gain Input Audio Gain can be adjusted. If output value of input Audio is weak, adjust as + and – in the corresponding case properly. - Audio Output Mixing Select Audio for output.

  • Page 62: Event Set Up

    HD-SDI DVR HF-406 / 812 / 1612 5) Serial Set up MENU  DEVICE  SERIAL DVR has 3 serial ports. One is RS-232C(D-Sub) and the other 2 ports are RS-485(Terminal). - Serial Port Select Serial port to use among 3 COM Ports - Device Select Device connected to DVR serial port.
  • Page 63 HD-SDI DVR HF-406 / 812 / 1612 - How to configure If configuring item, weekday & time, they are displayed on the table. If clicking and selecting start time and end time of recording on the table, weekday, time will be shown on the table.
  • Page 64 HD-SDI DVR HF-406 / 812 / 1612 - System Event source System Event source can configure Bad block, Disk full, Fan error, authorization failure, WRS registration failure, Mirroring Disk Full, Power on, & Abnormal recording stops. - Relay 1~4 Event notification will be achieved throughout relay 1~4 as much as user set duration time.
  • Page 65 HD-SDI DVR HF-406 / 812 / 1612 - FTP Image Backup The DVR sends 1 video image per event to a FTP server when an event occurs. • FTP Uploading ① It makes FTP function On or Off. ② To use FTP sending function, select ‘Normal Event’.
  • Page 66 HD-SDI DVR HF-406 / 812 / 1612 - Twitter Synchronization Twitter can be connected to send a single image or a text message of an event triggered on a channel. • Twitter Action Duration This menu allows you to setup the transmission duration of the Twitter feed.
  • Page 67 HD-SDI DVR HF-406 / 812 / 1612 2) Motion Detection MENU  EVENT  MOTION The Motion detection can be used to notify user of detected motion on each channel or all channel. - Channel Configure All or each channel.
  • Page 68 HD-SDI DVR HF-406 / 812 / 1612 3) Sensor MENU  EVENT  SENSOR This menu is to setup the existing sensor input and the type of sensors. Users can configure sensor by each channel. If sensor is selected as All, N.O, or N.C. it is applied to all channels.

  • Page 69: Recording Set Up

    HD-SDI DVR HF-406 / 812 / 1612 7.5 Recording Set up There are 4 modes for recording – schedule recording, manual recording, Continuous Recording, and Event Recording. Schedule Recording records automatically in accordance with the configured schedule and Manual Recording records via pushing “REC” button.
  • Page 70 HD-SDI DVR HF-406 / 812 / 1612 - Schedule Recording It records according to the programmed schedule automatically. Make recording mode Schedule & Event and configure day and time. Check and select each program default value and select one of 9 programs from A to I. User can not set two different program to one schedule.
  • Page 71 HD-SDI DVR HF-406 / 812 / 1612 <Reference> If user wants to use Event recording only, please, set frame rate as 0fps and enter frame rate for Event recording. • Event applied time To make event record user needs to setup record time for pre and post event. Event record range will be set based on time set by user.

  • Page 72: Web Viewer

    HD-SDI DVR HF-406 / 812 / 1612 - Rec. Res It shows resolution for each recording channel. The DVR will automatically record in 720p or 1080p determined by the video input. - F (FPS) FPS (frames per second) users can select 1 to 30fps per second. Max. Frame can be changed according to the configuration.

  • Page 73: Login

    HD-SDI DVR HF-406 / 812 / 1612 8.3 Login 1) Login After inputting an IP address that is set to the system, the WebViewer Login page will be connected. Examples of input method in address box are http://192.168.1.100 as IP address type or www.addresstest.com...
  • Page 74 HD-SDI DVR HF-406 / 812 / 1612 4) Screen division and changing video position When accessing the first monitor page, it is displayed into 9 divisions, 16divisions or 32 divisions according to number of channel. - It can to change to 1, 4, 9, 13, 16, 25, 36 divisions by clicking the number on top of page.
  • Page 75 HD-SDI DVR HF-406 / 812 / 1612 7) Sensor Indication The icon indicates when sensor occurs in system When it sensors, relevant sensor icon comes to Red, and indicates sensor number of video. When sensor is not triggered, icon keep as blue.

  • Page 76: Video Recording & Save

    HD-SDI DVR HF-406 / 812 / 1612 8.4 Video Recording & Save 1) Video Recording Select by clicking “Rec Start” in right button of Mouse after selecting channel user wants to record during monitoring. It can record max. 10 minutes of video During Quick Recording, recording time is indicated on video.

  • Page 77: Using Audio

    HD-SDI DVR HF-406 / 812 / 1612 2) Zoom, Focus Control Move mouse to the edge of left & right to see slide bar for Zoom, Focus. The unit Area Zoom In available has Zoom Zero operating button. It can zoom in/out using slide bar at left of image, left slide bar can control Focus.

  • Page 78: Playback

    HD-SDI DVR HF-406 / 812 / 1612 8.7 Playback This page is to playback recorded images, and user who has authority of ‘HDD’ among user ID or administrator can use this function. Playback that is made up 16 divisions can play the images by searching through colander by recording period and moving the period.
  • Page 79 HD-SDI DVR HF-406 / 812 / 1612 3) Print - Select image with mouse for the channel to print image saved, and then click ‘Print’ button - Window comes to input Memo, and click ‘OK’ button to print the image through the printer connected.
  • Page 80 HD-SDI DVR HF-406 / 812 / 1612 Recorded date is enabled in black color, and others unrecorded date disabled in grey. Click [Go to] button after select date & time so as to playback images on the date & time selected.

  • Page 81: Java Viewer

    HD-SDI DVR HF-406 / 812 / 1612 9. JAVA Viewer Java viewer is a web viewer to use in Java. Java should be installed in login screen to use Java viewer. - After an installation of Java manually, select “Java” in below of Password window and login.

  • Page 82: Appendix

    HD-SDI DVR HF-406 / 812 / 1612 11. Appendix 11.1 Trouble Shooting [FAQ] Trouble & symptom Way to Solve No system power and LED in front Check the power of system panel doesn’t work at all Check power voltage in out Check or replace power supply if power doesn’t turn on after...
  • Page 83 HD-SDI DVR HF-406 / 812 / 1612 No response in Live screen even Check if connected protocol and other configuration is set [PTZ] button is pressed correctly for PTZ camera in Menu -> Network -> Remote Device External HDDs are not recognized It takes time to be recognized multiple external HDDs.

  • Page 84: Compatible Hdd

    HD-SDI DVR HF-406 / 812 / 1612 11.2 Compatible HDD Please ask to seller about HDD compatible with DVR. 11.3 Compatible CD/DVD list DVD-R Manufacturer Mitsubishi( x 16 recommended) TDK( x 16 recommended) Imation( x 16 recommended) SONY ( x 16 recommended) 11.4 Support PTZ &...

  • Page 85: Factory Default

    HD-SDI DVR HF-406 / 812 / 1612 11.5 Factory Default System Time Zone UTC 00:00 Dublin Daylight Saving Sync With NTP NTP Mode Client Date / Time NTP Function NTP Server Loc. Public NTP Local Server IP 0.0.0.0 Interval 1(hour)
  • Page 86 HD-SDI DVR HF-406 / 812 / 1612 CIF, 30fps, Q5 CIF, 30fps, Q5 CIF, 30fps, Q5 CIF, 30fps, Q5 Network Stream CIF, 30fps, Q5 CIF, 30fps, Q5 CIF, 30fps, Q5 CIF, 30fps, Q5 Band Width Limit(Mbps) User ID Guest xDSL...
  • Page 87 HD-SDI DVR HF-406 / 812 / 1612 Header 1 Header1 Header 2 Header2 Delimiter 0D0A Timeout(ms) 1000 Lines Serial Port COM1 Device None Interface RS232 Serial Baud Rate 9600 Parity Bit None Stop Bit Data Bit Event Event Check Always...

  • Page 88: Reset Value For Recording Program

    HD-SDI DVR HF-406 / 812 / 1612 11.6 Reset value for Recording Program Rec. mode Normal Event Item Rec. Res Rec. Res 1080p/720p Q7/Q5 1080p/720p Q7/Q5 1080p/720p Q7/Q5 1080p/720p Q7/Q5 1080p/720p Q7/Q5 1080p/720p Q7/Q5 1080p/720p Q6/Q4 1080p/720p Q6/Q4 1080p/720p Q6/Q4...
  • Page 89 HD-SDI DVR HF-406 / 812 / 1612 Network Stream Bandwidth Limit User ID Account Information xDSL Password Status Interval Connection Information Group Status Status Radius Connection Information IP Address Port Channel Number Status Camera Name Input Resolution Event Pop-up Info...

  • Page 90: Specification

    HD-SDI DVR HF-406 / 812 / 1612 11.8 Specification HF - 406 HF - 812 HF - 1612 Video input Video input standard SMPTE 292M (HD-SDI) Resolution / SMPTE 274M(720p, 1280x720) : 25/50,, 30/60, 29.97/59.54 fps Framerate SMPTE 296M(1080p, 1920x1080) : 25, 30, 29.97 fps...
  • Page 91 HD-SDI DVR HF-406 / 812 / 1612 Protocols 35 models including C1080, C1080PT-Z20, Pelco-D, Pelco-P, Samsung and Panasonic Network Interface 10/100 Ethernet Type Fixed IP, Floating IP, xDSL supported Bandwidth Limit supported Server/Client/Both Users 10 monitoring, 2 playback Streaming 1 HD H.264 same as recording 1 additional H.264 smaller than recording...

  • Page 92: Product Dimension

    HD-SDI DVR HF-406 / 812 / 1612 11.9 Product Dimension...
  • Page 93 HD-SDI DVR HF-406 / 812 / 1612 Open Source License Report on copy, distribute and/or modify the software. the Product Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software.
  • Page 94 HD-SDI DVR HF-406 / 812 / 1612 Program, and can be reasonably considered independent and further restrictions on the recipients' exercise of the rights granted separate works in themselves, then this License, and its terms, do herein. You are not responsible for enforcing compliance by third not apply to those sections when you distribute them as separate parties to this License.

  • Page 95: Gnu General Public License

    HD-SDI DVR HF-406 / 812 / 1612 SERVICING, REPAIR OR CORRECTION. This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR...

  • Page 96: Terms And Conditions

    HD-SDI DVR HF-406 / 812 / 1612 program could make it effectively proprietary. To prevent this, the communication or control flow between those subprograms and GPL assures that patents cannot be used to render the program other parts of the work.
  • Page 97 HD-SDI DVR HF-406 / 812 / 1612 other way, but it does not invalidate such permission if you have “normally used” refers to a typical or common use of that class of separately received it. product, regardless of the status of the particular user or of the...
  • Page 98 HD-SDI DVR HF-406 / 812 / 1612 e) Declining to grant rights under trademark law for use of some predecessor in interest, if the predecessor has it or can get it with trade names, trademarks, or service marks; or reasonable efforts.
  • Page 99 HD-SDI DVR HF-406 / 812 / 1612 any implied license or other defenses to infringement that may OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF otherwise be available to you under applicable patent law. SUCH DAMAGES. 17. Interpretation of Sections 15 and 16.
  • Page 100 HD-SDI DVR HF-406 / 812 / 1612 this License. But first, please read General Public License therefore permits such linking only if the <http://www.gnu.org/philosophy/why-not-lgpl.html>. entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with GNU LESSER GENERAL PUBLIC LICENSE the library.
  • Page 101 HD-SDI DVR HF-406 / 812 / 1612 You may charge a fee for the physical act of transferring a copy, the source code from the same place satisfies the requirement to and you may at your option offer warranty protection in exchange distribute the source code, even though third parties are not for a fee.
  • Page 102 HD-SDI DVR HF-406 / 812 / 1612 For an executable, the required form of the "work that uses the generous contributions to the wide range of software distributed Library" must include any data and utility programs needed for through that system in reliance on consistent application of that reproducing the executable from it.
  • Page 103 HD-SDI DVR HF-406 / 812 / 1612 notice is found. "Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for one line to give the library's name and an idea of what it does.
  • Page 104 HD-SDI DVR HF-406 / 812 / 1612 within Derivative Works that You distribute, alongside or as an You may obtain a copy of the License at addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the http://www.apache.org/licenses/LICENSE-2.0...
  • Page 105 HD-SDI DVR HF-406 / 812 / 1612 PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED...
  • Page 106 HD-SDI DVR HF-406 / 812 / 1612 Permission to use, copy, modify, and distribute this software for Redistributions of source code must retain the above copyright any purpose with or without fee is hereby granted, provided that notice, this list of conditions and the following disclaimer.
  • Page 107 HD-SDI DVR HF-406 / 812 / 1612 All advertising materials mentioning features or use of this 1) Neither the Font Software nor any of its individual components, software must display the following acknowledgement: in Original or Modified Versions, may be sold by itself.
  • Page 108 HD-SDI DVR HF-406 / 812 / 1612 Manufacturer might service at user’s cost for following request made by customer. Customer notice  Please make regular schedule to check unit status (Daily check is recommended)  Manufacturer will not take any responsibility on the physical/human damage caused by robbery, natural disaster.
  • Page 109 Warranty Product name Digital Video Recorder Warranty term Model name HF406 / HF812 / HF1612 Date of purchase Year Month 2 years after purchase Warranty term Year Month Serial number Name Customer’s address Contact Name Address of shop (Company name) Contact ◈...
  • Page 110 HF-406, 812, 1612 HIGH VISION TECH Co.,Ltd #1210, Halla SigmaVally, 53 Gasan Digital 2-ro, Geumcheon-gu, Seoul, Korea 153-706 TEL : 02-6443-4850, FAX : 02-6443-4851 www.hivisiontech.co.kr...
