Summary of Contents for Blackberry CoolMIR V2

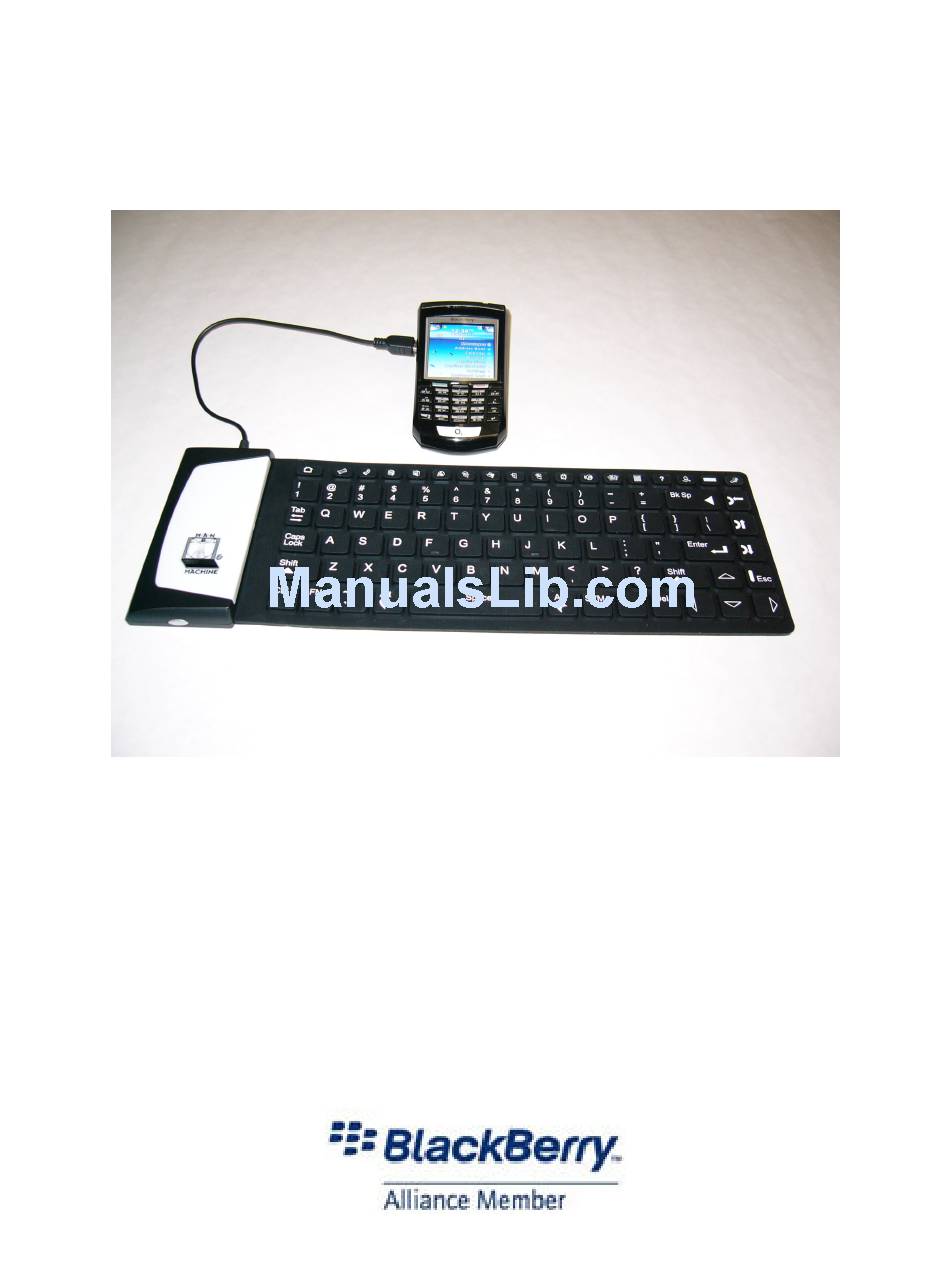

- Page 1 Cool Series BlackBerry Keyboard CoolMIR V2 User Manual and Installation Guide Version 2 Man & Machine, Inc.
- Page 2 PLEASE CHARGE THE COOLMIR KEYBOARD BATTERY FOR AT LEAST TWO HOURS BEFORE USE. CoolMIR uses the same charger cable as the BlackBerry . To charge the battery, plug the USB cable B- mini connector to the Mini USB Input Port on the CoolMIR and the A connector of the USB cable to your PC or AC adaptor (see Figure 12).
- Page 3 Dimensions: 330 mm x 114 mm x 13 mm 13” x 4.5” x 0.5” System requirements: Operating system 4.0 or higher BlackBerry 6210, 6220, 6230, 6280, Cable length: Approximately 0.3 m (12”) 6510, 7100g, 7100r, 7100t, 7100v, 7100x, 7100i, 7105t 7130e, 7210, 7230, 7270, Storage temperature: 7280, 7290, 7510, 7520, 8700r and 8700c.
-
Page 4: Installation Guide
Installation Guide You will need to have your BlackBerry software and the BlackBerry Desktop Manager loaded on your PC. You will need to download software to your BlackBerry using the RIM Desktop Manager in order to enable the CoolMIR keyboard 1. - Page 5 box disappears. The “Handheld Application Selection” window appears, displaying the applications that you can choose to download to your handheld. Figure 3. Handheld Application Selection Window Click on the “ADD” button. Drop down the “LOOK IN BOX” and select the floppy drive (A:) or the folder where the CoolMIR program is located and Double-click on the file “CoolMIR.ALX”.
- Page 6 PC properly. Then, repeat the above steps. Figure 6. The Loading Operation was successful Window 8. Go to your Blackberry unplug the Mini USB cable from the handheld. 9. To enable the CoolMIR software select the icon for the CoolMIR driver using the roller then click.
- Page 7 The CoolMIR page will come up. Figure 8. CoolMIR Home Page Click the roller and select “Turn On” from the menu then click the roller to turn on the software. Figure 9. CoolMIR Menu. 10. Plug the CoolMIR keyboard Mini USB cable into your handheld and turn the keyboard on by pressing the button on the left bottom of the keyboard.
- Page 8 Figure 11. CoolMIR in Use. Mini USB Input Port ON/OFF Button Figure 12. CoolMIR ON and OFF Button and Mini USB Input Port Positions. For technical support and questions: techsupport@mmimd.com Visit www.man-machine.com/coolmir once a month for software updates.
-
Page 9: Coolmir Symbols And European Key Combinations
CoolMIR Symbols and European Key Combinations Alt + Character § é £ € « » Ø Ç ° ă SYM + Character < << “ SYM + Character > >> ¬ “ & SYM + Character € ¥ £ · §... -
Page 10: Troubleshooting Your Coolmir
1.2 Make sure your software is turned on as shown in Step 9 of the Installation Guide. 1.3 Make sure CoolMIR Mini USB cable is connected to the Blackberry. If you still have a problem, turn off the CoolMIR keyboard and turn it back on. - Page 11 .cod files can be loaded onto the BlackBerry Wireless Handheld. CoolMIR driver uses this Event Injector API and is signed by RIM BlackBerry. • • • • Man & Machine, Inc. is a BlackBerry Alliance Member. You can verify this by going to https://www.blackberry.com/ThirdParty/searchProduct.jsp?compID=1000813&productID=1028441.
- Page 12 NEXT: a) Open the BlackBerry Handheld Configuration Tool. b) Click the Configuration tab. c) Click Add New Configuratrion. d) Fill out the Handheld Software Configuration Screen. i) Enter a name for the new configuration ii) Optionally fill in a configuration description...
- Page 13 Frigure 14. Handheld Software Configuration Screen Assign a software configuration to a user 1.In the Handheld Configuration Tool, in the left pane, click Handhelds. 2.In the User Name list, click the user to assign the software configuration to. 3.Click Assign Software Configuration. 4.Click the software configuration to assign.
- Page 14 Figure 14. Application Control Policy Screen Manage application control policies When an application control policy is changed, the application control policy is resent automatically to the handheld wirelessly. 1.In the Handheld Configuration Tool, in the left pane, click Software Configurations. 2.Click Manage Application Policies.
- Page 15 Figure 15 Handheld Configuration Tool.
-
Page 16: Federal Communications Commission (Fcc) Statement
Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
