Summary of Contents for Monitor Camera SpyPoint Tiny W3

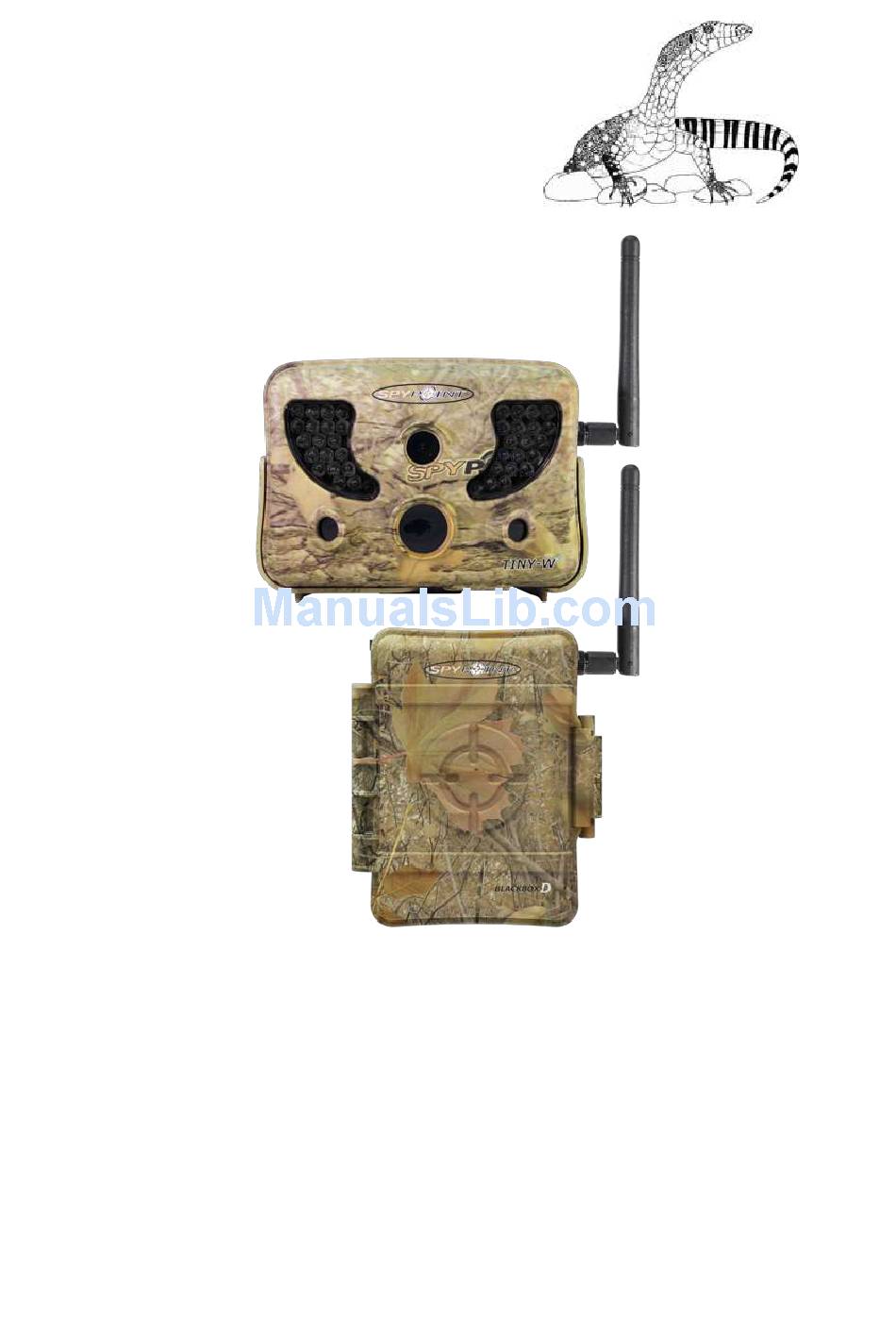

- Page 1 Monitor Cameras SpyPoint Tiny W3 and Blackbox User Guide...
- Page 2 Camera Blackbox Monitor Cameras PO Box 46 Meredith, Vic, 3333 www.monitorcameras.com.au...
- Page 3 Setting Up Install SD cards into both the camera and the Blackbox. Cards up to 32 GB can be used. If synchronising multiple cameras to the Blackbox, ensure a high capacity card is used. Install batteries into the camera and Blackbox as shown below. If using rechargeable batteries, ensure the devices battery choice is set to alkaline.
-
Page 4: Camera Menu
Camera Menu ↑ ↓ Turn on the camera by pressing the power button. Navigate in the menu by pressing and press OK ↑ ↓ for selection. To modify the selection, press again and press OK to confirm. To return to the previous menu press . - Page 5 View. When View is selected, the last recorded photo or video recorded appears on the screen ↑ ↓ automatically. Press to view next or previous images. Press OK to show options available in View mode. View Date/Time: To increase the view of the date and time imprinted on the picture. Protect: To protect the photo or video on the screen.
-
Page 6: Camera Settings
Camera Settings When the Settings mode is selected, you are presented with a list of camera and video settings. ↑ ↓ Scroll up and down in the menu by pressing and press OK to select an option. To modify the ↑... - Page 7 Resolution: (High/Medium/Low) Set the photo resolution. High: 10 MP Medium: 5 MP Low: 3 MP Temperature: (°C/°F) Select the temperature display in °F or °C. Continuous: (Yes/No) Allows you to take pictures or videos even if the memory card is full. The camera will continue to record photos or videos by deleting the first files recorded.
- Page 8 Blackbox Receiver Synchronize the camera to the controller Note: By default the camera which is supplied with the Blackbox is synchronized to the controller. Each additional camera must be synchronized manually with the Blackbox. Preparing the camera ↑ ↓ Set the name of the camera in Settings. Choose Camera ID and press OK. Press the buttons to change the letter and press OK to go to the next space.
- Page 9 the signal strength is acceptable. If the icon of the wireless signal is green and stays green for more than 10 seconds, the signal is strong and stable enough. For best results, the antennas of the two devices must point upwards and their respective height should be approximately the same.
- Page 10 Quick Field Deployment Guide Before heading out to deploy your cameras, turn the cameras and Blackbox on and ensure that all cameras are correctly configured and synchronised to the Blackbox (it’s easier to do this at home in the warm and dry).
