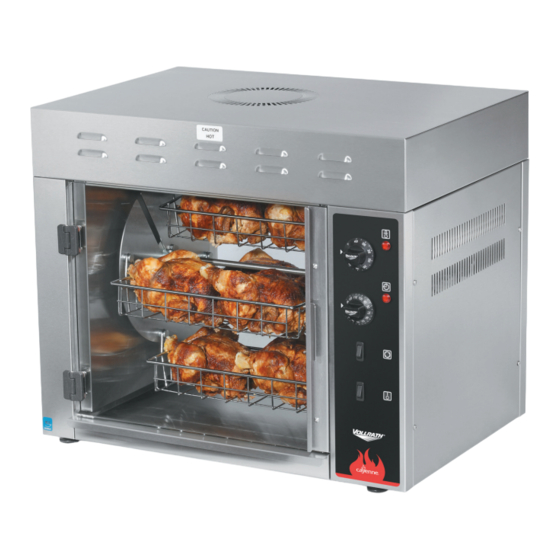

Chicken rotisserie oven
Hide thumbs

Advertisement

Quick Links

Download this manual
item
Description
40704
8 bird Rotisserie Oven
40841
15 bird Rotisserie Oven
Thank you for purchasing this Vollrath Counter equipment. Before operating the equipment, read and familiarize yourself with the following
operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use
this packaging to ship the equipment if repairs are needed.
Operator's Manual
ChiCken RotisseRie oven
Watts voltage
Amps
2700
220V
12 Amps
5000
220V
22 Amps
English
Plug
6-15P
6-30P
Item No. 2350058-1 en Rev 08/11

Advertisement

loading
Need help?

Need help?

Do you have a question about the 40704 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vollrath 40704

Summary of Contents for Vollrath 40704

  • Page 1 22 Amps 6-30P Thank you for purchasing this Vollrath Counter equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed.

  • Page 2: Safety Precautions

    ountertop ooking quipment aFety recaUtionS npacking the qUipment and nitial etUp When no longer needed, dispose of all packaging and materials in an To ensure safe operation, read the following statements and understand environmentally responsible manner. their meaning. Please read carefully. 1.

  • Page 3: Operation

    5. Turn the motor switch to the ON position which initiates the rotating of Model 40704 is provided with four baskets which can hold two full chickens the baskets and the convection fan.
  • Page 4 ountertop ooking quipment 1. Unplug the equipment. leaning 2. Allow the unit to cool completely before cleaning. To maintain the appearance and increase the service life, clean your equipment daily. note: Do not immerse the cord, plug or equipment in water or any WARninG other liquid.
  • Page 5 There are no user serviceable parts within this appliance. To avoid serious injury or damage, never attempt to repair the equipment or replace a damaged power cord yourself. Do not send equipment directly to the Vollrath Company. Please contact the qualified professional repair service listed below.
  • Page 6 - c , 8-b ~ 40704 hicken otiSSerie odel Models built after August 2011 220V Callout Description Grill Thermostat E1/E2/E3 Grill Element, 220V, 1000W L1/L2 Interior Light, 220v Pilot Light for timer Pilot Light for thermostat...
  • Page 7 ountertop ooking quipment electrical draWing - c , 15-b ~ 40841 hicken otiSSerie odel Models built after August 2011 220V Callout Description Grill Thermostat E1/E2 Grill Element, 1000w, 220V L1/L2 Interior Light, 220v Pilot Light, Timer Pilot Light, Thermostat Main Switch Rotisserie Switch Timer, 5-120 minutes Rotisserie Motor...
  • Page 8 Motor coupling Control knob (0-550°F), Fan motor cover XCOA1009 Vollrath blue XCOA1021 Fan & motor, 220V, left hand thread XCOA1008 Timer knob, Vollrath blue Top cover assembly XAA0002 Pilot light, 220V (red) Left cover side panel XWMA1004 Rocker switch Vollrath badge ’...
  • Page 9 XCGA0037 Front glass door XCGA0026 Rear glass Drip tray XCGA0005 Carousel flange left Base XCGA0032 Main shaft XCOA1008 Timer knob, Vollrath blue XCGA0030 Chicken griller basket (0-550°F) XCOA1009 Control knob Vollrath blue XCGA0004 Carousel end plate XBMA7004 Adjustable foot XCGA0003...
  • Page 10 MErChanTaBiliTY Or FiTnEss FOr a ParTiCUlar PUrPOsE As The Vollrath Company LLC’s only responsibility and the purchaser’s only remedy, for any breach of warranty, The Vollrath Company LLC will repair or, at its option, replace the defective product or part without charge, except as otherwise provided below: •...

  • Page 11: Warranty Registration

    ONLINE: Register your warranty on-line now at www.Vollrathco.com NO WEB ACCESS: If you do not have access to the web, kindly register by completing the warranty registration form and faxing it to The Vollrath Co. LLC office in the country of purchase.
  • Page 12 The Vollrath Company, L.L.C. Technical Services: 800.628.0832 1236 North 18th Street Service Fax: 920.459.5462 Sheboygan, WI 53081-3201 U.S.A. Canada Service: 800.695.8560 www.vollrathco.com Main Tel: 800.628.0830 Fax: 800.752.5620 © 2010 The Vollrath Company, L.L.C.

This manual is also suitable for:

40841
