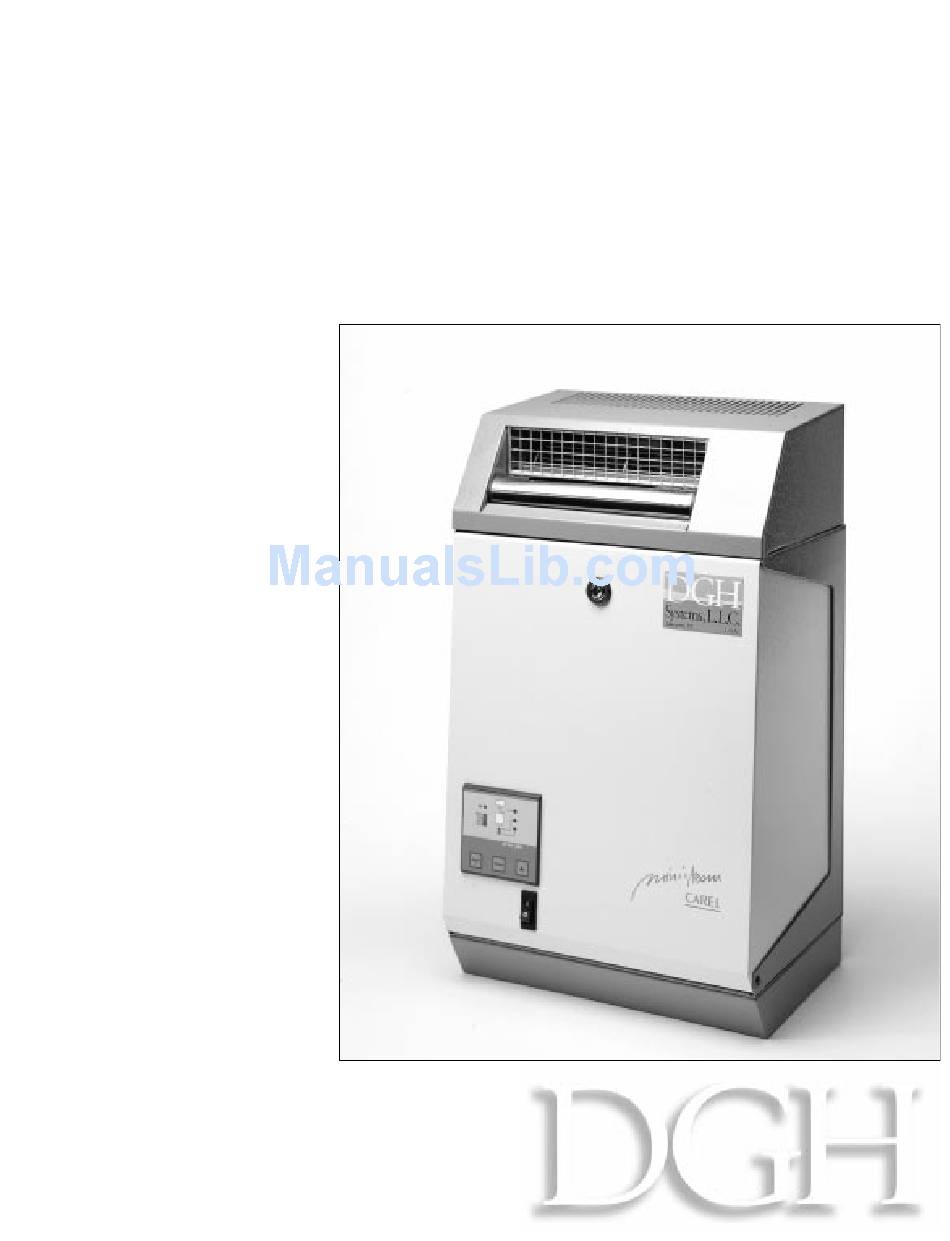

- Page 1 MS 2000 Electronic Steam Humidifiers MiniSteam Residential Owner’s Manual Read and Save these Instructions...
-
Page 2: Table Of Contents
Any product or part that is found to be defective will, at the option of DGH Systems, L.L.C. be replaced or repaired. DGH Systems, L.L.C. reserves the right to inspect any part or installation before replacing or repairing defective parts. - Page 3 Mark the shipping waybill accordingly. Check packing slip to insure all items have been received. Notify DGH immediately of any shortages or damaged parts. must notify DGH within 5 working days of any shortages. Figure 2 Systems, L.L.C.
-
Page 4: Installation
MS 2000 MiniSteam Residential Owner’s Manual Installation - Mounting the Humidifier 1. Open the carton and carefully remove the humidifier and accessories. 2. Open the humidifier, using a flat blade screwdriver, and remove the mounting hardware and accessories. 3. Remove the plastic steam... - Page 5 MS 2000 MiniSteam Residential Owner’s Manual 4. Locate where you will install the duct steam nozzle in the duct (if used), and then decide on a convenient location for the humidifier, that will permit the hoses to be sloped properly.
- Page 6 MS 2000 MiniSteam Residential Owner’s Manual Figure 7 9. Remove the mounting bracket DIMENSIONS: from the back of the humidifier Mount the humidifier unit as close A =Clearance in front of to the steam distributor pipe as humidifier 36" (72" with blower) possible to minimize condensate.
- Page 7 MS 2000 MiniSteam Residential Owner’s Manual 10. Hang the humidifier unit carefully on the mounting bracket. (See Figure 9 at right) Figure 9 11. Secure the bottom of the humidifier unit to the wall using the third screw. (See Figure 10 at right)
- Page 8 MS 2000 MiniSteam Residential Owner’s Manual Installation - Mounting the Steam Nozzle 12. Locate a suitable position for the steam nozzle per Figure 11 at right. a. Locate the nozzle at least 18" upstream of any duct takeoffs or elbows.
-
Page 9: Running The Steam Hose
MS 2000 MiniSteam Residential Owner’s Manual Installation - Running the Steam Hose Figure 14 CAUTION: 90% of all Copper tubing may be used operational problems with the in place of the steam hose, but MiniSteam humidifier can be it must be a minimum of "... - Page 10 MS 2000 MiniSteam Residential Owner’s Manual 18. Bring the end of the steam hose through the hole in the top of the humidifier cabinet and slip the end over the steam cylinder outlet. Secure the hose using the stainless the steel hose clamp supplied.
-
Page 11: Plumbing
MS 2000 MiniSteam Residential Owner’s Manual Installation - Plumbing IMPORTANT: Softened water with conductivity less than 250 micromhos may be used. Raw water is always recommended. Demineralized water may NOT be used. 21. Run " OD copper tubing from the water source to the bottom of the humidifier unit. -
Page 12: Power Wiring
MS 2000 MiniSteam Residential Owner’s Manual Installation - Power Wiring 25. Feed power wires through one of the electrical inlets located on the bottom of the humidifier unit, and tighten the strain relief. (See Figure 23 at right) Figure 23 26. -
Page 13: Control Wiring
MS 2000 MiniSteam Residential Owner’s Manual Installation - Control Wiring 27. Mounting the airflow switch: Put no more than 2" of tubing into Mount the airflow switch in the the duct. Caulk around the tubing supply or return duct using the where it enters the duct. - Page 14 MS 2000 MiniSteam Residential Owner’s Manual 29. Run control wiring from the humidistat and air flow switch, to the humidifier unit and enter one of the electrical connection fittings on the bottom of the humidifier unit. 30. Tighten the strain relief connector around the wires.
-
Page 15: Startup Checklist
MS 2000 MiniSteam Residential Owner’s Manual Start up and Check out of the SD 2000 Humidifier Startup Checklist: Filling should stop when either the proper amperage is reached, or the cylinder is full of water. After a 1. Water and drain lines are few minutes, water should start to connected properly. - Page 16 MS 2000 MiniSteam Residential Owner’s Manual Operating your MiniSteam Humidifier Sequence of Operation. (Figure and so will the amperage draw. 28) On a call for humidification, When the amperage draw falls the controller (R) will activate the below the required level, the fill...
-
Page 17: The Ministeam Controller
MS 2000 MiniSteam Residential Owner’s Manual The MiniSteam Controller Your MiniSteam humidifier has one of the most advanced controllers of any humidifier. It automatically controls drain and fill rates for the most efficient operation possible. The front of the controller provides... -
Page 18: The Main Control Board
MS 2000 MiniSteam Residential Owner’s Manual The Main Control Board Inside your MiniSteam humidifier is the main control board. It has similar functions to the keypad on the front of the unit. Figure 30 Setting Maximum Steam Output: 1. Connector for the front keypad 16. -
Page 19: Maintenance
MS 2000 MiniSteam Residential Owner’s Manual Maintenance Although your MiniSteam Cleaning the steam humidifier is designed to take care cylinder: of its normal operation, and even to provide you with diagnostic 6. Reinstall the cylinder in the 1. Drain the steam cylinder of all... -
Page 20: Cleaning The Fill And Drain Valves
MS 2000 MiniSteam Residential Owner’s Manual Cleaning the fill and drain valves: After shutdown and removal of the steam cylinder, shut off the water supply to the humidifier, disconnect the water supply and remove the fill valve from the humidifier. Remove the inlet... -
Page 21: Alarms & Fault Conditions
MS 2000 MiniSteam Residential Owner’s Manual Alarms and Fault Conditions When an alarm appears, it must be cleared by pressing the RESET button on the controller. If the alarm condition still exists, the alarm will continue. Figure 33 Figure 34... - Page 22 MS 2000 MiniSteam Residential Owner’s Manual ERROR POSSIBLE CAUSES POSSIBLE CORRECTIONS Lack of water: the fill valve has - water turned off - make sure water is on remained energized for more than - fill valve obstructed - clean fill strainer...
-
Page 23: Other Trouble-Shooting Hints
MS 2000 MiniSteam Residential Owner’s Manual Other Trouble-Shooting Hints: 1. The water in the cylinder turns black: This is usually an indication that the minerals in the cylinder have over-concentrated and the pH of the water has dropped causing a deterioration of the electrodes. - Page 24 MS 2000 MiniSteam Residential Owner’s Manual Humidifier Wiring Diagram Systems, L.L.C.
-
Page 25: Technical Specifications
MS 2000 MiniSteam Residential Owner’s Manual Technical Specifications Capacity: 7 lbs/hr Voltage: 220/1/60 Amperage: 10.6 Amps Power Use: 2.2 kW Water Pressure: 15-100 psi Conductivity: 125-1250 micromhos Shipping Weight: TECHNICAL SPECIFICATIONS Capacity: 7 lbs/hr Voltage: 220/1/60 Amperage: 10.6 Amps Power Use: 2.2 kW... - Page 26 Owner’s Manual For more information call 1-800-DGH-4649 1834 Freedom Road, Lancaster, PA 17601 Tel: (717) 293-5210 Fax: (717) 293-0449 Internet: http://www.dghsys.com Systems, L.L.C. © 1997 by DGH Systems, L.L.C. All rights reserved Form # 97-98 Printed in U.S.A. Leadership in Humidification...
