JBL HT4H Quickspecs

SYSTEMS INTEGRATION
SPECIALIST PRODUCTS

Key Features

Design goal: To bring the thrill of live
performance and cinema sound to the small
room and home environments by calling on
JBL's professional engineering leadership.
Pure titanium high frequency driver.
Bi-radial constant directivity horn – 120°.
Cast aluminum 5.25" woofer with Heat-Scape
motor structure.
Straight-Line Single Path
network.
FreeFlow TM flared rear port.
Rear piston type foot for correct speaker
positioning.
Description

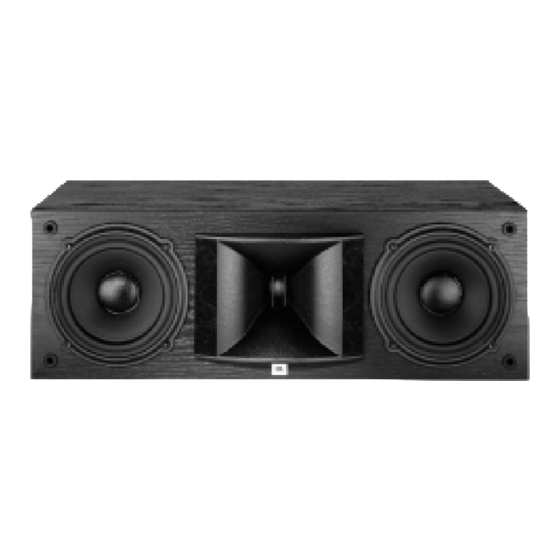

Horizontal front left, center, right loudspeaker.

Frequency Response

100.0
95.0
90.0
85.0
80.0
75.0
70.0
65.0
60.0
55.0
50.0
30.0
log frequency Hz
A Harman International Company
JBL SIS Products Group: Tel 818-830-8757 Fax 818-891-6894
8500 Balboa Boulevard, Northridge, CA 91329
250 Crossways Park Drive, Woodbury, NY 11797
TM
TM (SSP) crossover
100.0
Quick Spec

Specifications

Frequency Response
Sensitivity
Recommended Maximum Amplifier Power
Nominal Impedance
High Frequency Transducer
Crossover Frequency
Low Frequency Transducer
Weight
Dimensions (H x W x D)
Listening Window
(+/- 30 degrees Horizontal,
+/- 10 degrees Vertical)
1000.0
HT4H
80 Hz – 18 kHz (+/- 2dB)
89 dB @ 2.83 Volts/1 Meter
150 Watts
8 Ohms
1" Titanium Dome with Bi-Radial Horn
1250 Hz
5.25"
25 lbs / 11.4 kg
6.81" x 20" x 11.13"
173mm x 508mm x 283mm
On Axis Response
Early Reflections
Total Sound Power
Directivity Index
Early Reflection Directivity Index.
10000.0
