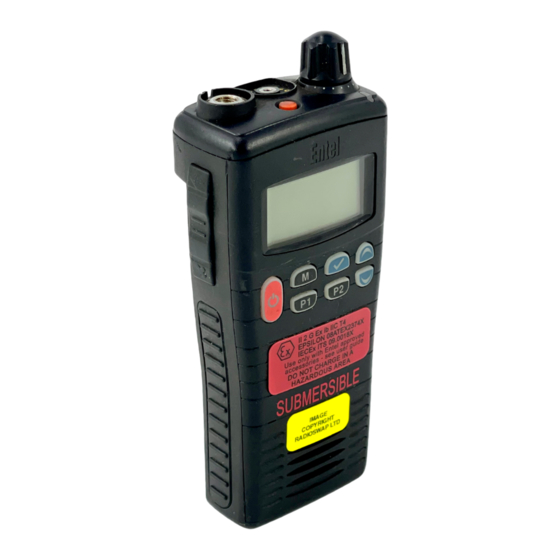

HT981 / 917
UHF submersible transceiver
OWNERS MANUAL
H
CH
2
MENU
M
II 2 G Ex ib IIC T4
EPSILON 08ATEX2374X
Use only with Entel approved
accessories - see user guide
DO NOT CHARGE IN A
HAZARDOUS AREA
SUBMERSIBLE
v04/08
A TEX approved
Intrinsically Safe
II 2 G
Ex ib IIC T4
Submersible
Dependable
Tough

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT981 and is the answer not in the manual?

Questions and answers

Related Manuals for Entel HT981

Summary of Contents for Entel HT981

  • Page 1 HT981 / 917 v04/08 UHF submersible transceiver OWNERS MANUAL MENU A TEX approved Intrinsically Safe II 2 G II 2 G Ex ib IIC T4 Ex ib IIC T4 EPSILON 08ATEX2374X Use only with Entel approved accessories - see user guide...
