CITIZEN QUARTZ
WINGMAN V
Model No. JQ2XXX/
Cal. No. C420
• INSTRUCTION MANUAL
CTZ-E6793
When reading this instruction manual please keep
the watch diagram folded out and in view. Symbols
used in the sections on operating instructions
refer to the symbols indicated in this diagram.
Thank you for purchasing a CITIZEN QUARTZ
WATCH. To ensure correct use, please read these
instructions carefully. Please ensure that the Citizen
International Guarantee Card is included for your
possible claim.
1. FEATURES
Using the Zone Set Function, this watch shows the
local time of 31 major cities of the world by simple
operation of a button.
It also has the Electroluminesence Display which is
visible in the darkness.

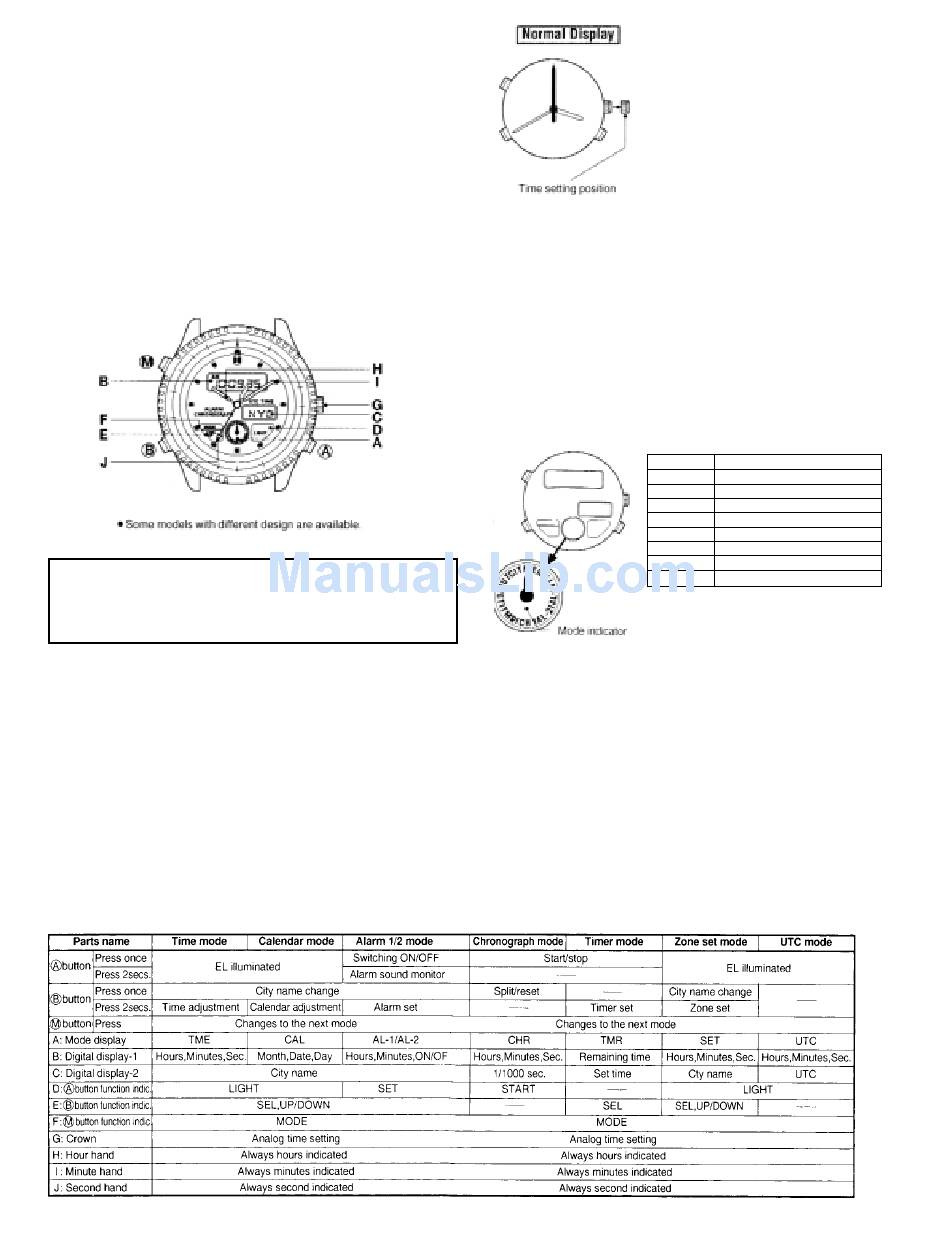

2. PARTS NAME AND FUNCTION
3. SETTING THE ANALOG TIME DISPLAY
1. Pull out the crown and stop the
seconds hand.
2. Turn the crown and set the
hands to the correct time.
3. Press back the crown to
finalise the setting and start
the watch.
How to adjust the watch to the correct time.
Stop the seconds hand at the "0" position. Move the
minutes hand to a few minutes past the time you want
to set, then move it back to the correct time. Press
the crown back synchronising to the correct time.
4. MODE SELECTION OF THE DIGITAL DISPLAY
This watch offers the following 7 functions beside the
Time; Calendar, Alarm-1, Alarm-2, Chronograph,
Timer, Zone Set and UTC (Greenwich Time) Monitor.
The watch can be set to those modes in the above
order by pressing the M button.
Display
TME
CAL
AL-1
AL-2
CHR
TMR
SET
UTC
• The Auto-return to the Time
mode will be activated when the
watch is left in the Alarm-1,
Alarm-2, or Zone Set mode for
more than 2 minutes without
any operation.
Function
Time
Calendar
Alarm-1
Alarm-2
Chronograph (Stopwatch)
Timer
Zone Set
UTC (Greenwich Time)
