Nav6 Plus Navtex System User Guide
1$97(; 02'(
At the top of the display is a status bar:
The status information is displayed as a series of icons. The
meaning of the icons is as follows:
Message at the top of the display
An alarm is active
NMEA GPS data active
490 kHz reception available
518 kHz reception available
Receiving message now
Signal Carrier, but no message
Sensor communication fault
SAR message received
NEW message received
UTC Time
At the bottom of the screen is the soft-key menu area:

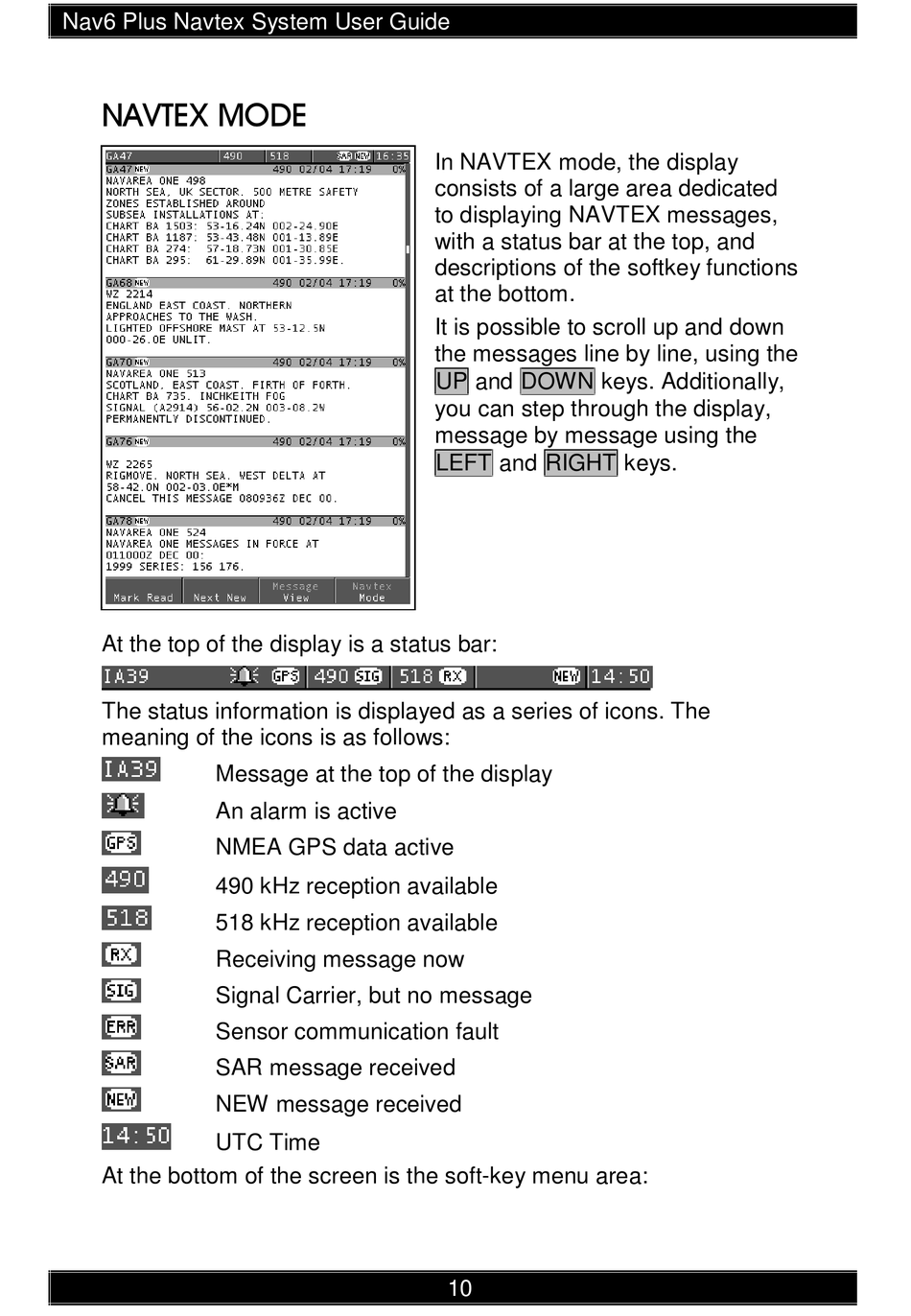

In NAVTEX mode, the display
consists of a large area dedicated
to displaying NAVTEX messages,
with a status bar at the top, and
descriptions of the softkey functions
at the bottom.
It is possible to scroll up and down
the messages line by line, using the
UP and DOWN keys. Additionally,
you can step through the display,
message by message using the
LEFT and RIGHT keys.
10
