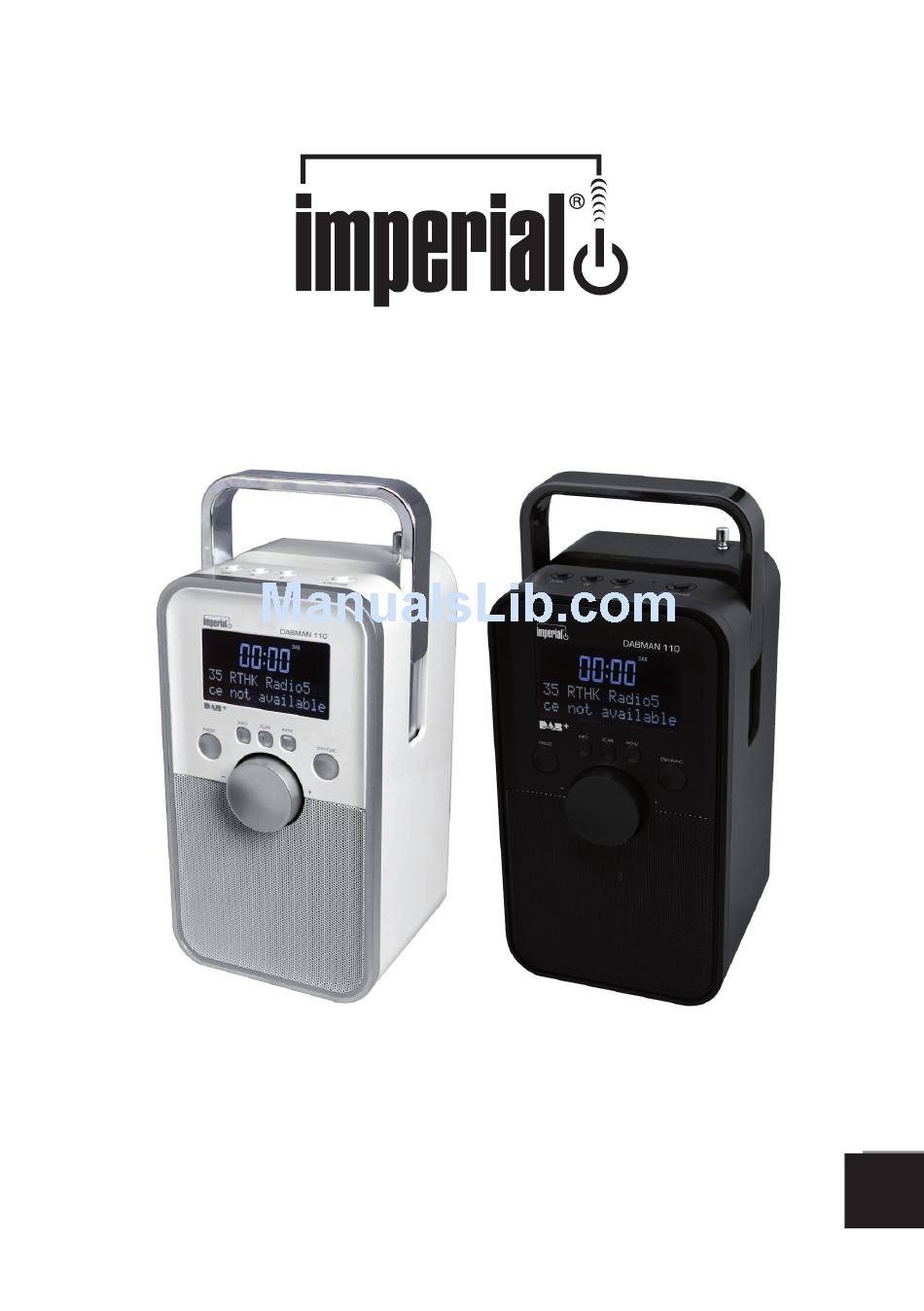

- Page 1 User Manual IMPERIAL DABMAN 110 portable DAB+ / VHF receiver...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ....................3 1.1. Preliminary Note ................... 3 1.2. Service and Support ..............3 2. Safety Instructions ............4 ............4 2.1. Basic Safety Instructions 2.2. Explanation of Safety Instructions ..........5 2.3. Intended Use ............6 3. -
Page 3: Introduction
1. Introduction 1.1. Preliminary Note Thank you for choosing our DAB+ / VHF Radio IMPERIAL DABMAN 110. If you are using the radio for the first time, please read these instructions carefully and keep them for future reference. Please follow the instructions for optimal and full enjoyment of the various functions of the DAB+/VHF Radio. -
Page 4: Safety Instructions
2. Safety Instructions Read the safety instructions carefully before initial operation of the radio. Please observe all warnings and instructions on the device and in the operating manual. 2.1. Basic Safety Instructions • In the event of malfunctions, disconnect the radio from the power source. -
Page 5: Explanation Of Safety Instructions
Proper location • Place the radio on a firm, level surface. • Avoid proximity of: heat sources, such as radiators, open flames, such as candles, devices with strong magnetic fields, such as speakers. • Do not place any objects filled with liquid (e.g. vases) on the radio. •... -
Page 6: Intended Use
Check the scope of delivery after purchase. Contents can vary depending on the model, refer to the information on the packaging. 3. Scope of Delivery 1x DABMAN 110 (depending on model in black or white-gray), 1x 5V power adapter, 1x 3.5mm audio jack cable, 1x user manual, 1x warranty card. -
Page 7: Figures And Description
4. Figures and Description Front View Rear View Top view... - Page 8 Designation Function PRESET Button • Selecting saved DAB+ / FM radio stations (each with 20 presets) • Saving of radio stations INFO Button • Navigation through information in DAB+ / FM mode SCAN Button • Automated station scan (DAB+ and FM mode) MENU Button •...
-
Page 9: Installation
Designation Function Alarm/Snooze • For turning on sleep mode in alarm function • Allows to set the alarm with exact date and time (hold key during operation) • Dimmer switch for LCD display (press briefly, options: bright, dim, off) On/Off switch •... -
Page 10: Switching On And Off
To turn the device off, operate the slide switch on the rear (position "OFF"). Note: when the DABMAN 110 is turned on for the first time, it starts up in FM mode. Briefly press the STBY/FUNC to toggle between the different operating modes (AUX-In, DAB+, FM). -
Page 11: Full Station Scan
Note: depending on the location, there may be considerable differences in the reception of DAB+ programms. For the first scan we recommend you set up the radio near a window, extend the telescopic antenna completely and align it. From time to time you should also perform a new search to keep the station list up to date. -
Page 12: Dab+ Station Presets
6.4. DAB+ Station Presets The DABMAN 110 is equipped with 20 station presets, which can be programmed according to your preferences. To save a station in the list, proceed as follows: • Select the station to be saved by using the Up/Down buttons and confirm the selection with OK. -
Page 13: Fm Mode
The factory setting for DRC is off. 7. FM Mode In this mode, the DABMAN 110 receives analog radio signals from the FM band (between 87.5 and 108 MHz) and RDS signals, provided they are transmitted. To ensure optimum reception, extend the telescopic antenna to the maximum length before you turn on the radio. -
Page 14: Alarm And Sleep Functions
In addition to the sleep timer, the radio also has two alarm clocks. 9.1. Sleep Timer The DABMAN 110 is equipped with a sleep timer. If this function is activated, the radio automatically switches off after a certain period of time (1/20/30/60/90/120 minutes). -
Page 15: System Settings
10. System Settings The item System Settings summarises functions, which are controlled via the main menu of the DABMAN 110. They are generally controlled with the menu button(see chapter 4, table 4), and the selection is made with the Up/Down buttons (see chapter 4, table 9 &... -
Page 16: Time And Date Settings
10.2. Time and Date Settings Time and date can also be set manually. The manual setting is only necessary if the DABMAN 110 cannot be used in DAB+ or FM mode, as the time and date synchronisation usually happens automatically here. The automatic time recognition is enabled in the factory and can be deactivated in this menu item. -
Page 17: Factory Settings
• 10.3. Factory settings In this menu item you can reset the DABMAN 110 to its factory settings. This may be necessary if changes in the basic settings triggered an impairment of the functions of the DABMAN 110. Important note: by accessing the factory settings, all individual settings,... -
Page 18: Technical Data
Problem Poss. Cause Solutions Audio quality is poor • The broadcast • Adjust the antenna signal is too weak or perform a new scan • Charge the battery using the included • The battery is power adapter almost empty FM reception: noise weak signal •... - Page 20 Your device carries the CE mark and complies with all relevant EU standards. Changes and printing errors reserved. Version 04/14 Copy and reproduction only with approval of the publisher. ©TELESTAR-DIGITAL GmbH 2014...
