Summary of Contents for Broseley SUPREMA
-
Page 1: Installation And Operation

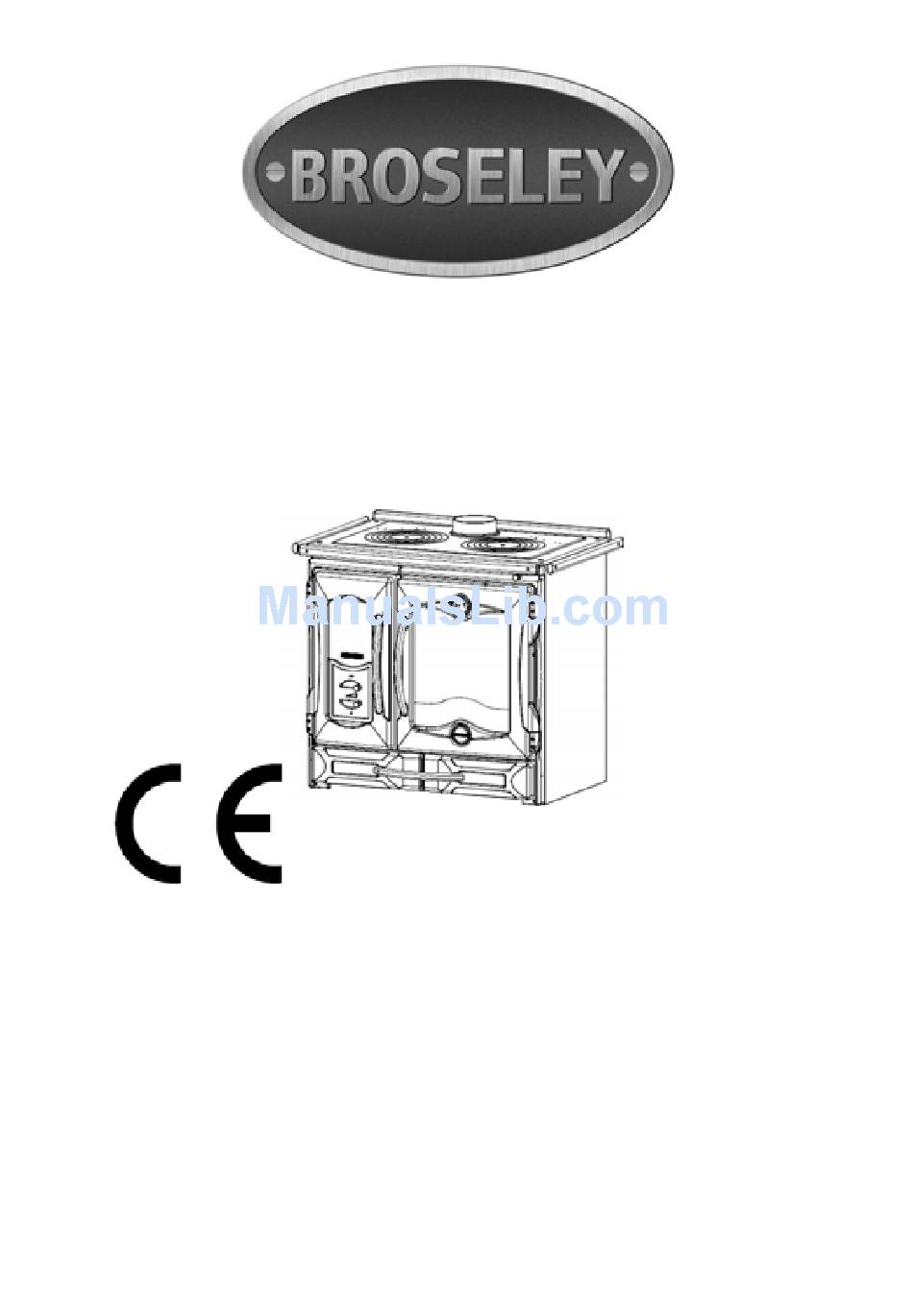

INSTALLATION AND OPERATION INSTRUCTIONS FOR: SUPREMA RANGE STYLE WOOD BURNING COOKER Tested to EN12815 PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING, OPERATING OR SERVICING THIS APPLIANCE. Compliments for buying a Broseley Fires appliance. ISSUE 08-B © 2007-2008 Broseley Fires Ltd... - Page 2 Fireplace shops and these shops can offer an after sales service and offer advice when necessary. Please note that it is a requirement under Broseley Fires Ltd’s warranty system that the installation of the appliance is carried out by a Competent Person registered with a Government approved Competent Persons Scheme.
-
Page 3: Table Of Contents
ROPE SEALS AIR CONTROLS INSTALLATION OF THE APPLIANCE FLUE REQUIREMENTS LINING THE FLUE FLUE TERMINATION PROVISION OF A NOTICE PLATE SITING THE APPLIANCE HEARTH REQUIREMENTS ADDITIONAL VENTILATION ASSEMBLING THE HANDRAILS DIMENSIONS ANNUAL SERVICE RECORD LIMITED WARRANTY © 2007-2008 Broseley Fires Ltd... -
Page 4: Technical Data
The appliance and flue system must be properly maintained. • It is also important to ensure that the dwelling to be heated is insulated and is as energy efficient as • is practical. The correct fuel must be used. • © 2007-2008 Broseley Fires Ltd... -
Page 5: Technical Description
It is important that the following controls are used correctly, in order to avoid poor output as well as over- firing See chapter on OVER-FIRING. The air controls are as follows: PRIMARY AIR CONTROL • SECONDARY AIR CONTROL (AIR WASH) • DAMPER CONTROL • © 2007-2008 Broseley Fires Ltd... -
Page 6: The Air Controls
TOO MUCH HEAT IS GENERATED WITHIN THE FIRE CHAMBER, THIS WILL LEAD TO WARPING, BUCKLING AND GENERAL DAMAGE TO THE STOVE AND ITS INTERNAL COMPONENTS. OVER-FIRING CAN ALSO BE CAUSED BY RUNNING THE APPLIANCE WITH THE DOOR(S) OPEN OR IF YOU HAVE AN EXCESSIVE FLUE DRAW. © 2007-2008 Broseley Fires Ltd... - Page 7 USING YOUR STOVE - IMPORTANT NOTES: This appliance must be installed and commissioned by a fully qualified, registered engineer. HETAS engineers are recommended by Broseley Fires. For your nearest search www.hetas.co.uk THE SURFACES OF THIS APPLIANCE GET HOT WHEN THE APPLIANCE IS LIT. PLEASE ENSURE THAT CHILDREN, THE ELDERLY AND THE INFIRM ARE MADE AWARE OF THIS.
-
Page 8: Oven Operation
DO NOT overload the fire chamber with wood, as this may smother the fire and potentially cause it • to go out. Do not burn painted or varnished woods, MDF, oak bark or wood with more than 20% humidity. • © 2007-2008 Broseley Fires Ltd... -
Page 9: Ash Removal
This can cause them to come back into the room. In this case, Shake the embers more frequently • Increase the air for combustion • Load a reduced quantity of fuel. • © 2007-2008 Broseley Fires Ltd... -
Page 10: Recommended Cleaning Products
This plate has been sealed in position using a heat proof silicone sealant. This may need to be reinstated if the old seal leaks when the plate is replaced. © 2007-2008 Broseley Fires Ltd... - Page 11 Clean this area with care and ensure that excessive amounts of ash are kept from building up and affecting the operation of this control. © 2007-2008 Broseley Fires Ltd...
- Page 12 Document J may need to be increased. PROVISION OF A NOTICE PLATE © 2007-2008 Broseley Fires Ltd...
-
Page 13: Siting The Appliance
Regular inspection of any vents is critical to ensure that the vent has not become restricted. The appliance may require up to 20 m /hour of combustion air. The natural recirculation of air must be guaranteed by having permanent ventilation to the outside. © 2007-2008 Broseley Fires Ltd... -
Page 14: Assembling The Handrails
19.0 ASSEMBLING THE HANDRAILS There are three handrails, one for each side and one for the front. The handrails are bolted to the sides and the front of the appliance using the bolts provided. DIMENSIONS © 2007-2008 Broseley Fires Ltd... - Page 15 1ST YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 2ND YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 3RD YEAR SERVICE completion date: © 2007-2008 Broseley Fires Ltd...
- Page 16 Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
- Page 17 Broseley Fires until the repairs have been completed...
