Summary of Contents for Middle HM-27

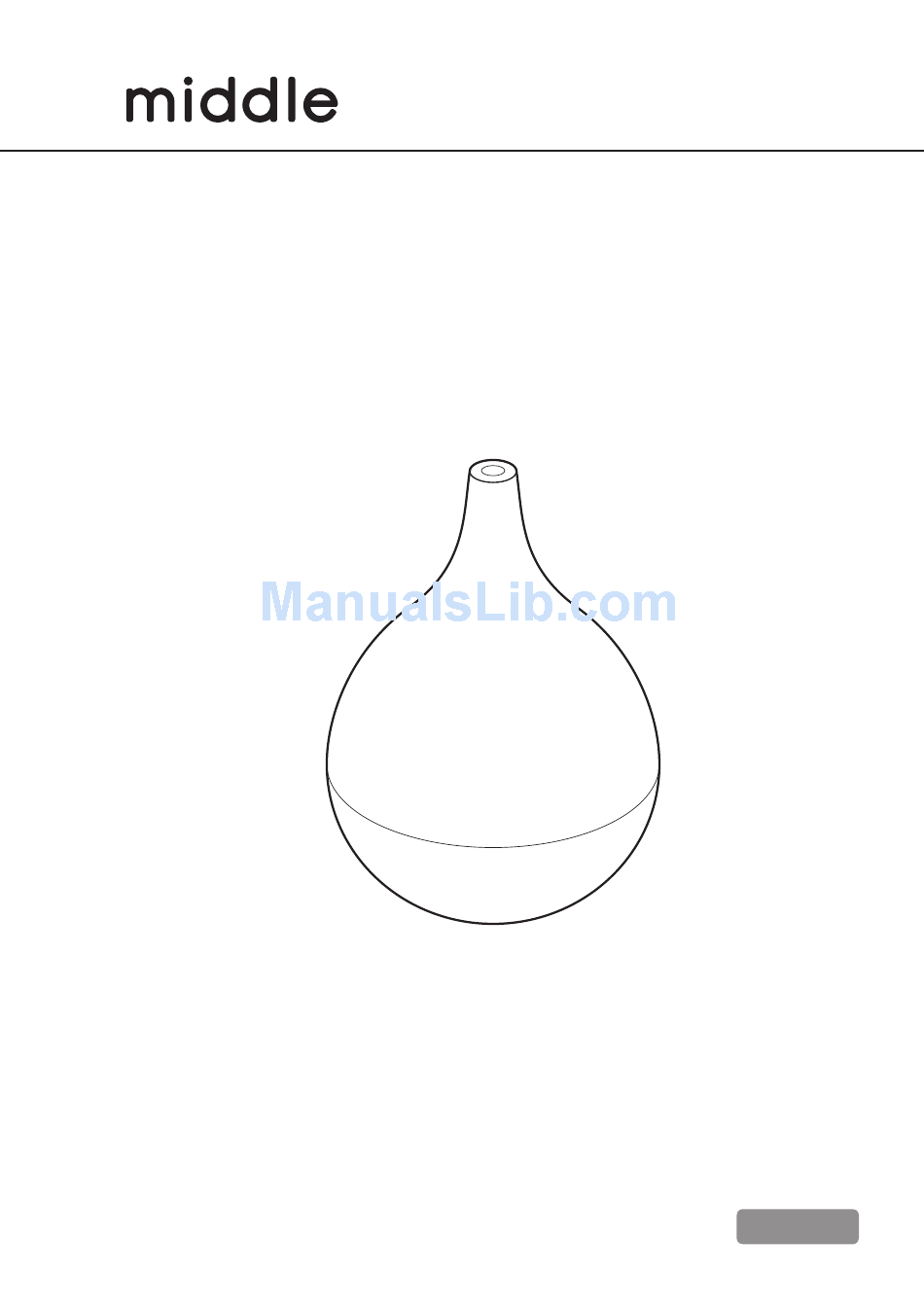

- Page 1 HM-27 Hybrid Humidifi er User’s Manual Thank you for purchasing the Hybrid Humidifi er HM-27. Please read this manual carefully to ensure safe and correct use. Keep the manual in a secure place for future reference. English...
-
Page 2: Safety Information
English Safety Information Before use, be sure to carefully read this manual for safety issues and to ensure that you use • this product correctly. Be sure to follow information printed in this manual when using this product. WARNING In order to avoid any electrical shock, short-circuit, burns, or possibly cause a fire: •... - Page 3 English Do not place the humidifier directly onto a carpet or other object with soft fibers or a thick pile. These could block the vent hole from performing properly and can cause the unit to malfunction or leak. Do not block the mist outlet. Fill the reservoir tank using only clean cool tap water.
-
Page 4: Parts And Their Functions
English Parts and Their Functions Mist outlet Mist cone Mist hole Water tank Water tank handle Use when carrying the water tank as well as inserting a fi nger into the mist hole, and hold from the inside. Water passage cover Hybrid humidifi... - Page 5 English Inside body *Overfl ow sensor Overfl ow pool **Fan outlet Water tub Water level sensor Ultrasonic vibration plate Water drain direction arrow indicator Bottom of Water tank Water tank cap Mist hole * Overfl ow sensor An overflow occurs when the water level is excessively high. The overflow sensor will be activated and the heater operation will stop.
- Page 6 English Accessories: Aroma base Replacement felt × 2 Replacement ceramic disc set IMM-DISC001...
- Page 7 English Operating Instructions for Hybrid Humidifier Place the hybrid humidifier on the aroma base. Insert the brackets on the aroma base all the way into the corresponding holes on the bottom of the hybrid humidifi er. Mist Cone Hybrid humidifi er body Aroma base Place the hybrid humidifier with the connected aroma base on a flat sturdy surface.
-
Page 8: Power Button Operations
English When going to bed during the winter, if your heat is turned off and the room temperature drops below 59°F, continued misting operation can result in condensation. This can cause the hybrid humidifier body and the floor to get wet. If using in environments where the room temperature is expected to drop below 59°F or the humidity is expected to be above 60% when going to bed, either set misting operation to M (Medium) or L (Low), or stop the... - Page 9 English Setting the Mist and Timer Operations: Press the Mist Setting button. Each time this button is pressed, the setting cycles and color of light change as per chart below: H (High) → M (Medium) → L (Low) Mist setting Indicator color H (High) BLUE...
- Page 10 English Using the Aroma Fragrance Feature Pull out the felt case from the aroma base stand holding the hybrid humidifier. Felt case Insert the felt circle so that it fits under the clips in the felt case. Clip Felt Trickle 2-4 drops of aroma oil or essential oil onto the felt circle located in the case.
- Page 11 English Cleaning (at least twice a week) Replace the felt circle whenever it becomes dirty, or when using a different type of aroma oil or essential oil. Please note: In addition to the felt already included with the aroma base at purchase, two additional pieces are also included.
- Page 12 English Water passage cover Heater Clean the air inlet filter at the bottom of the hybrid humidifier. Use a vacuum cleaner or soft brush to clean the dust off the filter. Fill the water tank with cool clean tap water, close the cap, thoroughly shake the water tank, and then drain.
- Page 13 English Ceramic disc set IMM-DISC001 Ceramic disc Special tool Rubber ring Remove the Ring holder rubber ring Ceramic disc Ceramic disc has a front + back side. • Mount with the front side facing upward. Front Back Hybrid humidifi er body...
- Page 14 English Storage Wipe up any moisture inside the hybrid humidifi er body, allow it to dry completely, pack it back in the original box along with the User’s Manual, and store it in dry cool place. Check the following before Requesting Repair or Service Problem Primary cause Solution...
-
Page 15: Specifications
English Specifications Product name Hybrid Humidifi er Model HM-27 Power supply 110 – 120 V, 50/60 Hz Power consumption 53 W Humidifi cation Per hour H (High): Approx. 6 oz, M (Medium): Approx. 3 oz, L (Low): Approx. 1.3 oz Continuous Approx. -
Page 16: Limited Warranty Policy
English LIMITED WARRANTY POLICY Thank you for selecting our Products. Please carefully read the User’s Manual furnished with this product. We believe that you will be very satisfi ed with your purchase. We will provide the following LIMITED WARRANTY to you as the original purchaser.
