Instruction Manual

Dishwasher

SDW60B10

Table of Contents

Need help?

Do you have a question about the SDW60B10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sandstorm SDW60B10

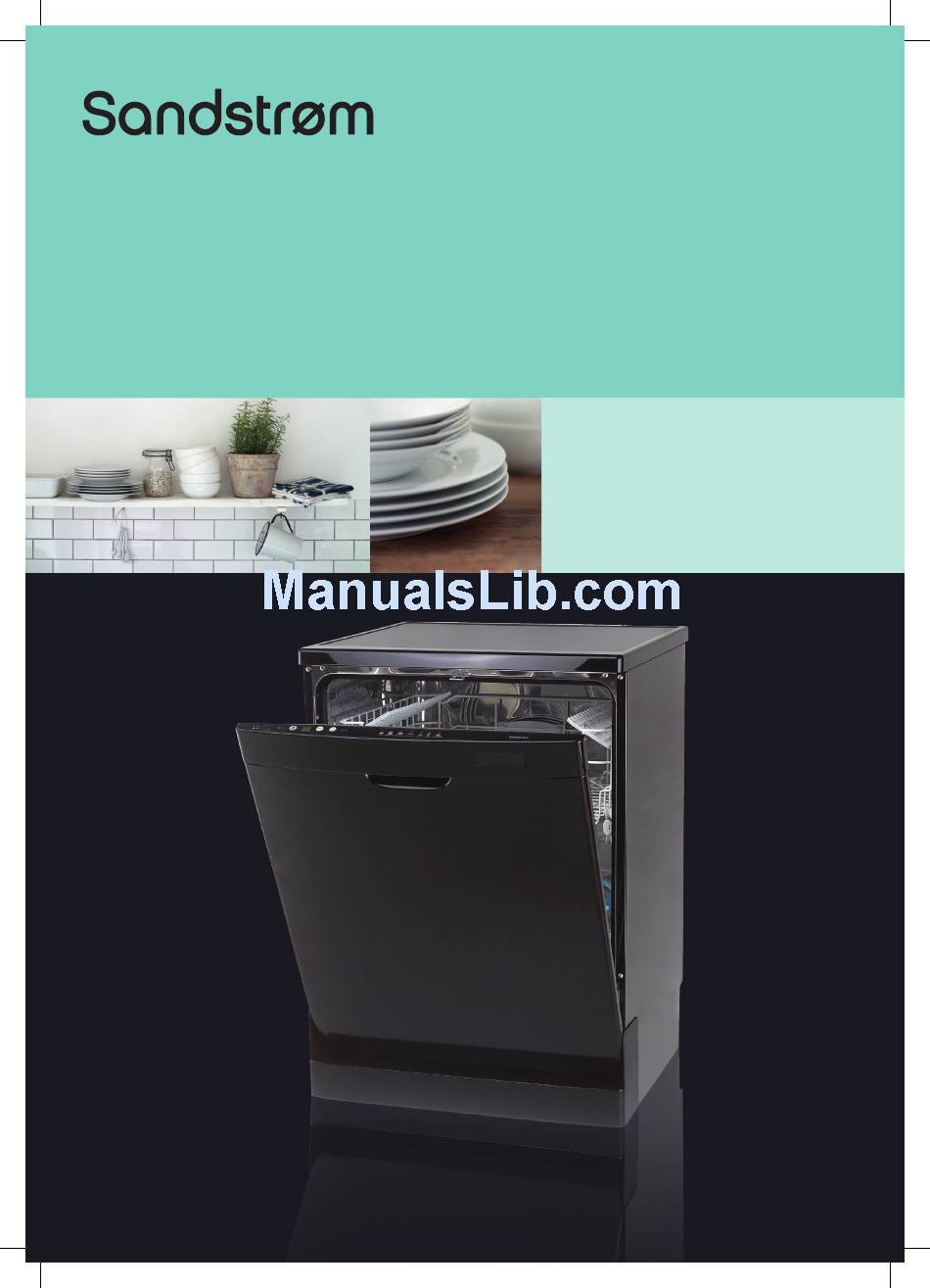

Page 1 Instruction Manual Dishwasher SDW60B10...
Page 2: Table Of Contents
Contents Unpacking.......................................3 Product Overview ....................................4 Internal View ...................................4 Rear View ....................................4 Control Overview ....................................5 Installation ......................................6 Location ....................................6 Before Operating....................................6 To open the door ..................................6 To close the door ...................................6 Adding the Detergent Powder and Tablet ........................7 Adding of Rinse Aid................................8 Adjusting Rinse Aid Reservoir ............................8 Adding of Salt ..................................9 Adjusting of Salt Consumption ............................9...
Page 3: Unpacking
Congratulations on the purchase of your new Sandstrøm Dishwasher. We recommend that you spend some time to read this Instruction Manual in order to fully understand how to install and operate it. Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Page 4: Product Overview
Product Overview Internal View Cup Rack Upper Basket Salt Reservoir Lower Spray Arms Basket Filtering System Detergent Rinse Aid Dispenser Reservoir Rear View Drain Oulet Water Inlet Mains Cable Drain Hose GB-4...
Page 5: Control Panel Overview
Control Panel Overview PROG 1. On/Off Button • To turn the dishwasher on and off. Power on light • Illuminates when On/Off button is pressed. 2. Delay Start Button • Press to preset the wash timer and delay the starting time by up to 24 hours. •...
Page 6: Installation
Installation Location When selecting a position for your freestanding dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly.
Page 7: Adding The Detergent Powder And Tablet
• Clouding may occur on glasses and delicate glassware after frequent washing. Do not wash delicate glassware, or glassware containing lead crystal in a dishwasher. Please wash delicate glassware by hand instead. • Silver and aluminium parts have a tendancy to discolour during washing. Residues like egg white, egg yolk and mustartd often cause discolouring and staining on silver.
Page 8: Adding Of Rinse Aid
Adding of Rinse Aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir.
Page 9: Adding Of Salt
Adding of Salt If the water in your area is hard, deposits will form on your dishes and utensils. As such, this appliance contains a salt reservoir for you to reduce the hardness of the water. Please follow the steps below to pour the salt into the salt reservoir and to correspond to the water hardness level in your area.
Page 10: Loading The Dishwasher
Loading the Dishwasher Before loading the dishwasher In general, please observe the following notes before loading your cutlery and crockery in the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lay inside one another or cover each other. • Loading your cutlery and crockery so that water can access all surfaces.
Page 11: Hinged Cup Rack
Hinged Cup Rack To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can lean the tall glasses against it. You can also raise upward remove it when it is not required for use. Loading the Upper Basket for 12 Place Settings For placement method of the upper basket, please refer to the list...
Page 12: Loading The Lower Basket For 8 Place Settings
Loading the Lower Basket for 12 Place Settings For placement method of the lower basket, please refer to the list below. Dessert dishes Oval platter Dinner plates 10. Soup plates 11. Cutlery basket Cutlery Basket To make unloading much easier, cutlery should be grouped in zones and palced in the cutlery basket. Please refer to the list below for placement method.
Page 13: Wash Cycle Table
Wash Cycle Table Cycle Running Energy Water Rinse Programme Selection Process Detergent Time Consumption Consumption information (min.) (Kwh) Pots, utensils • Pre-wash • 3 in 1 3 in 1 and cutlery. (50°C) detergent Normally • Wash (50°C) tablet soiled. • Rinse • Rinse (70°C) • Drying Pots, utensils • Pre-wash • Pre-wash (5g) Intensive...
Page 14: Starting A Wash Cycle
Starting a Wash Cycle Please follow the steps below to start a wash cycle. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa). Open the door. Pull out the dishwasher basket, load the dishes and push the baskets back. Pour in the detergent or place the detergent tablet in the detergent compartment.
Page 15: Switching Off The Dishwasher
• The condensation strip helps to prevent the rish of steam damaged to the worktop edging above the dishwasher, it is advisable to leave the door closed until you are ready to unload the crockery. You can also open the dishwasher door fully until the dishes and crockery are cool enough to unload.
Page 16: Delay Start
Delay Start The starting time of a washing programme can be delayed and adjusted. Please follow the steps below. Open the dishwasher door and load your soiled dishes and crockery. Press the On/Off button to turn on the dishwasher. Select your preferred programme. Press the Delay Start button.
Page 17: The Control Panel
The Control Panel If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY. • ATTENTION: To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. • Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish.
Page 18: Frost Precaution
Spray Arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. Ensure the dishwasher is switched off. Use a pointed object, for instance a cocktail stick, to loosen food particles in the spray arms’ jets. • Do not attempt to remove the spray arms.
Page 19: Moving The Dishwasher
Moving the Dishwasher If you have to move the unit, for instance due to moving house, please do the following: Disconnect the dishwasher from the mains. Disconnect the dishwasher from the water inlet and drain. Remove the dishwasher from the current location with the hoses discharged. Pull the dishwasher out together with the hoses.
Page 20: Helpful Tips And Guides
Helpful Tips and Guide • Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. • Before calling for survice, please refer to Helpful Tips and Guide to solve some general problems by yourself.
Page 21 General problems (continue) Problem Possible Causes Remedy A spray arms is knocking against • Interrupt the programme, and an item in a basket. rearrange the items which are Knocking noise in the wash obstructing the spray arm. cabinet. See the section “Loading the dishwasher”.
Page 22: Specification
Specification Model SDW60B10 Rated Voltage 230 V Rated Frequency 50 Hz Overall Dimension (W x D X H) 600(W) x 580(D) x 850(H) (in mm) Water Pressure Required 0.04 - 1.00MPa Capacity 12 Place Settings Power Consumption 1930W Features and Specification are subject to change without prior notice.
Page 23: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. • Retain the manual.
Page 24 • When loading items to be washed: Locate sharp items so that they will not damage the door seal; Warning: Knives and other utensils with sharp points must be loaded in the basket with the points downwards or placed horizontally. •...
Page 25: Disposal Of Dishwasher
Disposal of Dishwasher • When disposing your old dishwasher, first make it unusable. Disconnect, cut off the cable and the plug from the cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher. •...
Page 26 Memo...
Page 27 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Cutlery Basket 673002200099 Water Supply Hose 673005400045 Detergent Measuring Spoon (approx. 20g) 673002200079 Coarse Filter 673006400065 Fine Filter 672005300010 Measuring cup (approx.
