- Page 1 PB42CTC RF APRIL 2012 EFFECTIVE: 1ST APRIL 2012 Digital 4 Channel RF Timer User Guide PB4CTC RF April 2012...
-
Page 2: Table Of Contents
CONTENTS Overview ..........................03 1 Battery access and user controls ...................04 1.1 Keyboard ........................04 1.2 Displays and LED ......................04 2 First time installation ......................04 2.1 Setting time and date ....................04 3 Channel initiation .......................05 4 Selecting a preset programme .....................05 4.1 Creating a user defined programme ................05 5 Manual programme override ....................06 5.1 Holiday mode ........................06 5.2 Off mode &... -
Page 3: Overview

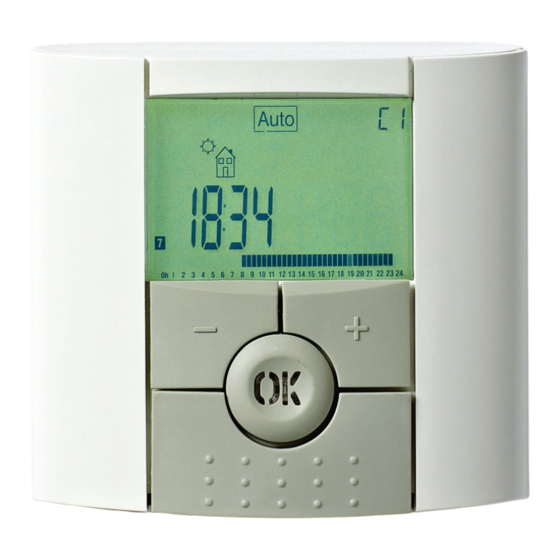

OVERVIEW The PB4CTC RF can be used to control up to four separate heating zones and can be used in mixture of both underfloor heating and radiator systems. Used in conjunction with either the PB2ZM RF or the PB1ZM* master units the PB4CTC RF time clock operates entirely by radio frequency. -
Page 4: Battery Access And User Controls
1 Battery Access 2 First Time Installation & User Controls Open the two side covers and Insert the 2 AAA Alkaline supplied batteries (or remove the small protection sticker if the batteries are already installed in the compartment). The unit will display the software version (202) and then default to the main screen. -
Page 5: Channel Initiation
3 Channel Allocation 4.1 Creating User & RF Initiation Defined Programmes Once the time and date have been entered, the unit will ask you With U1 to U4 Blinking Press the Programme Key ( ) to access to activate the required number of heating channels required programme settings. -
Page 6: Manual Programme Override
If you selected the option you will automatically be required to select the return time with (-) or (+). Press (OK) to save your program and return to the main screen (in AUTO mode). Press the escape key ( ) to erase and come back to the Select the return time, press (OK) and move to the next step. -
Page 7: Hidden Installer Menu
6 Hidden Menu 7 Technical Specification There is a hidden installer menu which can be accessed by pressing and holding a combination of buttons. Measured Temperature The user menu can be used to set a number of user preferences Precision: such as a 12 hour or 24 hour clock display. -
Page 8: Pre-Set Programmes P1 - P9
9 Pre-set Programs P1 Morning, Evening & Weekend P4 Evening & Weekend 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23... - Page 9 P7 7H - 19H (Office) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23...
- Page 10 User Guide PB4CTC RF Digital 4 Channel RF Timer Polypipe Building Products Broomhouse Lane Edlington Doncaster DN12 1ES Tel: 01709 770 000 Fax: 01709 770 001 2410 London Road Mount Vernon Glasgow G32 8XZ Tel: 0141 778 8822 Fax: 0141 778 2703...
