Summary of Contents for Autopix Pro MT4019

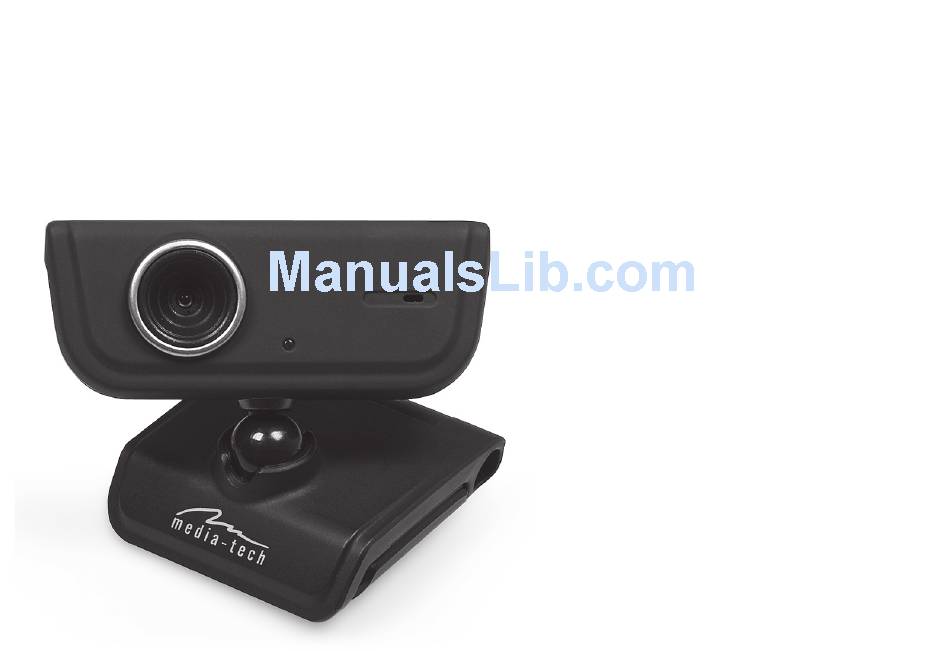

- Page 1 AUTOPIX PRO PC Camera for Teleconferencing & Video Surveillance MT4019 User’s Guide...
- Page 2 Introduction Package Contents ■ PC camera Thank You for buying new Media-Tech PC camera. Fol- ■ USB cable lowing information will help you to use your camera to ■ CD-disc its full capabilities. ■ Manual For viewing pictures or video, camera must be con- nected to your personal computer.
- Page 3 Set up PC camera You can mount the PC camera on your laptop as diagram shows below. Plug the PC camera into the USB 2.0 port of PC or laptop properly. The focus will be adjusted automatically according to the subject moving.
- Page 4 Software Installation ArcSoft VideoImpression 2.0 1. Turn on the computer and insert CD installation Disc into your CD-ROM drive. Select and click “ArcSoft VideoImpression2.0” 4. Click “Yes” 5. Click “Next” 6. Click “Next” 7. Click “Finish” 2. Choose Setup Language ArcSoft PhotoImpression 5.0 3.
- Page 5 Snapshot by ArcSoft PhotoImpression 5.0 1. Click on the “PhotoImpression 2.0” icon on the desk- top. 2. Choose Setup Language 3. Click “Next” 2. Click “Video” from “Get Photo” 4. Click “Yes” 5. Click “Next” 6. Click “Next” 7. Click “Finish”...
- Page 6 3. Click “Live” Live Video Playing ArcSoft VideoImpression 2.0 1. Click on the “VideoImpression 2.0” icon on the desk- top. 2. Click “Create a New Video” 4. Click “Capture” for capture image and the picture is saved. 3. Click “Capture From Device”...
- Page 7 4. Click “Record”, save video name and then click 5. Click “Done” to fi nish. Now you can play the video. “Stop”.
- Page 8 Camera Specifi cation Image Sensor ..........1600x1200 pixels, CMOS Lens Specifi cation .......... F2.8, f=4.9 mm, auto focus lens White Balance ..........Auto Exposure ............Auto Frame Rate ............. 1600x1200 pixels @ 3~5fps 1280x1024 pixels @ 8~10fps 640x480 pixels @ 30fps Focus Range ...........
