Westinghouse Unplug UM100WH User Manual

Wireless bluetooth sound system
Hide thumbs Also See for Unplug UM100WH:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

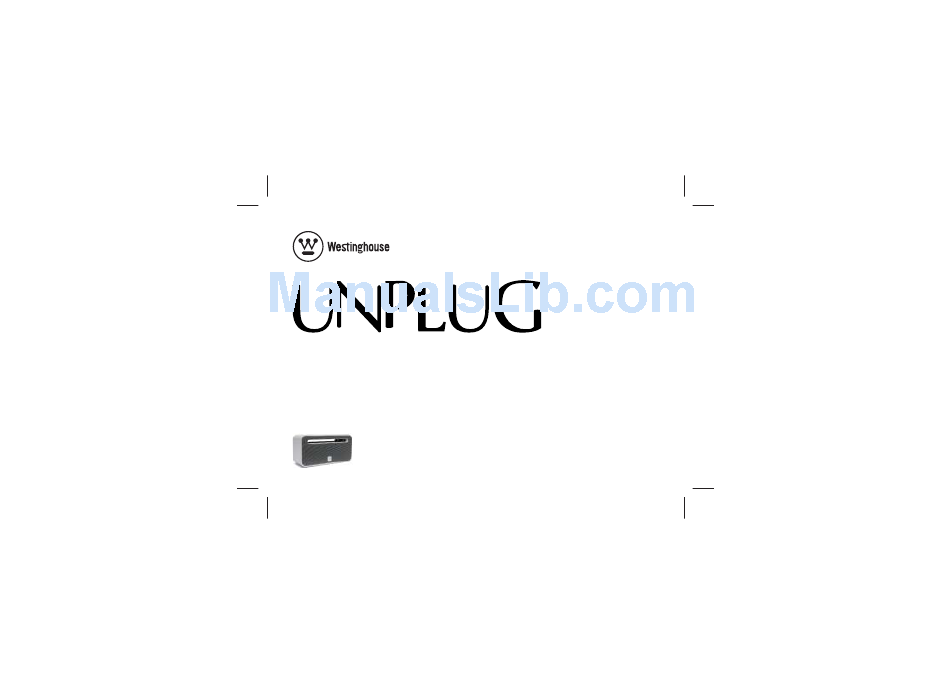

Enlarged version
Wireless Bluetooth
Sound System
®
User Guide
UM100WH / UM100BK / UM100RD / UM100GY

Advertisement

Table of Contents
loading

Related Manuals for Westinghouse Unplug UM100WH

Summary of Contents for Westinghouse Unplug UM100WH

  • Page 1 Wireless Bluetooth Sound System ® User Guide UM100WH / UM100BK / UM100RD / UM100GY...
  • Page 2 What's Included: ·unplug-100 Wireless Bluetooth Sound System ·Travel Pouch(Option) ·USB Charging Cable ·USB Power Adaptor ·3.5mm Headphone Mini Jack Cable General Specifications ·Bluetooth v2.1 includes profiles: A2DP, AVRCP, HFP, HSP ·Advanced Audio Distribution Profile (A2DP) for wireless music streaming ·Audio Video Remote Control Profile (AVRCP) for wireless audio and video playback control ·Hands-free Audio (HF) and Headset Profiles(HSP)for hands-free calling capability with echo and noise cancellation technology...

  • Page 3: Features And Benefits

    Features and Benefits ·Bluetooth 2.1 with Westinghouse audio digital signal processing Technology for clean, best-in-class wireless stereo sound reproduction ·Built-in mic with advanced noise-cancellation enables clear wireless hands-free calling and conferencing ·Two 40mm full range drivers deliver superb music fidelity ·Ultra Bass Booster Passive Radiator Subwoofer...
  • Page 4 Hands-free Calling Answer / End Button Play / Pause / Pairing Volume Up Volume Down LED Indicator 3.5mm Audio In Port Main Power Micro USB Switch Charging Input...
  • Page 5 Compatibility Wireless: Devices with Bluetooth 2.0 or above (See General Specifications for profiles), Bluetooth equipped PCs and most Bluetooth equipped smart phones or computers. Wired: Devices with a standard 3.5mm headphone output port via 3.5mm mini jack cable. WARNING 1. Do not leave the product exposed to a heat source or high temperatures. 2.
  • Page 6 LED Indicator and Tone Sound There is an LED light in the middle of the front Bluetooth Sound System. Below are what the LED's various displays indicate and Tone Sound. LED OFF - Power OFF / Sleep mode (10 minutes if no music input from Bluetooth device) / Full charge BLUE - Power ON (Bluetooth not paired / connector) Flashing BLUE / RED - Pairing mode...

  • Page 7: Pairing With Bluetooth Devices

    NOTE: unplug-100 Wireless Bluetooth Sound System can pair with most Bluetooth 2.0 devices. Pairing may vary by device. Consult your Bluetooth device's manual for pairing instructions. Pairing with Bluetooth devices Pairing occurs when two Bludtooth devices communicate with each other and establish a connection.
  • Page 8 on the speaker for four seconds to make the speaker discoverable. The LED indicator on the unplug-100 speaker LED indicator Flashing Red and Blue. approximately once every second to show that the speaker is discoverable. " " 2. Set your Bluetooth device to discover the unplug-100 speaker , then locate the Bluetooth Device list.

  • Page 9: Clearing Memory

    Then the blue indicator start flashing and Tone Sound, When the speaker and device have successfully connected. To pair additional devices With the Bluetooth device and the unplug-100 speaker both turned on , touch the button on the speaker for four seconds to make the speaker discoverable again .
  • Page 10 on the speaker (about 5 seconds) until LED indicator flashing Red and Blue to Pairing mode(start Pairing for new device ).The unplug-100 speaker clears all Bluetooth devices from its memory and then becomes discoverable. Reconnection in Event of Bluetooth Disconnection If by any reason your device and unplug-100 Wireless Bluetooth Sound System are disconnected, such as out connection distance or powering off, they can be re-connected by:...
  • Page 11 Bluetooth equipped PCs to music or for use as a speaker phone with Skype and other online video/voice chat clients. NOTE: Not all PCs support all Bluetooth profiles needed for full functionality with unplug-100 Wireless Bluetooth Sound System. Your PC may need additional Bluetooth drivers or profiles installed.
  • Page 12 5. Windows 7 will guide you through set-up. If Prompted, the Pass code is 0000. 6. Be sure your PC's audio output and Mic input are set to unplug-100 Music then click "Continue". Your PC is now ready to use unplug-100 Wireless Bluetooth Sound System to play music and for hands-free online chat.
  • Page 13 Taking Calls on a Mobile Phone Connected to unplug-100 Wireless Bluetooth Sound System When you receive an incoming call, ring tone will sound from unplug-100 Wireless Bluetooth Sound System. If you are listening to music through your Mobile Phone the music will automatically pause. To accept a call: You can accept a call as you usually do, using your Mobile Phone controls or touch the on the top of unplug-100 Wireless...
  • Page 14 Controlling iPod or Bluetooth PC or music phone's music Playback on unplug-100 Wireless Bluetooth Sound System In Addition to using the playback control on your iPod or Bluetooth equipped PC or music phone as you normally would, you can control music playback from unplug-100 Wireless Bluetooth Sound System using the touch buttons.
  • Page 15 Volume control : Touch the(+) to increase volume and the (-) button to decrease volume. NOTE : When connected to a Mobile Phone, if you touch the the first track in your music library will begin to play. This function is disabled during an incoming call.

  • Page 16: Recharging Battery

    " " Controlling Volume When Connected via 3.5mm AUX Input: NOTE: Volume cannot be controlled with the volume control on unplug-100 Wireless Bluetooth Sound System when connected via the 3.5mm "AUDIO IN" input. Use the volume control on you device as you normally would. Recharging Battery Make sure the power switch is set to "ON".

  • Page 17: Troubleshooting

    Trouble Shooting ·Please check unplug-100 Sound is very low Wireless Bluetooth Sound System or no sound or Bluetooth device Volume Level ·If using 3.5mm port, be sure the mini jack cable is securely inserted into unplug-100 Wireless Bluetooth Sound System and your device ·Make sure your Bluetooth device Music is playing on a device...
  • Page 18 Trouble Shooting ·Make sure unplug-100 LED light not ON Wireless Bluetooth Sound System main switch is ON ·Make sure unplug-100 Wireless Bluetooth Sound System charged ·Battery already full charged ·Make sure your mobile device Hands-free calling is not working with iPod or has HSP / HFP ·Be sure your mobile phone mobile phone...
  • Page 20 Westinghouse Digital, LLC Orange, CA SE-UM-0201-1201...

This manual is also suitable for:

Unplug um100bkUnplug um100rdUnplug um100gy
