Summary of Contents for ApPower Solar Outdoor

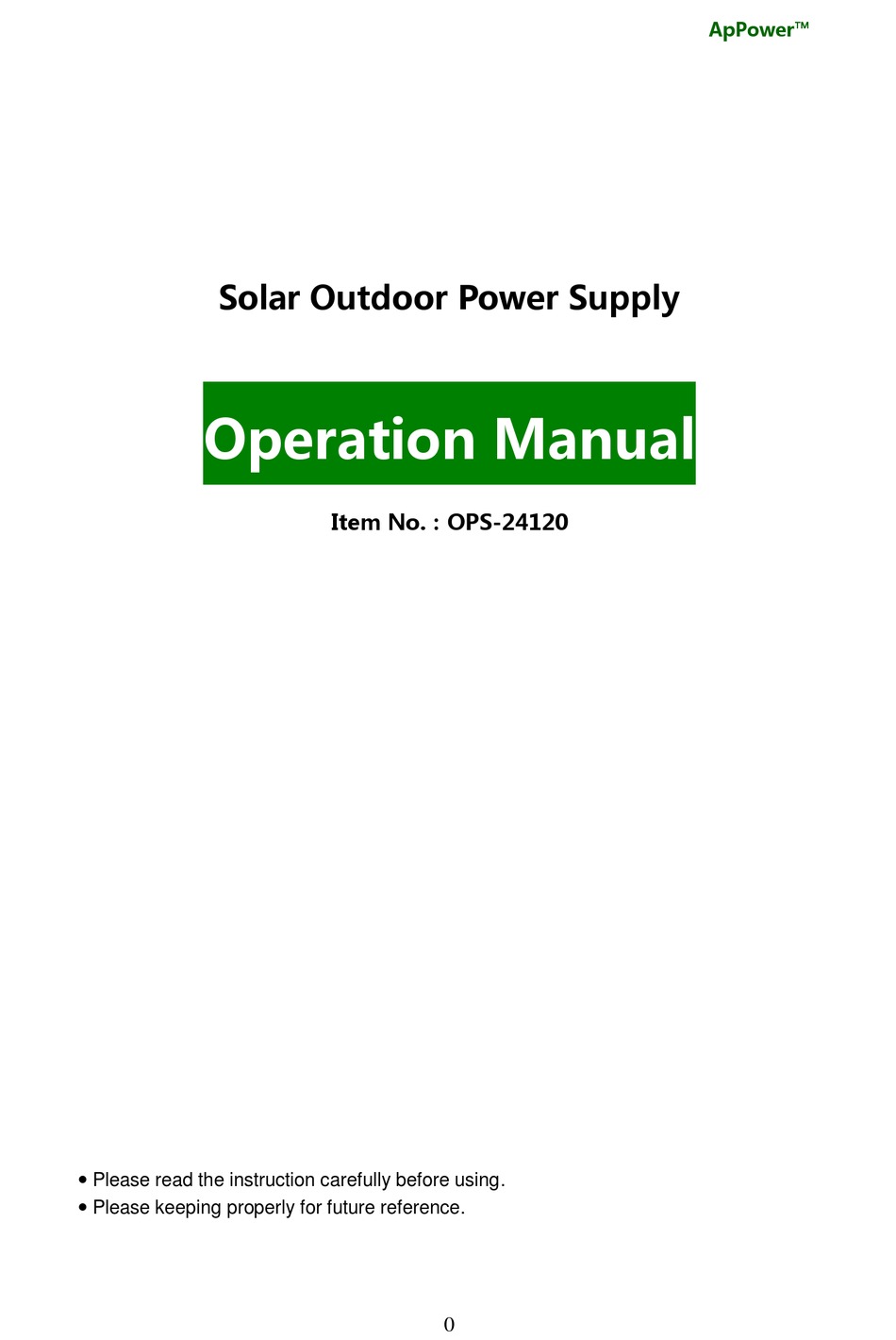

- Page 1 ApPower™ Solar Outdoor Power Supply Operation Manual Item No.：OPS-24120 Please read the instruction carefully before using. Please keeping properly for future reference.
-
Page 2: Table Of Contents
Operation Manual Dear Customer, Thanks for choosing ApPower™ Solar OPS. In order to help you to understand how to use Solar OPS, please read below manual carefully and operate in accordance with the manual, and please pay more attention to the section of Safety Cautions. (The specification in this manual is subject to change without notice. -
Page 3: Introduction
ApPower™ Introduction Thanks for your choosing ApPower Solar OPS. In order to have a proper operation and maintenance, please carefully read the manual and keeping properly for future reference. This manual is only apply to the “Solar OPS” series products by Array Power &... -
Page 4: Section I: Service Range And Type
ApPower™ Section I: Service Range and Type Solar OPS (shown as picture 1) is applied for outdoor solar energy storage, which could be installed with supporting hanger provided by us (shown as picture 2). The product is made by the Lithium Iron Phosphate (LiFexM(1-x)PyOz) cells with advantages of low self discharging rate, zero pollution, long service life, up to 1500-2000 times charging and discharging cycles, and high reliability. -
Page 5: Section Iii: Service Condition
ApPower™ Section III: Service Condition 3.1 Solar OPS IP code is 65 grades that can be used both indoor and outdoor. 3.2 Rated charging: voltage: DC 28.830.4V current: 5A 3.3 Rated discharging: voltage: DC 20.826.4V current: up to the load power, and the maximum load power no more than 240W. -
Page 6: Section V: Safety Cautions
ApPower™ 4.2 Dimensions（measuring unit：mm） ： picture：4 Section V: Safety Cautions 5.1 Do not put Solar OPS into fire or close to the heat sources; 5.2 Please charging with supporting solar panel; 5.3 Please connect to anode and cathode exactly; 5.4 Please do not open Solar OPS enclosure without authorization of Company’s technician as the Protection Circuit Board inside;... -
Page 7: Section Vi: Suggestions
ApPower™ picture：5 The left one in the picture is Output port: 1for anode, 2 for cathode; The right one is Input port: L for anode, N for cathode. Notice: When you plug an external connection to the socket, as shown in the... -
Page 8: Section Vii: Packing List
Customer Service Maintenance Instruction Dear Customer, Thank you for choosing ApPower Solar OPS, and please be advised that the warranty period of Solar OPS is one year dated from the delivery date, within which we will provide free maintenance. The exception from warranty as following: 1.
