Summary of Contents for AeroComm ConnexLink

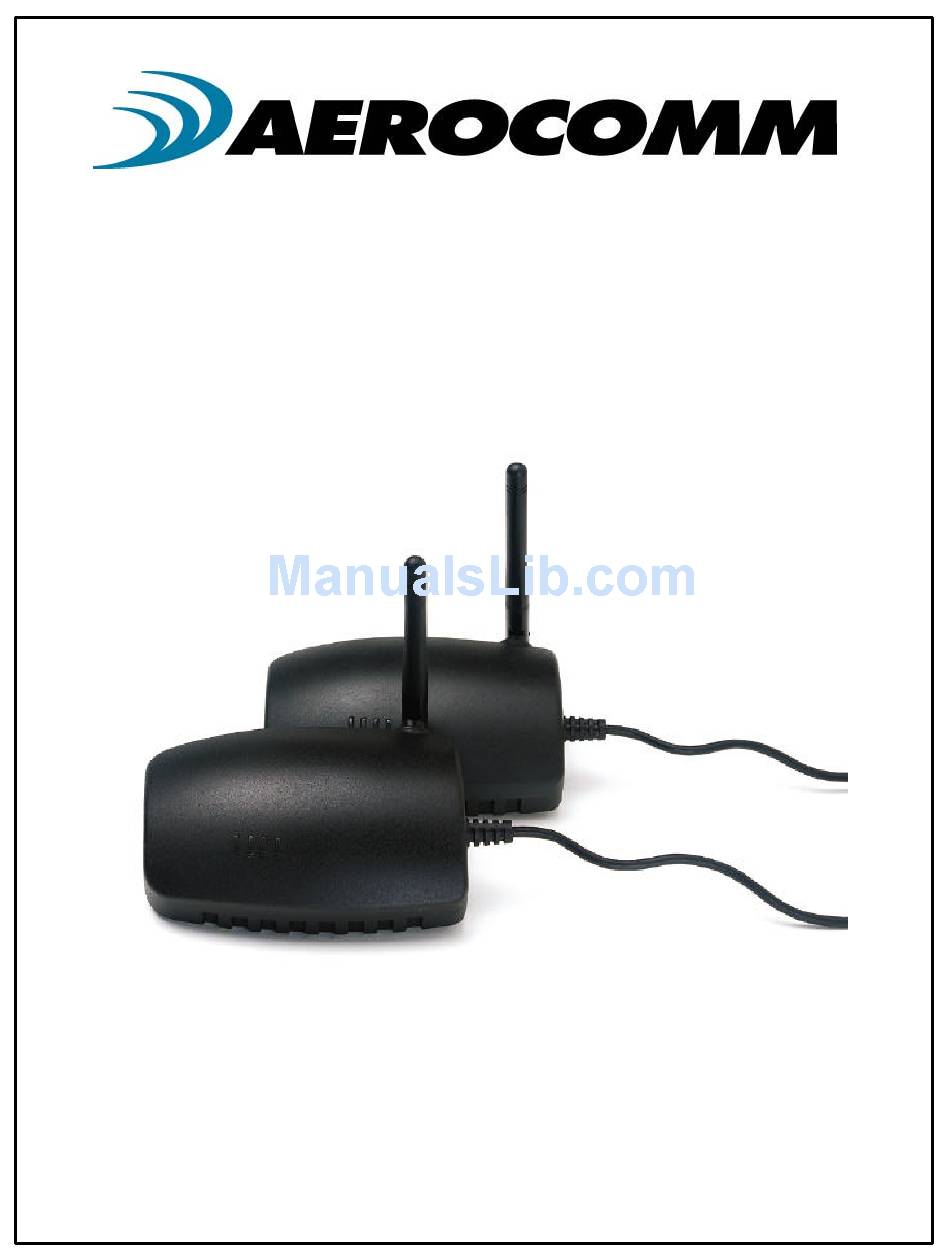

- Page 1 ConnexLink User’s Manual Version 1.0...
- Page 2 Document Information Copyright © 2001 A , Inc. All rights reserved. Copyright The information contained in this manual and the accompanying Information software programs are copyrighted and all rights are reserved by , Inc. A , Inc. reserves the right to make periodic modifications of this product without obligation to notify any person or entity of such revision.
-
Page 3: Fcc Information
FCC Information FCC Notice WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Table Of Contents
Table of Contents Overview........................5 ConnexLink Definitions....................5 ConnexLink Configuration Utility Software ..............6 1.2.1 Installation......................6 1.2.2 Software Definitions ..................6 1.2.3 Programming....................7 Troubleshooting......................8 Figures Figure 1 - Multiple Networks Of ConnexLink Units..............5 Figure 2 - ConnexLink Bottom View ..................5 6/3/2002... -
Page 5: Figure 1 - Multiple Networks Of Connexlink Units
The ConnexLink products provide a wireless RS232 connection between different devices. Each ConnexLink unit can be programmed as a Server or a Client, allowing for the creation of a two device or multiple device wireless network. In addition, multiple networks can be created by programming each network of ConnexLink units with unique Channel Number and System ID combinations. - Page 6 Clients in the network is not limited; however, if performance diminishes, consider additional RF Networks. 2. Baud Rate: This defines the Serial baud rate between the ConnexLink unit and the host device, such as a PC. The RF transmission rate is fixed.
- Page 7 1.2.3.1 Changing ConnexLink Settings After the ConnexLink unit has been set up in Program Mode, any settings can be changed and saved in the unit. This is accomplished with the following procedure: 1. Select Read Radio to display the current settings of the ConnexLink unit.
-
Page 8: Troubleshooting
1. Make sure the ConnexLink unit(s) is transmitted or received. connected to the correct COM Port. 2. Make sure the baud rate of the ConnexLink unit(s) is equal to the baud rate of the device it is connected to. 3. Try increasing the Maximum Transmit...
