Summary of Contents for AML Motor Home

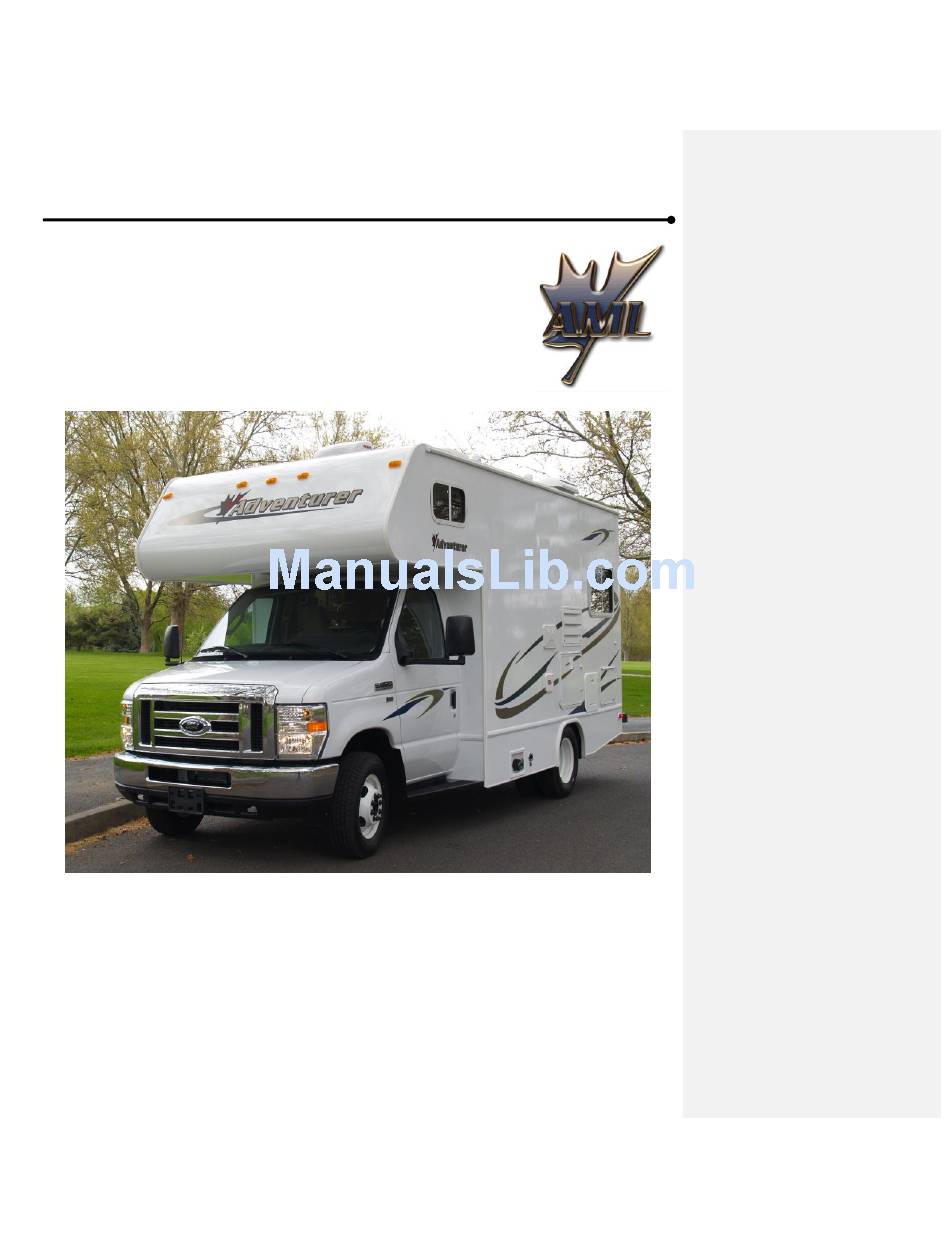

- Page 1 Motor Home Owner’s Manual www.amlrv.com...
- Page 2 Chapter 1 Introduction...
-
Page 3: Table Of Contents
Hazard Warning Flasher ....................................24 If You Get A Flat Tire ....................................... 24 Spare Tire Storage ..........................................24 Motor Home Jacking And Tire Changing Procedure ................................25 Tire Changing Safety Precautions ....................................... 25 Wheel Nuts ............................................25 Recovery Towing ......................................25 Jump Starting ........................................ - Page 4 Chapter 1 Introduction Loading The Vehicle ......................................30 Front Axle Tire Alignment ....................................30 Weighing Your Loaded Vehicle ..................................30 Maximum Occupancy ....................................... 31 Roof Loading........................................31 Car Or Trailer Towing ....................................... 31 Pre-Travel Check List ....................................... 32 Travel Tips ............................................33 Severe Weather Information ......................................
- Page 5 Chapter 1 Introduction Start-Up Instruction – Gas Mode ......................................58 Start-Up Instructions – Auto Mode ..................................... 59 Start-Up Instructions – Manual Mode....................................59 AUTO and MANUAL Modes – Gas Operation Only ................................59 Backup Operating System (“BOS”) ..................................... 60 Humidity – Storage Switch ......................................... 60 Operating Tips ..........................................
- Page 6 Chapter 1 Introduction Cold Weather Storage Procedure (Winterizing) ..............................5 Removal From Storage ....................................... 7...
-
Page 7: Introduction
Congratulations! We welcome you to the exciting before taking it on its “maiden voyage.” world of motor home travel and camping. You will find it convenient and enjoyable to have all the This manual is a guide to safe operation of the comforts of home and still enjoy the great features, equipment and controls in this coach. -
Page 8: Chassis Operating Guide
IDENTIFICATION – CLASS C brakes, driving a motor home is different from driving a car. A motor home is larger and heavier MOTOR HOMES than an automobile, so it requires more stopping and passing distance and more parking and Typical model shown for illustration purposes only. - Page 9 Chapter 2 Introduction Compartment NOTE: Some equipment shown may be optional *Coach battery compartment on some models **Also cable TV hook-up on some models *CAUTION: Be careful. These features may become HOT while water heater or furnace are in use. Roof Access Ladder Underbed Storage Compartment...
- Page 10 Safety Concerns and Precautions...
-
Page 11: Safety Precautions
Throughout this manual, certain Use care when accelerating or decelerating on a items are labeled NOTE, CAUTION and WARNING. -
Page 12: Lp Gas Leaks
Chapter 3 Safety Concerns & Precautions approximately 80 percent of its volume as liquid LP Shut off the gas supply at the tank gas. valve(s) or gas supply connection. Never use an open flame to test for LP gas leaks. Open doors and other ventilating ... -
Page 13: Electrical
Vehicle” in Section 4.) or disconnecting the battery cables from the Never load the motor home in excess of the gross auxiliary battery during extended storage periods vehicle weight rating or the gross axle weight to avoid discharge. -
Page 14: Formaldehyde Information
It is recommended that the exhaust system and body Do not mix different construction types of tires on be inspected by a qualified motor home service the vehicle such as radial, bias or belted tires, as centre. -
Page 15: Fire Extinguisher
When using the fire extinguisher, aim the spray at the base of the fire. SMOKE ALARM Your motor home is equipped with a smoke alarm located on the ceiling in the galley. This alarm... - Page 16 Section 3 Driving Your Motorhome...
-
Page 17: Before Entering Your Vehicle
Chapter 4 Driving Your Motor Home (See also Safety Precautions, Section 1 of this 5. Lower TV antenna. 6. Disconnect and store shoreline. manual.) NOTE: See your Chevy or Ford chassis operator’s WARNING guide for information on starting the engine,... -
Page 18: Fuel Selection
Chapter 5 Driving Your Motor Home Your motor home is supplied with several sets of Replacement Fuel Caps keys. In addition to the chassis manufacturer’s To protect gasoline system from excessive ignition key, you receive keys for front doors, pressure or vacuum, of from sudden pressure, entrance door, and exterior compartment doors. -
Page 19: Parking Brake
Instruct all passengers in operation of Consult your chassis-operating guide in your this door catch system as well as Motor Home Operations Manual for operating emergency exit window. instructions. Driver Compartment Door Lock HAZARD WARNING LIGHTS Consult your chassis-operating guide. -
Page 20: Lap Belts
Chapter 5 Driving Your Motor Home the belt across the body and slide the tongue WARNING into the buckle until the latch engages. Do not adjust driver’s seat while vehicle Unfastening: Press the release button in the is in motion. After adjusting seat, buckle. -
Page 21: Mirrors
1. Look for the label certifying that it meets all designed to cool the entire interior of the applicable U.S. Federal Motor Vehicle Safety motor home, but is intended to cool the Standards (FMVSS) or, in Canada, driver’s compartment only. -
Page 22: To Extend Slideout Room
Chapter 5 Driving Your Motor Home CAUTION If Slide-out Room Will Not Operate Be sure to allow adequate clearance (at (Trouble-shooting) least 3 feet) beside the vehicle to The chassis battery may be low on charge. prevent damage when extending the The circuit breaker may be tripped. - Page 23 Section 4 In Case Of Driving Emergency...
-
Page 24: Hazard Warning Flasher
Chapter 7 In Case Of Driving Emergency HAZARD WARNING FLASHER The hazard-warning flasher provides additional safety when the vehicle must be stopped on the side of the roadway and presents a possible hazard to other motorists. When the flasher is on, it serves as a warning to the other drivers to approach and overtake your vehicle with caution. -
Page 25: Motor Home Jacking And Tire Changing Procedure
Chapter 7 In Case Of Driving Emergency Motor Home Jacking And Tire Changing Procedure Follow the chassis manufacturer’s recommendations for jacking and tire changing. These instructions are found in the chassis-operating guide in your Owner InfoCase. A jack is designed for use as a tool for changing tires only, not for use as a leveling device or as a support for service purposes. -
Page 26: Jump Starting
Chapter 7 In Case Of Driving Emergency WARNING Stay out from beneath the motor home while the towing assembly suspends it unless the vehicle is adequately supported by safety stands. Do not allow passengers to occupy a towed vehicle. JUMP STARTING... -
Page 27: Connecting A Battery Charger
Chapter 7 In Case Of Driving Emergency WARNING Do not attempt to push-start this vehicle. Damage to the transmission or other parts of the vehicle could occur. Connecting A Battery Charger To connect a battery charger, first made sure the engine is switched off. Disconnect the positive (+) lead from the battery. - Page 28 Chapter 7 In Case Of Driving Emergency If engine temperature does not go down, turn the engine off and wait until the engine has cooled before attempting to open the hood. When no trace of escaping steam is heard or seen, open the hood to check for the cause of the overheat. Check hose connections and tighten if necessary.
- Page 29 Section 5 Traveling With Your Motor Home...
-
Page 30: Loading The Vehicle
Chapter 8 Traveling With Your Motor Home (See also SAFETY PRECAUTIONS, Section 1 of this manual.) LOADING THE VEHICLE When loading the vehicle, distribute the cargo load equally so that you do not exceed either the Front or Rear Gross Axle Weight Rating (GAWR) or the Gross Vehicle Weight Rating (GVWR). The Gross Axle Weight Rating (GAWR) means the weight value specified by the chassis manufacturer as the load carrying capacity of a single axle system as measured at the tire-to-ground interfaces. -
Page 31: Maximum Occupancy
Belted seating positions may exceed sleeping capacity of this vehicle. See owners manual for occupancy and weight restrictions. The number of belted seating positions in your motor home may exceed the number of people used to determine maximum coach occupancy, called the Net Carrying Capacity (NCC) in the U.S. or Cargo Carrying Capacity (CCC) in Canada. -
Page 32: Pre-Travel Check List
See also – Trailer wiring connector, page 6-8. PRE-TRAVEL CHECK LIST Before starting the engine to leave on a trip, be sure your motor home has been properly prepared and maintained. This will ensure an enjoyable trip and help avoid delays. Use this checklist as a guide. -
Page 33: Travel Tips
Mirrors – Adjust for maximum visibility from driver’s seat. Travel Tips As you travel around the country in your motor home, you will pick up useful advice from other motor home owners. A number of suggestions can also be obtained by reading articles and regular columns in outdoor and camping magazines. -
Page 34: Severe Weather Information
17. When you sit over the front wheels while driving, as in a motor home, you have a tendency to crowd the middle of the road. Check the side view mirror frequently to observe how close you are driving to the centerline. -
Page 35: Leveling
Traveling With Your Motor Home Leveling Leveling the motor home is very important, not only for your comfort, but for plumbing and appliances as well. Some refrigerators are extremely sensitive t being off level. The ammonia vapor cooling system used in most RV refrigerators can “lock up”... - Page 36 Chapter 8 Traveling With Your Motor Home NOTE: Your coach is not designed or intended to be used as permanent housing. Using this product for long term occupancy or permanent housing may lead to premature deterioration of structure, interior finishes, fabrics, carpeting and drapes.
- Page 37 Section 6 LPGAS System...
-
Page 38: Lp Gas Supply
Chapter 9 LP Gas System LP GAS SUPPLY The LP gas system supplies fuel for the range, water heater, furnace and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel. -
Page 39: Lp Tank System
Yellow Pages under “Gas – Liquefied Petroleum Bottled and Bulk.” Since the LP tank is permanently mounted to the frame, the motor home must be taken to an LP dealership for filling. Do not attempt to remove the LP tank from the vehicle. The tank is equipped with a fill adapter with both internal and external threads, which allows easy filling with any LP filling equipment. -
Page 40: Lp Gas Leaks
Chapter 9 LP Gas System The pressure regulator is protected from the elements by a plastic cover that should be left in place at all times. Only your dealer or a qualified LP gas service should remove the regulator cover for adjustments. WARNING Inspect the pressure regulator vent hole periodically for blockage. -
Page 41: Winter Use Of Lp Gas
Chapter 9 LP Gas System Never use an open flame to test for gas leaks. When testing for gas line leaks with a soapy water solution, DO NOT use a detergent containing ammonia or chlorine. These substances may generate a chemical reaction causing corrosion to gas lines, resulting in dangerous leak conditions. WINTER USE OF LP GAS Due to vaporization characteristics of LP gas, it is important that the winter camper knows how to most efficiently use the LP system. - Page 42 Section 7 Electrical Systems...
-
Page 43: 110-Volt Ac System
110-volt generator. When the power cord is connected to an outside power source, or when the generator is in operations, the power converter automatically changes a portions of the 110-volt current to 12-volt DC current. All equipment in the motor home that is normally powered by the auxiliary battery is then powered through the converter. -
Page 44: Power Center
The power converter changes 110-volt AC current from the auxiliary generator or the shoreline into 12-volt DC current for use by 12-volt equipment in the motor home. Certain circuits, however, remain unchanged for use by items, which require 110-volt current, such as the air conditioner(s), the refrigerator in AC mode, the microwave oven, etc. -
Page 45: 110-Volt Circuit Breakers
110-VOLT CIRCUIT BREAKERS The breaker panel protects all 110-volt components in the motor home from either an overload on the circuit or a short in the wiring or component itself. When an overload or short develops, the breaker will open preventing any further flow of electricity and, therefore, damage to the system. -
Page 46: Starting And Stopping The Generator
Chapter 10 Electrical Systems Never touch electrical leads or appliances when your hands are wet, or when standing in water or on wet ground. Do not attempt to repair the generator yourself. Service should be performed by an authorized service center. Do not plug the power cord into the generator receptacle while the generator is running. -
Page 47: 12-Volt Dc System
The exhaust of all internal combustion engines contains carbon monoxide (CO). This poisonous gas is colourless, odorless, tasteless, and lighter than air. The exhaust systems of both your motor home engine and your generator engine have been installed with your safety in mind. However, certain precautions must be taken when using them to protect you from conditions beyond the control of the manufacturer. -
Page 48: 12-Volt House Fuses And Circuit Breakers
House Batteries The house batteries supply current to all 12-volt equipment located in the living area of the motor home. This includes interior lights, range exhaust fan, furnace fan, water pump, water level and holding tank gauges, 110-volt generator starting, refrigerator and the bath roof vent fan. - Page 49 NOTE: Make sure vent caps are on securely to prevent baking soda solution from entering the battery and contaminating the electrolyte fluid. WARNING Before removing any battery cables or battery, make sure all 12-volt equipment in the motor home is off and the power cord has been disconnected. Replace any damaged cables at once.
-
Page 50: Battery Condition Meter
Never try to charge or boost a frozen battery. A battery explosion could result. Battery Condition Meter This meter allows you to check the level of charge in the house battery in your motor home. It is located on the monitor panel in the galley area. - Page 51 Section 8 Plumbing Systems...
-
Page 52: Fresh Water System
Water may be supplied by either of two sources: a water tank located within the motor home, or any external water source to which the motor home may be connected, known as “city water”. FRESH WATER TANK FILLING PROCEDURES: Always fill the fresh water tank at an approved potable water filling facility or a known purified drinking water source. -
Page 53: Disinfecting Fresh Water Systems On Recreation Vehicles
Chapter 11 Plumbing Systems Disinfecting Fresh Water Systems On Recreation Vehicles To assure complete disinfecting of your fresh water system, it is recommended that the following procedure be followed on a new system, one that has not been used for a period of time, or one that may have become contaminated. -
Page 54: Shower Valve Pressure Bleed-Off
Chapter 11 Plumbing Systems 2. Open a faucet inside the vehicle to relieve line pressure. 3. Disconnect the hose from the vehicle and replace the cap on the connection. SHOWER VALVE PRESSURE BLEED-OFF After using the shower, you may notice water dripping from the shower faucet assembly. The dripping results when vacuum in the shower hose (after closing the shower faucet) slowly releases and allows water remaining in the hose to drain down. -
Page 55: Using On-Site Sewer Hook-Ups
The drain hose may remain attached to the dump outlet and be routed out the bottom of the compartment while the motor home is parked and connected to an on-site sewage hook-up. When using a sewer hook-up, keep the dump valves closed until a tank becomes full or when preparing to leave the site. - Page 56 Chapter 11 Plumbing Systems Reattach water inlet line to pump Tank Capacities Black Water Holding Tank Models (Toilet & Lavatory) ??gal. Model (Toilet & Lavatory ??gal. Model (Toilet ??gal. Model (Toilet & Lavatory ??gal. Model (Toilet & Lavatory ??gal. Grey Water Holding Tank Models (Galley &...
- Page 57 Section 9 Appliances & Interior Features...
-
Page 58: Refrigerator
110-Volt AC electric LP gas Leveling Before operating the refrigerator when the motor home is stationary, place a small level on the freezer plate and make certain the unit is level. CAUTION To prevent permanent damage to the refrigerator cooling unit, turn the refrigerator off if the vehicle will be parked on an incline of over 3 degrees side-to-side or 6 degrees front-to-rear (such as steep driveways or parking lots, etc.) for more than one hour. -
Page 59: Start-Up Instructions - Auto Mode
Chapter 12 Appliances & Interior Features Pressing and holding the MODE button © allows the user to cycle through the three mode choices; one AUTO and two manual modes (AC, LP GAS). The refrigerator will not switch to the new operating mode until the mode button is released. -
Page 60: Backup Operating System ("Bos")
Further Information For further information and operating cautions, see the Norcold refrigerator operating instructions included either inside the refrigerator or in your Motor Home Operations Manual binder. REFRIGERATOR COMPARTMENT (EXTERIOR) The exterior refrigerator compartment allows access to the rear of the refrigerator for inspection, maintenance and service. -
Page 61: To Close
2. Push the latch knobs in while turning to the horizontal position as shown. RANGE AND OVEN The range and oven in your motor home are operated on LP gas and will provide nearly all of the functions that the range in your home does. -
Page 62: Microwave Oven
Chapter 12 Appliances & Interior Features this delay. It is also normal for the oven burner flame to cycle off and on at all temperatures except broil (BR). Shut Down Instructions When oven cooking is finished, turn the oven control knob to the “PILOT ON” position, the oven standby pilot will remain lit. -
Page 63: Battery Condition Meter
Chapter 12 Appliances & Interior Features as a faucet is opened. Refer to “Fresh Water System” for additional information on the water pump and initial start-up. Battery Condition Meter Push the “Levels Test” button to check the level of charge (voltage) in the 12-volt coach battery. The colored segments (red, yellow and green) will light from the bottom up to the amount of charge the battery contains. -
Page 64: Water Heater Pressure-Temperature Relief Valve
1. Turn off the water heater switch and incoming water supply (city water and/or demand pump). 2. Open a faucet in the motor home to relieve water pressure. 3. Pull the handle of the P-T valve straight out and allow water to flow until it stops. -
Page 65: To Shut Down
FRESH WATER TOILET The fresh water toilet in your motor home is very similar to the household type, except that it is designed to use only a small amount of water per flush. It uses a high velocity jet of water, producing a swirl effect, to efficiently cleanse the bowl. -
Page 66: Flushing The Toilet
Chapter 12 Appliances & Interior Features Flushing The Toilet 1. To add water to the bowl before using, move the white lever to the right. Hold lever until desired level of water is reached. Release lever slowly – do not allow it to snap back. Generally, more water is required only when flushing solids. -
Page 67: Night Pleated Window Shades
Chapter 12 Appliances & Interior Features NIGHT PLEATED WINDOW SHADES Tension Adjustment: The tension of the pleated shades can be adjusted if they become loose and will not stay up when raised, or they are too right and are difficult to raise and lower. To tighten the tension, simply wrap the lower end of the guide cords (on each side of the shade) a few turns around the spools at the lower corners of the shades. - Page 68 Section 10 Care & Maintenance...
-
Page 69: Roof
Do not use strong soaps or detergents for washing the motor home. Always use a mild soap in warm water, a commercially prepared product for cleaning automotive finishes or your local car wash. Be careful when using pressure-type washers to avoid loosening exterior decals or sealants, etc. -
Page 70: Interior
NOTE: To minimize fading of upholstery, carpets and other interior fabrics caused by excessive sunlight, the rapes, blinds or shades should be closed when the motor home is parked for an extended period of time. WARNING When cleaning upholstery and fabric, do not use lacquer thinner, nail polish remover, laundry soaps, or bleach. -
Page 71: Vinyl Fabrics
RANGE AND REFRIGERATOR For care and appearance maintenance of the range and refrigerator, refer to the operation and maintenance manual for each of the individual appliances included in your Motor Home Operation Manual binder. BATHROOM The tub and shower walls in the bathroom should be cleaned with a mild soap and water solution, or (to obtain maximum luster) use a good quality wax cleaner. -
Page 72: Doors And Windows
Chapter 13 Care & Maintenance For instructions on the care of your fresh water toilet, refer to the information in your Motor Home Operation Manual binder. DOORS AND WINDOWS Windows may be periodically cleaned with a good quality glass cleaner or mild soap solution using a soft cloth. -
Page 73: Suspension Alignment And Tire Balance
However, we recommend that alignment be checked and adjusted, if necessary, after you have fully loaded the motor home according to your personal needs. Thereafter, the alignment should be periodically inspected to help prevent uneven tire wear. - Page 74 Chapter 13 Care & Maintenance See your Adventurer dealer for installation of awnings. Your dealer’s service department has information Note: showing locations of awning bracket supports in the sidewall of the coach. CAUTION Improper awning installation may result in damage to the coach.
- Page 75 SECTION 11 STORING YOUR MOTOR HOME...
-
Page 76: Preparing Vehicle For Storage
Properly preparing your vehicle for storage will lessen the possibility of damage to your vehicle. Prepare the motor home for vacancy just as your would if you were leaving your house for an extended period: Remove all perishables from cabinets and refrigerator Prop refrigerator door open. - Page 77 Chapter 14 Care & Maintenance Limit air pressure to 30 psi to avoid damage to pump or water lines. NOTE: DO NOT burst air into the system. This can damage the water pump. It is better to let air in slowly. 10.
-
Page 78: Removal From Storage
We recommend following regular battery inspection and maintenance especially in cold weather. REMOVAL FROM STORAGE 1. Completely air out the motor home. 2. Have the entire LP gas system checked for leaks. 3. Check window operation. - Page 79 Chapter 14 Care & Maintenance compounds are available from your dealer. Also inspect weather seals around doors, etc., and if necessary, have a dealer replace immediately.
