Peter Sinkiwskij
Date: 2013.12.23 16:06:28 -05'00'
DN: cn=Peter Sinkiwskij, o=Pneumercator Co., Inc., ou=Hauppauge, NY, email=peter@pneumercator.com, c=US
Digitally signed by Peter Sinkiwskij
PNEUMERCATOR
Liquid Level Control Systems
Lightning Surge Protector
Bulletin 166 Rev. A (12/20/07)
4/12/2013 5:14:36 PM, 1:1, © COPYRIGHT 2013 PNEUMERCATOR COMPANY, INC.

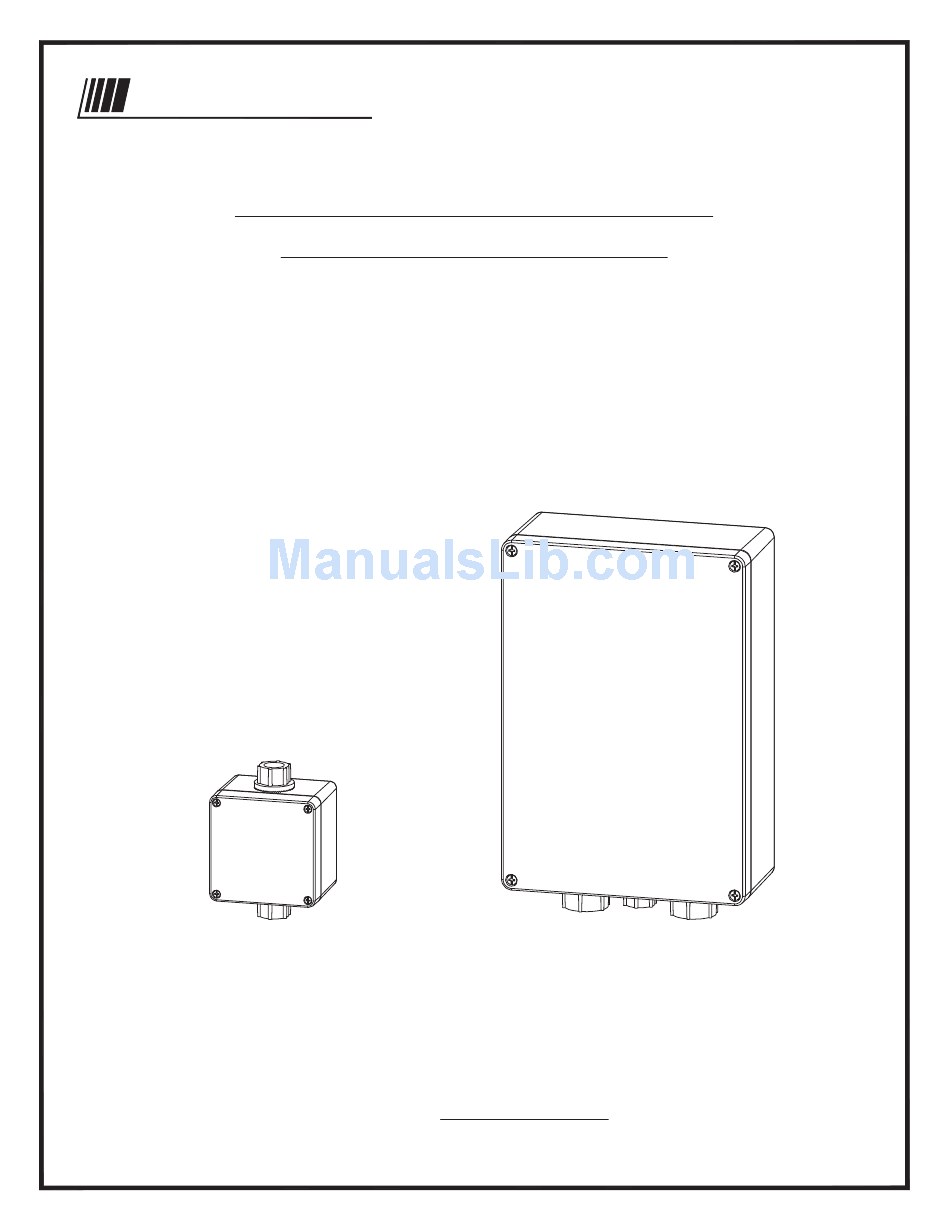

MODELS PD230 AND PD1230
Installation Instructions
Model PD230
3x2 Channel
© COPYRIGHT 2007 PNEUMERCATOR CO., INC.
WEBSITE: www.pneumercator.com
PNEUMERCATOR TECHNICAL SUPPORT
Model PD1230
3x12 Channel
Lightning Surge Protector
TEL: (631) 293-8450
FAX: (631) 293-8533
1 (800) 209-7858
Page 1 of 8
Advertisement
Table of Contents
Summary of Contents for Pneumercator PD230
- Page 1 Peter Sinkiwskij Digitally signed by Peter Sinkiwskij DN: cn=Peter Sinkiwskij, o=Pneumercator Co., Inc., ou=Hauppauge, NY, email=peter@pneumercator.com, c=US Date: 2013.12.23 16:06:28 -05'00' PNEUMERCATOR Liquid Level Control Systems MODELS PD230 AND PD1230 Installation Instructions Model PD1230 3x12 Channel Lightning Surge Protector Model PD230...
- Page 2 (36) circuits when (12) PM305 or PM324 modules are installed. PD1230s are generally installed as close as practical to a tank monitoring console such as Pneumercator E, LDE or TMS series. PM305 OR PM324 - LIGHTNING SURGE PROTECTOR MODULE: Each module consists of (3) independent circuits.
- Page 3 PD230 PD230 PD230 TYPICAL TANK TYPICAL TANK W/ PROBE AND W/ PROBE AND (2) 3-WIRE (2) 2-WIRE 3-WIRE SENSORS SENSOR SENSORS Bulletin 166 Rev. A (12/20/07) Page 3 of 8 4/12/2013 5:14:37 PM, 1:1, © COPYRIGHT 2013 PNEUMERCATOR COMPANY, INC.
- Page 4 (SEE NOTE ABOVE) (4) MOUNTING SCREWS USE #6 X 3/4" LENGTH MOUNTING SCREWS (17/64" [6.75 MM] MAX. SCREW HEAD DIA.) EXTERNAL BOTTOM LABEL Bulletin 166 Rev. A (12/20/07) Page 4 of 8 4/12/2013 5:14:39 PM, 1:1, © COPYRIGHT 2013 PNEUMERCATOR COMPANY, INC.
- Page 5 EQUIVALENT NOTES: 1. ENCLOSURE RATING: UP TO NEMA 4X; IP 66, DIN 40053. 2. DIMENSIONS: INCHES [MM]. 3. DRAWING SCALE: 1/4. Bulletin 166 Rev. A (12/20/07) Page 5 of 8 4/12/2013 5:14:40 PM, 1:1, © COPYRIGHT 2013 PNEUMERCATOR COMPANY, INC.
- Page 6 1. THE PROBE FIELD CABLE SHIELD WIRE MUST BE CONNECTED IN THE PD1230 CONSOLE AND SHOULD BE CUT BACK AND LEFT UNTERMINATED AT THE PD230. 2. FOR THE MP45xS SERIES PROBE GROUND WIRE TO BE EFFECTIVE, THE PD230 ENCLOSURE MUST BE PROPERLY GROUNDED BY A QUALIFIED INSTALLER USING RIGID METAL CONDUIT OR OTHER APPROVED METHODS.
- Page 7 THEN BE CONNECTED TO THE SYSTEM EARTH GROUND (GROUND BUSS BAR) AT THE SERVICE PANEL. THE RESISTANCE BETWEEN THE EARTH GROUND TERMINAL BLOCK AND EARTH GROUND SHALL BE LESS THAN 1 OHM. Bulletin 166 Rev. A (12/20/07) Page 7 of 8 4/12/2013 5:14:44 PM, 1:1, © COPYRIGHT 2013 PNEUMERCATOR COMPANY, INC.
- Page 8 #4 does not indicate, replace the standard 9V battery and continue the test. The (3) module circuits are independent, therefore if (1) circuit fails the other (2) will continue to protect wiring. However, If the failed circuit is protecting wiring, the module must be replaced as soon as possible. See page 2 for Pneumercator module order numbers.
