EarthQuake CS3814 Operator's Manual

Chain saw
Hide thumbs Also See for CS3814:
Table of Contents

Advertisement

Quick Links

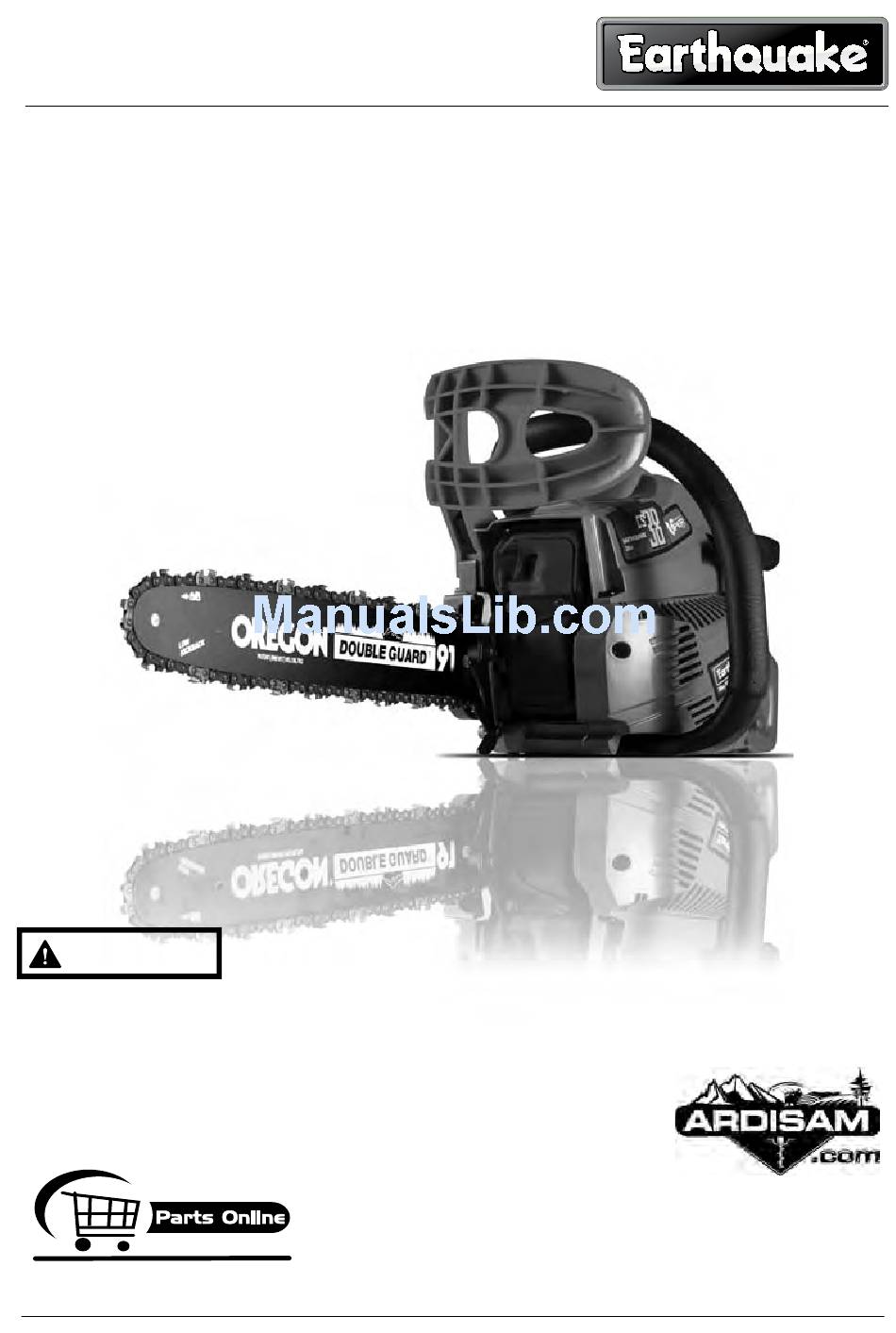

OperatOr's Manual & parts
Chain Saw CS3814/CS4116
WARNING
Before using our products, please read this manual carefully to understand the
proper use of your unit.
OMCS3814_CS4116
R082809
© Copyright 2009 Ardisam, Inc.
GetEarthquake.com
All Rights Reserved. Printed in China.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS3814 and is the answer not in the manual?

Questions and answers

Related Manuals for EarthQuake CS3814

Summary of Contents for EarthQuake CS3814

  • Page 1 OperatOr's Manual & parts Chain Saw CS3814/CS4116 WARNING Before using our products, please read this manual carefully to understand the proper use of your unit. OMCS3814_CS4116 R082809 © Copyright 2009 Ardisam, Inc. GetEarthquake.com All Rights Reserved. Printed in China.

  • Page 3: Table Of Contents

    Contents SAFETY FIRST Instructions contained in warnings within this manual marked with a WARNING symbol concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them with- out fail.

  • Page 4: Parts Location

    Parts Location Front hand guard and brake Starter handle Air filter cover Choke knob Throttle trigger lock-out Rear handle Throttle trigger Engine switch Fuel tank 10. Oil tank 11. Front handle 12. Saw chain 13. Guide bar 14. Primer Bulb Page ...

  • Page 5: Symbols On The Machine

    Symbols on the Machine (1) Read operator's instruction book before operating this machine. (2) Appropriate ear, eye, and head protection must be worn. (3) Use the chain saw with two hands. (4) Warning! Danger of kickback. (5) Read, understand and follow all warnings. Page ...
  • Page 6 Symbols on the Machine For safe operation and maintenance, symbols are carved in relief on the machine. According to these indications, please be careful not to make any mistake. (a). The port to refuel the "MIX GASOLINE" Position: near the fuel cap (b).
  • Page 7 Symbols on the Machine (f). The screw under the "H" stamp is The High-speed adjustment screw. The screw under the "L" stamp is The Slow-speed adjustment screw. The screw up the "T" stamp is the Idle adjustment screw. Position: upper-left of the rear handle (g).

  • Page 8: For Safe Operation

    For Safe Operation Before operating the product 1. Before using our products, please read this manual carefully to understand the proper use of your unit. 2. Never operate a chain saw when you are fatigued, ill, or upset, or under the influence of medication that may make you drowsy, or if you are under the influence of alcohol or drugs.
  • Page 9 For Safe Operation 6. Always use caution when handling fuel. Wipe up all spills and then move the chain saw at least ten(10)feet (three(3) m) from the fueling point before starting the engine. 7. Eliminate all sources of sparks or flame (ie. smoking, open flames, or work that can cause sparks) in the areas where fuel is mixed, poured, or stored.
  • Page 10 For Safe Operation 12. Always carry the chain saw with the engine stopped, the guide bar and saw chain to the rear, and the muffler away from your body. 13. Always inspect the chain saw before each use for worn, loose, or changed parts.
  • Page 11 For Safe Operation 19. Guard against kickback. Kickback is the upward motion of the guide bar which occurs when the saw chain at the nose of the guide bar contacts an object. Kickback can lead to dangerous loss of control of the chain saw.
  • Page 12 For Safe Operation (2) Keep a good grip on the saw with both hands, the right hand on the rear handle, and the left hand on the front handle, when the engine is running. Use a firm grip with thumbs and fingers encircling the chain saw handles.

  • Page 13: Installing Guide Bar And Saw Chain

    Installing Guide Bar / Chain 5 A standard saw unit package contains the items as shown below.： (1) Power unit (2) Guide bar (3) Saw chain (4) Plug wrench (5) Screwdriver for carburetor adjustment Open the box and install the guide bar and the saw chain on the power unit as follows.
  • Page 14 Installing Guide Bar / Chain NOTE Pay attention to the correct direction of the saw chain. (1)：Moving direction 4. Mount the guide bar then fit the saw chain around the bar and sprocket. 5. Fit the chain tensioner nut into the lower hole of the guide bar, then install the chain cover, and fasten the mounting nut to finger tightness.

  • Page 15: Fuel And Chain Oil

    Fuel and Chain Oil Fuel The engines are lubricated by Viper Engine Oil specially formulated for air-cooled 2-cycle gasoline engine use. If oil is not available, use an antioxidant added quality oil expressly labeled for air-cooled 2-cycle chain saw engine use. RECOMMENDED MIXING RATIO GASOLINE 50 : OIL 1 These engines are certified to operate on unleaded gasoline.
  • Page 16 Fuel and Chain Oil 4. Pour in the rest of gasoline and agitate again for at least one minute. 5. Put a clear indication on the outside of the container to avoid mixing up with gasoline or other containers. CHAIN OIL Use special chain saw oil all year round.

  • Page 17: Operation

    Operation STARTING ENGINE 1. Untwist and remove the fuel cap. Rest the cap on a dustless place.. 2. Put fuel into the fuel tank to 80% of the full capacity. 3. Fasten the fuel cap securely and wipe up any fuel spillage around the unit.
  • Page 18 Operation 8. When firing occurs, push in the choke knob and pull the starter again to start the engine. 9. Allow the engine to warm up with the throttle lever pulled slightly. WARNING Before you start the engine, make sure the saw chain is not contacting anything.
  • Page 19 Operation When adjusting, take the following steps: IMPORTANT Be sure to adjust the carburetor with the bar chain attached. 1. H and L needles are restricted within the number of turn as shown below. H needle –1/4 L needle –1/4 2.
  • Page 20 Operation To release brake, pull up the front handle guard toward the front handle till “click” sound is heard. WARNING When the brake operates, release the throttle lever to slow down the engine speed. Continuous operation with the brake engaged will generate heat from the clutch and may cause damage.

  • Page 21: Sawing

    Sawing Continuing to use the product in the anti-freeze mode even when temperatures have risen and returned to normal, may result in the engine failing to start properly or in the engine failing to operate at its normal speed, and for this reason you should always be sure to return the unit to the normal operating mode if there is no danger of icing occurring.
  • Page 22 Sawing clutch drum before use. It is extremely important that the chain brake be checked for proper operation before each use and that the chain be sharp in order to maintain the kickback safety level of this saw. Removal of the safety devices, inadequate maintenance, or incorrect replacement of the bar or chain may increase the risk of serious personal injury due to kickback.
  • Page 23 Sawing LOGGING AND LIMBING WARNING 1. Always ensure your foothold as well as stability of the tree. 2. Be alert to the rolling over of a cut log. 3. Read the instructions in “For Safe Operation” to avoid kickback of the saw.
  • Page 24 Sawing Pruning Cut up from the bottom, finish down from the top. WARNING 1. Do not use an unstable foothold or a stepladder. 2. Do not overreach. 3. Do not cut above shoulder height. 4. Always use both hands to grip the saw. Page 2...

  • Page 25: Maintenance

    Maintenance WARNING Before cleaning, inspecting or repairing your unit, make sure that engine has stopped and is cool. Disconnect the spark plug to prevent accidental starting. Maintenance after each use 1. Air filter Dust on the cleaner surface can be removed by tapping a corner of the cleaner against a hard surface.

  • Page 26: Fuel Filter

    Maintenance 4. Others Check for fuel leakage and loose fastenings and damage to major parts, especially handle joints and guide bar mounting. If any defects are found, make sure to have them repaired before operating again May require extra grease tip PERIODICAL SERvICE POINTS 1.

  • Page 27: Spark Plug

    Maintenance 0.635 mm 3. Spark plug Clean the electrodes with a wire brush and reset the gap to 0.635 mm as necessary. (.025 in.) Spark plug type：Champion CJ7Y 4. Sprocket Check for cracks and for excessive wear interfering with the chain drive.

  • Page 28: Maintenance Of Saw Chain And Guide Bar

    Maintenance of Chain / Bar Saw chain WARNING It is very important for smooth and safe operation to keep the cutters always sharp. Your cutters need to be sharpened when: • Sawdust becomes powder-like. • You need extra force to saw in. •...
  • Page 29 Maintenance of Chain / Bar After every cutter has been set, check the depth gauge and file it to the proper level as illustrated. WARNING Be sure to round off the front edge to reduce the chance of kickback or tie-strap breakage. (1) Appropriate gauge checker (2) Make the shoulder round (3) Depth gauge standard Make sure every cutter has the same length and edge angles as shown below.
  • Page 30 Maintenance of Chain / Bar WARNING This saw is equipped with the following low kickback bar/chain combination: Guide bar： CS4116……………………….Oregon160SDEA041 CS3814……………………….Oregon140SDEA041 Saw chain： CS3814………………………………………Oregon S52 CS4116………………………………………Oregon S56 For replacement use only above bars and chains Page 0...

  • Page 31: Storage

    Storage 1. Empty the fuel tank and run the engine out of fuel. 2. Empty the oil tank. 3. Clean the entire unit. 4. Store the unit in a dry place out of the reach of children. Page 1...

  • Page 32: Troubleshooting Guide

    Troubleshooting Guide Problem Cause Remedy Starting failure Check fuel for water or Replace with proper fuel substandard mixture Remove and dry the spark plug Then pull the starter again with no choke Replace with a new plug Lack of power / Poor ac- Check for water or Replace with proper fuel celeration / Rough idling...

  • Page 33: Specifications

    Displacement CS3814 ........

  • Page 34: Warranty

    1-Year Limited Warranty Terms and Conditions Ardisam, Inc., a manufacturing company, warrants this Earthquake® CHAIN SAW to be free from defects in the material or workmanship for a period of one year from the date of purchase. During the one year warranty of this product, Ardisam will furnish 100% parts and labor to correct any defect caused by faulty material or workmanship.
  • Page 35 • 1160 eighth avenue; p.o. box 666 cumberland, wisconsin 54829 800-345-6007 · fax (715) 822-4180 • e-mail: info@ardisam.com GetEarthquake.com Page 0...

This manual is also suitable for:

Cs4116
