Page 1: Digital Video Recorder

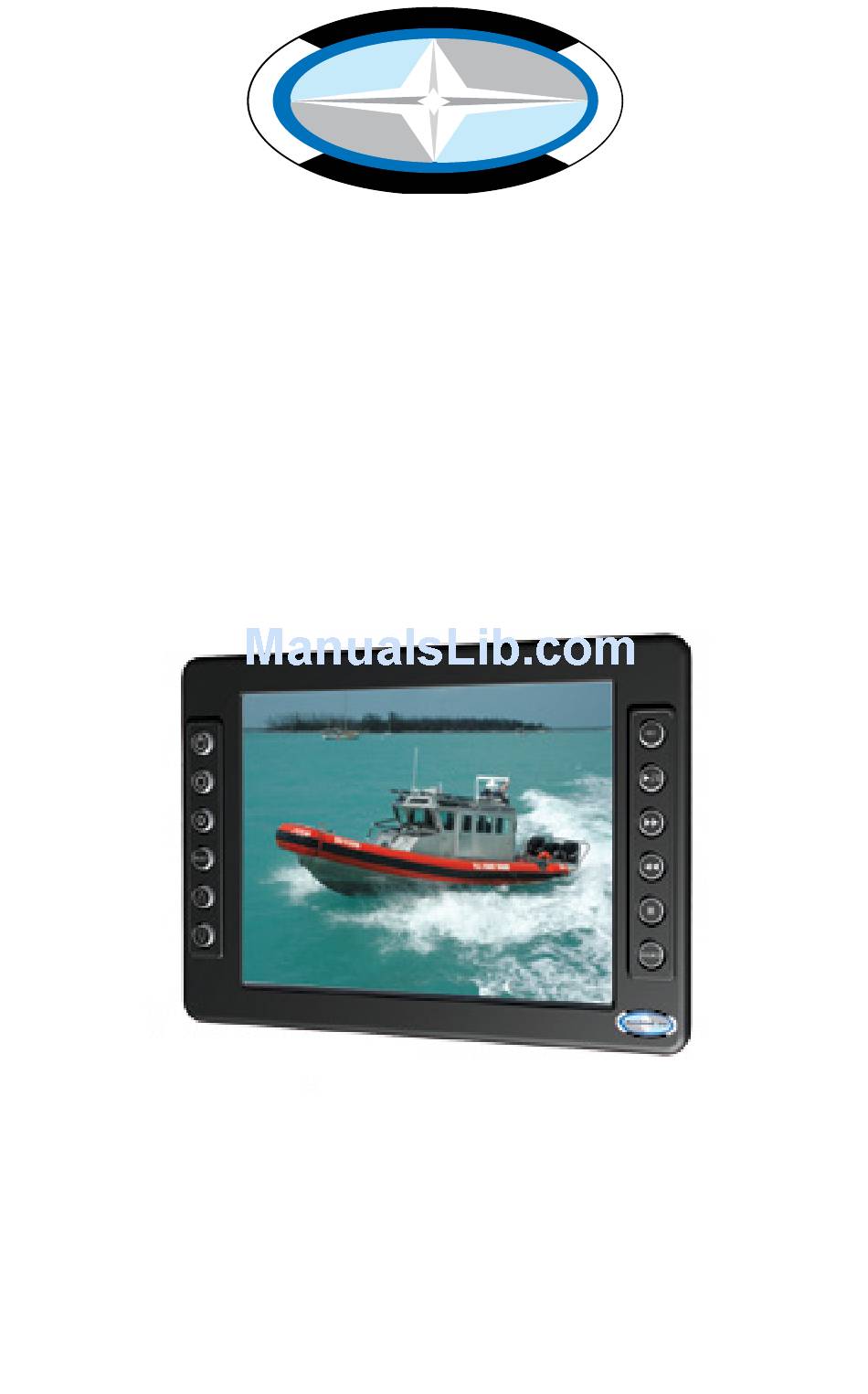

MARINE PC MARINE PC MPC-ML10DVR Digital Video Recorder LCD Monitor User Manual www.MarinePC.com... - Page 2 Copyright This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual, in whole or part, may be reproduced by any means, in any form, without prior written permission of MarinePC. MPC-ML10DVR-UM(B) 4/2011...
- Page 3 MPC-ML10DVR Military Grade Digital Video Recorder LCD Monitor User Manual www.MarinePC.com MPC-ML10DVR-UM(B) 4/2011...
-
Page 4: Table Of Contents
Display Connections ..........16 Operator Controls ..........17 On-Screen Display ..........18 Digital Video Recorder .......... 24 Video Gallery ............. 26 Appendix A - Overview Drawings ......27 Appendix B - Troubleshooting ......... 27 Appendix C - Technical Specifications ....... 29 MPC-ML10DVR-UM(B) 4/2011... -
Page 5: Introduction
The MPC-ML10DVR also integrates full DVR capability directly inside the case of the wa- terproof monitor, eliminating separate mounting interconnecting cables, saving space and providing environmental protection and tranportability for the DVR. -
Page 6: Quick Start Guide
Terminate Positive cable lead to 10-36 VDC positive voltage source and Negative lead to negative voltage source. Plug in cable (supplied by Marine PC or FBO) into J1 and turn CW to lock. (Connecting cable to J2 is only necessary for download.) Connect at least one RS-170 device (camera, typically) to any of the three input cables, marked 1, 2, 3, using standard BNC coax connector. - Page 7 After stopping a recording, or at any other time when recording is not taking place, any video file can be played back in the MPC-ML10DVR. To review any saved file, simply press the Play-Pause button, second down on the right. The currently displayed video input on the LCD will be replaced by the gallery, a list of thumbnail images of sequentially numbered files.
- Page 8 PC as a memory device, much like a USB stick. Files can now be either copied or moved from the MPC-ML10DVR to a file folder in the PC. It is recommended in most cases that the files be moved in order to free up storage for the next use.
-
Page 9: Nvis Option
NVIS OPTION Overview The MPC-ML10DVR is often used as a display for low light and infrared cameras for operations at night. Operator situational awareness can be further enhanced with the use of Night Vision Gog- gles or Monoculars, commonly referred to as NVG’s. These devices amplify available light within a certain spectrum to allow visualization of objects that are otherwise undetectable. -
Page 10: Safety
SAFETY General Safety Instructions • Before operating the MPC-ML10DVR Monitor, read this User Manual thoroughly • Retain this User Manual for future use • Verify the computer system capability (see System Set-up) to insure operation of the Monitor • For expeditious installation, follow these User Manual instructions in the sequence presented •... -
Page 11: Power Source
• Input voltage is 10 - 36 VDC Power Consumption Warning! MPC-ML10DVR power consumption is listed at 6 watts minimum - 20 Watts maximum. Protection on Servicing Servicing - User • User Servicing is limited to cleaning the Display •... -
Page 12: Product Care And Maintenance
PRODUCT CARE AND MAINTENANCE Product Care This MPC-ML10DVR Monitor has been designed to provide optimum performance and ser- vice without any required scheduled maintenance other than occasional cleaning. Turn off the Monitor power before cleaning the Monitor screen, or unit’s enclo- sure. -
Page 13: System Set-Up
SYSTEM SET-UP System Requirements The MPC-ML10DVR accepts a standard NTSC composite video signal from any device – a camera, DVD or VCR. Shipping Box Contents The MPC-ML10DVR is shipped in a custom box with custom packaging. It is recommend- ed that the installer should save box and all packaging materials in case Display should need to be returned to the MarinePC Service Center. -
Page 14: Installation
INSTALLATION The MPC-ML10DVR is designed to be mounted with a universal ball-and-socket mounting kit, in a Flat Panel position or optional Flush Mount configuration. Pedestal Mount The MPC-ML10DVR is shipped with a RAM® universal ball-and-socket system mounting kit (Figure 2). By installing Display with this kit, User can quickly adjust the viewing angle to improve viewability in changing environments. - Page 15 • Note location of three mounting holes on a ball mounting plate (Figure 4) • With three (3) M4 x 10 counter-sunk stainless screws attach this mounting plate to back of the MPC-ML10DVR • Mount second ball mounting plate where Display will be installed •...
-
Page 16: Display Connections
MATE MS3116F8-4S USB Connector STRAIN Included MPC-ML10DVR accepts a USB signal. The MIL-DTL 38999 Series 1 USB Connector has a 4 pin plug. J2 Pin-out is Table 2 indicated in Table 2. Ground A location for chassis bonding ground is available on the rear of enclosure. -
Page 17: Operator Controls
Select Button The SELECT Button is used to access the OSD Menu. Up Arrow Button The UP Arrow Button is an adjustment or decision choice. Down Arrow Button The DOWN Arrow Button is an adjustment or decision choice. MPC-ML10DVR-UM(B) 4/2011... -
Page 18: On-Screen Display
• Press (once) SELECT Button to activate the highlighted Submenu item • To Change values: press UP or DOWN Buttons, which increases (UP) or decreases (DOWN) the value of the parameter as indicated in OSD dialog box; hold Button down MPC-ML10DVR-UM(B) 4/2011... -
Page 19: Input Selection
C Video 2 Select for second Input Signal. Select Exit Button to save. C Video 3 Select for third Input Signal. Select Exit Button to save. Exit Select Exit Button to save changes and exit from OSD Menu. MPC-ML10DVR-UM(B) 4/2011... -
Page 20: Image Enhancement
Select Saturation to adjust intensity or vividness (saturation) of color. Factory default is 50 within range of 0 - 100. Use the UP (increase) or DOWN (decrease) Button to adjust in individual increments. Select Exit Button to save. MPC-ML10DVR-UM(B) 4/2011... -
Page 21: Image Settings
60 seconds. Select to adjust time elapse between last Menu activity and when Menu exits. Use the UP (increase) or DOWN (decrease) Buttons to change the values. Select Exit Button to save. Note: Any changes made in will be saved upon Timeout Exit. MPC-ML10DVR-UM(B) 4/2011... -
Page 22: Set Date And Time
• Use UP or DOWN Arrow Button to set current Minutes • Press SELECT to go into Inactive Mode • Use UP or DOWN Arrow Button to move to Seconds • Press SELECT to go into Active Mode MPC-ML10DVR-UM(B) 4/2011... - Page 23 Select Factory Reset to reset Display screen adjustments Color Settings (Sharpness, Black Level, Contrast) and Color (Hue, Saturation) to factory default values (50). Select Exit Button to save. Exit Select Exit Button to save changes and exit from the OSD Menu. MPC-ML10DVR-UM(B) 4/2011...
-
Page 24: Digital Video Recorder
DIGITAL VIDEO RECORDER A fundamental design feature of the MPC-ML10DVR Display is its integrated Digital Video Recorder (DVR). Record The internal DVR provides real-time recording of high frame-rate (30 fps) 24-bit hi-resolution imagery. Previously made recordings are stored in the Video Gal- Play/Pause lery. -
Page 25: Dvr Specifications
Total video file storage capacity is approximately 8 GB. File Recording Time Full Motion, Full Color: recording time is approximately 8 hours Recording of black and white data (i.e. infrared (IR) camera) and/or lesser bandwidth signals will result in more than 8 hours of recordability. MPC-ML10DVR-UM(B) 4/2011... -
Page 26: Video Gallery
VIDEO GALLERY The MPC-ML10DVR Display has storage capacity for previously recorded videos. These may be viewed through the Video Gallery. User may review previously recorded videos in a Thumbnail or Full Screen Mode. When Standard Mode is active, access to Video Gallery is through SELECT Button on Display’s left bezel or by pressing PLAY / PAUSE Button. -
Page 27: Appendix A - Overview Drawings
APPENDIX A Mechanical Drawings Mount diagrams of the MPC-ML10DVR and its dimensions may assist you in installation of the Monitor. You may find them on our website at: http://www.marinepc.com Mount diagrams of the optional Flush Mount Bezel and its dimensions may assist you in installation of the Monitor. - Page 28 Keep the video cable away from sources of EMI and RF. Improper video display settings Check signal source for proper signal. Monitor has incorrect or bad sync signals. Check for proper video cable installation, or replace suspected faulty cable. MPC-ML10DVR-UM(B) 4/2011...
-
Page 29: Appendix C - Technical Specifications
Panel Mount or RAM Mount Power 6 Watts Min - 20 Watts Max Consumption Wide Range DC Power 10-36 VDC (12, 24, 28 VDC nominal) Input Power Internal Short Circuit Protection, Load Dump Protection, Over Voltage Protection Conditioning Reverse Polarity Protection MPC-ML10DVR-UM(B) 4/2011... -
Page 30: Environmental Specifications
Method 516.5 MIL-STD-810G Vibration Method 514.6 MIL-STD-167-1A IP Rating IP67, Method 512.5 MIL-STD-810G Humidity, Method 507.5, 509.5 MIL-STD-810G Salt Fog CE-101,-102, CS-101,-114, RE-101,-102, RS-101,-103 (Independent of Cables) MIL-STD-461E (Consult Factory for specific curves.) Altitude 45,000 ft., Method 500.5 MIL-STD-810G MPC-ML10DVR-UM(B) 4/2011... - Page 31 NOTES MPC-ML10DVR-UM(B) 4/2011...
-
Page 32: Warranty Terms And Conditions
OR FOR SPECIFIC PERFORMANCE OF partial ship any order. THE PRODUCTS, THEIR MERCHANTABIL- Cancellations: Once an order is placed by ITY OR FITNESS FOR ANY PARTICULAR the purchaser and accepted by MarinePC, PURPOSE. MPC-ML10DVR-UM(B) 4/2011...
