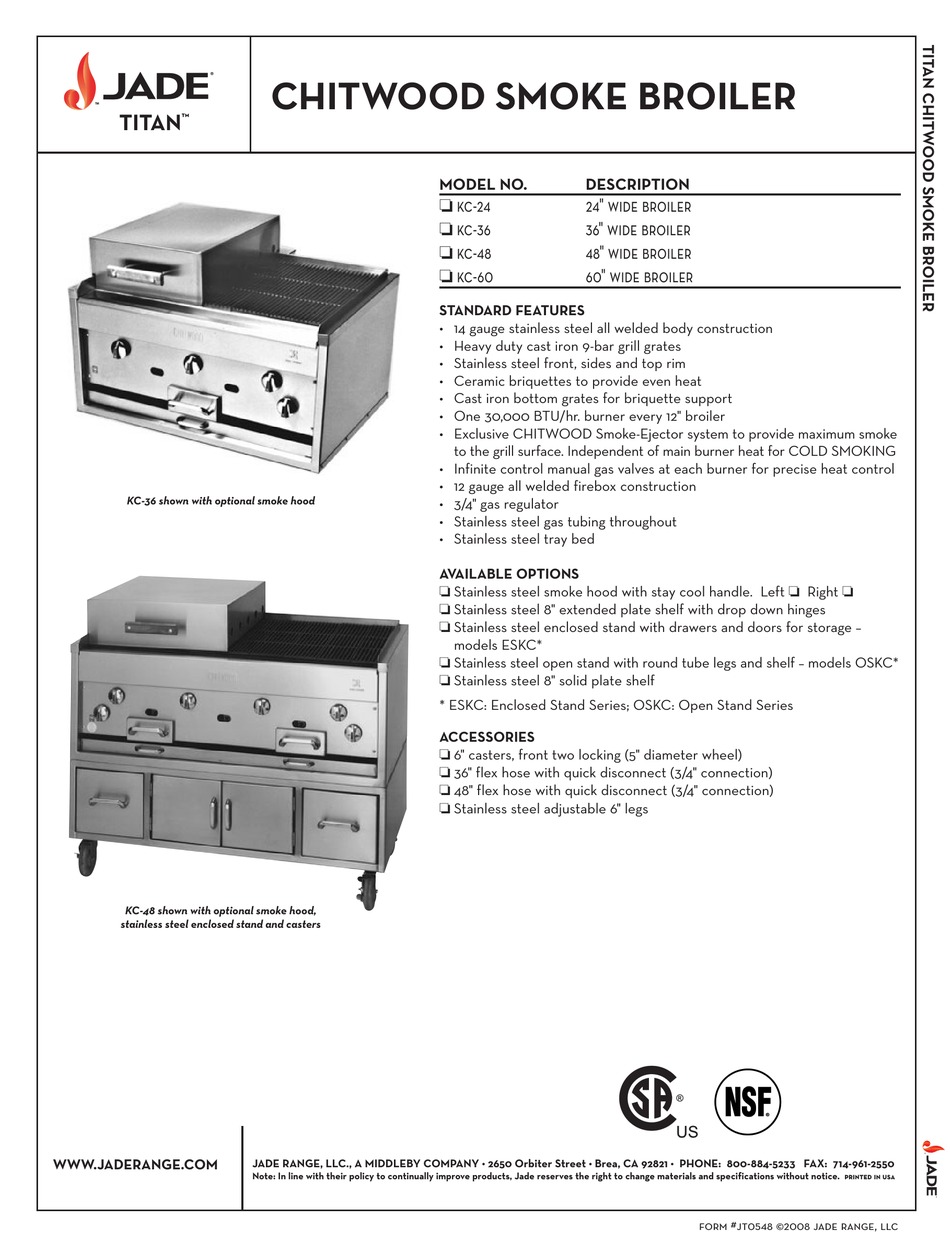

Jade CHITWOOD SMOKE BROILER KC-24 Features & Dimensions

®
TM
™
TITAN
KC-36 shown with optional smoke hood
KC-48 shown with optional smoke hood,
stainless steel enclosed stand and casters
WWW.JADERANGE.COM
CHITWOOD SMOKE BROILER
JADE RANGE, LLC., A MIDDLEBY COMPANY • 2650 Orbiter Street • Brea, CA 92821 • PHONE: 800-884-5233 FAX: 714-961-2550
Note: In line with their policy to continually improve products, Jade reserves the right to change materials and specifications without notice.
MODEL NO. DESCRIPTION
J
kc-24 24" wide broiler
J
kc-36 36" wide broiler
J
kc-48 48" wide broiler
J
kc-60 60" wide broiler
STANDARD FEATURES
• 14 gauge stainless steel all welded body construction
• Heavy duty cast iron 9-bar grill grates
• Stainless steel front, sides and top rim
• Ceramic briquettes to provide even heat
• Cast iron bottom grates for briquette support
• One 30,000 BTU/hr. burner every 12" broiler
• Exclusive CHITWOOD Smoke-Ejector system to provide maximum smoke
to the grill surface. Independent of main burner heat for COLD SMOKING
• Infinite control manual gas valves at each burner for precise heat control
• 12 gauge all welded firebox construction
• 3/4" gas regulator
• Stainless steel gas tubing throughout
• Stainless steel tray bed
AVAILABLE OPTIONS
J Stainless steel smoke hood with stay cool handle. Left J Right J
J Stainless steel 8" extended plate shelf with drop down hinges
J Stainless steel enclosed stand with drawers and doors for storage –
models ESKC*
J Stainless steel open stand with round tube legs and shelf – models OSKC*
J Stainless steel 8" solid plate shelf
* ESKC: Enclosed Stand Series; OSKC: Open Stand Series
ACCESSORIES
J 6" casters, front two locking (5" diameter wheel)
J 36" flex hose with quick disconnect (3/4" connection)
J 48" flex hose with quick disconnect (3/4" connection)
J Stainless steel adjustable 6" legs
printed in usa
form #jt0548 ©2008 jade range, llc
