Summary of Contents for Vornado SF-246

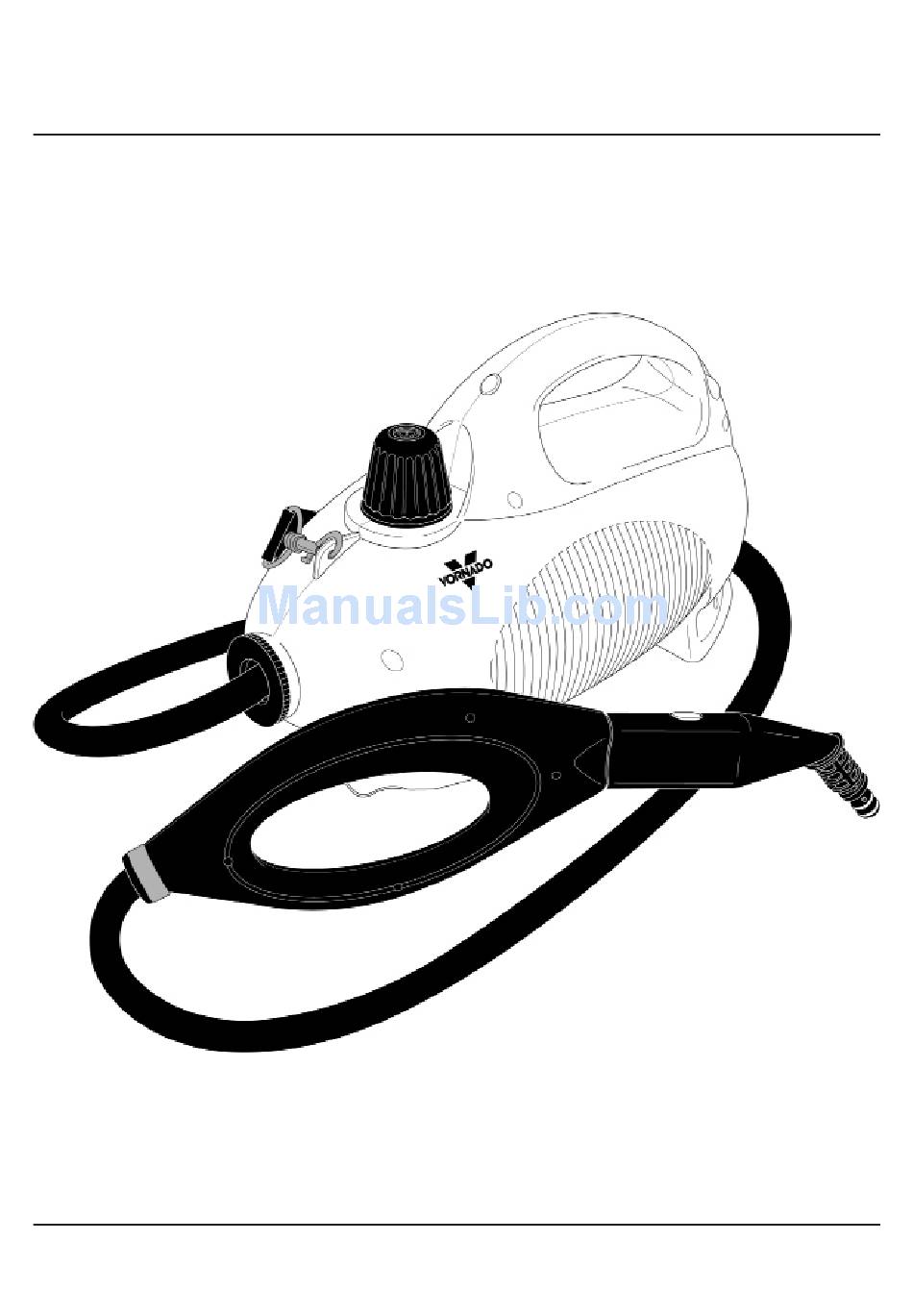

- Page 1 Portable Steam Cleaner MODEL SF-246 User’s Guide Please read all instructions before use. KEEP YOUR RECEIPT FOR WARRANTY PURPOSES.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce risk of fire, electrical shock or injury, the following basic safety precautions should always be followed when using an electrical appliance. WARNING: To reduce the risk of electrical shock, this appliance uses a grounded (three-pronged) plug. This plug will fit in a grounded wall outlet only one way. - Page 3 10. Do not use unit where aerosol-based products are being used, or where oxygen is being administered. 11. This unit is only meant to be used with recommended Portable Steam Cleaner (model SF-246) accessories. Using other types of attachments may cause damage to unit or injury.
-
Page 4: Product Information
Product Information UNIT FEATURES & ACCESSORIES Boiler Boiler Fill Hole Boiler Cap Heating Indicator Light Strap Tabs Main Steam Nozzle Steam Trigger Steam Lock Switch Steam Hose Extension Wands (2) Utility Head Cloth Cover Shoulder Strap Jet Nozzle Nylon Brush Brass Brush Nozzle Tip Measuring Cup... - Page 5 • The Boiler (1) is the internal heating chamber where water is converted into steam. Some empty space inside the Boiler is required for this conversion process, so the recommended maximum water capacity (33 oz. / 975 ml.) should not be exceeded when filling with water. •...
- Page 6 Assembling Your Portable Steam Cleaner WARNING: DO NOT attempt to connect any accessories while unit is emitting steam. Doing so could result in burns or other injury. CONNECTING JET NOZZLE 1. Align Jet Nozzle with Main Steam Nozzle as shown (FIGURE 1-A). 2.
- Page 7 WARNING: DO NOT attempt to connect any accessories while unit is emitting steam. Doing so could result in burns or other injury. CONNECTING UTILITY HEAD 1. Align Jet Nozzle and Utility Head as shown (FIGURE 3-A). Flat edge of Jet Nozzle will align with peg inside of Utility Head receptacle.
- Page 8 Assembling Your Portable Steam Cleaner WARNING: DO NOT attempt to connect any accessories while unit is emitting steam. Doing so could result in burns or other injury. CONNECTING EXTENSION WANDS 1. Select one of the Extension Wands, and align rear end of wand with Main Steam Nozzle as shown (FIGURE 4-A).
- Page 9 WARNING: DO NOT attempt to connect any accessories while unit is emitting steam. Doing so could result in burns or other injury. ATTACHING CLOTH COVER 1. Wrap Cloth Cover around bottom of Utility Head, so that string-ties are positioned around rear receptacle (FIGURE 5-A).
-
Page 10: Using Your Portable Steam Cleaner
Using Your Portable Steam Cleaner FILLING WITH WATER 1. Place Portable Steam Cleaner on a flat, level surface. 2. Make sure power cord is unplugged from electrical outlet. 3. Cautiously unscrew Boiler Cap by rotating it in a counter- clockwise direction, and remove from unit to expose Boiler Fill Hole (FIGURE 7-A). -
Page 11: Steam Cleaning
STEAM CLEANING NOTE: Before operating, make sure all desired accessories are connected and Boiler is filled with water (refer to Pages 6-10 for details). 1. For first-time use, remove protective plastic cover that is shipped on electrical plug. Insert power cord into convenient electrical outlet. Heating Indicator Light will immediately illuminate, indicating that unit is powered on and Boiler is heating. -
Page 12: Storage & Care
Storage & Care PROPER STORAGE Preparing your Portable Steam Cleaner for storage is quick and simple. When you have finished your steaming tasks, follow the steps listed below. 1. Unplug power cord from electrical outlet. 2. Allow unit to cool (30 minutes for complete cooling). 3. -
Page 13: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Unit fails to heat up. Heating Unit is not plugged in. Plug power cord into electrical outlet. Indicator Light DOES NOT Household circuit breaker / ground Reset circuit breaker / ground illuminate. fault interrupter has tripped or fault interrupter, or replace fuse. -
Page 14: Product Specifications
Product Specifications MODEL SF-246 VOLTAGE 127V / 220V WATTAGE 1500W 33 OZ. (975 ML.) WATER CAPACITY HEATING TIME 7 MIN. (APPROXIMATE) CONTINUOUS STEAM TIME 30 MIN. (APPROXIMATE) UNIT WEIGHT 6.80 LBS. (3.08 KG.) UNIT DIMENSIONS 13.98” (35.5 CM.) x 6.89” (17.5 CM.) x 8.66” (22.0 CM.) POWER CORD LENGTH 12.8’... - Page 15 ENGLISH | 15...
- Page 16 review this product online evalúe este producto en línea évaluer ce produit en ligne www.steamfast.com/reviews Steamfast 415 East 13th, Andover, KS 67002 1-800-711-6617 www.steamfast.com consumerservice@steamfast.com V110512...
