MEN Mikro Elektronik F302–3U User Manual

Compact pci 8+1-port managed ethernet switch

Advertisement

Quick Links

20F302-00 E4 – 2010-12-16
F302 – 3U CompactPCI 8+1-Port
Managed Ethernet Switch
Configuration example
Configuration example
User Manual
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F302–3U and is the answer not in the manual?

Questions and answers

Summary of Contents for MEN Mikro Elektronik F302–3U

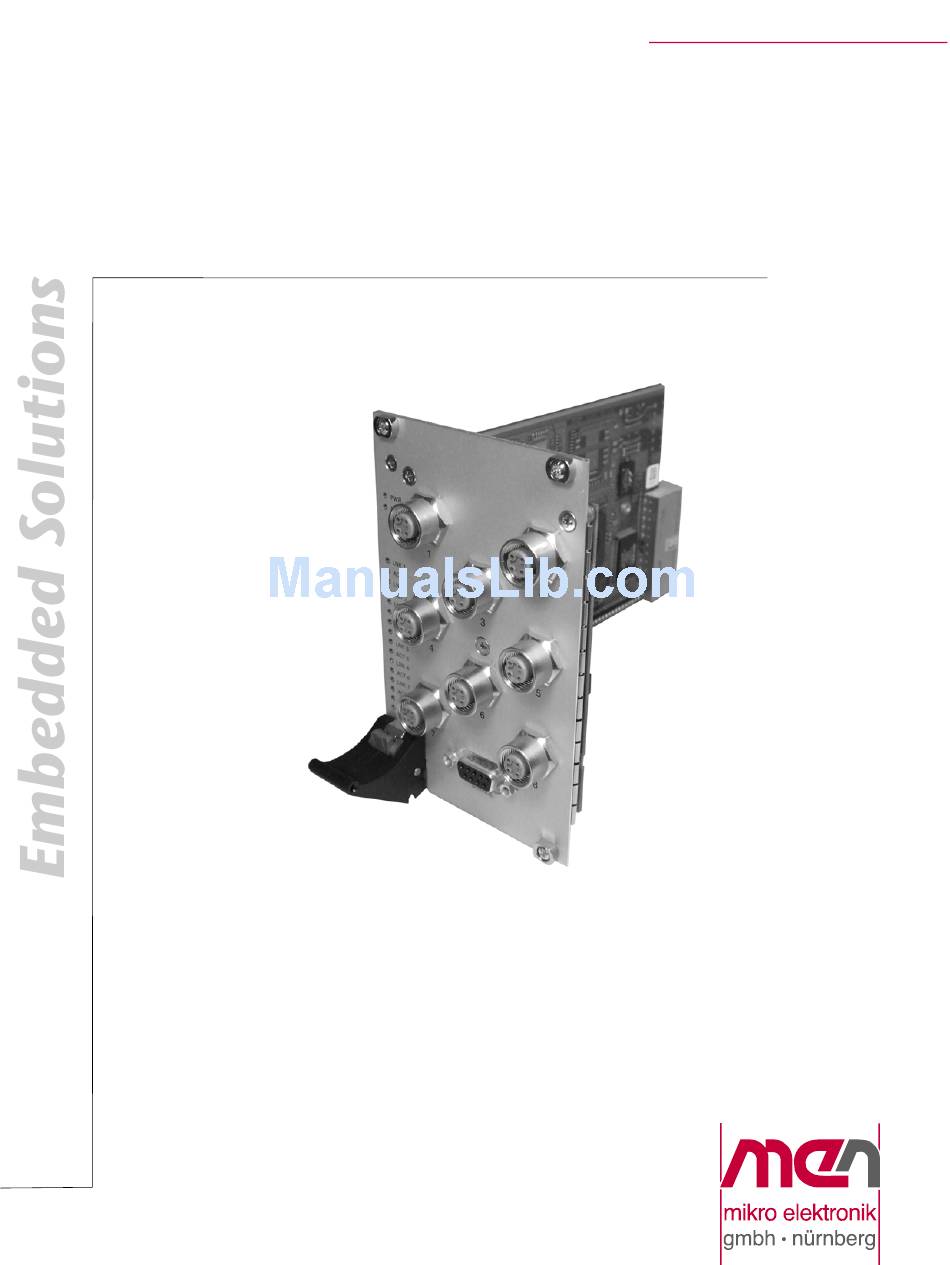

  • Page 1 20F302-00 E4 – 2010-12-16 F302 – 3U CompactPCI 8+1-Port Managed Ethernet Switch Configuration example Configuration example User Manual ®...
  • Page 2 Depending on the connector type, the F302 has a front-panel width of 12 HP (3 slots) with RJ45 or 16 HP (4 slots) with M12 connectors. In either case the card occupies only one CompactPCI® backplane slot. MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 3: Technical Data

    • IGMP proxy • Aggregating physical ports for increasing bandwidth and redundancy through link aggregation (LACP) • Link Layer Discovery Protocol (LLDP) • SNMP (v1, v2c, v3) agent and MIB support, configuration save/restore MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 4 Electrical Specifications • Supply voltage: - +3.3 V (-3%/+5%) - +5 V (-3%/+5%) • Power consumption: 5 W (max.) • MTBF: Approx. 200,000 h @ 40°C according to IEC/TR 62380 (RDF 2000) MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 5 • Tested according to EN 55022 (radio disturbance), IEC1000-4-2 (ESD) and IEC1000-4-4 (burst) Firmware • Firmware for configuration and management included • For more information on supported operating system versions and drivers see online data sheet. MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 6: Block Diagram

    PCI‐Ethernet  Rear I/O connector Controller Port 9 Options Port 1 Port 2 Config  Port 3 EEPROM Port 4 Switch Device Management 10/100Base‐T Port 5 Flash Port 6 Port 7 DDR2  Port 8 SDRAM Service Port MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 7: Configuration Options

    - 12 HP (3-slot) front panel • M12 D connectors - 16 HP (4-slot) front panel Environmental Specifications • Conformal coating for RJ45 models (standard with M12 connectors) For available standard configurations see online data sheet. MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 8: Product Safety

    • Store the board only in its original ESD-protected packaging. Retain the original packaging in case you need to return the board to MEN for repair. MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 9: About This Document

    /IRQ Signal directions in signal mnemonics tables generally refer to the corresponding in/out board or component, "in" meaning "to the board or component", "out" meaning "coming from it". MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 10 About this Document Vertical lines on the outer margin signal technical changes to the previous issue of the document. MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 11: Legal Information

    MEN was negligent regarding the design or manufacture of the part. Unless agreed otherwise, the products of MEN Mikro Elektronik are not suited for use in nuclear reactors and for application in medical appliances used for therapeutical purposes. Application of MEN products in such plants is only possible after the user has precisely specified the operation environment and after MEN Mikro Elektronik has consequently adapted and released the product.
  • Page 12: Table Of Contents

    Serial Number ......... . . 22 MEN Mikro Elektronik GmbH...
  • Page 13 Table 10. Ethernet port status LEDs........21 MEN Mikro Elektronik GmbH...
  • Page 14 ..........22 MEN Mikro Elektronik GmbH...
  • Page 15: Getting Started

    LNK2 LNK2 ACT2 ACT2 LNK3 LNK3 ACT3 ACT3 LNK4 LNK4 ACT4 ACT4 LNK5 LNK5 ACT5 ACT5 LNK6 LNK6 ACT6 ACT6 LNK7 LNK7 ACT7 ACT7 LNK8 LNK8 ACT8 ACT8 SERVICE SERVICE F302 F302 MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 16: Integrating The Board Into A System

    Installing Driver Software For a detailed description on how to install driver software please refer to the respective documentation. You can find any driver software available for download on the MEN website. MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 17: Functional Description

    Table 2. Pin assignment of 8-pin RJ45 Ethernet 10/100Base-T connectors Connector types for the M12 version: • 4-pin circular M12 receptacle • Mating connector: 4-pin circular M12 plug Table 3. Pin assignment of 4-pin M12 Ethernet 10/100Base-T connectors MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 18: Ethernet Switch

    • Non-blocking wire speed switching • Store-and-forward mode • Auto negotiation • Port mirroring • Port monitoring • Flow control • VLAN support • Automatic MDI/MDI-X crossover (all ports) • Port based frame priorization MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 19: Configuration Of The Switch

    C data clock for external dongle Ground General purpose I/O 1 GPIO[1] Used for detection of external dongle +3.3V Power supply for external dongle C serial data input/output for external dongle Ground MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 20: Front Panel Status Leds

    The status LED will blink or light up as listed in Table 9, Error codes signaled via service LEDs until the system is restarted or completely powered off. The supported error codes are as follows: MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 21: Ethernet Port Status Leds

    Connector type of J1: • 110-pin shielded, 2mm-pitch, 5-row receptacle according to IEC 917 and IEC 1076-4-101 The pin assignment of connector J1 as defined in the CompactPCI specification will not be repeated here. MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
  • Page 22: Appendix

    If you need support, you should communicate these numbers to MEN. Figure 2. Labels giving the board’s article number, revision and serial number Complete article number Article No.: 02F302-00 Serial No.: 000001 Rev. 00.00.00 Serial number Revision number MEN Mikro Elektronik GmbH 20F302-00 E4 – 2010-12-16...
