Summary of Contents for RaceAmerica 6650D

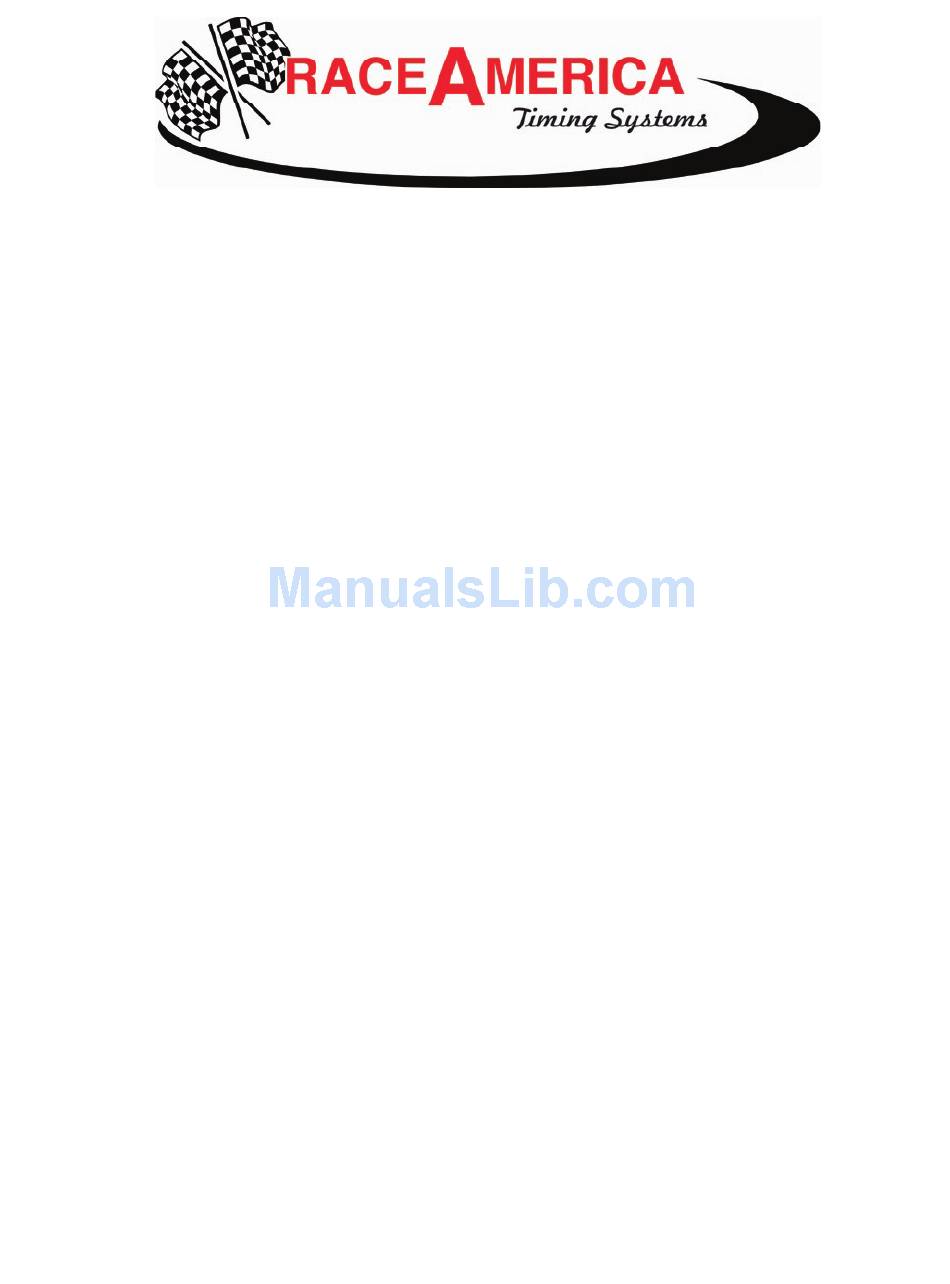

- Page 1 The Leader in Event Critical Timing Electronics Large Digital Display Owner’s Manual Models 6650D/6450D Code Rev H.4 and later Rev J RaceAmerica Corporation P.O. Box 3469 Santa Clara, CA 95055-3469 (408) 988-6188 http://www.raceamerica.com info@raceamerica.com Copyright 2013 RACEAMERICA, Inc.
-
Page 2: Table Of Contents
RaceAmerica Large Digital Display Table of Contents LIMITED WARRANTY ........................3 PRODUCT OVERVIEW ........................4 PACKAGE COMPONENTS ......................4 AVAILABLE OPTIONS ........................4 PRODUCT SPECIFICATIONS ......................4 POWER REQUIREMENTS ......................5 LOCAL REQUIREMENTS ........................5 WIRING DIAGRAM...........................5 PRODUCT SET-UP ..........................6 STEP 1 - Configure the Display .....................6 STEP 2 - Establish Data Interface ....................6... -
Page 3: Limited Warranty
To the original purchaser of this RaceAmerica product, RaceAmerica warrants it to be in good work- ing order for a period of ninety (90) days from the date of purchase from RaceAmerica or an authorized RaceAmerica distributor. Should this product malfunction during the warranty period, RaceAmerica will, at its option, repair or replace it at no charge, provided the product has not been subjected to mis- use, abuse, or alterations, modifications, and/or repairs not authorized by RaceAmerica. -
Page 4: Product Overview
6601A Permanent installation kit (includes the back of this manual. The 6X50 is designed AC Adapter and rear cover) to connect to RaceAmerica timers, RaceAmerica 4500 - RS232 to RS422 Data Comm POD custom timers, personal computers running 07-4554-5 RS232 Data Cable (timer to POD) -
Page 5: Power Requirements
RaceAmerica Large Digital Display LOCAL REQUIREMENTS POWER REQUIREMENTS Additional items required to operate the 6X50 The 6650 Large Display can be powered Series Digital Display and options: by a 12VDC automotive battery or any 12VDC power source capable of 2.0 ampere current 1 - 12VDC automotive battery (6650) load maximum. -
Page 6: Product Set-Up
A horizonal RaceAmerica timer. If connecting to a PC or and vertical frame structure is required to mount non-RaceAmerica timer, a 9-pin D-sub connector the scoreboard (see figure 3). -
Page 7: Scoreboard Mounting
RaceAmerica Large Digital Display segment of all five digits, one segment at a time including the colon or decimal point which exist NOTE: IF SWITCH NUMBER 1 ON THE to the right of each digit except the right-most LEFT BANK IS SET TO THE ‘OFF’ POSITION digit. -
Page 8: Dip Switch Settings
RaceAmerica Large Digital Display Power In - 12VDC/2A RS422/RS485 Data DIP Switches Bank S2 DIP Switches Bank S1 Figure 4 - 15” Scoreboard Cable connections and DIP Switches DIP Switches Bank S2 Power In - 25VDC/2.5A DIP Switches Bank S1 RS422/RS485 Data Figure 5 - 24”... - Page 9 RACEAMERICA S-TRAP 3230D RACEAMERICA TIMER SBD 3220D When connected to a RaceAmerica Model When the 6X50 is connected to a RaceAmerica 3230 S-Trap Timing System, use the following Timer SBD use the following switch settings for switch settings. Configuration of the printer and proper operation.
-
Page 10: Dip Switch Definitions
Wireless Link Unit (4X20A) to convert the data for either 15 seconds for fast paced action or format to RS422; call RaceAmerica for specific 120 seconds for large viewing audiences. If the requirements. -
Page 11: Display Utility
PC to the display - a time of day clock, a and Firmware updates and bug reporting. Contact countdown timer, a six digit time, a combination RaceAmerica for more information and pricing of display of time and position summary and up Support Agreements. -
Page 12: Displayable Characters
RaceAmerica Large Digital Display < > ‘...
