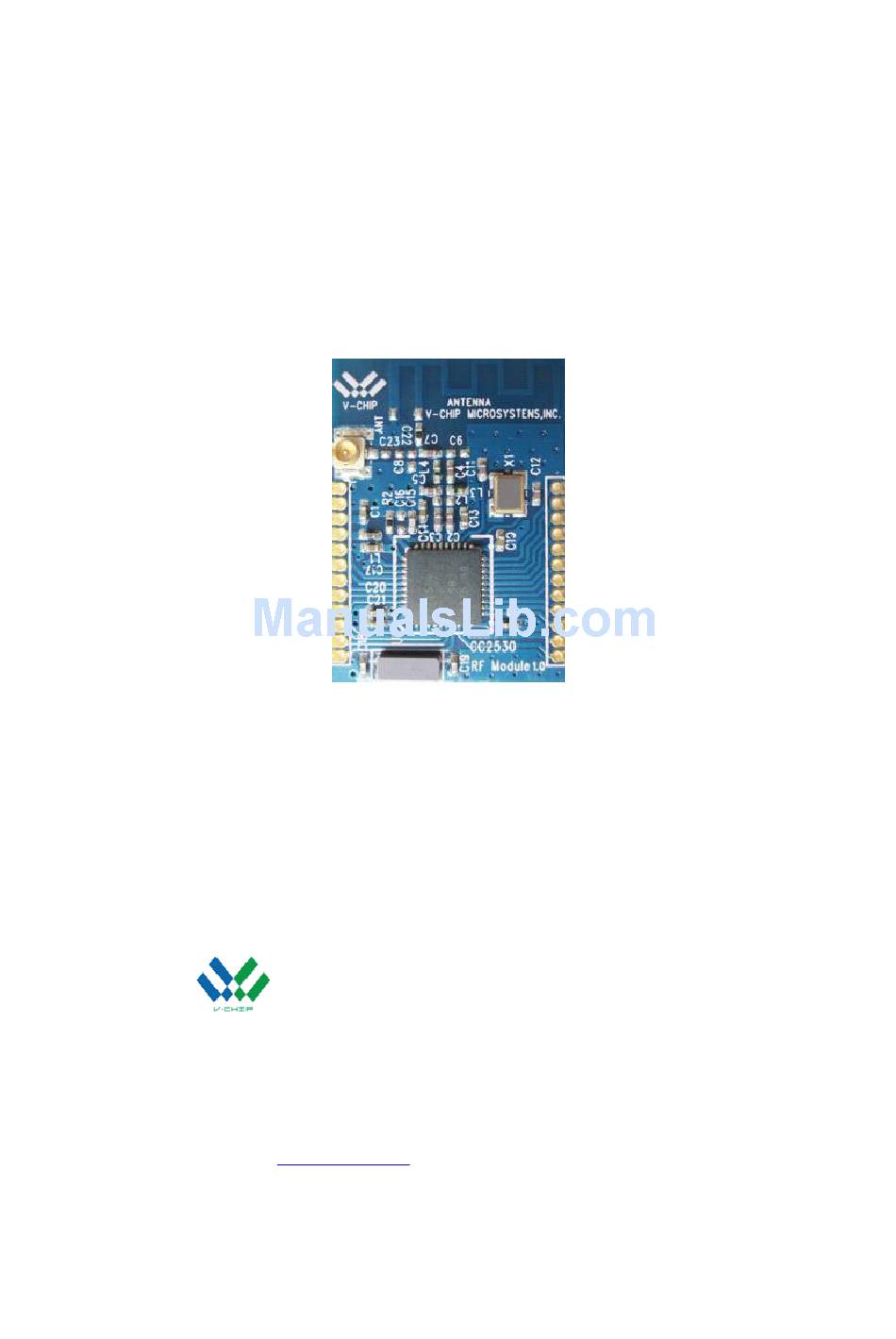

- Page 1 VT-CC2530-Z1 Wireless Wireless Module Module User User Guide Guide User User Guide Guide V-CHIP MICROSYSTEMS Co. Ltd Address: Room 612-613, Science and Technology Service Center Building, NO.1, Qilin Road, Nanshan District, Shenzhen, Guangdong TEL：0755-88844812 FAX：0755-22643680 E-mail：sales@digirf.com Post Code：518052 Web Site：www.digiRF.com...
-
Page 2: General Description
Description Description VT-CC2530-Z1 is based on RF Transceiver CC2530 of TI Chipcon, it’s a small size and ultra low power UHF wireless module. CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It combines RF transceiver with an industry-standard enhanced 8051 MCU , in-system programmable flash memory, 8-KB RAM and many other powerful features. - Page 3 Sensor Sensor Networks Networks Low-Power Low-Power Wireless Wireless Sensor Sensor Networks Networks � Consumer Consumer Consumer Consumer Electronics Electronics Electronics Electronics � Health Health Care Care Health Health Care Care COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012...
- Page 4 4． The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly. 5． The module mount will affect the communication distance. COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012...
-
Page 5: Pin Configuration
P2_0 Digital I/O CC2530 digital I/O pin P2_0 P2_1 Digital I/O CC2530 digital I/O pin P2_1 P2_2 Digital I/O CC2530 digital I/O pin P2_2 RF IO Antenna impedance 50 ohm COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012... - Page 6 The configuration of CC2530 can be done with software SmartRF Studio7. Complete descriptions of the registers are given in the CC2530 datasheet. We can provide evaluation board and demo code to the customer to develop and evaluate the module’s capability. Dimension Dimension Dimension Dimension COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012...
- Page 7 Antenna VT-CC2530-Z1 support PCB antenna and outer antenna with IPEX connector. C22 and C23 are 0 Ohm when used as jumper to connect two type antenna. For use PCB antenna, there is only need to solder C22. For use outer antenna, there is only need to solder C23.
- Page 8 As version version update update，please please refer our latest latest development development materials. materials. COPYRIGHT @ 2012 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC2530-APR-2012...
- Page 9 IMPORTANT NOTICE NOTICE V-CHIP MICROSYSTEMS Co. Ltd (below called V-CHIP) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
