Summary of Contents for Gneub TMV V2LC 3

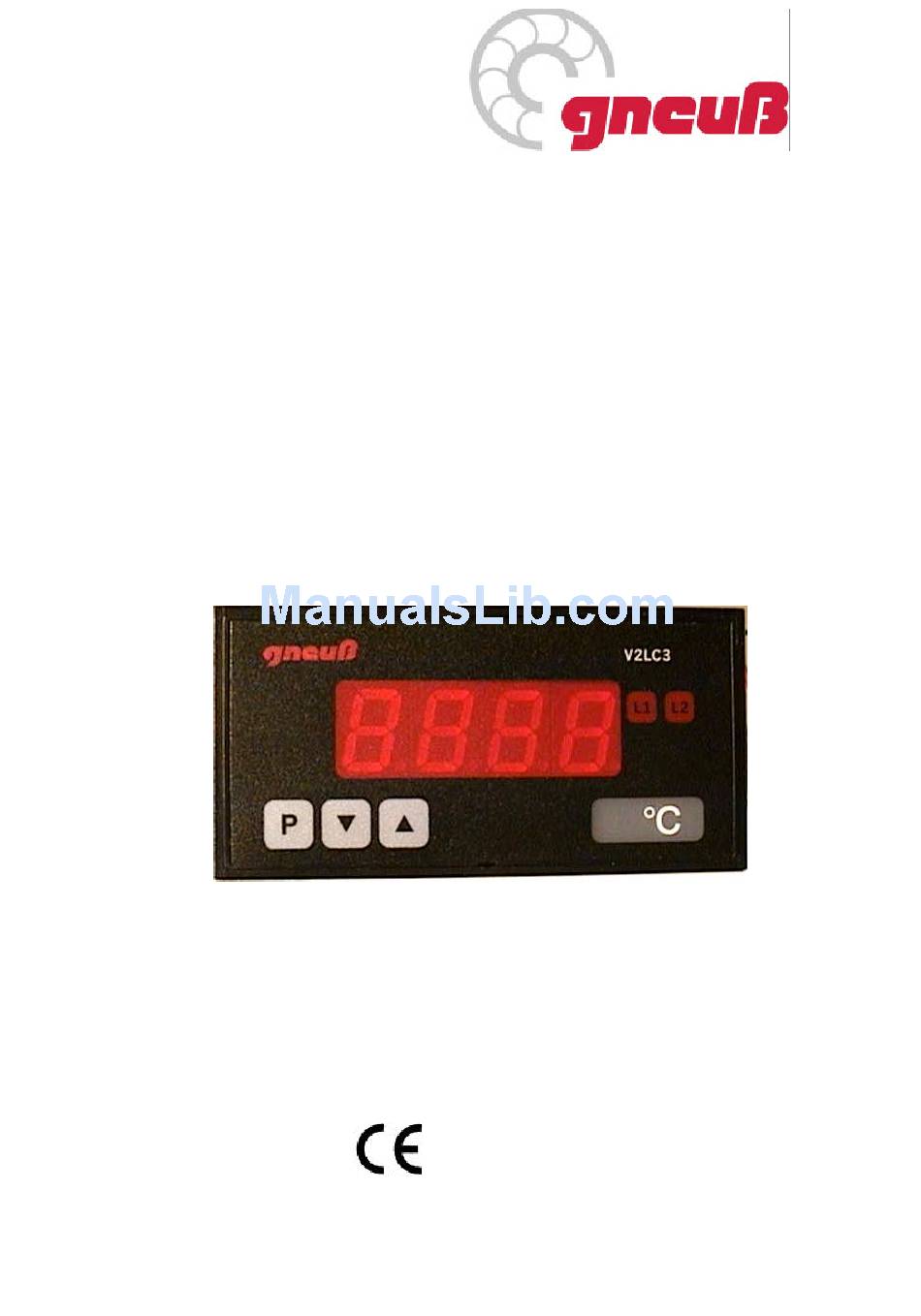

- Page 1 Measurement technology for extrusion Operating instructions Pressure Measurement Amplifier TMV V2LC 3 Please read these instructions carefully before connecting or operating the equipment. Certified acc. to ISO 9001 Tel/26.07.99 Seite - 1 -...
- Page 2 5. Setting possibilities 1. General description: The Gneuß temperature measurement amplifier type TMV V2LC 3 is a measurement amplifier for temperature sensors with thermocouples or PT-100 measuring rheostats. Universal setting possibilities guarantee that all market-usual temperature sensors can be connected. Furthermore, two freely-adjustable limit contacts and one analog signal 0-10 V or 0-20 mA or 4-20 mA can be processed.
- Page 3 3. Assembly: The unit is designed for installation in control panels. It has to be fitted so that it is protected against humidity, contamination and vibration. The ambient temperature should not exceed 60 °C. 4. Electrical connection: Work at electrical connections should only be carried out by qualified staff, in accordance with local regulations.
- Page 4 5. Setting possibilities: The following programme table lists all possible parameter settings. Programme Function Setting range Basic Customer No. ( P ) values settings Sensor and circuit balance 0 up to +/- 20 Thermocouple selection 1 = L FeCuNi (DIN) in °C 2 = J FeCuNi (IEC) in °C 3 = K NiCrNi (IEC) in °C 11 = L FeCuNi (DIN) in °F...
- Page 5 6. Display and operating elements: Optical display of Display limit values L1 and L2 Programme key Dimension Plus - key Minus - key Key functions and combinations: By pressing this key, the programming mode is selected. By pressing this key in the programming mode, the set value is reduced. By pressing this key in the operating mode, the MIN memory is read out and displayed.
-
Page 6: Additional Functions
8. Commissioning: Please find hereunder a detailed description of what steps have to be carried out during commissioning. After connecting mains voltage, a heat-up phase of 15 minutes is necessary for the TMV V2LC3. 1. Make sure that the unit is dead. 2.
