Sec-Line/Phone 2000Xe
Users manual

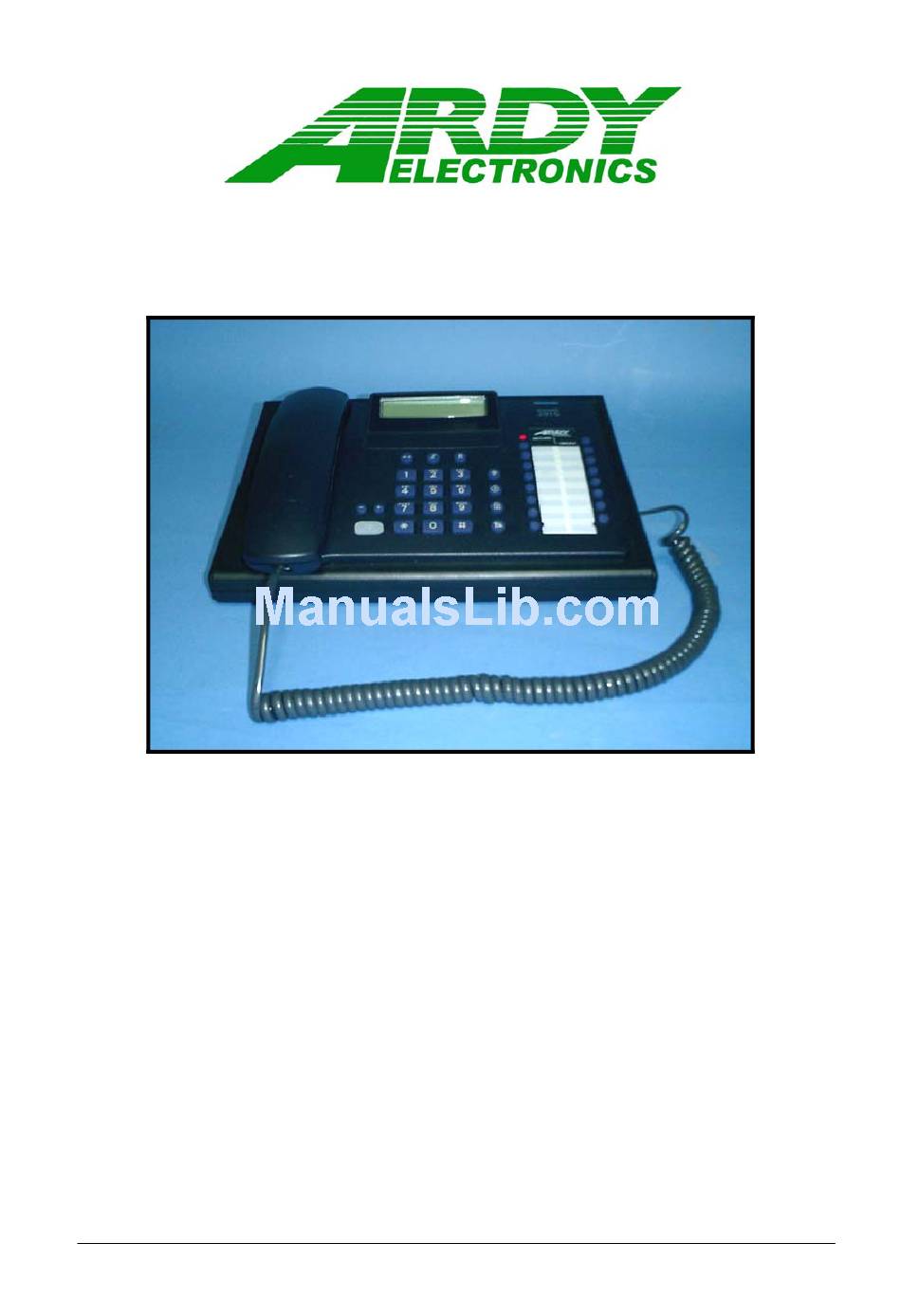

Sec-Line/Phone 2000Xe is a high-level security encryption telephone from Ardy Electronics Ltd.
This encryption phone can be installed to analogue phone lines worldwide. The telephone is a Siemens
2415 phone connected internally to the SLP2000Xe module. Green or Red indication for Secure or
Insecure connection. The SLP2000Xe is fully compatible to the SLP2000Xe encryption unit.
Sec-Line/Phone 2000Xe uses Diffie Hellman with 1024 bit PKI handshake to start the secure
connection and triple DES as per ANSI specification X9.52 as encryption algorithm with a 168-bit
unique random synchronous encryption key negotiated for each call.
Sec-Line/Phone 2000Xe has to be installed at both sides of the communication in order to establish a
secure connection. The unit can be used for both secure and clear phone calls. The internal
rechargeable 6 volt battery makes it possible to place Secure calls even when the main power is lost.
Sec-Line/Phone 2000Xe connects in moments and offers the following features: Strong Encryption
Technology, Clear Voice Quality, One Button Operation, Universal Telephone line Compatibility, and
Portable in suite case.
SLP2000Xe
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for Ardy Electronics Sec-Line/Phone 2000Xe
- Page 1 Sec-Line/Phone 2000Xe has to be installed at both sides of the communication in order to establish a secure connection. The unit can be used for both secure and clear phone calls. The internal rechargeable 6 volt battery makes it possible to place Secure calls even when the main power is lost.
-
Page 2: Technical Data
Weight: ........................2.0 kg Cover:..........................Plastic Information display against “man in the middle attack”: ..........Option Internal rechargeable Battery: ............6 Volt 500mAh, Option ARDY Electronics AB. P.O.Box 47, S-70140 Örebro Sweden Phone: +46 19 247010. Fax: +46 19 247011. E-mail: info@ardy.se www.ardyelectronics.com... - Page 3 Page 3 of 20 USERS MANUAL SLP2000Xe Sec-Line Phone 2000Xe Personal Telephone Security Ardy Electronics Ltd P.O.Box 47 SE-701 40 Örebro Sweden Phone: +46 19 247010 Fax: +46 19 247011 E-mail info@ardy.se www.ardyelectronics.com Copyright © Ardy Electronics Ltd 2001-2004 SLP2000Xe...
-
Page 4: Table Of Contents
Users Manual Page 4 of 20 CONTENTS Introduction ............6 Overview ..............6 Parts Checklist ............7 Installation and set-up..........8 Introduction ............8 Installing the SLP2000Xe........8 Operation .............10 Introduction ............10 Operating controls..........10 Turning on the SLP2000Xe........11 Non-secure calls ..........11 Securing a call .............11 Performing a self-test...........15 Maintenance / troubleshooting......15 Maintenance ............15 Troubleshooting ...........17... - Page 5 Users Manual Page 5 of 20 SLP2000Xe...
-
Page 6: Overview
Users Manual Page 6 of 20 1. Introduction Overview Congratulations on your purchase of your new personal telephone security device. The SLP2000Xe is a standard analogue phone from Siemens EuroSet 2015 and has been designed to economically provide convenient and reliable secure voice communications through advanced voice... -
Page 7: Parts Checklist
Users Manual Page 7 of 20 Parts Checklist Upon unpacking your SLP2000Xe, inspect the contents for damage that may have occurred during shipping. Save all packing material until the unit is installed and working properly. Visually confirm that there are no broken parts and that the SLP2000Xe housing is free of obvious defects. -
Page 8: Installation And Set-Up
Users Manual Page 8 of 20 2. Installation and set-up Introduction This section provides information for installing your SLP2000Xe, configuring it for your specific telephone type and removing it from your telephone. Installing the SLP2000Xe To install your SLP2000Xe follow these steps: 1) Plug supplied interface... - Page 9 Users Manual Page 9 of 20 6) The internal battery is charging even if the SLP2000Xe unit is turned OFF. SLP2000Xe...
-
Page 10: Operation
Users Manual Page 10 of 20 3. Operation Introduction This section contains a description of the operation controls and provides operating instructions for the SLP2000Xe. The basic operations covered in this portion of the manual are: 1) Placing unencrypted telephone calls. 2) Securing a telephone call. -
Page 11: Turning On The Slp2000Xe
Users Manual Page 11 of 20 Secure key – when in non-secure mode this key is used to secure a telephone call; when in secure mode this key returns the SLP2000Xe to non- secure mode. Light Diode on the Secure key. When the unit is in secure mode the light diode is GREEN, when non-secure mode the light diode is RED. - Page 12 Users Manual Page 12 of 20 the front of the SLP2000Xe is RED. Next, ensure that the far-end party has a SLP2000Xe or SLR2000Xe connected to his/her phone and that their unit is also powered on. Hands free calls from your phone can not be done in secure mode.
- Page 13 Users Manual Page 13 of 20 their SLP2000Xe. If their key-fingerprint number is the same as yours, then the call is secured. the key fingerprints are not identical, press the Secure-key and repeat steps 3 through 6.If the key-fingerprints continue to differ from each other, then your call is most likely under a cryptographic attack by a malicious third party and your privacy my be compromised.
- Page 14 Users Manual Page 14 of 20 through 7 should be repeated in order to re- establish security. NOTES: To prevent the interruption of call security described above, observe the following restrictions when attempting to activate or operate the SLP2000Xe in secure mode: - Do not use the speakerphone on your telephone.
-
Page 15: Performing A Self-Test
Users Manual Page 15 of 20 Performing a Self-Test Your SLP2000Xe automatically performs a self- test whenever it is powered ON. The light diode on the front of the SLP2000Xe shall be red and then press the SECURE button the light diode shall be green for 12 seconds and then go back to red, then the self test is done. - Page 16 Users Manual Page 16 of 20 When either party presses the Secure-key to enter non-secure mode, the other party will be alerted by the presence of a non-secure warning tone (3 beeps in rapid secession). This ensures that both parties are aware that the call is no longer secured.
-
Page 17: Table 1. Troubleshooting Guidelines
Users Manual Page 17 of 20 Table 1. Troubleshooting Guidelines Problem Possible Cause The Option display 1.The power is off remain blank 2.Power adaptor is not plugged into AC outlet 3. Power cord is not connected to the unit SLP2000Xe is not able 1.The phone volume to secure your call. - Page 18 Users Manual Page 18 of 20 3.The SLP2000Xe phone type cord is incorrect. 4.The two party’s don’t use the same SLP2000Xe system. 1.The earpiece volume is not adjusted Secure speech sounds 1.The earpiece volume noisy or raspy is adjusted to high 2.The far-end party’s...
-
Page 19: Appendix B-Specifications Information
Users Manual Page 19 of 20 APPENDIX B - SPECIFICATIONS Security Features Traffic Algorithm: Triple DES as per ANSI specification X9.52 Traffic key : 168-bit unique, random key negotiated for each call Public key algorithm: Diffie-Hellman exponentiation. Public key modulus: 1024 bits Public key exponent: 256 bits. - Page 20 Users Manual Page 20 of 20 Physical characteristics 280mm x 190mm x6 mm 2.0 kg Environmental Operating temperature: 10 gr C to 40 gr C Storage temperature: -20 gr C to 50 gr C Humidity: 10-95% non-condensing. Power Wall mount power adapter 220-240 VAC, 50 Hz Power dissipation <...
