AMAV Innovation IN600 Installation And Operation Manual

Av system controller innovation series

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

IN600

AV SYSTEM CONTROLLER

INSTALLATION AND OPERATION MANUAL

Table of Contents

Need help?

Do you have a question about the Innovation IN600 and is the answer not in the manual?

Questions and answers

Summary of Contents for AMAV Innovation IN600

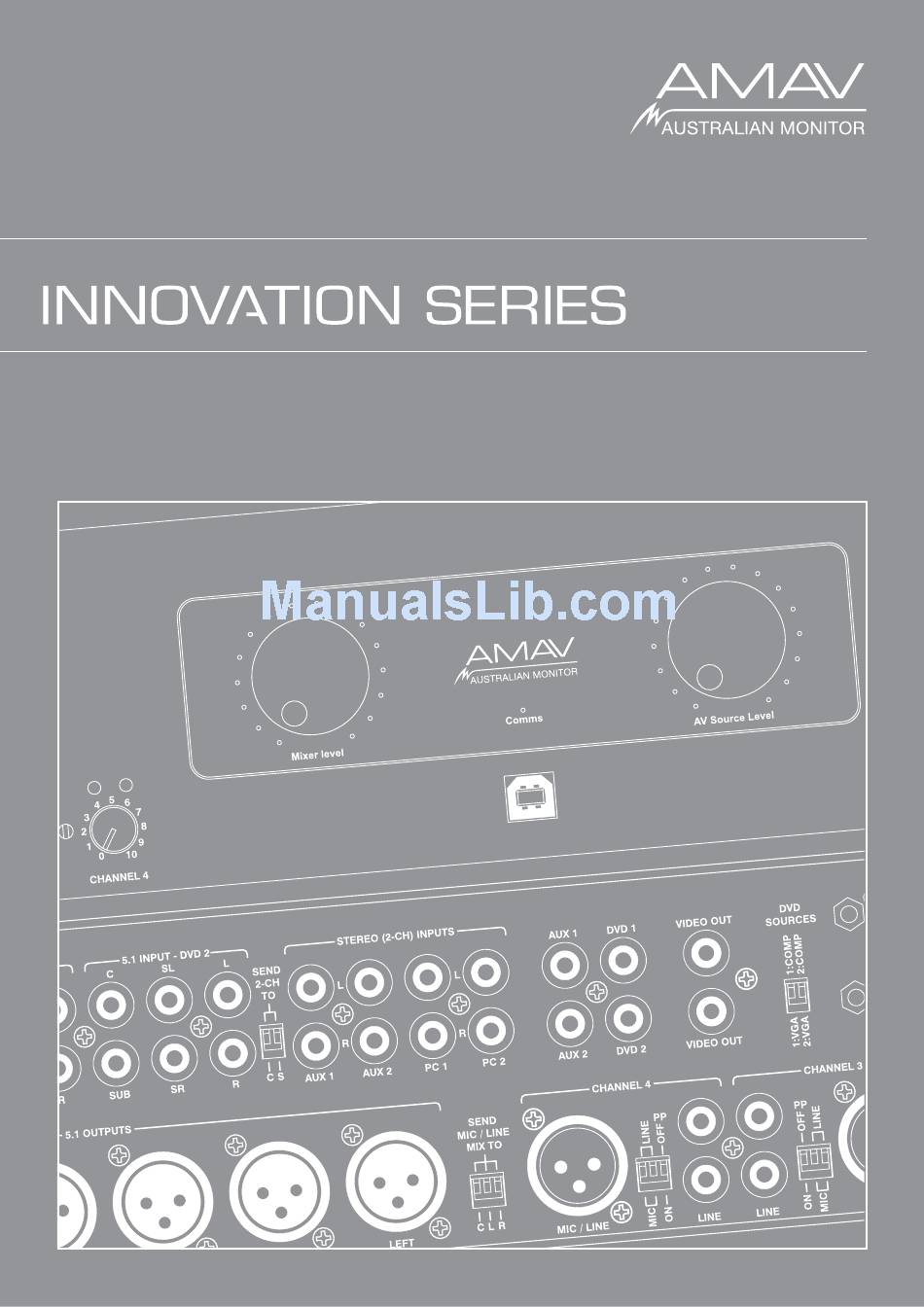

Page 1 IN600 AV SYSTEM CONTROLLER INSTALLATION AND OPERATION MANUAL...
Page 2: Important Safety Information
Do not parallel- or series-connect an amplifier output with any other amplifier output. Australian Monitor Inc is not 7. Always operate the unit with the AC ground wire connected to the responsible for damage to loudspeakers for any reason.
Page 3: Table Of Contents
With the IN600 we give the INTERNAL ADJUSTMENTS AV integrator the ability to use the IN600 for full room AV control or it can be interfaced with third party control systems if desired. The IN600 offers untold BLOCK DIAGRAM flexibility for AV control in an extremely user friendly package.
Page 4: Front Panel
LED. If this happens, set the projector to off and This pot controls the level of the selected AV source. then switch of the IN600. Switch the IN600 on and now both projector and LED should be off.
Page 5: Rear Panel
This 3.81mm pluggable connector socket is provided for external control of the 5.1 INPUTS IN600 using RS485 or for connecting an Australian Monitor control panel. These are the RCA unbalanced line level audio inputs for the DVD1 and DVD2 sources.
Page 6: Installation
32 devices in the chain. The IN400 is not terminated so may be inserted anywhere in the data network. If the IN600 is being used at the end of a chain, a 120ohm (characteristic impedance of UTP) terminating resistor should be connected between the + and - connections.
Page 7 XX-source channel 01-06, 07-off, 08-projector; YY-ON,OF,FL off, 08-projector (On,Off, Flashing) SET COMMANDS These commands are used to set values on the IN600. Good programming techinique should update control system visual info on the feedback responses not the ACK message, see Feedback table. Object Data nacK !04SR01XX<CR>...
Page 8: Setup / Software
SETUP / SOFTWARE The IN600 software come included on a CD ROM. The IN600 software will work on any windows XP or later operating system. Installing the software is easy insert the CD and run the setup.exe file. Follow the prompts.
Page 9 Open Opens a .in6 file which contains a previously save configuration of the software. Opening a file will overwrite your current configuration. If the IN600 is Online then opening a file will load the contents straight up to the IN600.
Page 10 This menu item will open the Projector Setup window. If it is showing Connect then selecting it will cause the software to try and connect to the IN600. When a connection is made the user is given the option to upload the Set Input Names software configuration or download the actual IN600 configuration to the software.
Page 11 Projector Strings These are the strings that will be sent to projector. When the projector power button is pushed on the IN600 the on or off code is sent. When a source is selected the corresponding video format code is sent.
Page 12: Internal Adjustments
INTERNAL ADJUSTMENTS The following routing configurations can be made inside the IN600. Access to the inside the the IN600 should only be performed by a qualified person. Mic/Line HPF Each of the 4 mic/line inputs has a 150Hz HPF. Moving the jumper to the IN position will enable the filter.
Page 13: Block Diagram
BLOCK DIAGRAM IN600 INSTALLATION AND OPERATION MANUAL PAGE 13...
Page 14: Dimensions
DIMENSIONS PAGE 14 IN600 INSTALLATION AND OPERATION MANUAL...
Page 15: Specifications
SIZE (WXHXD) 482 x 88 x 270mm 19.” x 3.5” x 9.82” NET WEIGHT 4.25kg 9.4lb SHIPPING WEIGHT 6.5kg 14.3lb SHIPPING DIMENSIONS (WXHXD) 520 x 190 x 360mm 20.5” x 7.5” x 14.2” IN600 INSTALLATION AND OPERATION MANUAL PAGE 15...
Page 16 AUSTRALIA AND NEW ZEALAND www.australianmonitor.com.au SYDNEY MELBOURNE BRISBANE ADELAIDE PERTH AUCKLAND (SA & NT SALES) (NSW & ACT SALES) (VIC & TAS SALES) (QLD SALES) (WA SALES) (NZ SALES) 1 Clyde Street 22/277 42 Commercial Road 31 Walsh Street 3/11 Howe Street 9C Piermark Drive Silverwater Middleborough Road...
