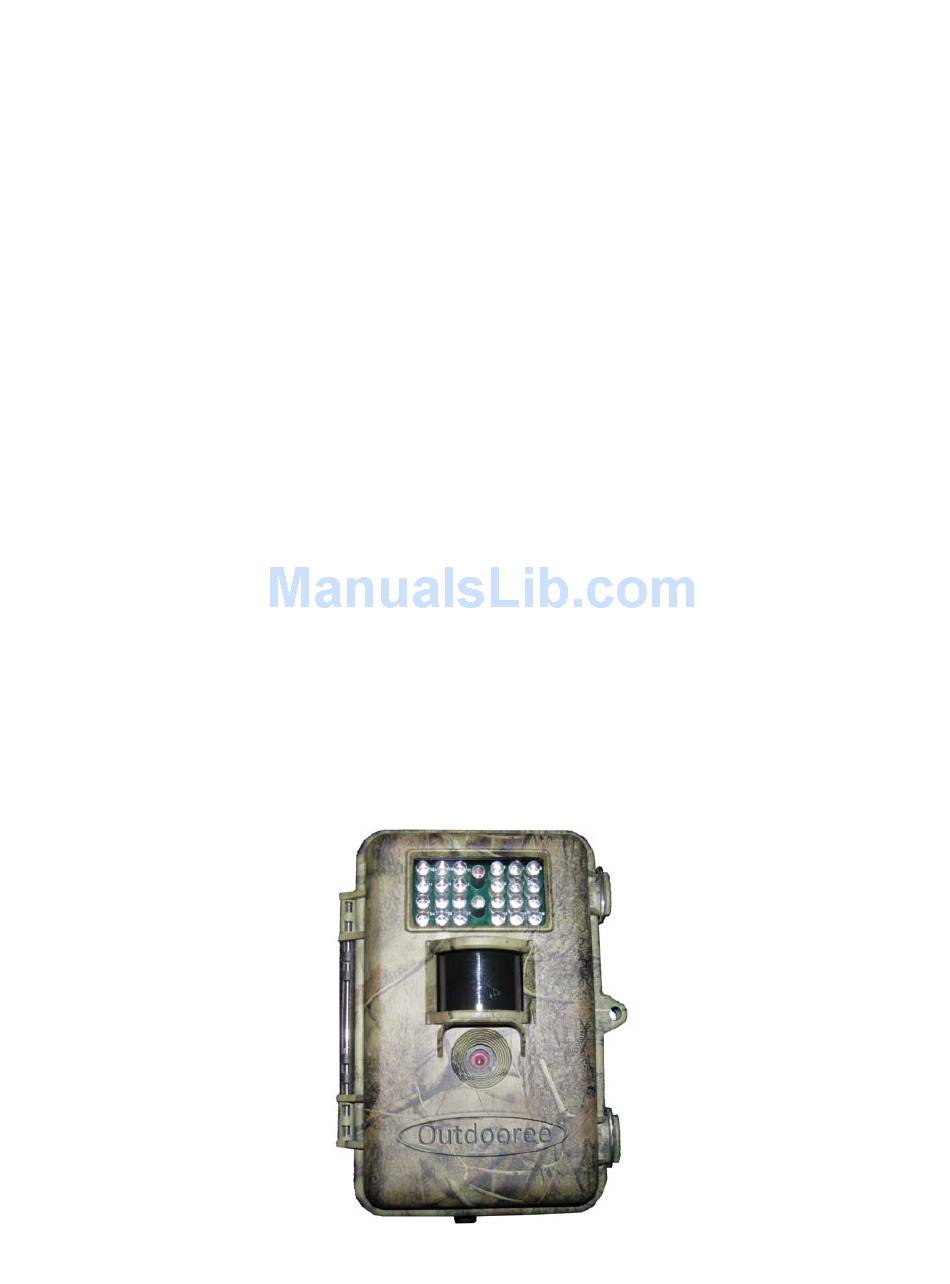

  • Page 1 Outdooree R6 A Digital Infrared 5MP Scouting / Surveillance Camera User’s Manual...

  • Page 2: Table Of Contents

    INDEX 1. Introduction…………………………………………..4 2. Parts and controls ID……………..…………………5 3. Installing Batteries and SD card…………………..7 4. Using and Programming the Outdooree R5…..11 4.1 Set Camera Mode…………………………14 4.2 Restore Factory Default Settings………15 4.3 Set Clock……………………………………16 4.4 Set time stamp……………………………..17 4.5 Set TV Output……………………………...18 4.6 Format SD Card……………………………18...
  • Page 3 2 ...
  • Page 4 3 ...

  • Page 5: Introduction

    Passive Infra-Red (PIR) motion sensor to detect heat and movement and then take high quality pictures (up to 5MP still photos), or video clips. The Outdooree R6 consumes very little power (less than 300μA) in a standby (surveillance) 4 ...

  • Page 6: Parts And Controls Id

    (in black & white) even in the dark, and it can take color photos or videos under sufficient daylight. The Outdooree R6 is designed for outdoor use and is completely weatherproof. Parts and Controls Identification a.
  • Page 7 Controls The Outdooree R6 provides the following connections for external devices: Keyboard Port, USB port, SD card slot, TV Out, and external DC power in (Fig. 1). Remote Control: Remote Control is a keyboard for setting Outdooree R6’s parameters.

  • Page 8: Installing Batteries And Sd Card

    INSTALLING THE BATTERIES and SD CARD Before you begin learning how to use your Outdooree R6, you will first need to install a set of batteries and insert an SD card. Although that may only take you a minute, there are...
  • Page 9 Optionally, you can connect an external 6V DC power source to the “DC In” jack at the bottom of the Outdooree R6. It is recommended to use a power source with a current output greater than 1000mA. However, during bright...
  • Page 10 DC power source with the power input jack of the Outdooree R6, making sure that the polarity is correct. Note: The power connector is a 4.0x1.7mm coaxial DC power plug with positive “tip” (inside pin) polarity (Radio Shack P/N 274-1532 or equivalent).
  • Page 11 Do not insert or remove the SD card when the power switch is in the ON position. The Outdooree R6 uses a standard SD (Secure Digital) memory card to save photos (in .jpg format) and videos. SD and SDHC...

  • Page 12: Using And Programming The Outdooree R5

    Formatting the SD card by using the Outdooree R6 “Format” parameter before using it for the first time is recommended, especially when a card has been used in other devices (see “4.6 Format SD Card”...
  • Page 13 THE OFF, ON, AND SETUP MODES Outdooree three basic operational modes: - OFF mode: Power switch in the OFF position.
  • Page 14 10 seconds. This interval allows time for you to close the Outdooree R6’s front cover, lock it, and leave the monitored area. Once in the ON mode, no manual controls are needed or possible. The...

  • Page 15: Set Camera Mode

    Outdooree R6. In OFF mode you just need connect the keyboard with Outdooree R6 and power on the Outdooree R6 if the SETUP mode is needed. Under the SETUP mode you can take over the control of the Outdooree R6 manually or set operational parameters with the help of a display, i.e., the built-in LCD.

  • Page 16: Restore Factory Default Settings

    parameter has two values: “camera” and “video”. Pressing UP key can switch between these two parameters. Press OK key to save setting or MENU key to cancel setting and exit. Please note, you’ll quit the parameter setting without any saving and no parameter is changed if you press the MENU key at any time before pressing OK key 4.2 Restore...

  • Page 17: Set Clock

    4.3 Set Clock You can set the date and time when necessary, e.g., after every battery change. The format of the date is month/day/year while the time format is hour: minute: second. In MENU state, the steps as following: a. Press the LEFT arrow button until “Set Clock”...

  • Page 18: Set Time Stamp

    Use “RIGHT” arrow to move highlighted box to day k. Use “UP” and “DOWN” buttons to change the current month Press “OK” to save settings After the settings of the date and time, press the OK key to save them or the MENU key to cancel setting.

  • Page 19: Set Tv Output

    4.5 Set TV output Press the LEFT arrow button until “TV Output” appears at the top of the screen. b. In the US, Canada, Mexico, Asia and South America, TV’s are formatted to NTSC, European countries use PAL. Use the “UP” and “DOWN” arrows to select the appropriate TV Output.

  • Page 20: Set Sensitivity Level

    d. Press “OK”, a green screen will appear that says “Format Success” and then the screen will return to the format screen. 4.7 Set sensitivity level Note: The sensitivity level dictates how easily camera triggers. recommended to use “Low” sensitivity during winter months to avoid false triggers;...

  • Page 21: Set Video Length

    interval will cause the camera to only trigger every 1 minute even if there are animals present. This allows the user to eliminate unnecessary pictures. a. Press the MENU button b. Press the LEFT arrow button until “Interval” appears at the top of the screen. c.

  • Page 22: Set Video Resolution

    4.10 Set video resolution a. Press the MENU button b. Press the LEFT arrow button until “video size” appears at the top of the screen. c. Use the “UP” and “DOWN” arrows to choose the video size you want. 320x240 is low resolution, 720x480 is high resolution.

  • Page 23: Set Image Resolution

    “ON”. When setting up the Outdooree R6 for scouting game or other outdoor applications, you must be sure to mount it in place correctly and 22 ...

  • Page 24: Sensing Angle And Distance Test

    We recommend mounting the Outdooree R6 on a sturdy tree with a diameter of about 6-12 inch. To get the optimal picture quality, the tree should be about 10-20 feet away from the place to be monitored, with the camera placed at a height of 2-5 feet.
  • Page 25 The results of your testing will help you find the best placement when mounting and aiming the Outdooree R6. The height away from the ground for placing the device should vary with the animal size appropriately. In general, 3 to 5 feet is preferred.

  • Page 26: Switching On The Camera

    LED (red) (Fig 3) will blink for about 10 seconds. This gives you time to close and lock the front cover of the Outdooree R6 and then walk away. During this time, the motion indicator LED will blink red continuously. After...
  • Page 27 TV monitor or a viewing device (such as a digital picture frame) that has a standard composite video input (RCA jack) to the Outdooree R6’s “TV Out” mini jack using the supplied cable. Then: Entering into SETUP mode. Press the OK key. The most recently captured image will be shown on the video monitor.
  • Page 28 b. Deleting Photos or Videos If you see a photo or video during playback on video monitor that you want to delete, it can be done easily without leaving SETUP mode: -Press the MENU key. You will see the first “Delete”...
  • Page 29 c. Reviewing Images Directly From the SD Card This is the most popular method of viewing images. Since un-mounting the camera and taking your computer isn’t very convenient, you may find it easier to just take the card out. By removing the SD card (swapping it for a new empty card if you like) and taking it to your home or campsite to view the images by using an SD card “reader”...
  • Page 30 * Video files may require additional software for viewing on a Mac. The Outdooree R6 supports 3 kinds of file system formats, FAT12, FAT16, and FAT32. The default value is FAT16 to save photos and videos. Here are some related notes:...
  • Page 31 Outdooree R6 unless your equipment has problems reading the SD card. If this happens, please format the SD card with the Outdooree R6 or in your computer first and then insert the card into your Outdooree R6 and try again.
  • Page 32 USB ports or unpowered “hubs”. The Outdooree R6 will be recognized as a standard “USB Mass Storage” device (this may take several seconds the first time you connect it). If you would rather leave your camera in the...

  • Page 33: Trouble Shooting/Faq's

    Trash to “eject” it before disconnecting.) The .jpg standard files from the Outdooree R6 may be viewed and edited with any photo software you choose to use. The video files may be viewed with Windows Media...
  • Page 34 Typically, the Outdooree R6 will be able to capture several thousand images before the batteries die. 2. Check to make sure you has used new alkaline lithium batteries. Outdooree recommends using 8 new alkaline or lithium AA batteries in all Outdooree R6 cameras to obtain maximum battery life.
  • Page 35 6. If you have used an SD card in another device before inserting it in your Outdooree R6, you should try formatting the card using the “Format” parameter in SETUP mode (make sure you have backed up any important files first, as formatting will erase all previous files) (See 4.6 Format SD Card).
  • Page 36 1-4 with no “gaps”. We recommend using 8 new alkaline or lithium AA batteries in all Outdooree R6 cameras. 2. Make sure that the batteries are installed correctly, observing proper polarity. Always...
  • Page 37 1. Check the battery indicator icon to see if battery power is full. The flash will stop operating near the end of the battery life. 2. You will get the best results when the subject is within the ideal flash range, no farther than 45’...
  • Page 38 c. Night photos or videos appear too bright 1. You will get the best results when the subject is within the ideal flash range, no closer than 6’ (3m) from the camera. Subjects may appear too light at closer distances. d.
  • Page 39 2. If this is seen on a consistent basis, then the sensor may need servicing. Please contact Outdooree customer service. Short video clips—not recording to the length set 1. Check to make sure that the SD card is not full.
  • Page 40 Photos Do Not Capture Subject of Interest 1. Check the “Sensor Level” (PIR sensitivity) parameter setting. For warm environmental conditions, set the Sensor Level to “High” and for cold weather use, set the sensor for “Low”. 2. Try to set your camera up in an area where there is not a heat source in the camera’s line of sight.
  • Page 41 purposes only and will help the user aim the camera. 2. During use, the LED will not flash when the camera takes an image. This is to help keep the camera hidden from game. Camera won’t retain settings 1. Make sure that you have been saving the changes to any parameter settings that you made while in SETUP mode, by pressing “OK”...

  • Page 42: Technical Specifications

    Technical Specifications Image Sensor 5 Megapixel Color CMOS Maximum Pixel Size 2560x1920 (5MP) Lens F=3.1; FOV=50°; Auto IR-Cut-Remove (at night) IR-Flash Range 36’-45’ (12m-15m) Memory Card SD or SDHC Card, Maximum capacity 16GB Internal RAM 32MB Picture Size 5MP=2560x1920;3MP=2048x1536 Video Size 720x480/30fps, 640x480/30fps, 320x240/30fps PIR sensitivity PIR with 3 sensitivity levels: High/Normal/Low...
  • Page 43 B. OUTDOOREE provides a 1 year warranty with this product against manufacturing defects or workmanship, if your camera fails to function under normal use within the 1 year time frame, OUTDOOREE will repair or replace the camera with no charge. Improper use of the camera resulting in damage is not covered by this warranty.
  • Page 44 - Fast 1 second trigger speed - Records still pictures or video - 3MP or 5MP picture size (adjustable) - Operates from -4F to 140F (-20℃ to 60℃) - Weather resistant - 1 year limited warranty *for more info visit www.outdooree.com  ...
