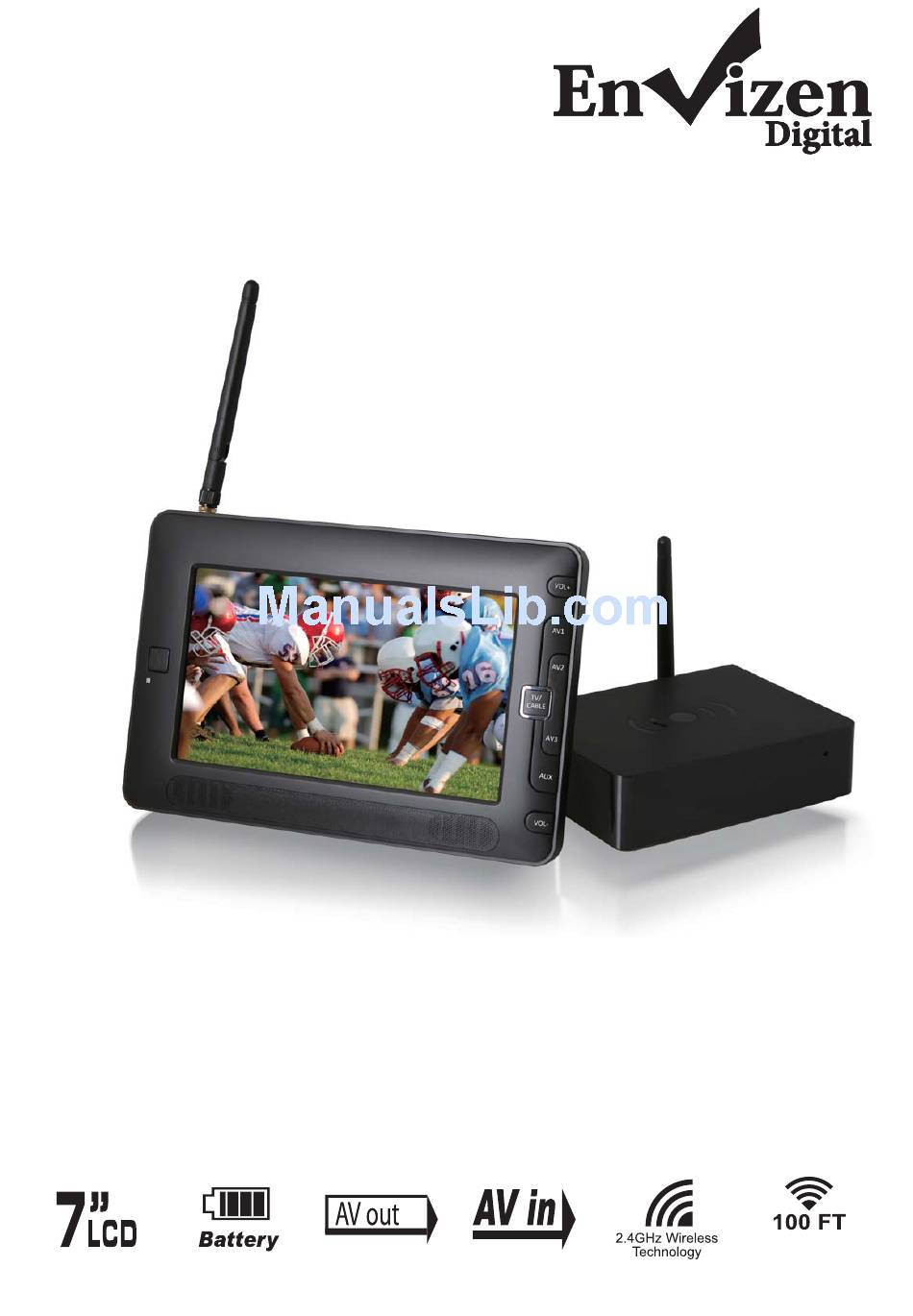

Thank you for purchasing this product.
For your safety and best performance, please read this instruction before
first use, and keep this manual for future reference.
In case that you have any further questions after reading this manual,
please contact Customer Service at 1-866-709-1999 or email to
service@envizendigital.com
100 Feet Wireless
Transmission Function*
Advertisement
Table of Contents
Summary of Contents for Envizen HR701
- Page 1 Home Roam TV Model: HR701 Thank you for purchasing this product. For your safety and best performance, please read this instruction before first use, and keep this manual for future reference. In case that you have any further questions after reading this manual, please contact Customer Service at 1-866-709-1999 or email to service@envizendigital.com...
-
Page 2: Table Of Contents
Table of Contents 1. Safety Disclaimer......................1 2. Introduction.........................3 3. Features........................3 4. What’s in the Box......................3 5. Unit Functions......................4 5-1. Transmitter Module....................4 5-2. Display Receiver....................4 6. Setting up Home Roam TV..................5 6-1. HR TV Transmitter Module Connections............5 6-2. HR TV Transmitter Module Operation..............6 6-3. -
Page 3: Safety Disclaimer
Safety Disclaimer To prevent electric shock or fire hazard do not expose the unit to rain or moisture. Warning To avoid electric shock or fire hazard,do not open the cabinet,refer servicing to qualified person only. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 4 Safety Disclaimer Do not use power-line operated sets copyrights: near water-for example,near a bathtub, the copyright protected content cannot be copied.broadcasted,screened,cable washbowl,kitchen sink,or laundry tub, casted,played publicly and rented, in a wet basement,or near a swimming unless it is authorized. pool,etc.
-
Page 5: Introduction

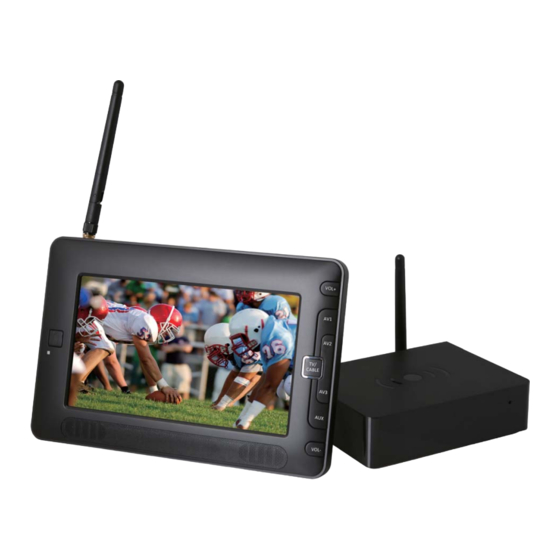

Introduction Congratulations on the purchase of your Envizen Digital Home Roam TV. Home Roam TV allows you to view any source device connected to the transmitter module on the 7” LCD Display Receiver anywhere in your home, up to 100 feet apart. -
Page 6: Unit Functions
Unit Functions 5.1 Transmitter Module 1.ANT: 2.4G wireless audio/video signal antenna 2.TV/CABLE IN: R/L/CVBs input, from TV, Cable or Dish set top box 3.TV/CABLE OUT: R/L/CVBs output to TV set. 4.AV1: AV combination input jack 5.AV2: AV combination input jack 6.AV3: AV combination input jack 7.POWER: Connect 9V/1A DC power 8.ON/OFF: Turn on/off the Transmitter Module... -
Page 7: Setting Up Home Roam Tv
Setting up Home Roam TV View any source connected to the transmitter module as an extension of the electronic device: Cable / set top box, TV, Blu-Ray player, DVD player, VCR or Media player. In this mode, you can operate the Receiver by powering on/off, volume controls and switching different channels on the Home Roam TV Display Receiver. -
Page 8: Hr Tv Transmitter Module Operation
Setting up Home Roam TV to connect [AV1] / [AV2] and [AV3] inputs. Connect regular RCA to RCA AV cable to the female end of the adaptor. c) Additional AV cables or adaptors are optionally available to for connecting additional devices. (See factory order form). -
Page 9: Hr Tv Display Receiver Operation
Setting up Home Roam TV the battery be charged for 3 hours with the power off; While the battery needs to be charged continuously for 8 hours if the Display Receiver is in use. 3.The battery life inside the receiver supports up to 2 hours usage without the adapter connected. 4.When the Receiver unit is switched off –... -
Page 10: Using Display Receiver As Independent A/V Monitor
Using display receiver as independent A/V monitor The Display Receiver unit can be used as an independent A/V monitor by connecting a local source device such as Cable / set top box, TV, Blu-Ray player, DVD player, VCR or Media player to the “AUX” jack (an A/V combination mini plug socket) at the left side of the panel. -
Page 11: Troubleshooting
Troubleshooting A. Blue Screen is displayed with only audio coming through - 1.Press the button on the Display Receiver to select the corresponding source connected to the Transmitter Module 2.Verify video connections to both Transmitter Module and Display Receiver are matched; 3.The A/V connection cable between Source Device and the Transmitter Module unit is completely inserted into the socket at both ends;... -
Page 12: Appendix
Appendix ● PAIRING THE TRANSMATTER MODULE AND DISPLAY RECEIVER Home Roam TV is shipped from the factory already paired between the transmitter and the Home Roam Display. Should the pairing ever be disrupted, you will not receive any video or audio on the display. STEP 1: TURN ON BOTH UNITS Make sure both the Transmitter Module and the Display Receiver are properly powered and turned on. -
Page 13: Quick Setup Reference
Appendix STEP 4: COMPLETION OF THE PAIRING SEQUENCE You may now operate the units normally. Tip: During the pairing process, do not depress the pairing button more then 15 seconds. Tip: During the pairing process, do not turn off either unit or lose power. ●... -
Page 14: Warranty
If a product proves to be defective in material or workmanship during the warranty period, Envizen will, at its discretion, repair or replace the product with the same model provided the purchaser anheres to certain return authorization procedures and guidelines. - Page 15 3. Upon receiving the product, depending on the condition of the defects, Envizen will repair or replace product, and ship it back to the customer within 2-4 weeks. 4. For additional information, please contact Envizen Customer Service.
