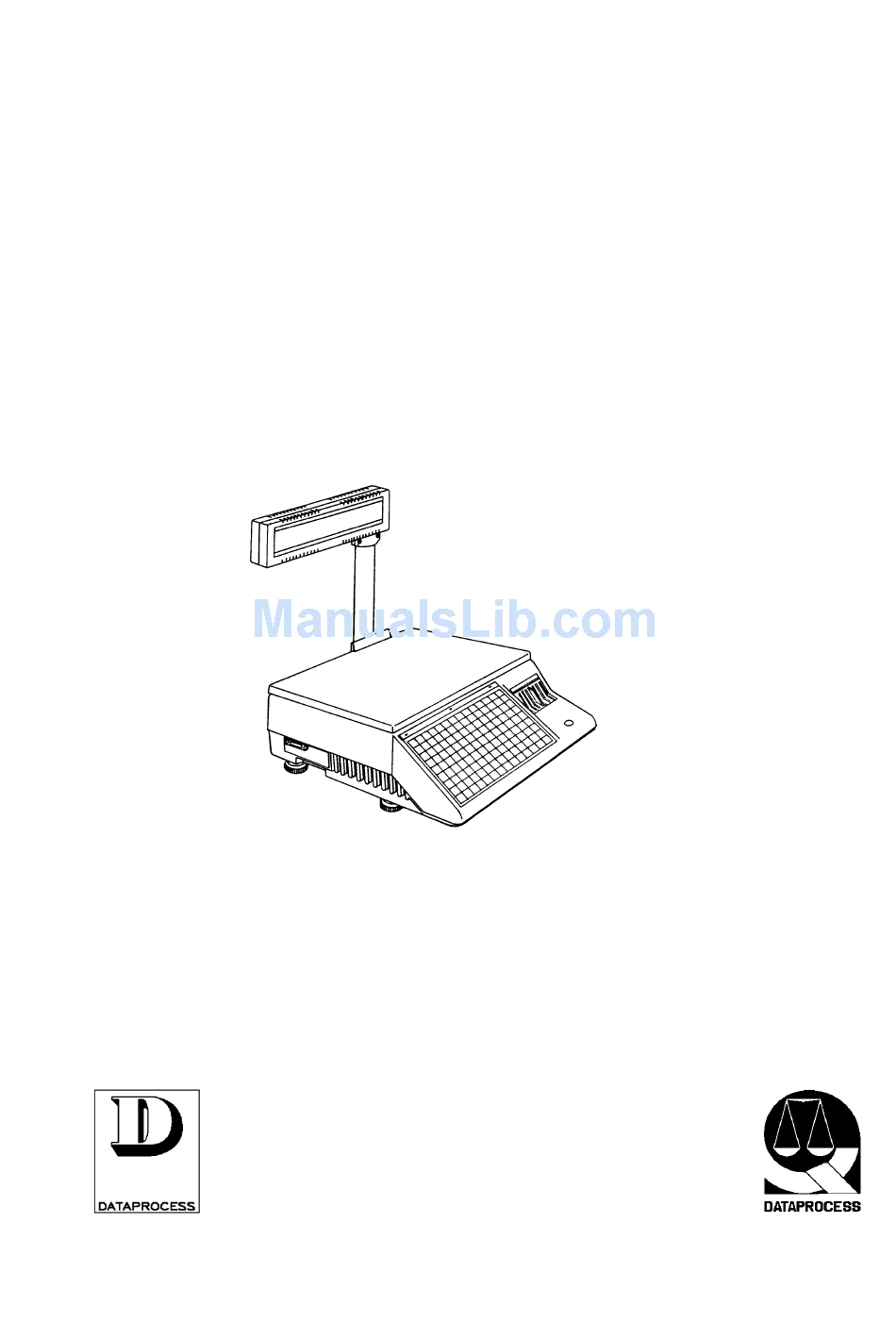

ELECTRONIC SCALE
DSP 500
USER MANUAL - v. 4.0
UV119UE
Doc-a-Ware 960510

Advertisement

Table of Contents
loading

Summary of Contents for DATAPROCESS DSP 500

  • Page 1 ELECTRONIC SCALE DSP 500 USER MANUAL - v. 4.0 UV119UE Doc-a-Ware 960510...
  • Page 3 • damages caused by non-authorised technical service and/or by the use of non original replacement parts The information contained in this manual is subject to change without notice, and it represents no commitment by the Manufacturer. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE i...
  • Page 4 PAGE ii UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 5: Table Of Contents

    GROUP 4: LABEL PROGRAMMING...... page 75 GROUP 5: NETWORKING AND INTERFACES ..page 83 GROUP 7: REPORTS..........page 91 GROUP 8 & 9: TOTALS & GRAND TOTALS..page 95 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE iii...
  • Page 6 PAGE iv UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 7 PRESENTATION PRESENTATION FEATURES ..............page 2 SPECIFICATIONS............page 3 DISPLAY ..............page 4 KEYBOARD .............page 5 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 1...

  • Page 8: Features

    • external connections: connection to PC via RS232c serial interface port scale network, for max. no. 10 scales on-line (optional) connection to remote PC (via optional RS422 interface) PAGE 2 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 9: Specifications

    SPECIFICATIONS The DSP 500 Scale can be supplied for two different load capacities and divisions: 6kg/2g (11 lb - 1/16 oz) 15kg/5g (22 lb - 1/8 oz) It is supplied equipped with: - no. 1 RS232 serial interface, 256 kB Eprom, 256 kB RAM already...

  • Page 10: Display

    The LED signalling lights indicate the price calculation and other values, as reported hereunder : net weight : fixed tare L/kg : price per kg L/100g : price per 100g PRE-PACK : pre-packed label PAPER : label roll nearly out PAGE 4 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 11: Keyboard

    0 ÷ 9 numerical keys above mentioned keys direct print label, or PRINT print and total PRINT print receipt < > operator UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 5...
  • Page 12 PAGE 6 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 13 DISCARD THIS PAGE (USED ONLY FOR PAGE NUMBERING ALIGNMENT) PAGE 6 UV119UE - DSP 500 : USER MANUAL- v. 4.0...
  • Page 14 PRICE VIA KEYBOARD ........page PRINT LABEL ............page LABEL LAYOUT ............page RECEIPT TRANSACTIONS........page VOID.................page RETURNS ..............page SUBTOTAL AND DISCOUNTS .......page PRINT RECEIPT ............page CORRECTING RECEIPTS........page RECEIPT LAYOUT ..........page PAPER REPLACEMENT ........page PAPER-CASSETTES..........page UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 7...

  • Page 15: Switching On

    When the weight automatic reset procedure is completed, and the scale is ready to start working, the zeros for weight, price and total are visualised on the display. Now, weight is correctly indicated as any item is put on the platter. PAGE 8 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 16: Distinctive Features

    To type in a PLU code the <PLU> key must be hit before. The choice between the 2 modes can be set in programming mode to fit the user needs. Hot-shot PLU keys, if programmed, can be used in both modes. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 9...

  • Page 17: Operational Sequence

    PRINT RECEIPT (page 18) printed on receipt (if required) void (if required) VOID ON LABEL (page 16) corrections to receipt CORRECTING RECEIPTS (page 18) (if required) PAGE 10 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 18: Tare

    If higher differences result, recalibrate the scale by switching it off and then switching it on again. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 11...

  • Page 19: Plu Recall

    PLU RECALL The daily use of the DSP 500 Scale is based on the PLU, that is on pre-programmed prices. Each PLU is marked by a numeric code, 1 up to 7 digits long (see function 23 PLU CODE LENGTH Up to 3045 PLU can be stored without text (see progr.

  • Page 20: Price Via Keyboard

    PRICE VIA KEYBOARD By this function, the DSP 500 scale offer the possibility to enter non-programmed prices. The procedures to be followed are slightly different according to the priority that was pre-set during programming: (see progr. function PLU RECALL SELECT PRICE...

  • Page 21: Print Label

    3. the weight is stable and net weight is higher than 0 (for weighed prices) 4. if after the previous printed label there has been a weight variation, or the scale platter has been unloaded (for weighed prices) PAGE 14 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 22: Label Layout

    Fresh quality from the country PACKED 17-09-96 EAT W. 27-09- PACKED 17-09-96 EAT W. 27-09- NET W. PRICE TOTAL TOTAL L/Kg Liras Liras 0,152 21500 3270 3270 TARE 0,020 UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 15...

  • Page 23: Receipt Transactions

    The void is annulled by pressing <PRINT> once again (figures return positive, on the display). VOID Confirm the void by pressing <VOID> again to return to normal working condition. PAGE 16 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 24: Returns

    Discounts can also be provided either on a fixed % base for each PLU (see funct. ), or 10 PLU EDIT using Special Prices (see ) or even on a 3-range weight/quantity base for each PLU PLU RECALL (see funct. 10 PLU EDIT UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 17...

  • Page 25: Print Receipt

    (adding new transactions, voiding previous transactions, etc.). The <RE-OPEN> key is not mapped in the pre-set keyboard layout. This operation must be performed to use it (see progr. function 07 KEYBOARD FUNCTIONS PAGE 18 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 26: Receipt Layout

    Other receipt options, i.e. VAT printing and second short-account receipt print, have not been included in the example to help in readability. Refer to progr. function , respectively, for details. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 19...

  • Page 27: Paper Replacement

    If only key <↑ ↑ ↑ ↑ > is pressed, the paper (or label) advances as long as it is being pressed. paper / label feed PAGE 20 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 28: Paper-Cassettes

    PAPER-CASSETTES The DSP 500 scale is designed to identify no. 3 different paper cassette versions for continuous paper (receipts and single-items) and for labels. Only two label formats (with different label lengths) can be used for the scale to automatically detects the selected type of paper and label format.
  • Page 29 PAGE 22 UV119UE - DSP 500 : USER MANUAL- v. 4.0...
  • Page 30 DISCARD THIS PAGE (USED ONLY FOR PAGE NUMBERING ALIGNMENT) PAGE 38 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 31: Cleaning

    MAINTENANCE AND PROBLEM SOLVING MAINTENANCE CLEANING...............page 24 PROBLEM SOLVING ERROR SIGNALLING..........page 25 PROBLEM SOLVING..........page 26 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 23...
  • Page 32 Do no use detergents, solvents and clothes soaked in water. Spray products must not be used directly on the scale. Spray on the cloth used for cleaning instead. PAGE 24 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 33 When selecting non-existing data (e.g.: a PLU not programmed) VALUE ERROR Incorrect value entered VALUE EXCEEDED Signalling that pre-set values have been exceeded WEIGHT REC. ERROR Weight received incorrectly UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 25...
  • Page 34 Remove cassette and check stamps correctly different paper positioned incorrectly position. If needed, put stamps cassettes types on the paper-cassette correctly. Photocell sensor failure Call for technical service PAGE 26 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 35 DISCARD THIS PAGE (USED ONLY FOR PAGE NUMBERING ALIGNMENT) PAGE 66 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 36: Installation

    CONFIGURATIONS ..........page 28 CONFIGURATIONS AND INSTALLATION PAPER ROLLS ............page 28 INSTALLATION ............page 29 NETWORK: INSTALLATION.....page 30 NETWORK: ACTIVATION........page 30 NETWORK: COMMUNICATIONS..page 31 CONNECTING TO A PC ..........page 32 UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 27...

  • Page 37: Configurations

    38 / 41 mm • label width: 42.5 ÷ 62.5 mm • roll ext. diameter: 75 mm max. • roll int. diameter: 11 mm • label width: 42.5 ÷ 62.5 mm PAGE 28 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 38: Installation

    The manufacturer disclaims all responsibilities for scales installed without observing the instructions and the rules into force. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 29...

  • Page 39: Network: Installation

    In a network system already activated, the switching on of a scale which was pre-programmed for network operation, causes the network automatic reconfiguration with addition of the scale just been switched on. PAGE 30 UV119UE - DSP 500 : USER MANUAL- v. 4.0...
  • Page 40 BEST OPERATORS printout of longer time period totals (2nd level) Z GRAND TOTAL printout and reset of daily and longer time period totals (2nd Z GR. TOTAL RESET level) UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 31...

  • Page 41: Connecting To Pc

    Fasten the plugs securely by their screws, where needed. Contact your dealer for getting the documentation on cables and connectors, on the functions selectable by PC and on software supporting communication. PAGE 32 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 42: Section Index

    VAT rates, list of best PLUs and operators,and 1st level printed reports and reset) TOTAL REPORTS - 2nd LEVEL ..........page 102 (2nd level printed total reports and reset) UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 33...
  • Page 43 INTRODUCTION TO PROGRAMMING INTRODUCTION TO ACCESS BY KEY-CODE.......page 2 PROGRAMMING LEVELS AND GROUPS...........page 3 SELECTION AND EDITING......page 4 FUNCTION CODES ..........page 5 UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 1...

  • Page 44: Access By Key-Code

    ” and get the scale back to weighing (scale status), just press Programming E X IT <EXIT> key (which is in the same position as <ZERO> in keyboard normal operation). PAGE 2 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 45: Levels And Groups

    ” mode, the system automatically positions to group “ ”. Programming DESCRIPTION OF FUNCTIONS A detailed description of the main programming functions is given in the next sections, subdivided by function groups. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 3...

  • Page 46: Selection And Editing

    Changes from capital letters, set as default, to lowercase letters and from the punctuation marks put on the bottom line to the upper line. The abbreviation ) identifies the lowercase letter mode, and ) the capital letter mode. PAGE 4 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 47: Function Codes

    BEST OPERATORS print best operators, in descending sale-amount order Z GRAND TOTAL print weekly grand totals (2nd level) Z GR. TOTAL RESET print and reset weekly grand totals (2nd level) UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 5...

  • Page 48: Group 0: General Programming

    05 - WEIGHED TARE ..........page 8 06 - KEY CODES ............. page 9 07 - KEYB. FUNCTIONS ....... page 10 08 - VAT & DEPARTMENTS ..... page 11 09 - VAT RATES............page 12 PAGE 2 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 49: Hot-Shot Plu Keys

    07 - KEYBOARD FUNCTION Attention: Codes “1” and “2” CANNOT be assigned to direct PLU keys since they are reserved to and to WEIGHED ITEM RANDOM PRICE NON- WEIGHED ITEM RANDOM PRICE UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE iii...

  • Page 50: Date And Time

    Also arrow keys < ↑ ↑ ↑ ↑ > and <↓ ↓ ↓ ↓ > can be used for moving from one field to the other. In that case however entered variations shall not be stored. All date and/or time variations must be confirmed by pressing the key <ENTER>. PAGE 4 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 51: Advertising Text

    Press the key <SEL> to set RIGHT/LEFT SCROLLING OVERLAP mode, the advertising message is displayed in 20 characters per time, then you have OVERLAP to enter sentences 20 characters long for getting reliable messages. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE v...

  • Page 52: Operators

    Confirm the name by pressing <ENTER> and then select the operator qualification as follows: O P E R A T O R T R A D I N G By the key <SEL> you can toggle between actual trading and training options. PAGE 6 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 53: Manual Tare

    6 KGs. load capacity scales, and in a multiple of 5 g. for 15 KGs. load capacity scales). If the entered tare value is not a multiple of the scale division a signalling shall be VALUE ERROR displayed. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE vii...

  • Page 54: Weighed Tare

    = weight on platter Place the container representing the tare on the scale platter. As the key <ENTER> is pressed, its weight shall be stored as tare value. PAGE 8 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 55: Key Codes

    If you want to enable it again, replace the key code with a 4 digit code. Use the arrow keys <← ← ← ← > and <→ → → → > for scrolling throughout the 3 keys and their assigned codes. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE ix...

  • Page 56: Keyb. Functions

    F U N C T I O N C O D E c c c where: = function code To modify the key code enter the new function code and then confirm by pressing <ENTER>. PAGE 10 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 57: Vat & Departments

    You may now exit (by the <EXIT> key) or go on programming department/VAT rate id. associations. Actual VAT rates associated to each VAT rate id. are programmed in funct. 09 - VAT RATES UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE xi...

  • Page 58: Vat Rates

    Enter a VAT id. number (1 to 5) and then confirm it by pressing <ENTER>. You may now exit (by the <EXIT> key) or go on programming VAT rates. PAGE 12 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 59: Group 1: Plu Programming

    10 - PLU EDIT (dates).........page 17 price/discounts) 10- PLU EDIT (sp. page 18 11 - PLU COPY ............page 19 12 - PLU DELETE ............page 19 13 - PLU TEST ............page 20 UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 13...
  • Page 60 <SEL> Select and again PRICE X 100G NONWEIGHED PRICE PRICE X 1 KG sequentially as required. Press <ENTER> to confirm your selection and to proceed with programming label format. PAGE 14 UV119UE - DSP 500 : USER MANUAL- v. 4.0...
  • Page 61 < 1 ÷ 1 0 > where: = department no. Select the required department no. through keyboard and then press <ENTER> to proceed with PLU description and its ingredients, if requested. UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 15...
  • Page 62 = tare identification code (20 characters max.) By using the numeric keypad keys enter the tare identification code to be assigned to the PLU and then confirm by pressing <ENTER>. PAGE 16 UV119UE - DSP 500 : USER MANUAL- v. 4.0...
  • Page 63 10 - PLU EDIT (dates) Setting ageing and due dates For each PLU, DSP 500 scale allows setting two different dates: • , used as date following .., in the pre-set label layouts 1 to 10 DATE 1 TO BE SOLD WITHIN •...
  • Page 64 PLUs) can be set, followed by the unit price applied for weight or quantity above the 2nd threshold. The normal price is instead applied for weights or quantities below the 1st threshold. PAGE 18 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 65: Plu Copy

    C O N F I R M Press <ENTER> to confirm deletion. If the selected PLU code does not correspond to a programmed PLU, the message shall be displayed. UNKNOWN DATA UV119UE - DSP 500 : USER MANUAL- v. 4.0 PAGE 19...
  • Page 66 = no. of stored PLU (including PLU 1 and 2, scale pre-set) zzzz = no. of PLU available for programming Use the keys <EXIT> or <ENTER> to exit the function. PAGE 20 UV119UE - DSP 500 : USER MANUAL- v. 4.0...
  • Page 67 PAGE 21 UV119UE - DSP 500 : USER MANUAL- v. 4.0...

  • Page 68: Group 2: Settings

    23 - PLU PRE-SET DIGITS......page 64 24 - LABEL BAR-CODE ........page 66 25 - OPERATION SETTINGS ....page 67 26 - KEYBOARD BUZZER ......page 68 27 - OPERATIONAL MODE........page 68 PAGE 61 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 69: Receipt / Label

    = operator code number (1 to 20) Enter the operator code desired (1 to 20) and press <ENTER> to confirm. All the procedure seen is than repeated for paper-cassettes 2 and 3. PAGE 62 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 70: Num. Key Time-Out

    = time-out value expressed into tenths of second Input the new value through the numerical keypad for changing a pre-set time limit, and then confirm by <ENTER> and restore the previous condition. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 63...

  • Page 71: Plu Pre-Set Digits

    To sum up, in this hypotheses to PLU is composed by: A. a fixed part, common to all PLUs in a shop area B. a variable part, uniquely identifying the PLU in that given area PAGE 64 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 72 PLU that the operator can specify with 24 must be programmed as PLU 15024. 4. to program hot-shot keys for PLU (funz. ) use only the variable part of the 00 HOT-SHOT KEYS code. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 65...

  • Page 73: Label Bar-Code

    The user will then be asked to specify the composition of EAN-8 code for weighed items followed EAN-13 code non-weighed items EAN8 BCR WEIGHED and, finally, EAN-8 code non-weighed items EAN13 BCR NON-WEIGH. EAN8 BCR NON-WEIGH. PAGE 66 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 74: Operation Settings

    Use <SEL> to enable/disable this option and press <ENTER> to move to the next option. Press <EXIT> to return to the initial display for exiting the operation setting programming. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 67...

  • Page 75: Keyboard Buzzer

    O P E R A T I O N A L M O D E R A N D O M P R I C E Press <ENTER> or <EXIT> to return to the initial display. PAGE 68 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 76: Group 3: Receipt Programming

    30 - SHOP NAME.............page 70 RECEIPT PROGRAMMING 31 - RECEIPT OPTIONS........page 71 32 - RECEIPT BAR-CODE......page 72 33 - PRINT DOUBLE TOT......page 74 34 - EXIT FROM TOTAL..........page 74 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 69...

  • Page 77: Shop Name

    L I N E P R I N T I N G ) by pressing <SEL>. Now you can select the other options ( ON TOP ON BOTTOM PAGE 70 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 78: Receipt Options

    Once that a receipt is printed, the amount given by the customer and the change to be returned to him shall be printed. Press <EXIT> to end receipt options programming. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 71...

  • Page 79: Receipt Bar-Code

    Now select, by using the numeric keys, the fixed bar-code digits (7 digits max.). Press <ENTER> to move to the next option. PAGE 72 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 80 = digit by digit specification of the bar-code composition (see table) Press <ENTER> at the end of EAN-8 bar-code customisation and <EXIT> to return to the initial visualisation. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 73...

  • Page 81: Print Double Tot

    Use <SEL> to change the default option for exiting from totals with the BY WEIGHT OR KEY alternative options ONLY BY KEY Press <ENTER> or <EXIT> to return to the initial visualisation. PAGE 74 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 82: Group 4: Label Programming

    PARAMETERS OF GRAPHIC FIELDS ..page 78 PROGRAMMING LABEL FIELDS ....page 79 41 - LAYOUT COPY..........page 80 42 - LAYOUT DELETE..........page 80 43 - FIXED TEXTS ...........page 81 PRE-SET LABELS........page 82 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 75...

  • Page 83: Label Layout

    = field identifier tttttt = type of field xxx e yyy = vertical and horizontal position of field = layout of field character = type of field rotation PAGE 76 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 84: Parameters And Fields

    • 20 KEEP AT TEMP. 0 TO 4 C. • • 7 TOTAL • 14 CODE • 21 ÷ 40 User keys to be programmed by the function 43 FIXED TEXT UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 77...

  • Page 85: Parameters Of Graphic Fields

    <EXIT>, select the new field by the keys <↓ ↓ ↓ ↓ > and <↑ ↑ ↑ ↑ > and then press <ENTER> to access it. PAGE 78 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 86: Programming Label Fields

    The key <EXIT> can be used at any time for leaving programming of the current field and skip to another field. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 79...

  • Page 87: Layout Copy

    = layout no. to be deleted (11 up to 20) Enter the required layout identifying no. When pressing <ENTER> to confirm you will be queried to confirm the deletion by pressing <ENTER> again. PAGE 80 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 88: Fixed Texts

    The fixed text maximum length is 20 characters. For more details on text selection and modification refer to the sheet reported at SELECTION AND EDITING Section of this manual. INTRODUCTION UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 81...
  • Page 89 Fresh quality from the country PACKED 17-09-96 EAT W. 27-09- PACKED 17-09-96 EAT W. 27-09- NET W. PRICE TOTAL TOTAL L/Kg Liras Liras 0,152 21500 3270 3270 TARE 0,020 PAGE 82 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 90 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 83...

  • Page 91: Group 5: Networking And Interfaces

    54 - NETWORK ADDRESS ......page 89 55 - NETWORK/LOCAL MODE ......page 89 56 - TX PROGRAMMING ......page 90 57 - FIND SCALES ..........page 90 58 - MEMORY CARD..........page 91 PAGE 84 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 92: Label Calibration

    > where: = value for printing intensity (default value pre-set by the manufacturer: 65) Type in a new value by the numerical keys and press <ENTER> to confirm. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 85...

  • Page 93: Serial Channela

    C H A N N E L S T O P where: = number of stop bits The number of stop bits can be set, by choosing 1 or 2 by the key <SEL>. PAGE 86 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 94: Serial Channelb

    Press <ENTER> or <↓ ↓ ↓ ↓ > for programming the number of stop bits, as follows: S E R I A L C H A N N E L S T O P where: = number of stop bits UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 87...
  • Page 95 The number of stop bits can be set, by choosing 1 or 2 by the key <SEL>. PAGE 88 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 96: Network Address

    Now, the operational mode of a scale can be selected between SCALE IN LOCAL SCALE IN by pressing <SEL>. Use key <ENTER> or <EXIT> to return to the initial visualisation. NETWORK UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 89...

  • Page 97: Find Scales

    S C A L E S N E T W O R K where: = identifier (address) of scales found on the network Press <ENTER> or <EXIT> to return to the initial visualisation. PAGE 90 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 98: Memory Card

    The transmission of PLU data from the scale to the Memory Card is started as <ENTER> is pressed. The message is displayed during the transmission, then the scale returns to the initial WAIT function display. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 91...

  • Page 99: Group 7: Reports

    70 - HOT-SHOT REPORT......page 92 REPORTS 71 - PLU REPORT ..........page 92 72 - PLU / BAR-CODE REPORT....page 93 73 - GENERAL REPORT ......page 94 74 - RANDOM PRICES ..........page 94 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 91...
  • Page 100 Type in the final PLU code to be included in the list. The message is displayed as printing is WAIT on progress. When the requested list is printed, the scale returns to the function initial display. PAGE 92 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 101 Type in the final PLU code to be included in the list. When pressing <ENTER> the message WAIT is displayed as the list is being printed. After printing the scale returns to the function initial display. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 93...
  • Page 102 S T A R T Press <ENTER> and the message is displayed as the report is being printed. When printing is WAIT completed, the scale returns to the function initial display. PAGE 94 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 103 88 - BEST PLUs............page 101 89 - BEST OPERATORS .........page 101 GROUP 9: Z GRAND TOTALS 90 - Z GRAND TOTAL ..........page 102 91 - Z GR. TOTAL RESET ........page 102 UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 95...

  • Page 104: Introduction To Totals

    Z time period) sales sub-totals are needed. The scale identifier no., as well as the date and time of printout are always indicated at the end of totals reports. PAGE 96 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 105: Operator Totals

    WAIT printed for each department having sales data different from “0”. When printing is completed, the scale returns to the function initial display. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 97...

  • Page 106: Plu Totals

    Type in the final code by the numerical keys and then press <ENTER>. Code 0 indicates the latest PLU programmed. . The message will be displayed till printing is over. WAIT PAGE 98 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 107: Totals By Hour

    WAIT printed for each departments having sales data different from “0”. The scale returns to the function initial display after printing. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 99...

  • Page 108: X Grand Total

    By pressing <ENTER> again, the message is displayed, the totals are printed and at the same WAIT time they are reset. The scale then returns to the function initial display. PAGE 100 UV119UE - DSP 500 : USER MANUAL - v. 4.0...

  • Page 109: Best Plus

    S T A R T By pressing <ENTER> again the message will be displayed while printing. When printing is WAIT completed, the scale returns to the function initial display. UV119UE - DSP 500 : USER MANUAL - v. 4.0 PAGE 101...

  • Page 110: Z Grand Total

    By pressing <ENTER> again, the message is displayed, the totals are printed and at the same WAIT time they are reset. The scale then returns to the function initial display. PAGE 102 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 112 PAGE 104 UV119UE - DSP 500 : USER MANUAL - v. 4.0...
  • Page 113 NEW FEATURES PRE SET TARE FUNCTION SELF-SERVICE VERSION...

  • Page 114: Customer Display

    NEW FEATURES DATAPROCESS S.p.A. PRE - SET TARE function allows to: PRE - SET TARE → use the pre-set tare assigned to PLUs in all the possible printing modalities by recalling PLUs when there is no active tares (if the function is not active the tares assigned to PLUs may be used only in pre-pack printing modality);...
  • Page 115 DATAPROCESS S.p.A. NEW FEATURES 1 - ACTIVATION AND USE OF PRE-SET TARE Enter into SET MODE pressing the key <F> and the access code 4444. Select the Pre-set tare function pressing : Pre-set Tare Active / Not Active ACCESS LEVELS: The display will show: Press the key <ENTER>...
  • Page 116 NEW FEATURES DATAPROCESS S.p.A. 2 - KEY [PT] PROGRAMMING Enter into SET MODE pressing the key <F> and the access code 4444 . Select the keyboard programming function pressing: Keyboard Function ACCESS LEVELS: The display will show: K E Y B O A R D F U N C T I O N Press the key <ENTER>...
  • Page 117 DATAPROCESS S.p.A. NEW FEATURES SELF-SERVICE VERSION GENERAL CHARACTERISTICS self-service version page 5...
  • Page 118 The self-service has the same characteristics of use and programming of the normal version. WEIGHING OPERATIONS DSP 500 self-service version has been projected for self service areas, where weighing operations are not supervised by operators. The keyboard is programmed only for the direct recalling of 96 PLU; numbered from 1 to 96 on the keyboard cover.
  • Page 119 DATAPROCESS S.p.A. NEW FEATURES PROGRAMMING OPERATIONS To enter into programming mode press the key [ 1 ] (see picture 1 e 2 page 6) after the switching on of the scale, during the display test; after the display test has ended enter the access code 4444.
  • Page 120 NEW FEATURES DATAPROCESS S.p.A. PRE-SET TARE To enter a pre-set tare tare press the key [ 4 ] (see picture 1 e 2 page 6) during the display test, after the switching on of the scale; after the display test has ended: 1.
