V-DV05D

0.5 DIN CAR DVD PLAYER

0,5 DIN

DVD-

Instruction manual

Table of Contents

Need help?

Do you have a question about the V-DV05D and is the answer not in the manual?

Questions and answers

Summary of Contents for Varta V-DV05D

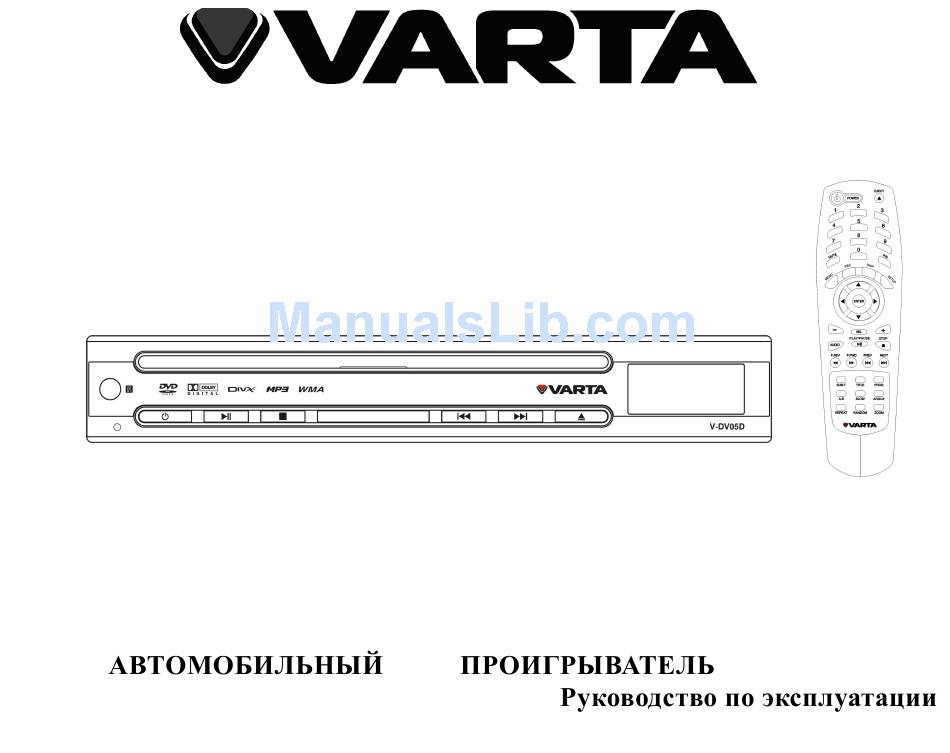

Page 1 V-DV05D 0.5 DIN CAR DVD PLAYER 0,5 DIN DVD- Instruction manual...
Page 2: Table Of Contents
V-DV05D Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................3 Important safeguards ............................4...
Page 3: Important Safeguards
V-DV05D Important safeguards Using the device at temperature below -10º may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature! Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
Page 4: Accessories
V-DV05D Accessories Item Diagram Quantity Screws M5x5 AV cable Connector wire Remote control Remote control receiver Bracket Customer information Instruction manual Warranty card...
Page 5: Installation/Connection
V-DV05D Installation/Connection Installation method 1: Din Front-Mount Install the Mounting Box into the dashboard. Method 2 Select a position where the screw holes of the Mounting bracket supply with the car and the screw holes of the main unit become aligned, tighten the screws on each side then fasten them to car.
Page 6: Electrical Connection
V-DV05D Electrical connection...
Page 7: Panel Controls
V-DV05D Panel controls FRONT PANEL 1. Infra Red RC sensor 2. Disc slot 3. Display 4. EJECT button 5. NEXT button 6. PREVIOUS button 7. STOP button 8. PLAY/PAUSE button 9. POWER button 10. RESET button 11. DC 12V REAR PANEL 12.
Page 8 V-DV05D Remote control 1. POWER button 2. Number buttons 3. MUTE button 4. PBC button 5. MENU button 6. Cursor buttons 7. ENTER button 8. VOL - button 9. PLAY/PAUSE button 10. AUDIO button 11. F.REV/F.FWD button 12. TITLE button 13.
Page 9 V-DV05D Changing the battery Remote control operation Insert two AAA/1.5V batteries into the remote control. The remote control is pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side. Take the battery out of the control if it is not used for a long time.
Page 10: General Operation
V-DV05D General operation Reset the unit Operating the unit for the first time or after replacing the car battery, press and hold RESET button with a pointed object to restore the unit to the original factory settings. Note: When some errors occur in the display, you can also press RESET button to resume to normal. It will erase the clock setting and some memorized functions.
Page 11 V-DV05D Press this button to display the current playback information on the screen. ZOOM Press ZOOM button during normal playback to zoom a picture. Press this button repeatedly to change the size of the picture. REPEAT When playing DVD disc, press the button to repeat the title or chapter; When playing VCD(PBC OFF)/ CD/ MP3 /WMA Disc, press the button to repeat one track or all tracks.
Page 12 V-DV05D When playing DVD/ CD/ MP3 /WMA disc, press PREVIOUS/NEXT buttons to select the previous/next chapter or track. Press the button to select video output (PAL/PAL60/NTSC/AUTO). RANDOM Press the button to play any track in random. Press it again to return to normal playing.
Page 13: Mp3 Overview
V-DV05D MP3 overview Notes on MP3: MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
Page 14 V-DV05D Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
Page 15: System Setup Menu
V-DV05D System setup menu 1. Press SETUP button on the RC to display the system setup menu. 2. Use LEFT/RIGHT cursor buttons on RC to select the desired menu: System setup, Language setup, Audio setup, Video setup, Speaker setup, Digital setup.
Page 16 V-DV05D Password Here you can change the password. Insert your old password or 0000 (the general one). Insert the new password. Insert it again. Press OK button to save the new password. Rating The rating level is for parents to control playing content and protect your children from violence and erotic.
Page 17 V-DV05D Audio setup Audio out SPID/OFF: There is no signal output from the coaxial or optical output end. SPDIF/RAW: When the unit is connected with the amplifier by coaxial or optical connecter, please select this mode. SPDIF/PCM: When the unit is connected with the two channels digital stereo amplifier, please select this mode.
Page 18 V-DV05D Stereo: The audio out format is stereo even if the original sound is 5.1CH format. VSS: The audio format Advanced Virtual Surround Sound Digital setup DYNAMIC RANGE (DRC) If watching large dynamic scope movie program at night, to select this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sounds.
Page 19: Handling Discs
V-DV05D Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches.
Page 20: Troubleshooting Guide
V-DV05D Troubleshooting guide Symptom Cause Solution The car ignition is not on. If the power supply is properly No power connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Remove the disc in the player then put a Disc cannot be loaded.
Page 21: Specification
V-DV05D Specification General Power supply: 12 V DC Maximum power output: 50 W x 4 channels Compatible formats: DVD/SVCD/DVCD/VCD/DivX/DVD audio/Super Audio CD/CDDA/MP3/WMA/HDCD/ Picture-CD/Photo-CD/JPEG Supported disc types: DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW ESP function: 40 sec. for Audio CD, 120 sec. for MP3 Unit dimensions (WxDxH)
Page 22 V-DV05D ..............................23 ..........................24 ............................25 ..........................26 ............................27 ...........................28 ............................31 ............................37 ............................41 ..............................41 ....................42 ........................43...
Page 23 V-DV05D -10º...
Page 24 V-DV05D M5x5...
Page 25 V-DV05D...
Page 26 V-DV05D...
Page 27 V-DV05D EJECT NEXT PREVIOUS STOP PLAY/PAUSE POWER RESET...
Page 28 V-DV05D Remote control POWER MUTE MENU ENTER VOL - PLAY/PAUSE AUDIO F.REV/F.FWD TITLE SUBTITLE REPEAT RANDOM EJECT DISPLAY SETUP SELECT VOL + STOP SLOW PREVIOUS/NEXT ANGLE PROGRAM ZOOM...
Page 29 V-DV05D AAA/1.5V –...
Page 30 V-DV05D RESET RESET. POWER, MUTE, VOL+/VOL-, PLAY/PAUSE. EJECT, STOP, PLAY/PAUSE, STOP PLAY/PAUSE,...
Page 31 V-DV05D F.REV/F.FWD, DISPLAY, ZOOM, REPEAT, VCD (PBC OFF)/CD/MP3 /WMA REPEAT, SETUP, ANGLE, PBC, MENU, ENTER...
Page 32 V-DV05D ENTER, DVD/ CD/ MP3 /WMA PREVIOUS/NEXT, P/N, (PAL/PAL60/NTSC/AUTO). RANDOM, SLOW, PROGRAM 16). ENTER). ENTER. PROGRAM.
Page 33 V-DV05D A-B, TITLE, AUDIO, SUBTITLE, => => ENTER,...
Page 34 V-DV05D MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64...
Page 35 V-DV05D CD-R CD-RW, MP3: 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW...
Page 36 V-DV05D SETUP ENTER, NTSC: PAL: PAL 60: 4:3 PS:...
Page 37 V-DV05D 4:3 LB: 16:9: – 0000. DIVX, . DIVX...
Page 38 V-DV05D SPDIF/RAW: SPDIF/PCM:...
Page 39 V-DV05D , VSS ( PRO LOGIC Dolby, 5.1, VSS ( 5.1,...
Page 40 V-DV05D...
Page 41 V-DV05D “ ”. RESET.
Page 42 V-DV05D DVD/SVCD/DVCD/VCD/DivX/DVD audio/Super Audio CD/CDDA/MP3/WMA/HDCD/ Picture-CD/Photo-CD/JPEG DVD/DVD±R/DVD±RW/CD/CD-R/CD-RW CD, 120 178x160x26 80 ± 5 - 20 RCA- (2 )
