Summary of Contents for Citizen CSRA-09

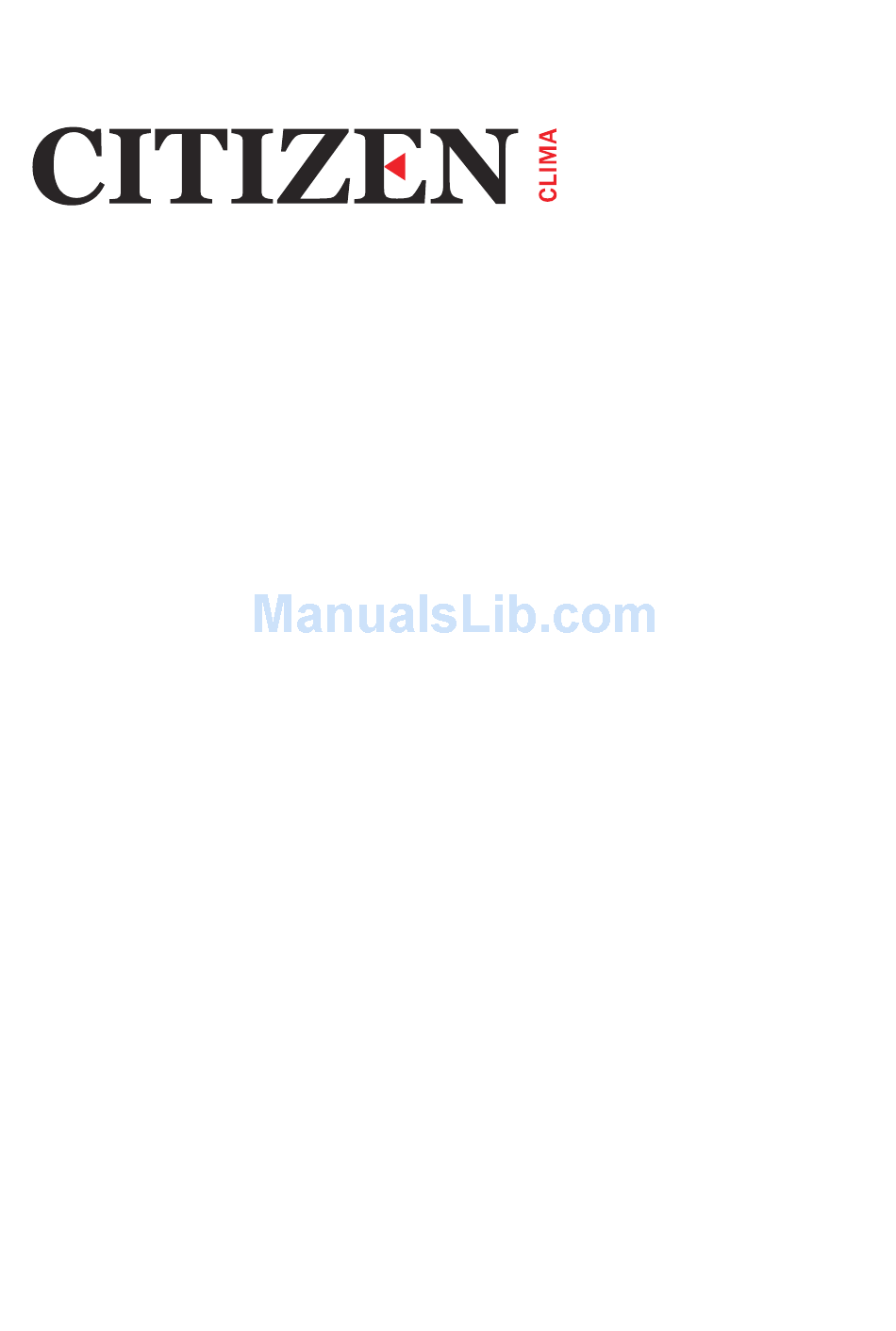

- Page 1 Applicable to CSRA-09 CSRA-12 CSRA-18 Split Type Wall-mounted Room Air Conditioner Instruction Manual Thank you for purchasing of CITIZEN air conditioner. To guarantee safety and best efficiency, please read this manual carefully and keep a suitable storage for reference.
-
Page 2: To Consumers
To Consumers 1. The air conditioner should be installed and repaired by the qualified professional technicians according to this manual. 2. The air conditioner must be earthed reliably in installation. 3. Please pull out the plug (shut the power) when it is not in use,especial in the following situations: In disused seasons In thunderstorm weather. -
Page 3: Batteries (Aaa Size 1.5V)
Packing List Order Name Remarks Quantity Indoor Unit Remove Controller Wall-mounted Plate In the indoor unit Instruction Manual packing box Certificate of Quality Guarantee Certificate Remote Controller s Brace Batteries (AAA SIZE 1.5V) Outdoor Unit In the outdoor unit Drain Hose packing box Catchment Trough... -
Page 4: Indoor Unit
SAFETY PRECAUTIONS Please read the Safety Precaution carefully before operating the unit to ensure correct usage of the unit. Please observe the following safety precautions when using your air conditioner. If you fail to observe the precautions, it could cause fire, electrical shock or personalinjury. WARNING This sign warns of risk of death or serious injury. -
Page 5: Operation Precautions
OPERATION PRECAUTIONS Do not touch or operate with wet hands, this could cause fatal accident. Avoid an extended period of direct airflow, or you well feel uncomfortable. Do not insert sticks, fingers or any other object into the unit. Do not try to repair the unit yourself. It will lead to electricity shock or fire if it is treated improperly. -
Page 6: Table Of Contents
Contents To Consumers Features Packing List Safety Precautions Part : Operation Instruction Parts Names and Functions Preparations before Operation Operation Contents Setting Operation of Timer Running Mode Air Direction Controlling Maintenance Method ë Operation Experience Guide Trouble Shooting Part : Installation Instruction Select the Location for Installation Installation of Indoor Unit Installation of Outdoor Unit... -
Page 7: Part : Operation Instruction
Part Operation Instruction 1.Parts Names and Functions 1-1 Indoor Unit Intake vent Signal receiving window Outlet vent Indicator Iamps Air filter nets(2) Emergency Switch CSRA-09 Intake vent Signal receiving window Outlet vent Indicator lamps Air filter nets(2) Emergency Switch CSRA-12... -
Page 8: Outdoor Unit
Intake vent Indicator Iamps Outlet vent Signal receiving window Air filter nets(2) Auxiliary buckle(4) CSRA-18 Emergency Switch 1-2 Outdoor Unit Intake vent Intake vent Outlet vent Outlet vent CSRA-18 CSRA-09,CSRA-12... -
Page 9: Remote Controller
1-3 Remote Controller Display Section Operation Section Infrared transmit tube Transmit signal to indoor unit Mode key Choose cooling/dehumidifying/heating Temperature setting key(16 J30 ) Wind speed key Choose Low/Medium/High/Auto Air direction adjusting key Timer key Timer on/off/cancel Liquid crystal display Time setting key (1-18hr) Switch key (on/off) -
Page 10: Preparations Before Operation
There may be difference between the temperature set by the remote controller (The air conditioner will stop working while cooling or heating reach this temperature) and measured by temperature measuring device. You can regulate the temperature you want only by the remote controller. -
Page 11: Operation Of Timer
3-2 Pre-set Temperature Operation Press “MODE” button and select “cooling” or “heating” (Heat Pump Type)mode, then press the temperature setting “ ” or “ ” button once, the pre-set temperature will be raised or lowered by 1 . 3-3 Up and Down Air Direction Controlling Press the air “DIRECTION”... -
Page 12: Air Direction Controlling
5-4Emergency Operation Remove the front girll of the indoor unit ,and you may see the emergency switch(refer to1-1) At“off”state,press the emergency switch button,the air coditioner then it operation,which will choose cooling/dehumidifying automatically according to the indoor temperature. At“on”state,press the emergency switch button,the air coditioner stops operating. Note:The function can be adopted only when the remote controller has been damaged or missed. -
Page 13: Operation Experience Guide
Clean the air filter (once per two weeks is suitable) 1. Hold the two ends of the 2. Use vaccum cleaner or 3. Hold the two ends of the grille and pull it up-forward, water to clean them.Please inlet grille,install the air fil- then draw out the air filters dry them in shade after they t e r s a c c o r d i n g t o t h e... -
Page 14: Trouble Shooting
9. Trouble Shooting Before calling a serviceman,please check the followings: Symptom Possible reason The electrical wiring is plugged into the socket incorrectly. Mal-operation of the remote controller. The air conditioner The voltage is too low. does not work The electricity was transmitted back immediately after been cut off. The voltage is uneven or owing to the thunder weather, please pull out the plug, restart the units in 3 minutes. -
Page 15: Part Installation Instruction
Part Installation Instruction Preface To guarantee the unit working normally,please read the manual carefully before installation, and try to install it strictly according to this manual. Earth the air conditioner properly. Check the connecting cables and pipes carefully,make sure they are correct and firm before connecting the power of the air conditioner. -
Page 16: Installation Of Indoor Unit
2. Installation of Indoor Unit 2-1 Fix the Wall-mounted Plate Find a rigid parts of the wall (such as pillar etc.),install the plate at the same level,the plate must be fixed horizontally,or it will result in the indoor unit dropping water and abnormal noise. Tie a thin cord in the hole Installation plate More than 10 cm... -
Page 17: Installation Of Outdoor Unit
2-4 Installation of Drain Hose The drain hose should be put below the refrigerant pipe (copper pipe) Do not bend the drain hose or raise it. Do not wrap the drain hose in tensile state. 2-5 Arrangement of Pipes Put together the refrigerent pipe,drain hose and the connecting wire of indoor and outdoor units etc.Wrap them with binding belt. -
Page 18: Pipe Joint
While installing the outdoor unit, there should be more than 50cm space kept in front of the unit, more than 10cm space kept at rear left and up sides, and more than 35cm space kept at right side. 3-1 Flaring Joint There are flaring joint equipments on the indoor unit and the outdoor unit. -
Page 19: Drain Hose
Connection of indoor unit External diameter(mm) Wring torque(kgf cm) Connect the thick and thin pipes to the indoor unit. 150~210 Apply a thin coat of refrigerating oil at the pipes joint. 380~450 When connecting, first aim at the centre, then screw 400~460 the first 3-4 turns of the connecting nut by hand. -
Page 20: Test Run
The method of installation is as the diagram indicates, connect the power wires according to the stipulated fixed colour and order. a. Distinguish the colour, order and diameter of wires clearly while installation,the power wires between the indoor unit and the outdoor unit must be corresponding with each other, never be misconnected. -
Page 21: Test Run Procedure
4-2 Test Run Procedure Before test run operation, please check all the connecting wires and pipes carefully to see if they are correctly connected and firm, the stop valve has been completely opened or not, and if the air conditioner has been connected to earth reliablly. 1. -
Page 22: Main Specifications
Main Specifications Model Data CSRA-09 CSRA-12 CSRA-18 Item Type Cooling & Heating Cooling & Heating Cooling & Heating Cooling Capacity 2500W 3500W 5200W Heating Capatity 2800W 3800W 5900W Rated Voltage 220V-240V~ 50Hz Rated Frequency Rated Cooling Power Input 770W 1090W... - Page 23 Serial No.: eb48603 Version:070808...
