Spartz MULTISCALE Operation Manual

1080p scaler box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MULTISCALE
1080p Scaler Box
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTISCALE and is the answer not in the manual?

Questions and answers

Summary of Contents for Spartz MULTISCALE

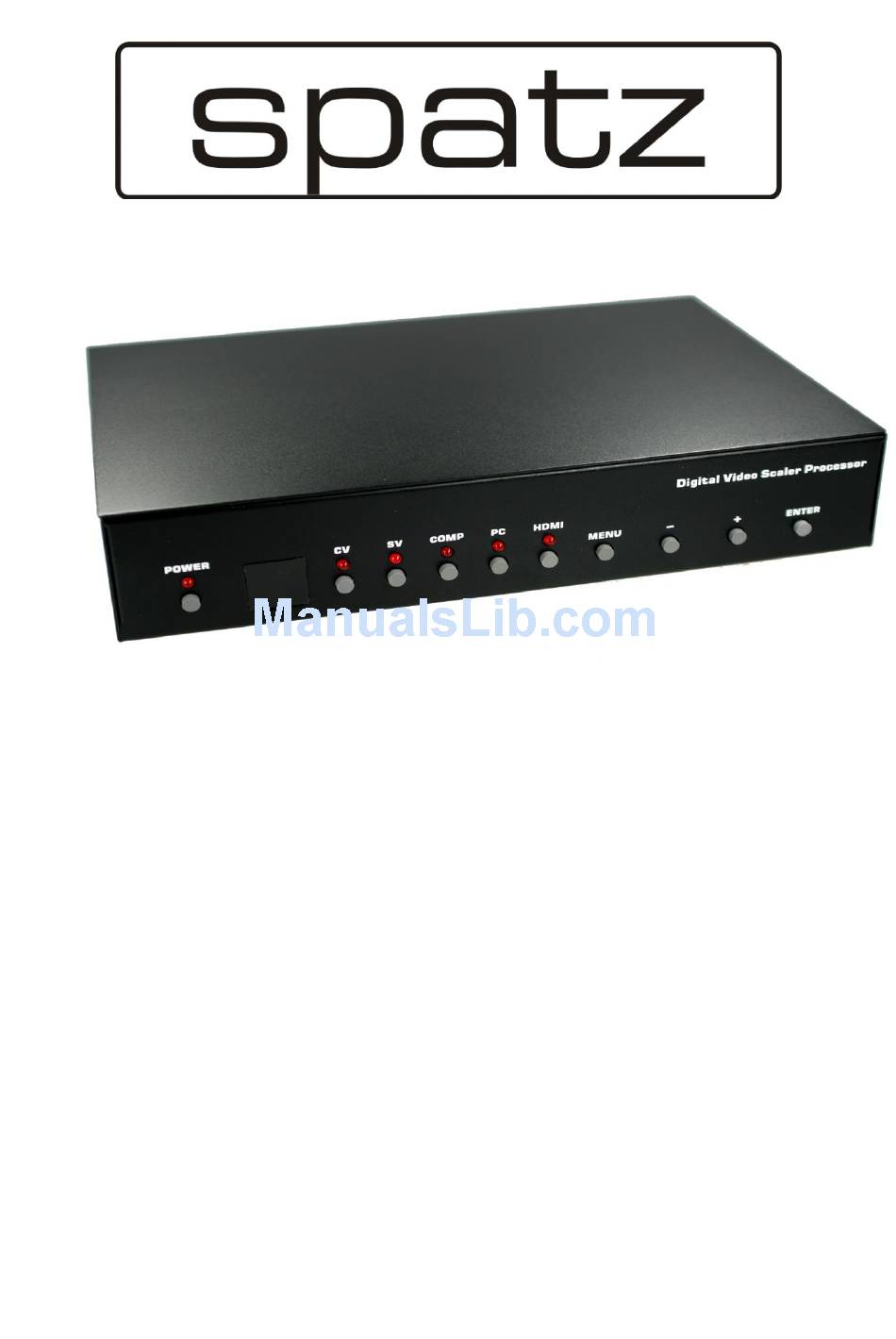

  • Page 1 MULTISCALE 1080p Scaler Box Operation Manual...

  • Page 2: Table Of Contents

    2. Features..................1 3.PackageContents..............…..1 4. Operation Controls and Functions ........2 4.1 Front Panel...............………..2 4.2 Rear Panel..............……..2 4.3 OSD Operation................4 4.4 Remote Control................5 5. MULTISCALE RS-232 Remote Control Protocol....6 6. Specifications................9 6.1 General Specification...............9 6.2 Support Resolution............…..9 7. Connection and Installation..........10...

  • Page 3: Introduction

    HDMI combining with the video, or Coaxial S/PDIF separately. SPATZ Multiscale has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.

  • Page 4: Operation Controls And Functions

    4. Operation Controls and Functions 4.1 Front Panel 1. POWER Button and LED Indicator: Press the button to turn ON/OFF the power of the unit. The LED will illuminate when the power is turned on. 2. IR remote control sensor. 3.

  • Page 5: Rear Panel

    4.2. Rear Panel 1. HDMI OUT and CO-AX OUT: Connect the HDMI OUT port to the HDMI input port of your display such as HDTV. Connect the CO-AX OUT port to the Coaxial (S/PDIF) input port of your amplifier for separate digital audio output.

  • Page 6: Osd Operation

    4.3. OSD Operation 1st Tier Option 2nd Tier Adjustment Option VIDEO - PICTURE USER / STANDARD / VIVID / MOVIE MODE - CONTRAST 0 ~ 100 of Contrast Level - BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS...

  • Page 7: Remote Control

    4.4. Remote Control 1. POWER: Press the button once to power on the Multiscale Press again to enter standby mode. 2. INPUT: Press the button repeatedly to toggle through various input sources. 3. HD Input: Press the button to directly select component input.
  • Page 8 Pin definition for serial cable Multiscale Remote Controller Definition Definition RS-232 transmission format: BaudRate: 19200 bps Data Bit: 8 bits Parity: None Stop Bit: 1 bit...

  • Page 9: Serial Commands

    Serial Commands: Command Code Response Description S POWER 0 > POWER OFF POWER OFF S POWER 1 > POWER ON POWER ON S SOURCE 0 > SOURCE CV CV INPUT S SOURCE 1 > SOURCE SV SV INPUT S SOURCE 2 >...
  • Page 10 S CONTRAST 0~100 > CONTRAST 0~100 CONTRAST 0~100 ADJUST [Defaut:50] S BRIGHTNESS 0~100 > BRIGHTNESS 0~100 BRIGHTNESS 0~100 ADJUST [Defaut:45] S HUE 0~100 > HUE 0~100 HUE 0~100 ADJUST [Defaut:50] S SATURATION 0~100 > SATURATION 0~100 SATURATION 0~100 ADJUST [Defaut:60] S SHARPNESS 0~100 >...
  • Page 11 (B) Status Commands: (Retrieve Status) Command Code Response Description R POWER > POWER ON SHOW POWER STATUS R SOURCE > SOURCE CV~HDMI SHOW SOURCE STATUS R OUTPUT > OUTPUT NATIVE~WUXGA SHOW OUTPUT STATUS R SIZE > SIZE FULL~PANSCAN SHOW SIZE STATUS R PICTUREMODE >...
  • Page 12 5.2. Supported Resolutions INPUT VGA@(60/72/75/85Hz), SVGA@(56/60/72/75/85Hz), XGA@(60/70/75/85Hz), SXGA@(60/75/85Hz), XGA@60Hz, WXGA@60Hz, WSXGA@60Hz, WUXGA@60Hz 480i, 480p, 576i, 576p, 720p@(50/60Hz), 1080i@(25/30Hz), 1080p@(50/60Hz) OUTPUT VGA@(60/72/75/85Hz), SVGA@(56/60/72/75/85Hz), XGA@(60/70/75/85Hz), SXGA@(60/75/85Hz), UXGA@60Hz, WXGA@60Hz, WSXGA@60Hz, WUXGA@60Hz 480i, 480p, 576i, 576p, 720p@(50/60Hz), 1080i@(25/30z), 1080p@(50/60Hz)
