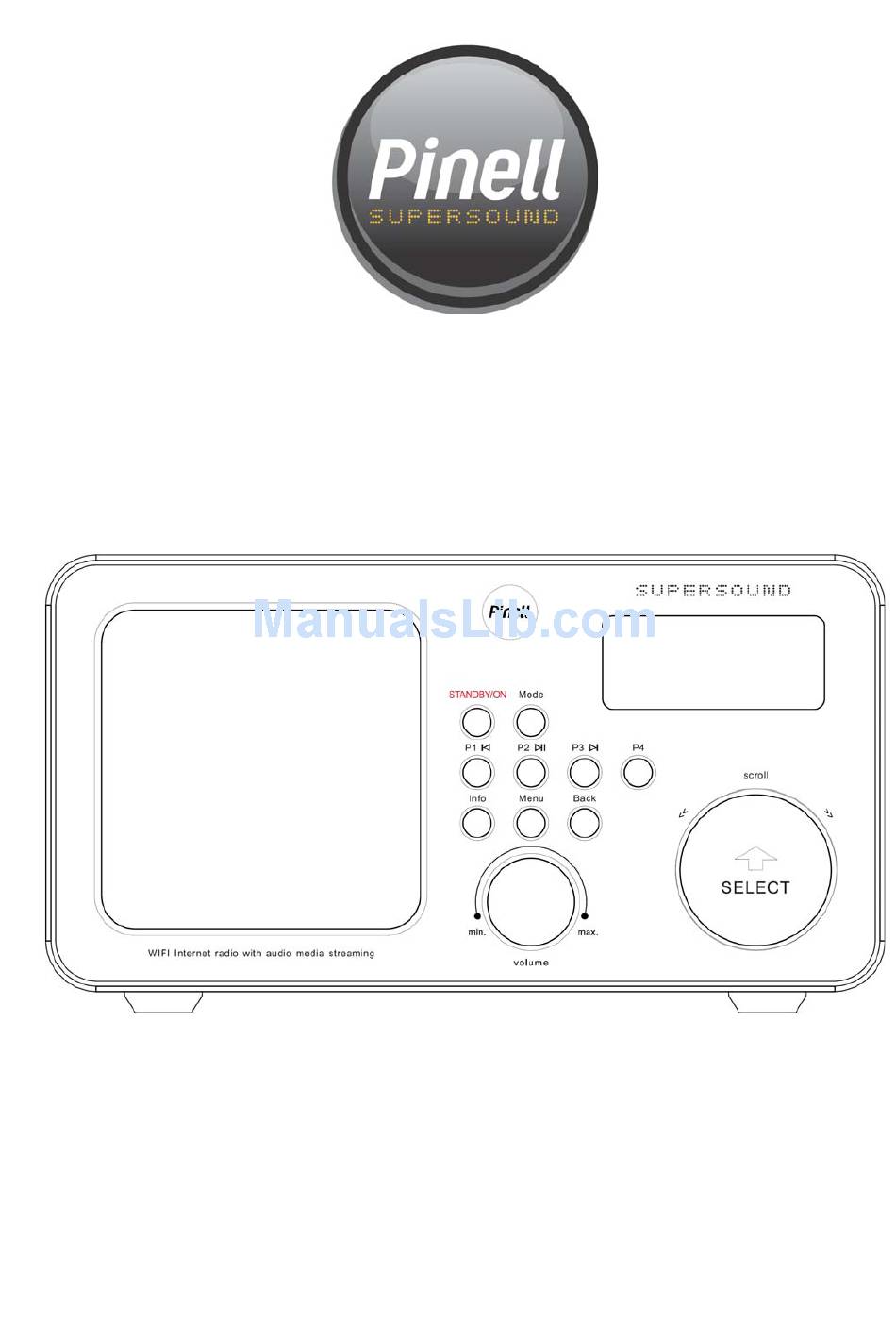

- Page 1 TT Micro IR608 V6 W I F I , L A N , D A B , F M R A D I O w i t h A U X I N Instruction Manual...
-
Page 2: Safety Warnings
Safety Warnings Please read before installation. If this Internet Radio has been moved from a cold place to a warm place, DO NOT plug it in for 2-3 hours (e.g. from a cold car boot to a warm room). There is a possibility that moisture may have condensed in the Internet Radio, this can cause damage to your Internet Radio. -
Page 3: Table Of Contents
Contents Safety Warnings Package Content Internet Radio Quick start Guide What you need before you can use your Internet Radio ............3 LAN Setting: ......................3 Wireless LAN Setting: ..................3 Controls Overview (a) ......................4 Controls Overview (b) ...................... -
Page 4: Package Content
Package Content Main unit Instruction manual... -
Page 5: Internet Radio Quick Start Guide
Internet Radio Quick start Guide What you need before you can use your Internet Radio Before you use your Internet Radio, you need the following: LAN Setting: • Make sure the internet environment is ready and the network settings is available for LAN (ADSL or Cable Modems is highly recommended). -
Page 6: Controls Overview (A)
Controls Overview (a) Internet Radio Front view Control Internet Radio mode DAB+FM mode Media Player mode STANDBY/ON Press to turn on/off Radio Mode Press to convert among Internet Radio, Music Player, DAB, FM mode and Auxiliary Input. Previous Track Press and hold to save Preset station P1, P2, P3 or P4;... -
Page 7: Controls Overview (B)
Controls Overview (b) Internet Radio Back View Socket Connection AUX IN Connects to the external audio device Headphone Connects to the headphone Connects to the LAN cable note 1: To help Loudspeaker air comes out from rear of your Radio. note 2: AC power cord input. -
Page 8: Connecting To Wired Network
Connecting to wired network Step 1 - Power up Radio First, connect to your Internet Radio adaptor and ensure the Power LED is light up. In use, Radio can be switched on or off with the STANDBY/ON button. Note: Make sure LAN cable connecting to LAN socket already. Step 2 –... -
Page 9: Step 3 - Enter Internet Radio Mode
Step 3 – Enter Internet Radio mode Repeat press the BACK button to go back to enter this mode, or follow either of below methods: a. Simply press MODE button to enter Internet Radio mode. b. Press MENU button first, and then rotate the Scroll knob to <MAIN MENU>, press to confirm. Note: a. -
Page 10: Connecting To Wireless Network
Connecting to wireless network Step 1 – Choose Wlan Setting a. Refer page 6 “choose LAN setting”, rotate the Scroll knob to <WIRELESS>, press to confirm. Rotate the Scroll knob to <DHCP ENABLE>, press this knob to confirm. Alternatively, simply take off LAN line from the LAN socket before connecting to network is also recommend. - Page 11 If a WEP/WPA key (password) is required, Radio will display as following: After a few seconds, Radio will ask you to input the WEP/WPA code and will display the password entry screen as follows: a. Rotate the Scroll knob to cycle through the alpha-numeric character list. Press to select an appointed character.
-
Page 12: Choosing A Station
Choosing a station When Radio has connected to your network, you are now ready to select a station. a. Rotate the Scroll knob to <STATIONS>; b. Press to confirm. There are five options available for select a station. Note: a. You can move back to the previous screen at any time by pressing the BACK button. b. -
Page 13: Dab Operation Mode
DAB Operation Mode a. To listen to DAB Radio stations switch Radio on and press the MODE button repeatedly until <DAB MODE> is appeared. Or enter <MAIN MENU>, and then rotate the Scroll knob to <DAB Mode>. b. For initial use, it will now scan for DAB stations in your area and store them in memory. c. -
Page 14: Fm Operation Mode
FM Operation Mode a. To listen to FM Radio stations switch Radio on and press the MODE button repeatedly until <FM MODE> is appeared. Or enter <MAIN MENU>, and then rotate the Scroll knob to <FM>. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last FM station you were listening to will be selected. -
Page 15: Aux In Operation Mode
AUX IN Operation Mode a. To listen to FM Radio stations switch Radio on and press the MODE button repeatedly until <AUXILIARY INPUT MODE> is appeared. Or enter <MAIN MENU>, and then rotate the Scroll knob to < AUXILIARY INPUT >. b. -
Page 16: Setting Clock
Setting Clock a. After enter <MAIN MENU>, rotate the Scroll knob to <SYSTEM SETUP>, press to confirm. Rotate the Scroll knob to <TIME SETUP>, press to confirm. Note: a. time setup mode, <Auto update>, <Set Time Zone> and <Set 12/24 hour> are also available. - Page 17 Radio also recommending you another method for time setup, which associate with Greenwich Mean Time (GMT). Turn you Radio to below mode: Rotate the Scroll knob to <SET TIME ZONE>, press to confirm. To obtain Your Local Timezone Please Visit website: = GMT ±...
-
Page 18: Setting Alarm
Setting Alarm Note: Setting Alarm, make sure Setting Time at first. a. Press the STANDBY/ON button to switch on your Radio, and then enter <MAIN MENU> subdirectory to set it. Press Scroll knob, and then rotate this knob to choose one alarm, press to confirm. c. - Page 19 g. Finally, Rotate the Scroll knob to <SAVE>, press to confirm. The display will show “Alarm Saved” for 3 seconds, then returns to current Radio station display. When Radio is in standby mode, the Alarm icon ( ) will be displayed on-screen. h.
-
Page 20: Sleep Function
Sleep Function a. After enter <MAIN MENU>, rotate the Scroll knob to <SLEEP>, press to confirm. b. Rotate the Scroll knob to define the Sleep period which between 0 – 90 minutes, press to confirm. Note: a. The interval time is 15 minutes per step. b. -
Page 21: Software Updates
Software Updates a. Software updates can be activated from <MAIN MENU> --> <SYSTEM SETUP>, and then press Scroll knob to confirm. b. Rotate the Scroll knob to < SOFTWARE UPDATE >, press to confirm. It’s perfect now! Note: software update can take several minutes do not switch Radio off until this procedure has been completed. Otherwise, may cause permanently damaged. -
Page 22: General Operation
General Operation Network setup Enable you to scan again for connection to another wireless network, or to manually configure the network parameters. Use this if you take the Internet Radio to another building where you want to use it. The Network setup menu also allows you to view settings and choice W-LAN region. SW Version and Radio ID After enter INFO subdirectory, your Radio will display such information as your device serial number and hardware/software version numbers. -
Page 23: Appendix
Appendix Step 1: Set Up Media Sharing in Windows Media Player 11 After you download and install Windows Media Player 11 for Windows XP and connect your Radio to the network, you need to set up media sharing so that you can share music with your Radio. The following steps describe how to set up media sharing in Windows Media Player 11. -
Page 24: Step 2: Play Music On The Internet Radio
3. Check the “share my media to” box. In the list, click your Radio *, click Allow, the selected device will now show a green tick and then click OK. If your device does not appear in the list of devices, perform the following steps; From the "Media Player"... -
Page 25: Set Up Media Sharing In Mac Os
Set Up Media Sharing in MAC OS Using the Radio with a MAC will require Windows File Sharing. MAC OS 9 and earlier versions of the OS will need extra software to use Windows File Sharing, but MAC OS X 10.2 and later versions have Windows File Sharing built into the OS. -
Page 26: Troubleshooting
Troubleshooting If you experience any trouble with your wireless Internet Radio, then you may find it useful to visit the help section on our webpage: http://www.wifiRadio-frontier.com If you have trouble connecting the Radio to your wireless network, these steps may help to resolve the problem: 1. -
Page 27: Specification
Specification ITEMS DESCRIPTION Specifications: IR， FM, DAB Power Requirements: AC Power Input: 230VAC, 50HZ for use, please refer rear panel silk-screen (FM) 87.5-108MHz Frequency Range: (DAB) 174 – 240MHz Rated Output Power: Speaker: 8 ohm Headphone Jack: 32 ohm Dimension: 250x 130 x 130mm...
