Summary of Contents for Qianjin Electronic OT86-4F

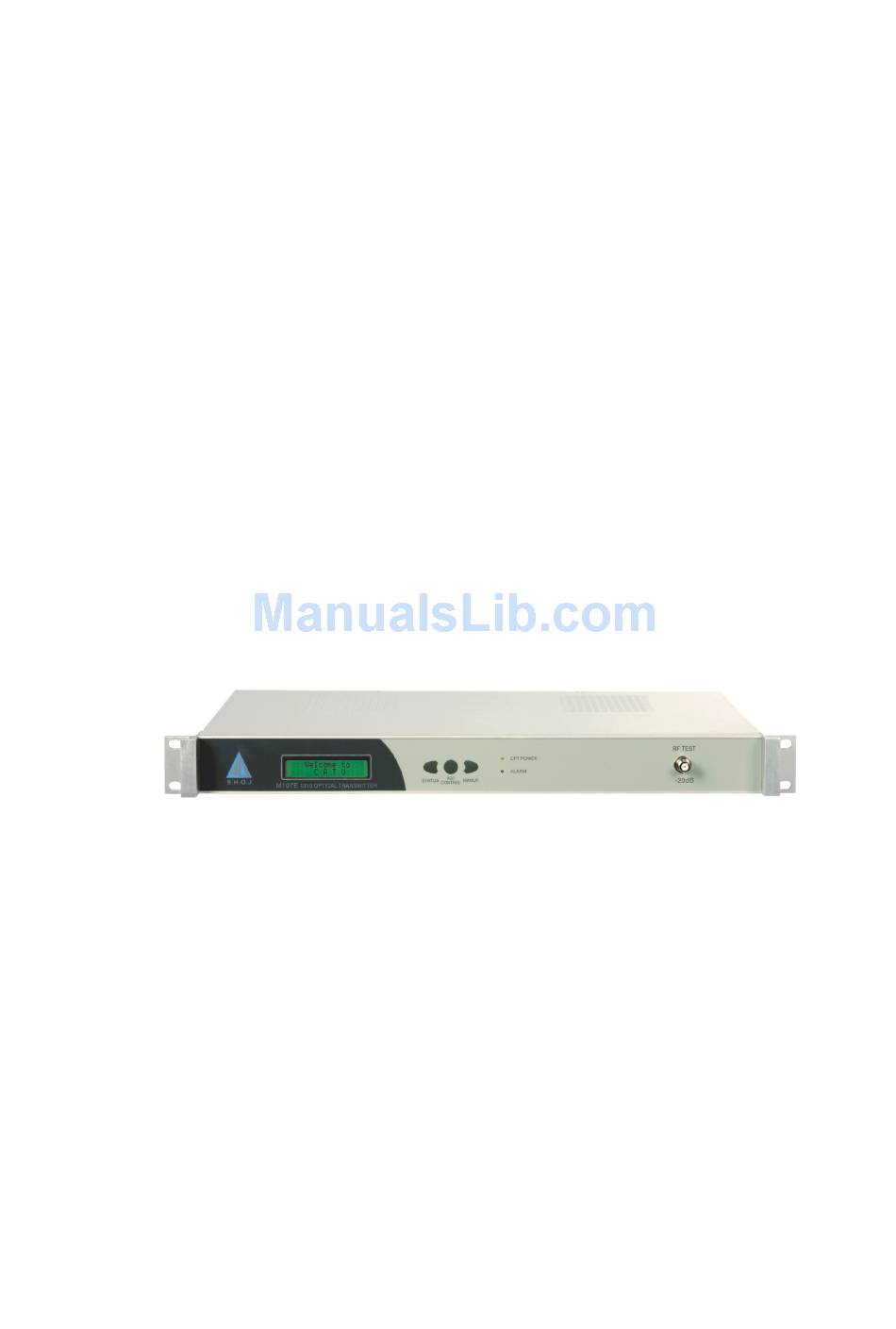

- Page 1 OT860-4F 1310nm Optical Transmitter User’s Manual...
- Page 2 OT86-4F is one intelligent standard 19" 1RU chassis and can be monitored by the network management software, in this way; the network management software can get clear status of the set.
-
Page 3: Specification
Parameter Item Item Item Item Unit Unit Unit Unit Specification Specification Specification Specification Type of laser FP (with optical isolater) Wavelength 1310±20 Modulation mode Direct Light Intensity Modulation 4 （6dBm） Output Optical Power Fiber Connector FC/APC SC/APC Frequency Range 45~860 Input RF Signal Level dBµv 15~35... -
Page 4: Front Panel Features
4. Appearance description (OT86-4F as sample) ① ② ③ ④ ⑤ ⑥ ⑦ Front Panel Features 、 、 、 、 LCD: Display operation states and its information; ① ① ① ① ② ② ② ② 、 、 、 、 Lift Key: Select operation states；... - Page 5 5. Operations: 5.1. Display Explanations of LCD a; LCD displays 16 characters a line, totally two lines. b, Parameter name is in the first line; value is in the second line. After plugging in to the suitable power socket this set will automatically delay 7 seconds before opening RF amplifier.
- Page 6 The ALARM red LED will flash if there is any fault in this machine. When the problem is being solved the transmitter will be operating constantly. 7. Complete List OT86-4F Transmitter b. Power-cord c. User’s Manual...
