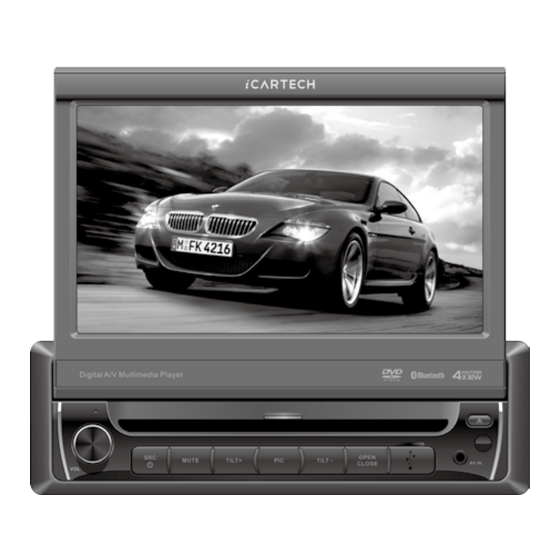

- Page 1 DVD/CD/VCD/MP3/WMA/SD/MMC/USB PLAYER BLUETOOTH/TV/GPS WITH FM/MW TUNER Operation Instructions aurora GX730E...
- Page 2 Legal Notice This guide is coyprighted © 2012 by iCar-Tech Inc. All rights reserved. Under copright laws, this guide may not be reproduced neither completely or in parts without written consent of iCar-Tech Inc. iCar-Tech, the iCar-Tech-Logo, Aurora and the Aurora-Logo are trademarks or registered trademarks of iCar-Tech Inc.
- Page 3 Warnings 1. Only connect this unit to a 12V DC power 5. Please don't change the fuse in the power supply with negative grounding. cord without professional guidance, improper fuse may cause damage to this using unit or even cause fire. 2.
- Page 4 Precautions 1. Never disassemble or adjust the unit 10.During operating the unit, “ ” will without any professional guide. For display if the current operation is not details, please consult any professional car available or illegal. shop / dealer for inquiry. 11.Operate the unit correctly according to this 2.
-
Page 5: Table Of Contents
Contents Before using Using the touch screen controls ....11 Front panel ..........1 Onscreen control buttons ......11 Remote Control ........2 Stop playback temporarily .....11 Basic operations Stop playback entirely ......11 Power on / off ......... 4 Display file list ........11 Mute ............ -
Page 6: Front Panel
Before using Front panel 1. Eject disc 2. Reset the unit 3. [VOL] Knob: Adjust volume Play / Pause(short press) 4. [SRC/ ] Key:Switch to the current source and the main menu 5. [ MUTE] Key: Mute audio outputs 6. [TILT+] Knob: Increase the display angle 7. -
Page 7: Remote Control
Before using Remote Control 1. [SRC]Key:select playing source 2. [EJECT]Key: Eject disc 3. [AUDIO] Key: Select DVD dialogue language 4. [VOL+/-] Key: Adjust volume 5. [ZOOM] Key: Image zoom in/out 6. [ /BAND] Key: Select radio band 7. [WIDE] Key: Change display mode 8. - Page 8 Before using Install Battery Notes of remote control using Use button-shaped lithium battery 1) Aim the remote control at the remote “CR2025 (3V)” only. Insert the sensor on the unit. 2) Remove the battery from the remote battery to the battery tray with proper control or insert a battery insulator if the direction according to the (+) and (-) battery has not been used for a month or...
-
Page 9: Using The Tft Monitor
Basic operations Power on / off Using the TFT Monitor Press any key on the front panel or the Open / Close monitor [POWER] key on the remote control to turn Press the [OPEN/CLOSE] key on the front on the power under standby mode. The unit panel or remote control topush the display goes back to the last status after power on. -
Page 10: Pty Function
RDS operations Radio mode PTY function Select radio as playing source PTY is the abbreviation for Program Type Open the SOURCE MENU and then touch RADIO. which is a code defining the type of program Select one radio band being broadcast (e.g. News or Rock). Six PTY options will display on the screen. -
Page 11: Insert A Disc
Radio mode Disc mode Manual save Insert a disc When one expected radio station has been Upon inserting a disc, the unit will switch to detected…… disc mode automatically. (1) Press the [MEM] icon on the user interface and the preset menu will be opened. Notes: (2) Press one preset button among P1~P6. - Page 12 Disc mode Onscreen control buttons EN - 7...
-
Page 13: Suspend Playback
Disc mode Suspend playback Repeat playback Press the [ ] key on the remote control or Press the [RPT] key on the remote control open the onscreen control buttons menu and repeatedly or open the onscreen control then touch the ] button. -
Page 14: Direct Search
Disc mode Do the above operation again to cancel this or open the onscreen control buttons menu function. and then touch the [TITLE] button to open DVD TITLE. Direct search You can select a different title for playback. When a DVD, VCD or CD disc is played back, Select subtitle language you can search for a particular chapter / track by pressing the numeric keys of the remote... -
Page 15: Playback Information
Disc mode I f y o u d o t h e o p e r a t i o n o f r a n d o m to choose a subtitle language. playback, scan playback or searching (7) Multi angle. playback when PBC is on, PBC will be off (8) Bitrate. -
Page 16: Search For A Particular File
SD/USB mode Select SD/USB as playing The operation is the same as disc mode. source Search for a particular file Method 1: The operation is the same as disc mode. GOTO search The operation is the same as disc mode. Zoom in/out The operation is the same as disc mode. - Page 17 Bluetooth mode Bluetooth is a wireless transmission way appears on the pairing list on your mobile for short distance operating at 2.4GHz. phone, you should select it. At this time, The bluetooth module can connect with the a pairing code is required. The Bluetooth mobile phones having bluetooth function.
-
Page 18: Auto Search
Bluetooth mode TV mode Voice transfer Select TV as playing source While talking, touch the 'Voice transfer' icon Open the SOURCE MENU and then select TV. on the screen to transfer audio from the unit to your mobile phone, and touch again to transfer audio from your mobile phone to the Auto search unit. - Page 19 Other modes External peripheral devices with RCA audio Press the [SETUP] key on the remote control and video outputs can be connected with the or touch the setup icon [ ] on the user unit. interface, and touch the desired function key To enter AUX IN mode, open the SOURCE of the list to the control button of the SWC.
-
Page 20: Setup Procedures
Setup Setup procedures ● Subtitle Select one subtitle language of DVD disc. (1) Enter setup mode Note: Press the [SETUP] key on the remote If the DVD disc does not contain the control or touch the setup icon [ ] on selected language, the subtitle will be the user interface. - Page 21 Setup Rating ● Load Factory To restore the default settings relating with Some DVD discs have built-in parental lock DVD playback (e.g.: DVD Audio, DVD which prevents children to watch some Subtitle), press the [RESET] option only. scenes as force or eroticism especially. Hardware ●...
- Page 22 Audio control allows you to easily adjust the audio system to get the best possible sound effect. (1) Enter the EQ setup mode Press the [SEL] key on the remote control or touch the EQ icon in the user interface and the following interface will display on the screen.
- Page 23 Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Unit can not power on Car battery fuse blown. Install new fuse with correct rating.
-
Page 24: Disc Playback
Troubleshooting (Continued) Problem Cause Corrective action Disc playback Cannot insert disc A disc inside the unit already. Eject current disc and insert new one. Disc is warped or scratched. Use disc in good condition. Disc is dirty or wet. Clean disc with soft cloth. Incompatible disc is used. -
Page 25: Notes Of Connection
Device connections Notes of connection Control Cables ● This unit is designed to be used in a Auto Brightness Control vehicle with a 12-volt battery and negative To avoid the display being too bright at night grounding. Before installing this unit to a time, if the headlight cable is connected to recreational vehicle, a bus, or a truck, make ILLUMI, turning on the headlight will dim the... - Page 26 Device connections Parking Brake Cable Connections Reverse Driving Cable Connections EN - 21...
-
Page 27: Unit Installation
Installation and uninstall Notes of installation (1) Before installation, please make sure proper connections are conducted and the unit operates normally. Improper connection may result in damage to the unit. (2) U s e o n l y a c c e s s o r i e s d e s i g n e d a n d manufactured for this unit and other unauthorized accessories may result in damage to the unit. -
Page 28: Trim Ring Installation
Installation and uninstall Trim Ring installation Attach the trim ring around the front panel with two indentions on one side facing upwards. Uninstall Disassemble trim ring (1) Push the trim ring upward and pull out the upper part. (2) Push the trim ring downward and pull out the lower part. -
Page 29: Dvd Player
Specifications General Audio Reference Supply Voltage 12V DC Audio Output Impedance 200Ω Operating Voltage Range 10.5~15.8V(DC) Audio Output Level 2Vrms(Max) Max Operating Current Audio Input Level 0.4Vrms Grounding System Car Battery Negative (Under normal audio input level and Pole maximum volume) Installation Dimension 178x50x(165+25)mm (WxHxD)output... -
Page 30: Region Code
Appendix Region Code According to DVD sale region, the whole world is divided into six regions. A DVD disc can be played back only when its region code is compatible with that of the player in use. Region 1: USA, Canada, East Pacific Ocean Islands; Region 2: Japan, West Europe, North Europe, Egypt, South Africa, Middle East;... - Page 31 CLASS 1 LASER PRODUCT P.N.: 127075004350...
