Summary of Contents for NPower 457801

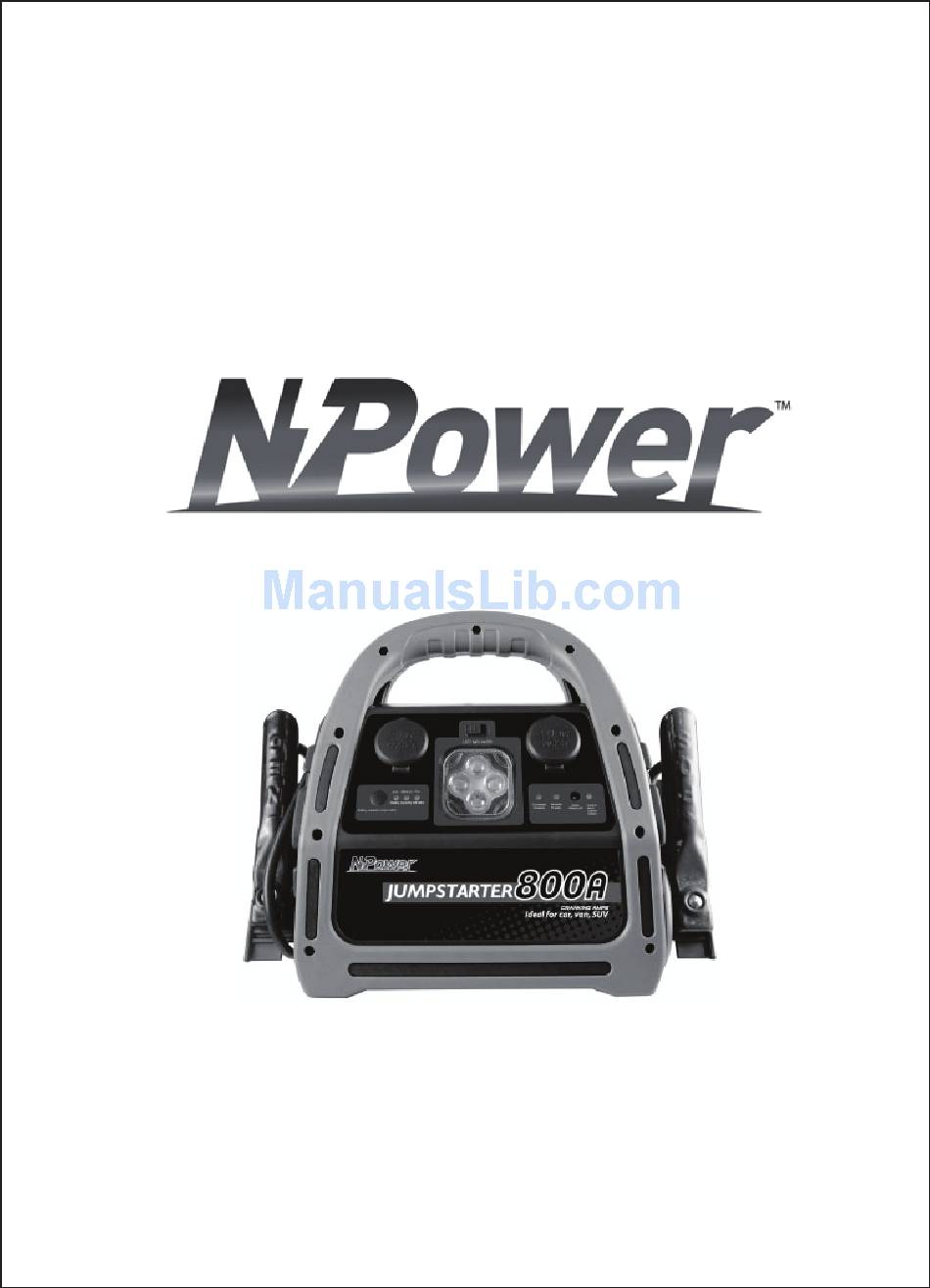

- Page 1 22AH 800A Jumpstarter OWNER’S MANUAL Model number-457801 IMPORTANT: PLEASE BE SURE TO READ AND SAVE THE ENTIRE MANUAL BEFORE USING YOUR JUMPSTARTER. ANY MISOPERATION OR MISUSING MAY DAMAGE THE EQUIPMENT OR CREATE HAZARDOUS CONDITIONS FOR THE USER. PLEASE KEEP THIS MANUAL FOR FUTURE...
- Page 2 Conventions Used The following conventions are used in this manual. WARNING Warnings identify conditions that could result in personal injury or loss of life. CAUTION Cautions identify conditions or practices that could result in damage to the unit or to other equipment. NOTE: These notes describe an important action item or an item that you must pay attention to.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction....................2. Scope of delivery..................3.ImportantSafetyInstructions..............4. Features....................5. Operations....................6. Recharging....................7. 12V DC outlet..................8. Troubleshooting..................9. Specifications..................10. Warranty.................... -
Page 4: Introduction
Read the instruction carefully before use the unit. 3. IMPORTANT SAFETY INSTRUCTIONS TThe NPOWER Jumpstarter generates the high current up to 800A. Operating the Jumpstarter incorrectly or misusing it may damage the equipment or create hazardous conditions for the user. - Page 5 WARNING: The NPOWER Jumpstarter contains components that tend to produce arcs or sparks. To prevent fire or explosion, do not operate the Jumpstarter in the compartments containing batteries or flammable materials, or in locations that require ignition-protected equipment.
-
Page 6: Features
WARNING: Put the clamps back on the holder after use to avoid sparking. 4. FEATURES Front view 1. Battery level button— When pressed, you can see the battery level according to the battery level indicators. 2. Battery power level indicators The value of the battery Display mode U<10.5±0.4V... - Page 7 6. Charging jack—you can charge the battery in the unit by inserting the attached AC charging adapter into this it. 7. Bi-colored charging/charged indicator—.When the battery is being charged, this LED indicator lights red, when the battery is full charged, this LED indicator lights green.
- Page 8 12. Jumpstart power switch—It is a manual rotary switch. When you jump start a vehicle, you should turn off the switch and the vehicle engine connect the unit to the vehicle, then you can turn on the switch, you must pay attention to the operation process.
-
Page 9: Operations
5. OPERATIONS The unit should be operated only in locations that meet the following requirements: Don’t allow water or other liquids to drop or splash on the unit. Ambient air temperature should be between -10℃ and Cool 40℃ (14℉and 104℉) – the cooler the better within this range. -
Page 10: Recharging
The procedures to jump start a vehicle: (1). Turn off the vehicle and all accessories. (2). Place the NPOWER Jumpstarter on a flat and stable surface near the battery which need to be started. Ensure that the Jumpstart power switch is “OFF”. - Page 11 Recharge the NPOWER Jumpstarter after each use. When not used the Jumpstarter, it should be recharged every 3 months! WARNING: Make sure that no 12V DC appliance connects to the NPOWER Jumpstarter during charging! Must not be used when the NPOWER Jumpstarter is charged!
- Page 12 WARNING: Fire Hazard The connection of the cables to the power source must be positive to positive (red clamp to battery “+”) and negative to negative (black clamp to battery “-“). A reverse polarity connection may cause damage to the unit and/or create a sparking/explosion hazard.
-
Page 13: Dc Outlet
To recharge with the DC-to-DC charging cord: 1.Ensure that no DC or USB equipment is connected to the jumpstarter and that all switches and buttons on the jumpstarter are set to the OFF position. 2.Plug one end of the DC-to-DC charging cord into the 12 V outlet located on the front of the jumpstarter. -
Page 14: Specifications
Problem Cause Solution Not charged after previous The battery could possibly be damaged due to not been recharged after previous uses. Battery has discharged to Recharge the jumpstarter The plug-in appliance does Fuse blown Replace fuse The appliance power is over Use an appliance the not work standard. -
Page 15: Warranty
NPower will repair or replace the defective product free of charge. Proof of purchase may be required. Warranty term is not extended if NPower repairs or replaces a product.
