Summary of Contents for Invion Rush MP3 Player with USB Stick
-

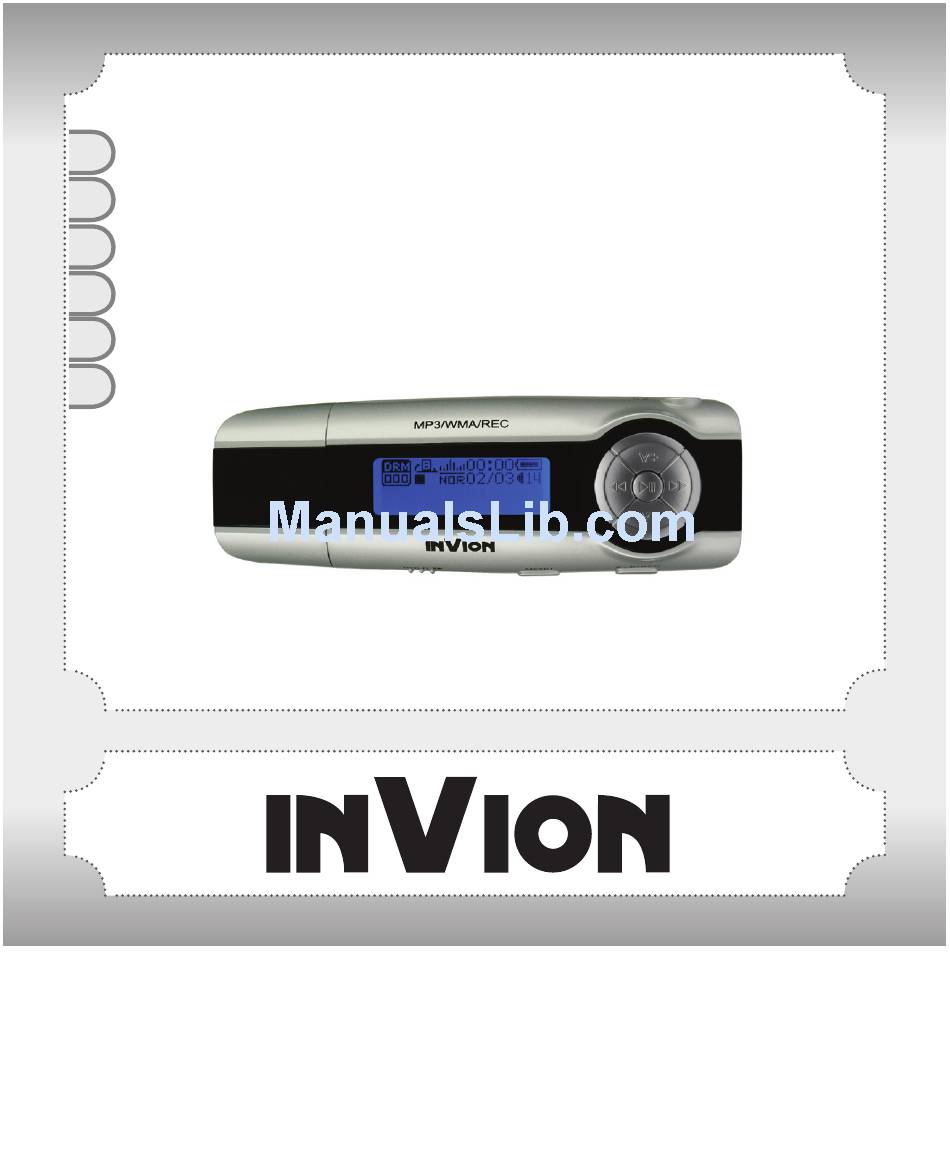

Page 1: Instruction Manual
INSTRUCTION MANUAL Rush MP3 Player With USB Stick... - Page 2 Congratulations on purchasing your new Invion product. We are convinced you will be satisfied with it. To always guarantee optimal function and performance of your product, we would ask the following: ● Before using the appliance for the first time, carefully read the operating instructions and adhere to the safety precautions! ●...
-
Page 3: Table Of Contents
Content Precautions System requirement 1. Installation instructions 1.1 Installing the driver 1.2 Installing the battery 2. Connect/Download/ Remove 2.1 Connecting a PC 2.2 Download MP3 songs 2.3 Removing USB device 3. Basic operation 3.1 Buttons and functions 3.2 Power On/Off 3.3 Main menu setup 4. - Page 4 4.5.3 Setting Contrast 4.5.4 Set Backlight 4.5.5 Set Stop off 4.5.6 Set Sleep off 4.5.7 Record set 4.5.8 Set Language 4.5.9 Reset 4.5.10 Exit 4.6 Delete function 4.6.1 Delete single music 4.6.2 Delete All music 4.6.3 Delete single voice 4.6.4 Delete All voice file 4.7 About function 4.8 Folder function 4.9 Exit...
-
Page 5: Precautions
Precautions 1) To avoid a traffic accident, never use the player while driving or operating other vehicles. This may also be written in the law in some districts. To avoid any danger, please also do not listen at extremely high volumes while walking, especially when crossing the street. -
Page 6: System Requirement
System requirements System requirements of MP3 player: Microsoft Windows 98SE/2000/Me/XP Pentium 200MHZ or above. USB port 120MB hard disk space Mouse installed CD-ROM drive... -
Page 7: Installation Instructions
1. Installation instructions 1.1 Installing the driver for Windows 98. (no driver installation required for Windows ME or above) a. Connect the MP3 Player to the USB port of the PC and a “Find new hardware” window appears on the screen. Click “Search latest driver for this device” and insert the driver CD into the CD-ROM, and then click “Next”. -
Page 8: Removing Usb Device
2.3 Removing the USB device a. Double click the Safely Remove Hardware icon in taskbar: b. From Safely Remove Hardware screen, highlight “USB Mass Storage Device” item. c. Click “Stop” button. “Stop to Hardware Device” window appears on the screen as shown in the picture below. - Page 9 d. Click “OK”. After the “Safe to Remove Hardware” window appears, the player can be disconnected from PC safely. Notice: Never unplug the USB cable when transmitting data with PC to avoid damaging the Player; after data transmitting, please do not disconnect the player from PC until “Device now be safely removed”...
-
Page 10: Basic Operation
3. Basic operation 3.1 Buttons and functions 1) Hold 2) Menu 3) | Previous 4) REC/A-B 5) VOL- 6) Next 7) Earphone jack 8) VOL+ 9) ► Play/Pause/Stop 10) Microphone 3.2 Power On/Off From power Off mode, press the ► button to power the player On and enter MP3 standby mode. -
Page 11: How To Use The Mp3 Player
menu function setting mode. Push the ׀ ׀button to select: Music , Voice , FM Radio , Record Folder , Settings , Delete , About , and Exit ; press the ► button to enter the desired setting. 4. how to use the MP3 player 4.1 Music mode a) From MP3 standby mode, you can press the►... -
Page 12: Voice Mode
e) From MP3 standby, play and pause mode, press and hold the ► button 3 seconds, the player will save the data and enter the power off mode. f) You can press the V + or V-button to adjust volume. 4.2 Voice mode a) From MP3 mode or voice standby mode, you can press the MENU button to enter the main menu. -
Page 13: Fm Radio (Depending On Model)
previous or next track. d) You can hold and press ׀ ׀button to fast backward or forward in this track. e) During voice standby mode, press the ► button 3 seconds, the player will enter the power off mode. f) You can press the V + or V-button to adjust volume. -
Page 14: Recording Fm Radio
d) From FM playing mode, you can press the VOL+ or VOL- button to adjust the volume. e) From FM playing mode, press and hold the ► button for 3 seconds, the player will enter the power Off mode. 4.3.2 FM Recording During FM playing mode, press and hold the A-B/REC button for 2 seconds to enter the FM record mode and begin recording. - Page 15 a) Radio: You can return to the FM playing mode from any FM mode by pressing the MENU button to select the radio icon. The FM radio will return to the FM playing mode. b) Scan: You can enter the scan mode in FM playing mode by pressing the MENU button to select the scan icon.
-
Page 16: Record Function
e) Exit: Press the ► button to return the FM playing . 4.4 Record function 4.4.1 Record from the main menu From MP3 mode or voice standby mode, pres the MENU button to enter the main menu, and press ׀ ... -
Page 17: Setting
4.5 Settings From MP3 mode or voice standby mode, you can press the MENU button to enter the main menu, and press the ׀ ׀button to select Setting and press the► button to enter. The function setting includes: EQ , play mode , contrast backlight... -
Page 18: Setting Contrast
Intro Press the button to select INTRO and press the ► button to start. In the Intro mode, the player will play the first 10 seconds of each track and then skip to the next one. 4.5.3 Set Contrast Under the setting mode. Press the ׀ ... -
Page 19: Set Sleep Off
4.5.6 Set sleep off Under the setting mode, press the button to select the Sleep off options. Sleep off settings include: Disable, 10MIN, 30MIN,60MIN, 90MIN. Press the ► button to save. 4.5.7 Record Set Under the setting mode, press the ׀ ... -
Page 20: Reset
4.5.9 Reset function Under the setting mode, press the ׀ ׀button to select the Reset function. Press the► button to reset. All the settings will return to the default settings. 4.5.10 Exit Return to the previous mode. You can press the MENU button to exit the setting mode quickly. -
Page 21: Delete Single Music
4.6.1 Delete single Music Under the delete mode, press the ׀ ׀button to select Music and press the ► button to enter. Repress the ׀ ׀button to select Y or N. If you select the N option, repress the ► button to skip to the next track. Press the MENU button to exit. -
Page 22: Delete Single Voice
If you select Y option, repress ► button to confirm deleting all the files. Press the MENU button to exit. It will take several seconds to finish deletion. Then there is a “No file” icon appears on the screen after deleting. 4.6.3 Delete single voice Under the Delete mode, press the ׀... -
Page 23: Delete All Voice File
4.6.4 Delete all voice files Under the Delete mode, press the ׀ ׀button to select All Voice, press the ► button to enter. Repress the ׀ ׀button to select Y or N. If you select N option, repress the ► button to exit. If you select Y option, repress the ►... -
Page 24: Folder Function
4.8 Folder function From MP3 or voice standby mode, you can press the MENU button to enter the main menu. Press the ׀ ׀button to select folder function, and then press the ► button to enter. MP3 music and folders under the root directory appear on the screen. -
Page 25: Exit
Note: You can’t view recorded folders and files under FOLDER mode. FOLDER function only serves for viewing music (.mp3 or .wma) files. Press the MENU button to return to the previous folder level or, if you are at the root level, return to the main menu. -
Page 26: Lock Function
6. Lock function From MP3 and voice standby/ play/ pause/ record mode, you can press the HOLD switch towards the arrow to lock all the other buttons with a Lock icon on the LCD accordingly. If you want to use other buttons, please press the HOLD switch to the opposite direction of arrow. -
Page 27: Faq
Symptom Causes Solution No display Without installing Verify the battery is installed, after pressing battery or battery low. change battery. the ► button. Without sound 1.Volume is too low 1.Adjust volume. when playing or there isn’t music in 2.Change battery. music. - Page 28 Can’t open the Caused by some Press and hold the PLAY disk or prompt improper operation. button, and then connect I/O error after USB cable and click relative connecting PC. upgrading problem, release after the upgrading box appears after scanning, press START to format and upgrade will solve the problem.
-
Page 29: Technical Specifications
Technical specifications Bit rate: 32~320Kbps (Mp3) 32~192Kbps (WMA) Adjustable LCD contrast: 0-10 SNR: >90db Adjustable backlight time: Disable, 5s, 10s,30s, 50s, Always on, Dynamic range: >80(1KHZ) Condition of storage: Humidity<90%, normal temperature Distortion: <0.05% ID3 information display, blue backlight. USB port: USB2.0 full speed Memory: 128MB/256MB /512MB/1GB... -
Page 30: Drm Function (Depending On Model)
DRM-9 function (Depending on Model) Warning: Download operation of WMA music with DRM protection On Window 98SE/ Window ME / Windows 2000/ Windows XP, WMA music with DRM should be transferred by Windows Media Player 9.0 and 10.0 (10.0 version for Windows XP only) to the player. - Page 31 B) Windows Media Player 10.0 (Windows XP only) 1) Connect the player to the PC. 2) Choose the desired WMA music with DRM. 3) Right click the file and choose “Add to Sync list”. 4) In the open window, choose the “Sync ” option. 5) In the “Sync”...
- Page 32 With reference to environmental protection Packing materials are raw materials and can be used again. Keep packing materials separate. For more information about recycling contact your local administration. Old devices do not belong in the domestic refuse! Dispose of old devices responsibly, and contribute to environmental protection.
- Page 33 Claims & Warranties In case of possible product defects, please contact the dealer from whom you purchased the device. For this reason we recommend you save your purchase receipt. Service: For technical questions, information about our products, and for spare part orders, our Service team is available as follows: Service times: Monday to Friday, from 9:00 a.m.
