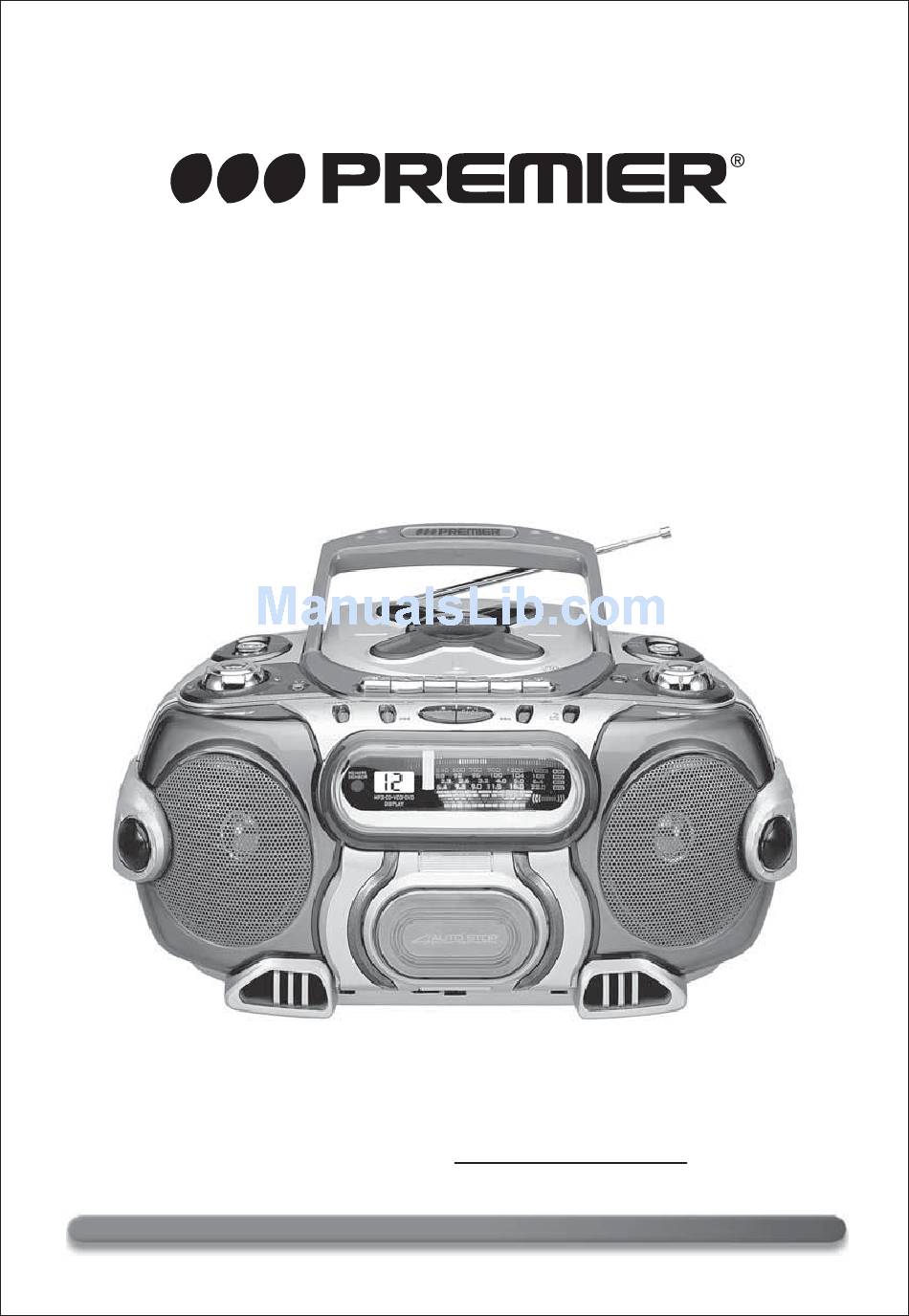

INSTRUCTION MANUAL
RADIO CASSETTE RECORDER
WITH DVCD/SVCD/VCD/CD/MP3 PLAYER
SX - 3228V
DEAR CUSTOMER
Congratulations for your purchase!
Please read this manual carefully and keep it for future reference.
If you need additional support please write to info@premiermundo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX - 3228V and is the answer not in the manual?

Questions and answers

Related Manuals for Premier SX - 3228V

Summary of Contents for Premier SX - 3228V

  • Page 1 INSTRUCTION MANUAL RADIO CASSETTE RECORDER WITH DVCD/SVCD/VCD/CD/MP3 PLAYER SX - 3228V DEAR CUSTOMER Congratulations for your purchase! Please read this manual carefully and keep it for future reference. If you need additional support please write to info@premiermundo.com...
  • Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this device. PREMIER CUSTOMER SERVICE Venezuela: 0800 – ELECTRIC (353-2874) Colombia:...

  • Page 3: Troubleshooting

    WWW.PREMIERMUNDO.COM TROUBLESHOOTING This list is made to help you solve common problems that may occur in the use of the unit. Check these points before asking for help to authorized technical service personnel. WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the guarantee.

  • Page 4: Safety Instructions

    WWW.PREMIERMUNDO.COM SAFETY INSTRUCTIONS READ INSTRUCTIONS - All the safety and operating instructions should be read before the product is operated. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference. HEED WARNINGS - All warnings on the product and in the operating instructions should be adhered FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
  • Page 5 WWW.PREMIERMUNDO.COM FIGURE 1 EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE S2898A NEC – NATIONAL ELECTRICAL CODE 15.LIGHTENING - For added protection for this product during a lightening storm, or when it is left unat tended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.

  • Page 6: Precautions For Unit

    WWW.PREMIERMUNDO.COM PRECAUTIONS FOR UNIT OPERATING THE PLAYER ON AC POWER Insert one end of the supplied power cord into the AC IN jack located at the rear of the unit, and the • other end into the wall outlet. PLACEMENT •...
  • Page 7 WWW.PREMIERMUNDO.COM • This unit is designed to play only compact discs bearing the identification logo as shown here. Other compact discs may not confirm to the CD standard and may not play properly. • Compact discs should be stored in their cases after each use to avoid damage. •...

  • Page 8: Location Of Controls

    WWW.PREMIERMUNDO.COM LOCATION OF CONTROLS ROD ANTENNA BUILT IN RECORDING MIC CD DISPLAY TUNING CONTROL REMOTE SENSOR CD DOOR OPEN / CLOSE SPEAKER GRILL BAND SELECTION SWITCH CASSETTE DOOR CASSETTE FAST FORWARD BUTTON TUNING SCALE AND POINTER CASSETTE STOP & EJECT BUTTON HANDLE CASSETTE PAUSE BUTTON EXTERNAL MICROPHONE INPUT JACK...

  • Page 9: Remote Controls

    WWW.PREMIERMUNDO.COM REMOTE CONTROLS LIGHT TRANSMITTER TIME BUTTON PBC BUTTON PROGRAM BUTTON MUTE BUTTON NUMBER BUTTON REPEAT BUTTON RETURN BUTTON VIEW BUTTON INTRO BUTTON OSD (On Screen Display) ZOOM BUTTON RANDOM BUTTON REVERSE SCAN BUTTON STOP BUTTON SURROUND SOUND BUTTON SKIP BACKWARD BUTTON SKIP FORWARD BUTTON VOLUME DOWN BUTTON VOLUME UP BUTTON...

  • Page 10: Connecting The Power

    WWW.PREMIERMUNDO.COM CONNECTING THE POWER AC POWER OPERATION Before connecting the unit to an AC Outlet, check that the operating VOLTAGE of the unit is identical with the VOLTAGE of your Local Power Supply. Connect the supplied AC Power Cord to the AC Socket at the back of unit. When the AC Power Cord is plugged into the Batteries are automatically disconnected.

  • Page 11: Cassette Operation

    WWW.PREMIERMUNDO.COM CASSETTE OPERATION PLAYBACK Select the FUNCTION switch to the "TAPE" position. Insert the cassette into the Cassette Compartment. Press the PLAY button to play a tape loaded. Adjust the VOLUME, if necessary. Press the STOP/EJECT button to stop the tape play. *PAUSE button is used for temporarily stopping the tape during recording or playback.
  • Page 12 WWW.PREMIERMUNDO.COM RECORDING FROM DISCS Select the FUNCTION switch to "CD" position. Press the OPEN button to open the CD door. Load a CD with label side upward the CD compartment and close the CD door and the player plays all the tracks once (continuous Play).
  • Page 13 WWW.PREMIERMUNDO.COM REPEAT DISC PLAY You can set your CD player to repeat play a single track, the whole disc or your programmed track selection. TO REPEAT A PROGRAMMED SELECTION Press Play/Pause Button to play your first selected track. Press the Repeat Button once to repeat a particular track once and the Repeat indicator flashes. The programmed track will play continuously until you press the Stop Button, or press the Repeat Button once more.
  • Page 14 WWW.PREMIERMUNDO.COM VCD PLAYING VCD Normal play is suitable for any VCD disc. To play the 2.0 VCD disc at normal play mode, press the PBC button (PBC) on the remote control to select the "PBC OFF" position. If the VCD disc is 1.1 version, the 2.0 play back control function will set to " PBC OFF" position automatically.
  • Page 15 WWW.PREMIERMUNDO.COM Note: Play will continue playing final track when the selected track have been played. In menu display mode, press the number button (0/10, 1-9, 10+) on the remote control to select the track number and start playing. USING THE ON-SCREEN DISPLAY Operating status of the player and the information about the disk can be displayed using the on-screen display on the TV screen.
  • Page 16 WWW.PREMIERMUNDO.COM PROGRAM OPERATION You may plan the playing order of items on the disc and draw up your own playing program. The maximum items in the program may be as many as 20 tracks. Press the program button (PROG) on the remote control in stop mode. Press the number button (0/10, 1-9, +10) on the remote control to select the desired track number.
  • Page 17 WWW.PREMIERMUNDO.COM SLOW MOTION While playing, press SLOW button on the remote control, enter slow down and mute. Slow speed is devided by 4 grades as "1/2, 1/4, 1/8, 1/16" and "PLAY" press once, the slow repeat the speed change a grade, Press PLAY/ PAUSE button on the unit or the remote control, return to normal speed playing.
  • Page 18 WWW.PREMIERMUNDO.COM PREPARATION Insert a KARAOKE video CD and turn the FUNCTION switch to "VCD CD MP3" position. Connect the microphone (not included) plug to KARAOKE MIC. jack. Press the PLAY/ PAUSE button on the unit or the remote control to start playing. Press the vocal button (R/L) on the remote control to select "STEREO", "MONO R"...

  • Page 19: Specifications

    WWW.PREMIERMUNDO.COM SPECIFICATIONS GENERAL Power Requirement AC 110/220V ~ 60/50Hz Use 8 pcs “D” size battery Remote Control DC 3V UM-4 x 2pcs Weight Approx. 2.9KG Dimensions Approx. 350(L) x 260(W) x 160(H) mm Operation Temperature C - +35 RECEIVER SECTION Receiving Bands AM / FM / SW1 / SW2 Tuning Range...
