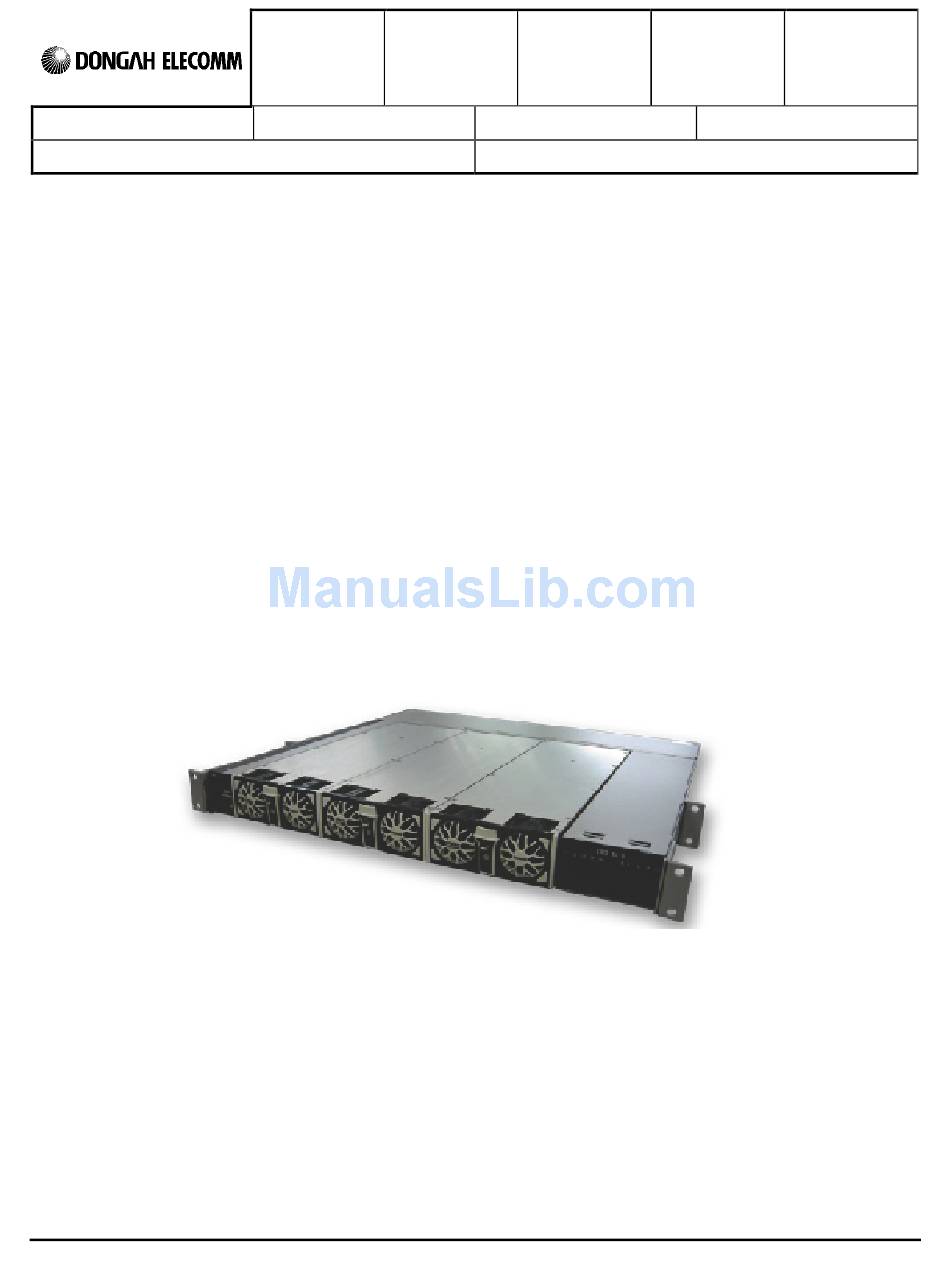

DONGAH ELECOMM DIRS-4110 Operation Manual

Power supply shelf
Hide thumbs
Table of Contents

Advertisement

Quick Links

Written Date
Document No.
Change Code
File/Reference
Page
2010.05.30
0
Operation
(1/23)
manual.DOC
Review
Oh Gyeong-Seung
Written by
Approved by
Document administrator
Kim Sang-Ho
Kim Hong-Joong
Kim Sang-Ho
Title
DIRS-4110 Operation Manual
Document Type
DIRS-4110
Power Supply Shelf
Operation Manual
DONGAH ELECOMM R&D CENTER
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRS-4110 and is the answer not in the manual?

Questions and answers

Related Manuals for DONGAH ELECOMM DIRS-4110

Summary of Contents for DONGAH ELECOMM DIRS-4110

  • Page 1 File/Reference Page 2010.05.30 Operation (1/23) manual.DOC Review Oh Gyeong-Seung Written by Approved by Document administrator Kim Sang-Ho Kim Hong-Joong Kim Sang-Ho Title DIRS-4110 Operation Manual Document Type DIRS-4110 Power Supply Shelf Operation Manual DONGAH ELECOMM R&D CENTER All rights reserved.

  • Page 2: Table Of Contents

    2.1 Packing Condition 2.2 Transportation 2.3 Unpacking / Disassembly 2.4 Wiring and Cable Connections 3. Rectifier System: Shelf Components and Functions 3.1 Shelf (DIRS-4110) 3.2 Control Module (DIRC-4) 3.3 Rectifier Module (DRM-440H44R0) 4. System Management 4.1 Normal Operating Condition 5. Rectifier System 5.1 Rectifier System Operating Principles...

  • Page 3: Specifications

    1.4.4 High Frequency Electromagnetic Interference (EMI): EN55022 Level B 1.5 Protection Functions 1.5.1 Output Over-Voltage Protection Function: Blocks output within range of -59.0Vdc ~ -60.0Vdc 1.5.2 Output Over-Current Protection Function: 105% ~ 120% of rated current DONGAH ELECOMM R&D CENTER All rights are reserved.

  • Page 4: Installation

    IEC-C14 panel-mount male plugs to accept C13 female connectors; cable wire should be 8-10 AWG. DC output connector uses a wire with maximum thickness of 12AWG, and can adjust thickness to less than 12AWG according to output capacity. Connect wires using standard slotted screwdriver. DONGAH ELECOMM R&D CENTER All rights are reserved.

  • Page 5: Rectifier System: Shelf Components And Functions

    Panel. Picture 3 diagrams a 19" Shelf with the DIRC-4 Control Module, (3) DIRS-440 Rectifier Modules, and the Distribution Panel with 10 GMT Fuse locations. CONTROL MODULE RECTIFIER MODULES DISTRIBUTION PANEL Picture 3. DIRS-4110 Shelf Diagram (Front) DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 6 Operation Manual.DOC 3.1 SHELF (DIRS-4110) The DIRS-4110 Shelf includes the Control Module, (3) Rectifier Modules, and the Output Distribution Panel. The Distribution Panel, as shown in Picture 4, fits (10) GMT Fuses to protect individual outputs connected via the rear-panel connector.

  • Page 7: Pin Description

    Measure DC output voltage and DC output current then send it to Debug (RS232) or Ethernet. 3.2.2.2 Alarm Observation Function Monitor DC NFB and DC FUSE then send it to Main Debug (RS232) or Ethernet. DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 8 *Warning: If variable volume of the upper part of m Red/Green LED Picture 6. Rectifier Module (Front Panel): Green/Red LED Indicator 1. Green LED ('NOR'): Indicates Normal Rectifier status; no alarms or failures. 2. Red LED (FAIL): Indicates Failed Rectifier status. DONGAH ELECOMM R&D CENTER All rights are reserved.

  • Page 9: System Management

    54V output at 111A (with 3 rectifiers at 37A each). Designed to efficiently and reliably power a customer's system, the DIRS-4110 System includes protection and alarm features, hot-swappability, solid current-sharing, and system monitoring via TCP/IP and SNMP.

  • Page 10: Rectifier System

    File/Reference Page 2010.05.30 (10/21) Operation Manual.DOC 5.2 Rectifier System Block Diagram DIRS-4110 BLOCK DIAGRAM Input Outputs 5.3 Initial Inspection and Power-Up 5.3.1 Preliminary Inspection 5.3.1.1 Disconnect the AC Input power. Visually inspect the GMT fuses to ensure correct ratings and proper insertion into the fuse block.

  • Page 11: Rectifier Module

    The input circuitry passes Input AC through a No-Fuse Breaker (NFB), an EMI Filter, and Inrush Control. The Bridge Rectifier converts the AC into a pulsating DC current, which the Active Power Factor Control (PFC) circuit, which reduces the reactive current component to efficiently manage input power. DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 12 Main FET. The primary-to-secondary windings have a turns ratio that steps down the voltage on the secondary, which will then be rectified to the desired DC output. DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 13 A protection circuit is composed of current limitation circuit that limits current when output current increase, over voltage shutdown circuit that stops output when output becomes high voltage due to feedback failure, and a circuit that sends alarm when output does not occur. DONGAH ELECOMM R&D CENTER All rights are reserved.

  • Page 14: Control Module Function

    Fail occurs if it does not operate after unit installment or unit itself fails while operation. MAJOR LED is on at the front panel. 7.1.3 Deliver rectifier measuring data and alarm data to TCP/IP or SNMP. DONGAH ELECOMM R&D CENTER All rights are reserved.

  • Page 15: Control Module Block Diagram

    7.3.1 Function of Monitor Program - Rectifier operation status inquiry (Output voltage/current, alarm status of rectifier module) - Setting network information setting is possible. - Can set up the upper/lowest limit of measuring alarm. DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 16 Document No. Change code File/Reference Page 2010.05.30 (16/21) Operation Manual.DOC 7.3.2 Run pDIRS_4110.exe. - Try to connect by pushing Connect button. - If connection fails, reset the port. (initially set as COM1) DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 17 Operation Manual.DOC If connection is successfully made, status of rectifier is shown as the above. For now Rectifier Status section is shown, and push Ethernet Info section in order to see other section. DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 18 Push Initial Alarm icon In order to change DC HIGH VOLT, DC LOW VOLT alarm as the basic setting value. (Basic setting DC HIGH VOLT : 58V, DC LOW VOLT : 48V ) DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 19 2010.05.30 (19/21) Operation Manual.DOC Show rectifier IP and server IP in Ethernet Info tab. Reenter each section by pushing IP-Setting icon, check ‘V’ and push Setting in order to change setting value. DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 20 7.4.2.6 If the relevant site is on alarm it is changed to , if connection fails then and if it is in normal state it is changed to DONGAH ELECOMM R&D CENTER All rights are reserved.
  • Page 21 IP and site name. It takes about 5 sec to save. 7.4.2.9 Information of the relevant site is shown as the below window. Information of the selected site can be seen here. DONGAH ELECOMM R&D CENTER All rights are reserved.
