Manual Configuration

If the sensor is unable to automatically configure itself to your satisfaction, you can
manually configure it by adding, removing or adjusting lanes, lane dividers and lane
centers.
1. With the Lane Configuration page open, select the Manual button; the buttons in
the toolbar on the right of the screen will change from gray to black (see Figure
8).
2. The newly activated buttons will remain pressed when you click them. To change
the configuration, click the appropriate button, move your cursor over the window
showing the roads, lanes and vehicles, and then make the changes:
Adjust Lanes
The Adjust Lanes button allows you to click your mouse cursor on any visible shoulder
(gray line), lane divider (white line), or lane center (pink line) and drag it to the desired
position.
SmartSensor 105 User Guide – Wavetronix LLC

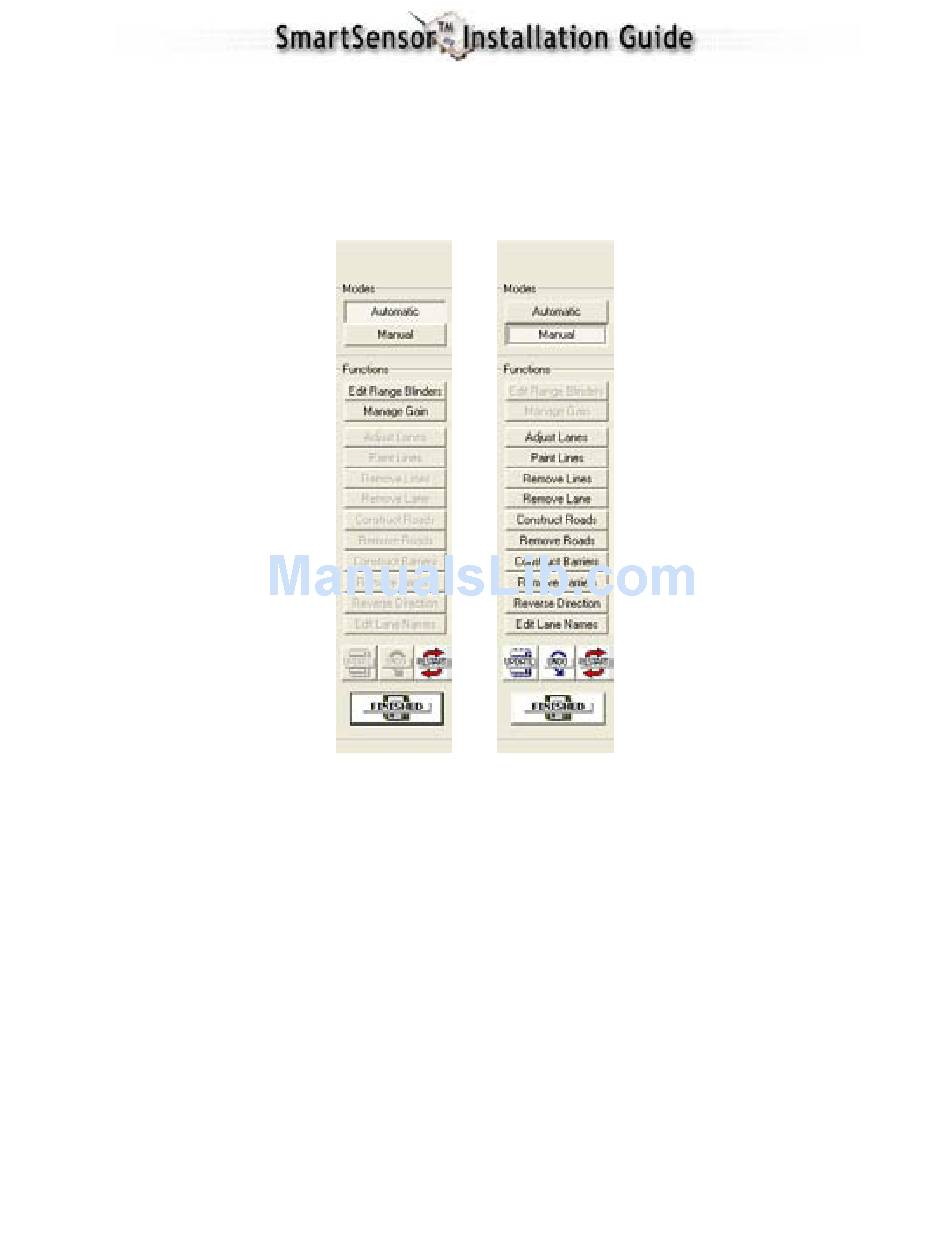

Figure 8 – Automatic and Manual Modes
