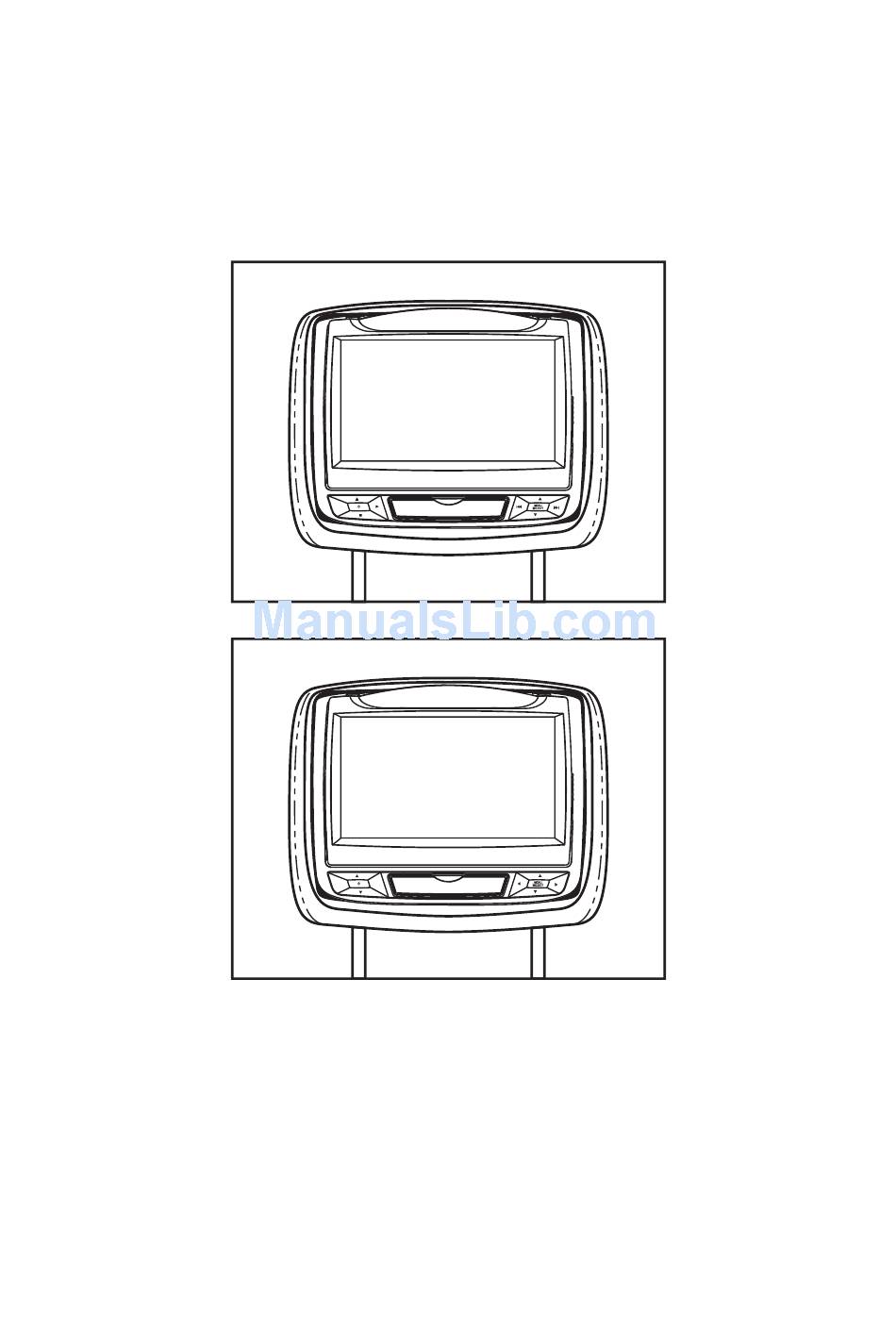

HR7012M / HR7012S Custom Vehicle Headrests with 7” Slim Style LED LCD Satellite Monitors or Built-in DVD Player for Rear Entertainment HR7012M HR7012S Installation Guide Model DD7012 DM7012 MM7012 128-9047...
IMPORTANT NOTICE Installation of headrest products require careful planning and preparation. Be extremely careful of seats that have airbags built into them. Keep wiring away from any air bag wiring (usually identified by yellow connectors and yellow wire jackets).Damage to air bag wiring can result in personal injury to vehicle occupants.
Page 3
MATERIAL TO USE IN THIS PACKAGE: 1) The wireless FMM Interface Box automatically determines which headrest is M1 and which headrest is M2 and sets each headrest to its own function (IR transmitter channel and IR receiver remote control codes). The headrests will still have the Pink/Green (MH1 and MH2) and Blue/ Yellow (SH1 and SH2) DIN cables on them and should be connected to their respective connectors.
Page 4
OPTIONAL: 3) HR7012GP Game Module Package (P/N HR7012GP) (1 pc) OPTIONAL The Game Module Package contains the following items: a) Game Controller P1 c) Game Module (P/N 136-5239) - (1pc) (P/N 136-5238) - (1pc) SELECT START b) Game Controller P2 d) Game Module Manual (P/N 136-5240) - (1pc) (P/N 128-9048) - (1pc)
Page 5
The HR7012 headrest system is available in three configurations; each can accommodate an optional game pack module. (P/N HR7012 GP) • Configuration 1: Model DD7012 Two 7” LCD Monitors (800 x 480 resolution) each with a built-in DVD player (HR7012M) •...
Page 6
AV/USB Connector Access HR7012M (With DVD) HR7012S (Screen Only) PULL DOWN PULL DOWN WIRED AUDIO AUDIO VIDEO AUDIO VIDEO AUDIO HEADPHONE AUDIO R AUDIO L VIDEO Insert/Eject 20 degrees Insert/Eject Disc No Disc Slot HR7012M HR7012S...
VEHICLE PREPARATION: Read the manuals and get familiar with the electrical requirements and connections. Prepare the vehicle by removing any interior trim necessary to gain access to the vehicle’s wiring as well as all areas where interconnecting wire harnesses will be located. The mounting method and the location will vary from vehicle to vehicle, so this manual will only focus on the installation of the Master and Satellite Monitors in the supplied configuration.
Page 8
7) Connect all the components together (electrically) and verify proper operation of all the system functions. a) The headrest DIN cables and the FMM Interface Box DIN cables are color coded. Connect each headrest cable to the correct color cable on the FMM Interface Box.
ELECTRONICS INSTALLATION/REPLACEMENT GUIDE Monitor Unit Install Monitor Unit to Headrest (HR7012M) (HR7012S) Installation a) Master/Satellite monitor headrest Match MH1/SH1 monitor cable to cable (MH1/SH1) 8 Pin Cable. M1 headrest connector b) Master/Satellite monitor headrest b) Match MH2/SH2 monitor cable to cable (MH2/SH2) 9 Pin Cable.
Page 10
Note: Switch off the ACC power during cable and unit installation. Failure to do so may damage the unit. Reverse the procedure for removing the electronics.
Page 11
HR7012 SYSTEM WIRING DIAGRAM HR7012M / HR7012S HR7012M / HR7012S Master Monitor Satellite Monitor Connect to external source such as Blu-ray player, game console 112-4208 112-4209 112-4210 112-4211 or multi-media head unit. 12 Pin AV Adapter Cable YELLOW GREEN BLUE 2 PIN DC POWER CABLE AV Input AV Output...
