The DL160 is a Digital Level and inclinometer for measuring levels and angles. It has a large clear
LCD panel which can display measurements in degrees or percentage. The zero sound feature al-
lows audible indication as the unit gets closer to being level (0
to lock the angle displayed. The DL160 also features a strong magnetised base allowing you to
mount the instrument on metal work you wish to level.

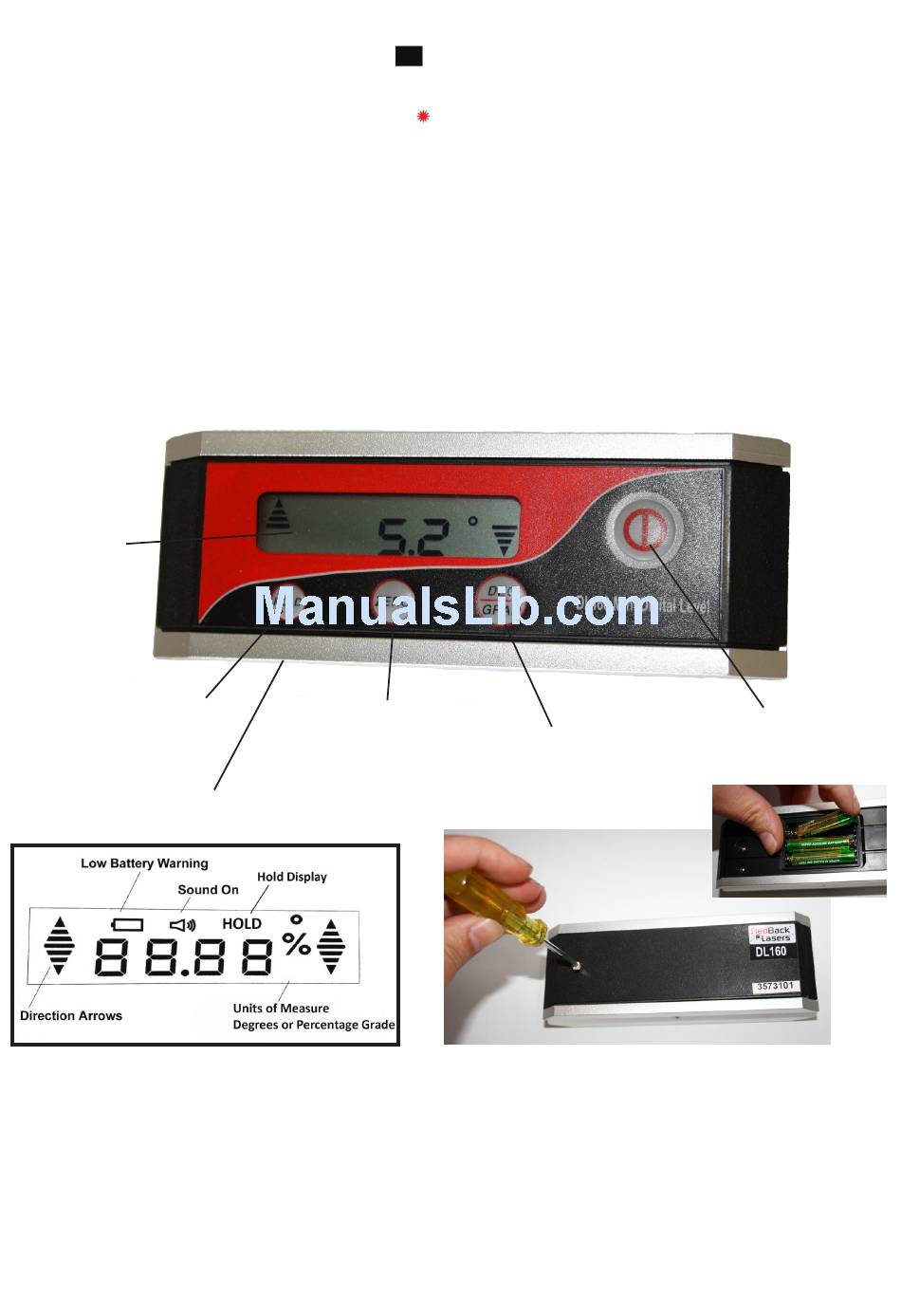

LCD Display
Hold Display Button
Magnetic Base

Operation

Power up the DL160 with the On/Off button, the LCD display will show the angle of a surface when placed on it, 0.0
and all four arrows will indicate level. When not level the arrows will indicate which direction the unit needs moving
to reach level.
The "Hold" button allows you to freeze the LCD display when pressed. This is useful when holding the level on a sur-
face in such a position that you cannot see the display, simply press the hold button the measurement will be frozen
untill you press the hold button again.
www.redbacklasers.com.au
TM
TM
Instruction Manual
Zero Button
Sound on Level
(Calibration Press & Hold)
DLLLL
Digital Level
), the Hold features allows the user
o
Units Select
(Degrees/Percentage Grade)
Battery Compartment
3x "AAA" Batteries
Power Button
