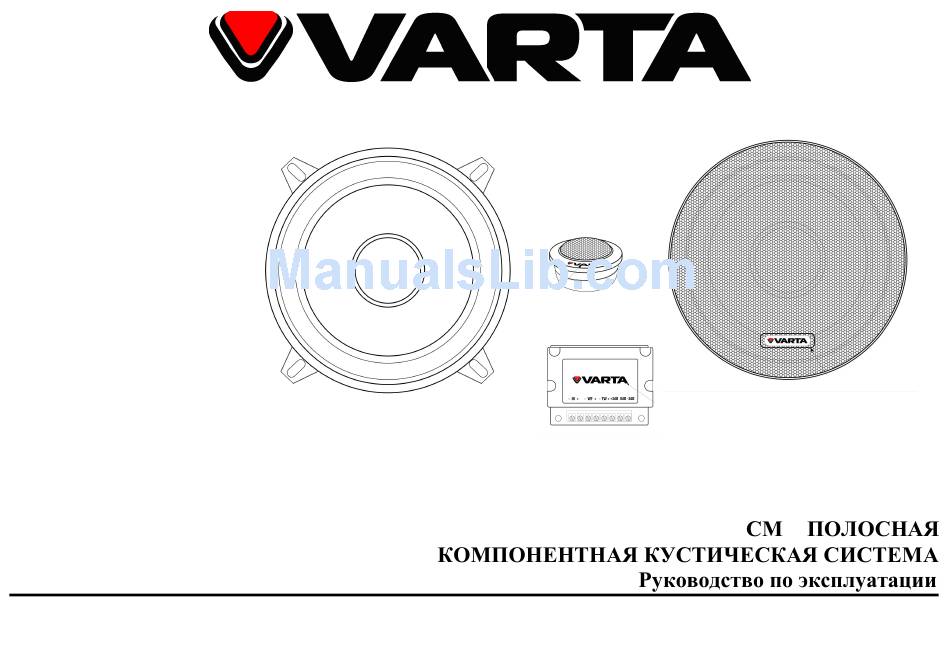

  • Page 1 V-SPB5.2 13 CM 2-WAY COMPONENT ACOUSTIC SYSTEM Instruction manual...

  • Page 2: Important Safeguards

    V-SPB5.2 Description The set of acoustic system includes: acoustic system tweeter 2 pcs crossover 2 pcs metal grill 2 pcs speaker wire 3.6 m screw 8 pcs clip 8 pcs 3.6 m (x 8) (x 8) Important safeguards · The owner s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual.

  • Page 3: Mounting The Speakers

    V-SPB5.2 · Make sure the wire of the negative pole terminal is disconnected from accumulator while connecting the speaker terminals. Turn on the various components and slowly advance the volume. Remember to check and re-check all connections to insure proper installation and use.
  • Page 4 V-SPB5.2 · After cutting and drilling all holes, inspect the mounting areas for any metal burrs or rough edges. File any area that may interfere with the mounting of the speaker. · Clean any metal shavings from the mounting area and check for areas in which water may enter the speaker cavity. Treat the area for water protection when necessary.
  • Page 5 V-SPB5.2 Component scheme of connections Tweeter EQ switch SWITCH TO LEFT = -3 dB SWITCH TO CENTER = FLAT SWITCH TO RIGHT = +3 d It is important to wire all the speakers in phase. If after the installations there distinct lack of bass, switch around the POSITIVE & NEGATIVE of one Midrage/Midbass driver to correct the phasing.
  • Page 6 (+ or -) are securely connected Damage speaker wire or speaker Replace the speaker or speaker wires The audio source is damaged Take your unit to the local dealer for repair The audio receiver is not Varta Use audio receiver Varta...

  • Page 7: Specification

    V-SPB5.2 Specification Loudspeaker one woofer: 13 cm (5.25 ) Kevlar fiber + paper composite cone Magnet 10 Oz magnet Tweeter 25 mm teteron dome Peak output power 130 W Rated output power 65 W Impedance 4 hm Sensitivity 88 dB...
  • Page 8 V-SPB5.2 3.6 m (x 8) (x 8) · · · · ·...
  • Page 9 V-SPB5.2 · · · · · · · ( =137 , Ø =5...
  • Page 10 V-SPB5.2 · · · · ·...
  • Page 11 V-SPB5.2 · ·...
  • Page 12 V-SPB5.2 = +3dB = -3dB +3dB,...
  • Page 13 V-SPB5.2 · Varta Varta...
  • Page 14 V-SPB5.2 : 13 (5,25 ) 10 Oz (311 ) 60 22000 138 69 0.89 / 3.4...
