Summary of Contents for Impulse Sport SHDV-5004
-
Page 1: User Manual

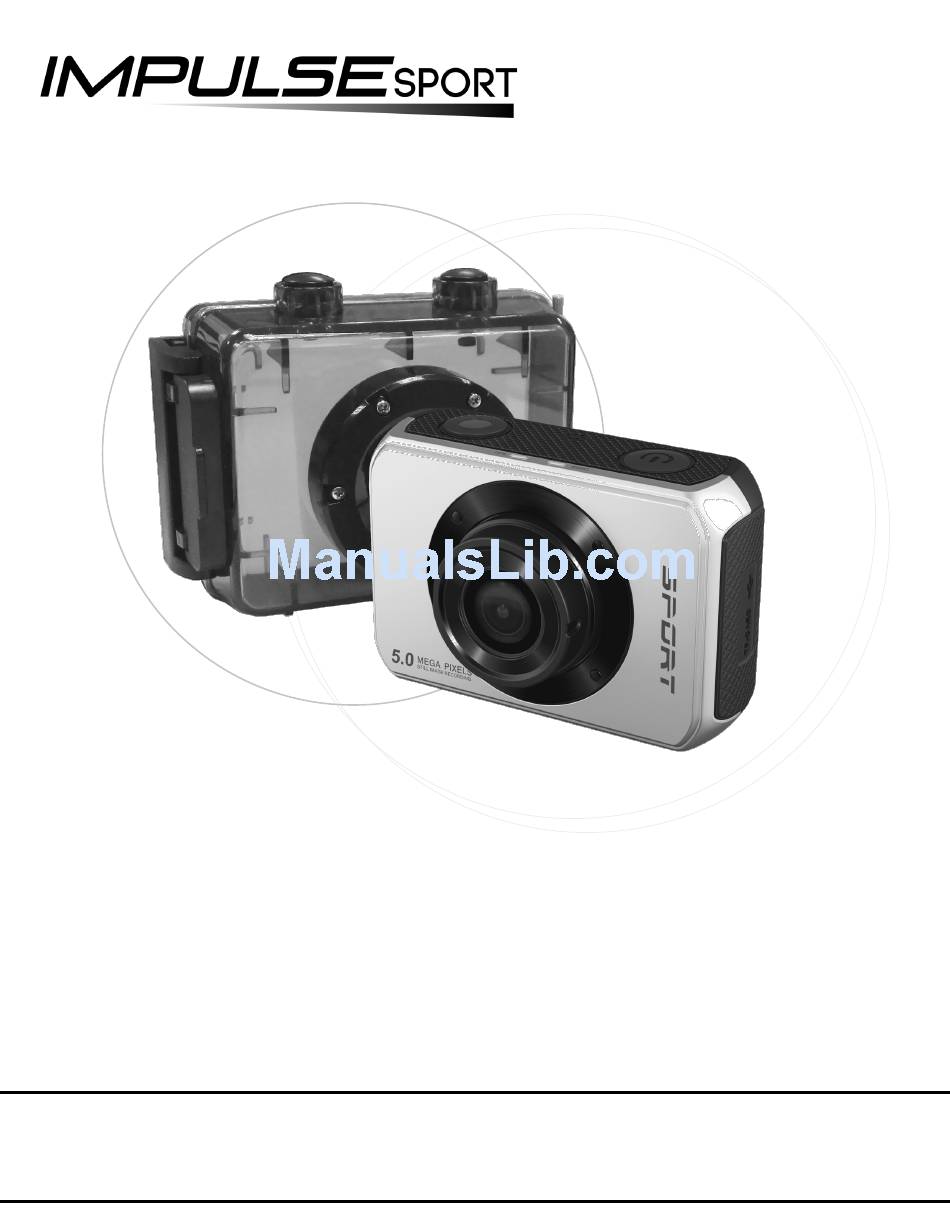

Model: SHDV-5004 Please read this manual carefully before operating camera. Keep these instructions in a safe place for future reference. User Manual... -
Page 2: Table Of Contents
Table of Contents Precautions Disclaimer Preparing for Use Parts Water resistant TPU case Battery Indicator Inserting the Memory Card Camera Mount Installation Basic Operation Turning Power On and Off Change Camera Settings LCD Display Screen Setting the Camera Recording Movie Clips Video Mode Menu 10-11 Taking Photos... -
Page 3: Precautions
Precautions Before using the Impulse Sport Camera, please make sure that you read and understand the safety precautions described below to ensure the camera is operates correctly. Do not point the camera directly into the sun or other intense light sources that could damage ... -
Page 4: Preparing For Use
Preparing for Use Parts of the Camera 1. USB Port 2. Memory Card Slot 3. LCD Screen 4. Shutter Button 5. Speaker 6. Charging Indicator Light 7. Busy Indicator Light 8. Power Button 9. Reset Button 10.AV Out Jack 11.HDMI Port 12.Tripod Slot 13.Microphone 14.Lens... -
Page 5: Water Resistant Tpu Case
Water Resistant TPU Case The Impulse Sport Camera includes a water resistant TPU case. Enclose the camera with this case to keep the camera dry when taking photos or videos in water related activities. Battery Indicator The camera has an internal lithium battery. -
Page 6: Camera Mount Installation
Installing Camera Mounts The Impulse Sport Camera includes a bike mount and two different helmet mounts. Mount A is for side helmet mounting. Mount B is for top helmet mounting. Mount C is for bike mounting. Align the screw on the mount with the tripod hole on the bottom of the camera, twist camera in place until it is securely tightened to the mount. - Page 7 Attaching Bike Mount to Bicycle: 1) Have mount fixed to camera as explained in previous page. 2) Open the clamp part of the mount and insert the rubber pad for cushioning. 3) Set the mount onto the handlebar of the bike. Fix the screw so that it is secured onto the han- dlebar.
-
Page 8: Basic Operation
Basic Operation Turning the Power On and Off 1) Press the Power button to turn on the camera. 2) Press the Power button again to turn the power off. Change Camera Settings Switch between the settings through the touchscreen LCD screen. The current camera settings appear on the LCD screen. - Page 9 Capture Mode Screen 1) Capture Setting 2) White Balance 3) Exposure 4) Start 5) Time 6) Date 7) Battery Level 8) Zoom Out 9) Zoom In 10) Memory Capacity 11) Continue Shot 12) Self Timer: 10s, 5s, 2s, Single 13) ISO: Auto, 100, 200, 400 14) Scene: Portrait, Night Scenery, Night Portrait, High Sensitivity, Beach, Auto, Scenery.
-
Page 10: Lcd Display Screen
Setting up the Camera Please read the following instructions before you begin taking photos or video recordings. 1) Turn the camera On. 2) Touch the icon to display the MENU on the screen. Then press the icon to bring up the Setup menu. - Page 11 Setting up the Camera Menu Function You can review the photos on a television with the supplied AV cable. TV Out should be set to either NTSC or PAL depending on your region. TV Mode NTSC: America, Japan, and others PAL: Europe, Oceania, and others Format your SD card, removing the SD card dur- ing formatting may damage the card.
-
Page 12: Recording Movie Clips
Recording Movie Clips 1) Turn on the camera and press the to set the camera to video mode. 2) Press the shutter button to begin recording. 3) Use the LCD screen to view your subject. Touch the magnifying glass icon to zoom in or out. 4) The LCD screen will display how much it has recorded. - Page 13 Menu Function Record voice when recording movie clips. Record Audio Options: On or Off This function can be used to add a date to your photos as you take them. Date Stamp Options: On or Off...
-
Page 14: Taking Photos
Taking Still Images 1) Turn on the camera and press the to set the camera to capture more. 2) Press the shutter button to take a photo. 3) Press the magnifying glass icon to zoom in or our on the subject. 4) After the photo is taken, the LCD display will show the image for a brief moment. - Page 15 Menu Function You can select the scene mode according to the photo taken. Scene Mode Options: Auto / Scene / Portrait / Night Scene / Night Portrait / High Sensitivity / Beach Use the function to reduce blur caused by a shaky camera.
-
Page 16: Playback And Delete
Playback and Delete 1) Turn on the camera and press the to set the camera to playback mode. 2) Swipe your finger right or left to view the photos and video files. 3) Press the shutter button or press the icon to start playing the video file. -
Page 17: Making Connections
Making Connections Connecting Camera to the TV 1. Plug-in the provided cable to the TV-OUT outlet on the TV to the camera’s AV out jack. 2. The LCD screen will turn black. 3. Find the correct mode on your TV to view the images from the camera on the TV. 4. -
Page 18: How To Use The Pc Camera Function
How to use the PC Camera Function In order to have the camera work as a webcam, you must first install the necessary software ex- plained below. 1. After installing the camera drivers, connect the camera to the PC via USB cable. 2. - Page 19 Notes: When using MAGIX Video Easy SE or MAGIX Photo Manager 10, make sure you register the product first for complete access of the programs. Make sure you have QuickTime Player installed on your computer. MAGIX Video Easy SE and MAGIX Photo Manager 10 are only compatible with Windows XP, ...
-
Page 20: Specifications
Specifications Sensor 5 MegaPixel CMOS LCD Display 2.0” TFT Touch Screen Lens F/3.2. f=7.5mm Shutter Electronic Shutter: 1/2 ~ 1/800 sec Angle of Lens 120° Still Image: 12M / 10M / 9M / 8M / 7M / 5M / 3M / 2M / 1.3M Resolution Video: 1080P / 720P / VGA / QVGA White Balance...
