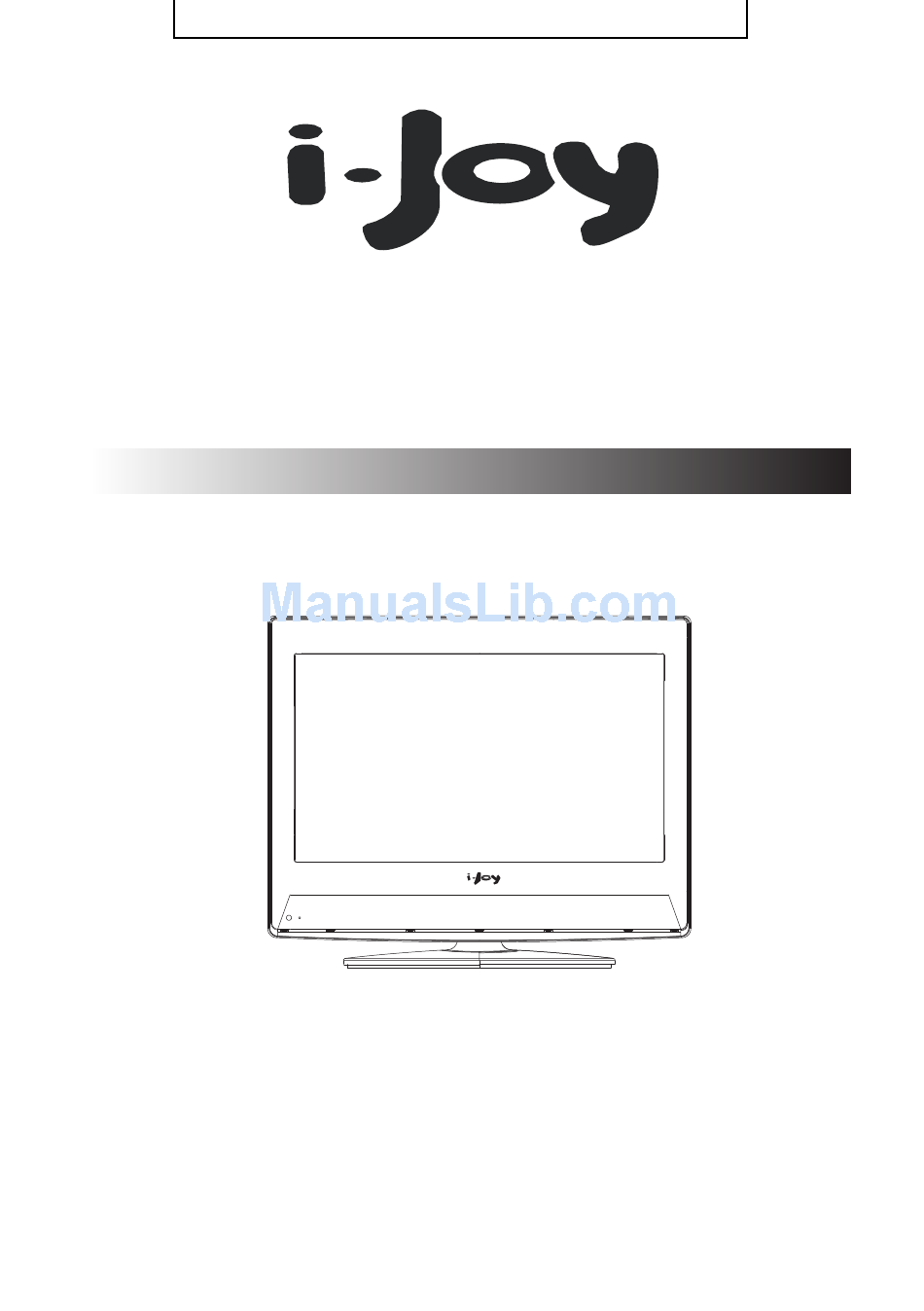

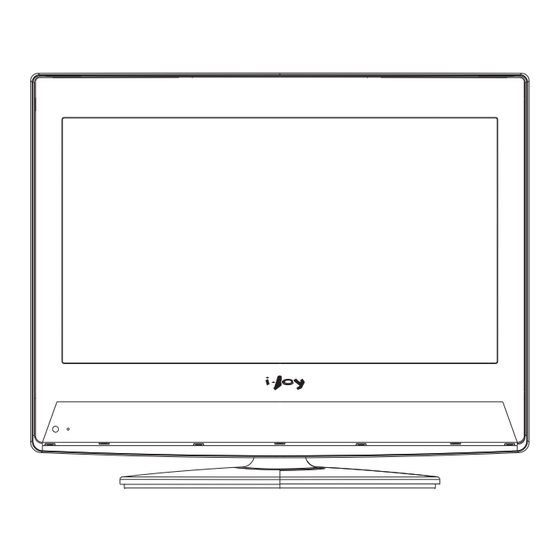

- Page 1 Ofrecido por www.electromanuales.com 15.4” Digital LCD TV With DVB-T& USB& CARD Combo&PVR Model : i-Display 8015 USER MANUAL Read this manual carefully and retain for future reference...
-
Page 2: Table Of Contents
Ofrecido por www.electromanuales.com Contents PREFACE SAFETY PRECAUTIONS IN THE BOX FRONT & LEFT CONNECTIONS OF LCD Power Cord Connection Antenna Connection SCART Connection TV INSTALLTION AV INPUT Connection DRAWINGS S-Video Connection VGA Connection HDMI Connection Remote control instru ctio ns REMOTE CONTROL Battery Usage Caution ACCESSORIES... - Page 3 Ofrecido por www.electromanuales.com Auto search Channel organizer Mannul search options DIGITAL TV OPERATION Time Advanced setting Recorder menu USB HOTKEY MOVIE PLAYER menu MUSIC PLAYER menu PHOTO PLAYER menu USB/SD Device &system restriction OPERATION Card Reader and USB Playback Media Support List TROUBLESHOOTING AND ADVICE SPECIFICATIONS...
- Page 4 Ofrecido por www.electromanuales.com...
- Page 5 Ofrecido por www.electromanuales.com...
-
Page 6: In The Box
Ofrecido por www.electromanuales.com In the box IN THE BOX USB/SD RECORDER STILL TV/RADIO LCD TV SET Remote control 1.5V Batteries 15.4 "Digital LCD TV With DVB-T & USB & CARD Combo&PVR Adapter Model : i-Display 8015HDR USER MANUAL Read this manual carefully and retain for future reference User Manual Power cord... - Page 7 Ofrecido por www.electromanuales.com Front and side connections of LCD Front and side Connections of LCD TV/AV 1. Press “POWER ” switch on the LCD TV when at standby mode. 2. Press “ P+” or “ P- ” to scan through channels. 3.
-
Page 8: Tv Installtion Drawings
Ofrecido por www.electromanuales.com TV Installation drawings TV INSTALLTION DRAWINGS Power Cord Connection Connect the power cord correctly as displayed below. AC100-240V ,50/60HZ INPUT Antenna Connection ANTENNA ANTENNA OUTDOOR ANTENNA AMPLIFIER INDOOR ANTENNA AMPLIFIER 75 OHM ANTENNA PLUG POWER PLUG OF ANTENNA AMPLIFIER required. -
Page 9: Scart Connection
Ofrecido por www.electromanuales.com TV Installation drawings SCART Connection TV back SCART cable DVD or VCR back DVD or VCR NOTE: To record digital signal please switch SCART adaptor to out . AV Connection LCD TV Side RCA Video Cable DVD B ack TVBack... -
Page 10: S-Video Connection
Ofrecido por www.electromanuales.com TV Installation drawings S- Video Connection AUDIO cable S-VIDEO cable s-video DVD or VCR Back TV Back DVD or V CR Connect the S-VIDEO output of the DVD or VCR to the S-VIDEO input on the set. The picture to the quality is improved, compared to conn ecti ng a regular VCR video input. -
Page 11: Hdmi Connection
Ofrecido por www.electromanuales.com TV Installation drawings HDMI Connection LCD TV Side HDMI Cable HDMI OUT DVD o r VCR Back TV Back Connect HDMI output of the DVD to the HDMI input jack on the LCD TV set. Select the HDMI input source using the SOURCE button. -
Page 12: Remote Control
Ofrecido por www.electromanuales.com Remote control REMOTE CONTROL Remote control instructions POW ER Turn the LCD TV On or Off. MUTE Press to mute the sound. Press again to unmute. SOURCE Press repeatedly to cycle through the following: S-VIDEO S CA RT HDMI PMODE Press repeatedly to cycle through the avai labl e video... - Page 13 Ofrecido por www.electromanuales.com Remote control TV MENU Displays the main menu. EXIT Exit from the current menu. TEXT Press to turn on or off the teletext Display Press to display the source and channel information. THUMBSTICK( ▲/ ▼/◄ / ► / ENTER ) Allows you to navigate the on-screen menus and adjust the system settings to your preference P+ /-...
- Page 14 Ofrecido por www.electromanuales.com Remote control TV and TXT pictures are mixed together on a transparent background. TXT INDEX Request Index page when index link is valid. SUBPAGE TELETEX T Subpage. FAV- / FAV FAV+ Press to increase / decrease y our favou ri te program. Jump to previous track in USB mode Jump to next track in USB mode Fast forward key in...
-
Page 15: Accessories
Ofrecido por www.electromanuales.com Battery usage caution Battery Usage Caution a)Open the cover. b)Use AAA size batteries. When inserting the batteries, make sure the polarities are correctly aligned with the markings on the battery compartment. Replace the battery cover. prevent battery leakage which may result in bodily harm or damage to the remote: Install all batte rie s correctly , and as marked on the remote control. -
Page 16: Video Menu Options
Ofrecido por www.electromanuales.com TV operation VIDEO menu options 1. Press the MENU button on the remote control to enter the OSD menu, then press button to select the Picture menu. 2. Press the button to enter the Picture menu setting ,use to move the menu bar, and then press button to adjust the value of selected item. -
Page 17: Audio Menu Options
Ofrecido por www.electromanuales.com TV operation AUDIO menu options Sound 1. Press the MENU button on the remote control to enter the OSD menu,then press button to select the sound menu. 2. Press the button to enter the sound menu setting ,use to move the menu bar, and then press button to adjust the value of selected item. -
Page 18: Atv Channel
Ofrecido por www.electromanuales.com TV operation Channel Area Area Spain Press the button to select the Area Colour System SECAM item, and then use buttons to select the Select Sound System area. Menu Auto Search Colour System Exit Manual Search Press the button to select the Colour System 49.75 MHZ Fine Tune... -
Page 19: Setup
Ofrecido por www.electromanuales.com TV operation Channel Edirtor Cannel Frequency System Name Skip Swap: Swap Channel(Press Red Key) 6 2 . 2 5 1 2 4 . 5 0 Insert: Insert Channel(Press Green Key) 1 4 0 . 2 5 Copy: Copy Channel(Press Yellow Key) 1 8 6 . -
Page 20: Pc Setup
Ofrecido por www.electromanuales.com TV operation PC Setup 1. Press the MENU button on the remote control to enter the OSD menu, then press button to select the PC Setup menu. 2. Press the button to enter the menu setting ,use to move the menu bar, and then press button to adjust the value of selected item. -
Page 21: Auto Search
Ofrecido por www.electromanuales.com Digital TV operation DVB Operation Main menu 1. Press the SOURCE button on remote control to enter the signal source list, and press to choose the DTV, then press to enter the DTV mode. 2. Press the Menu button to enter the main menu of DTV. 3. -
Page 22: Channel Organizer
Ofrecido por www.electromanuales.com Digital TV operation Channel Organizer Channel Organizer Skip/ S.No Channel name Fav/ Del/ Lock/ In CHANNEL MANAGER window keys are used 0007 7 Digital for selecting manager items; key are used for 0070 7HD Digital 0071 7 Digital 1 entering the CHANNEL ORGANIZER. - Page 23 Ofrecido por www.electromanuales.com Digital TV operation Multiaudio Audio Multiaudio Stereo When the SOURCE is selected as DTV, users can enter 0770 AUDIO1 MULTI- AUDIO. The multi- audio can be selected by using keys and the selection is in the loop of STEREO LEFT"...
-
Page 24: Time
Ofrecido por www.electromanuales.com Digital TV operation Channel Management Area Spain Select Auto Search Menu Manual Search Exit Time Advanced Setting Manual Search Channel Name Manual Search 177500 Freq( KHz) Bandwidth Reset Reset Press the buttons select" Manual Search" and then use enter Manual Search menu Press buttons to select item of the channel... -
Page 25: Advanced Setting
Ofrecido por www.electromanuales.com Digital TV operation Advanced Setting Press to select Advanced Setting Then Press ENTER button on remote control to enter advanced setting Sub-menu. DTV / Advanced Setting English Preferred Audio Preferred Subtitle English Press to select Sub-menu. Press Parental Lock to adjust selected sub-menu. -
Page 26: Recorder Menu
Ofrecido por www.electromanuales.com Recorder operation Recorder menu The recorder menu consists of 4 functions. They are Record Start/Stop, File Manager, Device List and Custom. Note: it does not support digital radio recording function. USB response time depends on how large of the files in HDD; if need more time, Please wait patiently. - Page 27 Ofrecido por www.electromanuales.com Safety Recorder operation TIMED RECORD (Custom) This is the interface in which you can set up data. You can set up timer mode, channel, wakeup date/time and duration here. Before the system starts recording it will enter the preparing mode, switch to DTV mode and the message “prepare to record”...
- Page 28 Ofrecido por www.electromanuales.com Recorder operation Wakeup Timer On Time (Begin Recording time) Timer NO Timer Mode Once Please select the time for beginning Wakeup mode Recorder of the recording Wakeup channel SZTVM01 Wakeup date 10/11/2008 On time 08:09 Duration time 08:20 Confirm Move...
- Page 29 Ofrecido por www.electromanuales.com USB/SD operation Press USB item on SOURCE menu to enter USB functions. The USB functions include Movie Player, Music Player, Photo Player. Mo vie 0001 /USB 0002 /CARD Move Select Movie Music Photo Mo vie /USB In any one root menu of MOVIE, MUSIC, PHOTO 0001 /PVR end user can press hotkey to switch function...
- Page 30 Ofrecido por www.electromanuales.com USB/SD operation The user can play music files via the music player. ENTER Movie Music Photo Movie Music Photo Movie Music Photo key to rotate the picture left or right. picture Device & System Restriction: 1) The system support USB Mass Storage and SD/MMC/MS card. 2) USB host: Support USB 2.0, USB1.1 compatible, but can not support USB Hub.
-
Page 31: Media Support List
Ofrecido por www.electromanuales.com USB/SD operation Card Reader and USB player The card reader cab read SD/MMc/MS 3 kinds of cards and USB storage Media Support List: Format Media Type Remark *.MPG,*.DAT MPEG-1/2 *.VOB MPEG-2 MP@ML MPEG4 Video Xvid *.AVI DivX(4.0,5.0) Audio Resolution size limit: no limitation JPEG... -
Page 32: Troubleshooting And Advice
Ofrecido por www.electromanuales.com Troubleshooting and advice TROUBLESHOOTING AND ADVICE Before calling our SAS centre, please check if you can solve the trou bles ho ot ing by yourself. Troubleshooting Control Check that all cables and cord's are plugged in correctly. Check the Antenna cable is securely fitted. -
Page 33: Specifications
Ofrecido por www.electromanuales.com Specifications SPECIFICATIONS 15.4Inch Screen size Display Type 1280X800 Resolution Brightness 200 cd/m 262,144 Color 800 : 1 Contrast Ratio Aspect Ratio DC12V DC INPUT TV system PAL/SECAM PAL/NTSC Video Input Format Standard antenna socket 75Ω Antenna Input L/R 3 W x 2 Audio Output Video 1.0Vp-p 75Ω...
