Double Matrix
Double sided record cleaning machine
Hi-Fi Components
Spardorfer Str. 150
www.clearaudio.de
Professional
clearaudio
D-91054 Erlangen
Tel. +49(0) 1805/059595
www.analogshop.de
info@clearaudio.de / copyright clearaudio 2011
©
electronic
FAX +49(0) 09131/51683
User manual
Made in Germany
GmbH
Version 1.2_02.21.11_E
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clearaudio Double Matrix Professional
Summary of Contents for Clearaudio Double Matrix Professional
-

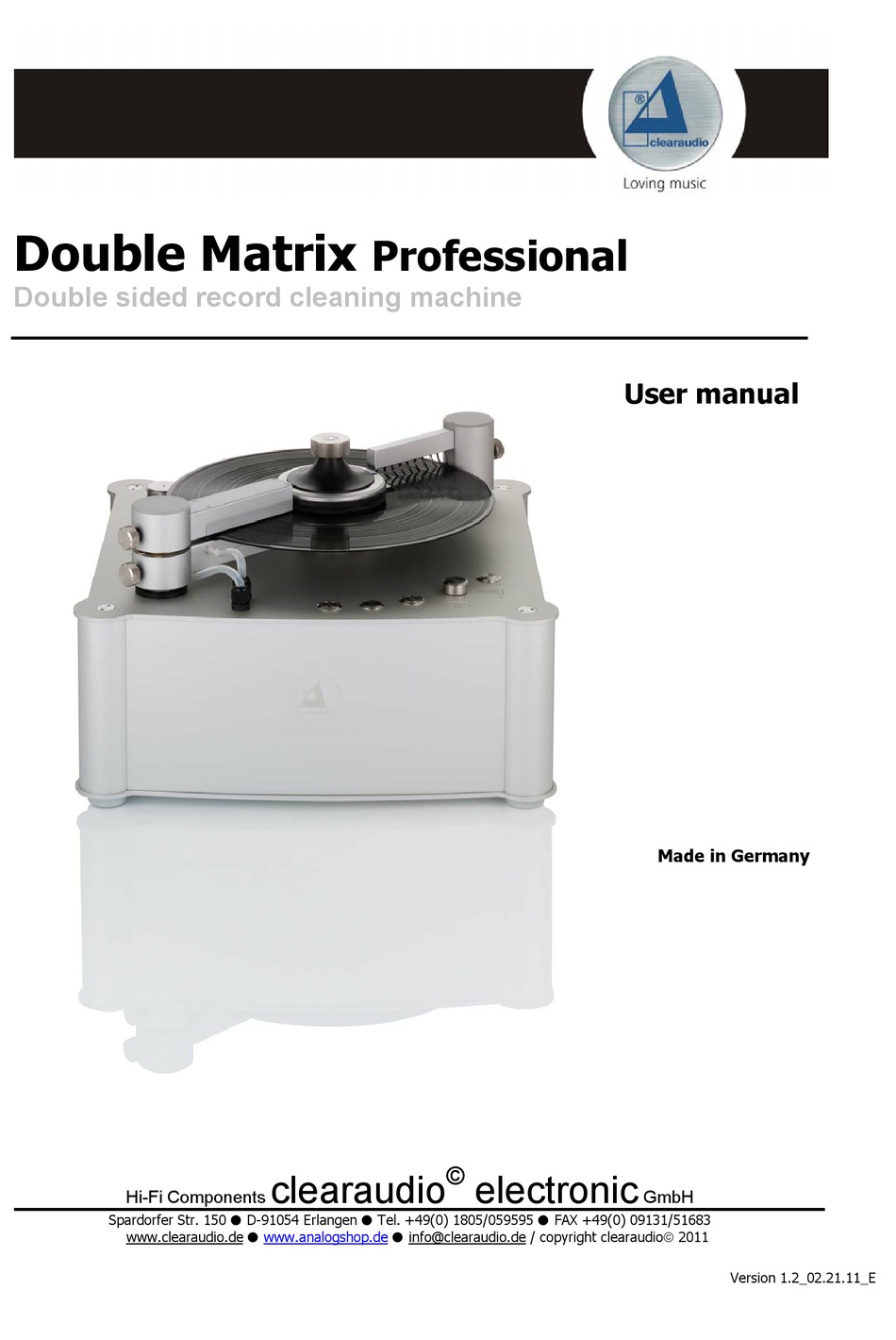

Page 1: User Manual
Double Matrix Professional Double sided record cleaning machine User manual Made in Germany © clearaudio electronic Hi-Fi Components GmbH Spardorfer Str. 150 D-91054 Erlangen Tel. +49(0) 1805/059595 FAX +49(0) 09131/51683 www.clearaudio.de www.analogshop.de info@clearaudio.de / copyright clearaudio 2011 Version 1.2_02.21.11_E... - Page 2 User manual Dear clearaudio customer, Double Matrix Professional Congratulations to your new clearaudio record cleaning machine, an extraordinary product made by clearaudio. The cleaning of dirty or used records does improve the overall sound quality. This appears as well for new vinyl records as there are often residues left over, which stay in the grooves during the pressing process.
- Page 3 1. Package content 2. Features overview 3. Set up 4. Operational controls and functions 5. Beginning of operation 6. Machine Maintenance 7. Service information 8. Technical data Warranty information Important note! Pic. 1: Warning Page 3 clearaudio electronic GmbH 2011...
-
Page 4: Package Content
(already mounted on the rubber tube) 9. Single Adapter 10. Warranty card * * see on page 18 warranty registration. In case that the content is not complete, please contact your clearaudio dealer, Double Matrix Professional where you purchased the Page 4... -
Page 5: Features Overview
As an additional feature there is a silent pad on the bottom of the housing. (For normal use, about 20 records per hour) Page 5 clearaudio electronic GmbH 2011... - Page 6 Please make sure that the appropriate connector is used as well the voltage is correct! Double Matrix Professional Now your is ready to be used. Please first finish reading the whole manual! Page 6 clearaudio electronic GmbH 2011...
- Page 7 For switching on and off. If the unit is switched on the red light of the switch is lightened up. If the machine is longer not in use, please switch it off on the back side. Page 7 clearaudio electronic GmbH 2011...
-
Page 8: Operational Controls
If the hairs of the carbon fibre brush are not building enough connection to the surface of the record, use a comp to place the carbon hairs back in position. Operational controls Pic. 7: Operational controls Page 8 clearaudio electronic GmbH 2011... - Page 9 (pic 8) back into the tank. Even during vacuum the blue tube is of help. top arm neodym magnet lower arm blue overflow release tube Pic. 8: Resting position Pic. 9:Working position Page 9 clearaudio electronic GmbH 2011...
- Page 10 (see page 14). clearaudio “Seal” record clamp The clearaudio “Seal record clamp” (pic.11) has been developed to cover and seal the record label and to hold the records tight on any platter devices. On the outer aluminium ring you will find two small deflation holes, so that there will be no vacuum while putting the seal clamp on records.
-
Page 11: Beginning Of Operation
User manual 5. Beginning of operation 5.1 Fluid tank re-fill We recommend you to use only the clearaudio “Pure Groove” cleaning fluid for a perfect result and for the safety of your records (also available under: www.analogshop.de). Attention: Foaming fluid can damage the machine and void the warranty! The fluid tank has a maximum capacity of 0,25 litre. - Page 12 2. Dust and dirt, which are on the microfibre stripes should be taken off after every use. We recommend to take a clean and soft cloth. 3. Please change the microfibre stripes at regular intervals, especially if you use the machine very often. Page 12 clearaudio electronic GmbH 2011...
-
Page 13: Machine Maintenance
Do not place the stripes over the small fluid dispensing holes. After changing the microfibre stripes you can install the cleaning arms again. Please use for this the opposite way as describes above. Page 13 clearaudio electronic GmbH 2011... - Page 14 Attention! During the cleaning process, never switch on the vacuum! Before releasing the rubber tube, let the fluid rest in the tank for about 20 minutes. Pic. 13 Rubber tube seal / lock Page 14 clearaudio electronic GmbH 2011...
- Page 15 “LIQUID” and let the fluid drain completely into the container, until there is no fluid left. Place back the rubber tubes onto the cleaning arms. If you do not use the machine for a longer period, we recommend to drain the collecting and the holding tank! Page 15 clearaudio electronic GmbH 2011...
-
Page 16: Service Information
Please pack the machine like it has been packed originally from clearaudio. Only in the original packaging a secure transport is possible. Legal disclaimer : Clearaudio refuse to cover any claims or damage to records or any other damage, that have been Double Matrix Professional . caused by misuse or mishandling of the Page 16 ... -
Page 17: Technical Data
410 mm x 385 mm x 175 mm Total height: 265 mm (incl. record clamp) Warranty: 3 years, if the warranty card is filled out correctly and send back to clearaudio within 2 weeks Total Power consumption: 500 Watts Noise Level: approx. - Page 18 RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.
